Karry Elephant X7 single row pure electric 3.7m side panel micro card
Submit purchase requestBasic Information
- type:
- Truck
- Wheelbase:
- 3600mm
- Box length level:
- 3.7 meters
- Body length:
- 5.875 meters
- Body width:
- 1.83 meters
- Body height:
- 2.07 meters
- Total mass:
- 3.495 tons
- Rated load:
- 1.405 tons

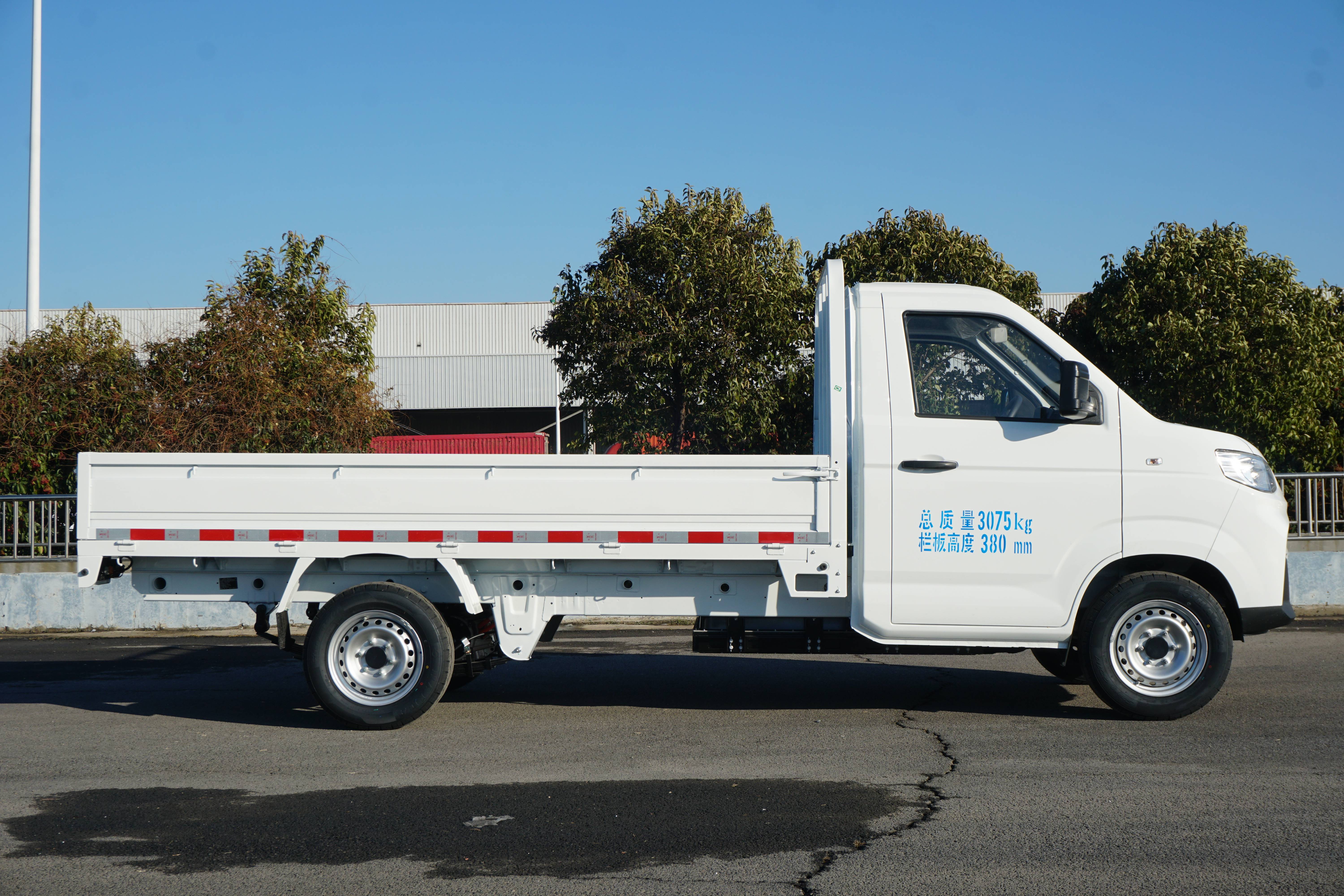

Truck Picture
Truck Configuration
Basic Information
- type
- Truck
- Wheelbase
- 3600mm
- Box length level
- 3.7 meters
- Body length
- 5.875 meters
- Body width
- 1.83 meters
- Body height
- 2.07 meters
- Total mass
- 3.495 tons
- Rated load
- 1.405 tons
- Vehicle weight
- 1.96 tons
- Maximum speed
- 80km/h
- Factory standard battery life
- 251km
- Tonnage level
- microcard
- Origin
- Kaifeng, Henan
Motor
- Motor brand
- Suzhou Huichuan
- motor model
- TZ180XS124
- Motor type
- Permanent magnet synchronous motor
- rated power
- 40kW
- Peak power
- 85kW
- Motor rated torque
- 113N·m
- Peak torque
- 256N·m
- Fuel category
- pure electric
Chassis parameters
- Allowable load on front axle
- 1095kg
- Allowable load on rear axle
- 2400kg
- Tire specifications
- 185R15LT 6PR
- Number of tires
- 6
Battery
- Battery brand
- Ningde era
- Battery Type
- Lithium Iron Phosphate
- battery capacity
- 55.7kWh
- Energy Density
- 146.3Wh/kg
- Total battery voltage
- 322V
- charging method
- Fast charging: slow charging
