Dongfeng Commercial Vehicle Tianlong KL 560 HP 8X4 6.8m dump truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 2050+3000+1350mm
- Body length:
- 9.775 meters
- Body width:
- 2.55 meters
- Body height:
- 3.6 meters
- Front track:
- 2040/2040mm
- Rear wheelbase:
- 1880/1880mm
- Vehicle weight:
- 15.5 tons

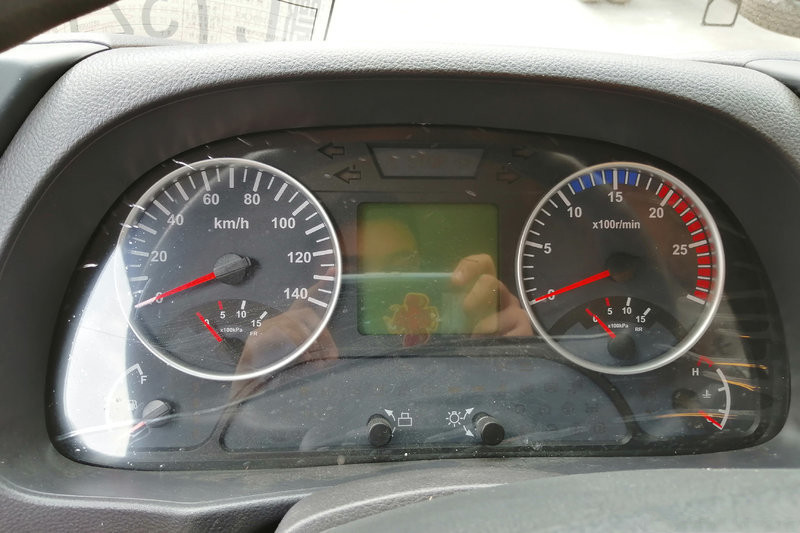

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 2050+3000+1350mm
- Body length
- 9.775 meters
- Body width
- 2.55 meters
- Body height
- 3.6 meters
- Front track
- 2040/2040mm
- Rear wheelbase
- 1880/1880mm
- Vehicle weight
- 15.5 tons
- Rated load
- 15.37 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 15 degrees
- Departure angle
- 25 degree
- Origin
- Hubei Shiyan
- Market segments
- Road transport
- Remark
- Standard configuration: curtains, high-end seats (with ventilation function), 300W inverter, direct push + disconnect board
Engine parameters
- engine model
- Dongfeng DDi13E560-60
- Engine brand
- Dongfeng
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Displacement
- 12.9L
- Emission Standards
- National VI
- Maximum horsepower
- 560 HP
- Maximum output power
- 410kW
- Maximum torque
- 2590N·m
- Maximum torque speed
- 1000-1400rpm
- Rated speed
- 1800rpm
Gearbox parameters
- Gearbox model
- Dongfeng DT1428 DD
- Gearbox brand
- Dongfeng
- Forward gear
- 14 gears
- Number of reverse gears
- 2
- Shifting method
- Manual
Chassis parameters
- Frame size
- 300x90x(8+6)mm
- Front axle description
- 6t
- Allowable load on front axle
- 6500/6500kg
- Rear axle description
- Hand 300
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 5.26
- Number of spring leaves
- 9/9/13
- Tire specifications
- 12.00R20 18PR
- Number of tires
- 12
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 350L
- Carton length
- 6.8 meters
- Cargo box width
- 2.3 meters
- Cargo box height
- 1.5 m
- Container form
- Back flip dump type
