Dongfeng Commercial Vehicle Tianjin KC 340 HP 8X4 5.8m dump truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 1995+2350+1350mm
- Body length:
- 8.875 meters
- Body width:
- 2.55 meters
- Body height:
- 3.6 meters
- Front track:
- 2010/2010mm
- Rear wheelbase:
- 1880/1880mm
- Vehicle weight:
- 13 tons

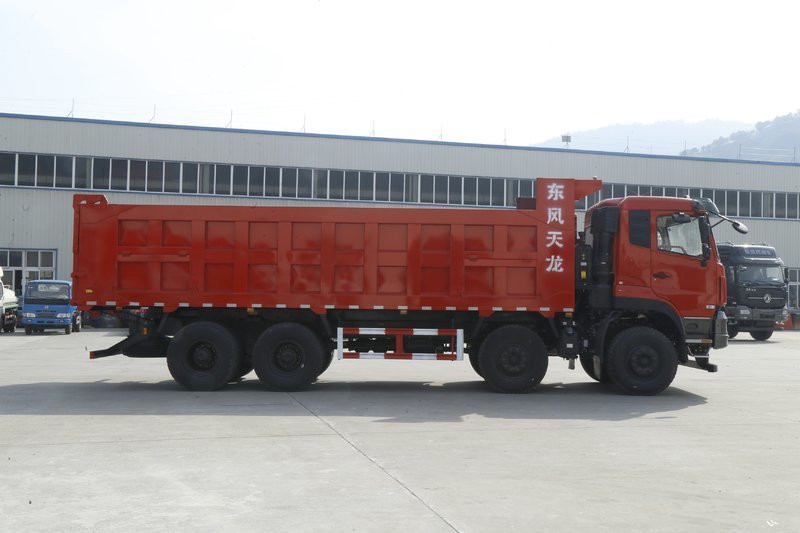

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 1995+2350+1350mm
- Body length
- 8.875 meters
- Body width
- 2.55 meters
- Body height
- 3.6 meters
- Front track
- 2010/2010mm
- Rear wheelbase
- 1880/1880mm
- Vehicle weight
- 13 tons
- Rated load
- 17.87 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 15 degrees
- Departure angle
- 25 degree
- Origin
- Hubei Shiyan
- Remark
- Standard configuration: High configuration seat (integrated safety belt), direct push, AEBS
Engine parameters
- engine model
- Dongfeng DDi75E340-60
- Engine brand
- Dongfeng
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Displacement
- 7.5L
- Emission Standards
- National Five
- Maximum horsepower
- 340 HP
- Maximum output power
- 250kW
Gearbox parameters
- Gearbox model
- Fast 10JSD140TB 0D
- Gearbox brand
- fast
- Forward gear
- 10 gears
- Number of reverse gears
- 2
- Shifting method
- Manual
Chassis parameters
- Frame size
- 280×80×(8+4)mm
- Front axle description
- 4.5T
- Allowable load on front axle
- 6500/6500kg
- Rear axle description
- Dongfeng 260H(15T)
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 5.92
- Number of spring leaves
- 8/8/10
- Tire specifications
- 11.00R20 18PR
- Number of tires
- 12
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 350L
- Carton length
- 5.8 meters
- Cargo box width
- 2.35 meters
- Cargo box height
- 1.5 m
- Container form
- Back flip dump type
