DFC Commercial Vehicle Tianjin medium truck 260 horsepower 6X2 4.7m dump truck
Submit purchase requestBasic Information
- Drive form:
- 6X2
- Wheelbase:
- 1800+2800mm
- Body length:
- 7.58 meters
- Body width:
- 2.5 meters
- Body height:
- 3.3 meters
- Front track:
- 1940/1940mm
- Rear wheelbase:
- 1860mm
- Vehicle weight:
- 8.92 tons

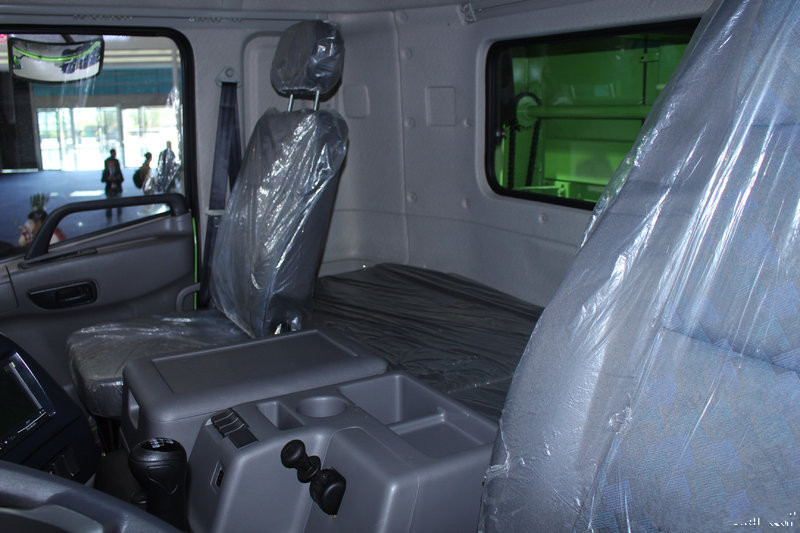

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X2
- Wheelbase
- 1800+2800mm
- Body length
- 7.58 meters
- Body width
- 2.5 meters
- Body height
- 3.3 meters
- Front track
- 1940/1940mm
- Rear wheelbase
- 1860mm
- Vehicle weight
- 8.92 tons
- Rated load
- 15.885 tons
- Total mass
- 25 tons
- Tonnage level
- medium card
- Approach angle
- 16.5 degrees
- Departure angle
- 18 degrees
- Origin
- Hubei Shiyan
- Market segments
- Road transport
- Remark
- Central control with remote control key
Engine parameters
- engine model
- Yuchai YC6JA260-50
- Engine brand
- Yuchai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 6.87L
- Emission Standards
- National Five
- Maximum horsepower
- 260 HP
- Maximum output power
- 191kW
- Maximum torque
- 985N·m
- Maximum torque speed
- 1200-1800rpm
- Rated speed
- 2300rpm
- Engine form
- Vertical, in-line, water-cooled, four-stroke
Gearbox parameters
- Gearbox model
- Fast 10JS90A-B
- Gearbox brand
- fast
- Forward gear
- 10 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 280×80×(6+4)mm
- Front axle description
- 3.6T
- Allowable load on front axle
- 6700/6800kg
- Rear axle description
- 457 shortened bridge
- Allowable load on rear axle
- 11500kg
- Speed ratio
- 5.83
- Number of spring leaves
- 10/10/10+8
- Tire specifications
- 11.00R20 18PR
- Number of tires
- 8
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 220L
- Carton length
- 4.7 meters
- Cargo box width
- 2.3 meters
- Cargo box height
- 1.5 m
- Container form
- Self-unloading
