DFC Commercial Vehicle Tianlong KC Heavy Truck 420 HP 6X4 5.6m Dump Truck
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 4050+1350mm
- Body length:
- 8.35 meters
- Body width:
- 2.55 meters
- Body height:
- 3.6 meters
- Front track:
- 2040mm
- Rear wheelbase:
- 1880/1880mm
- Vehicle weight:
- 12.5 tons

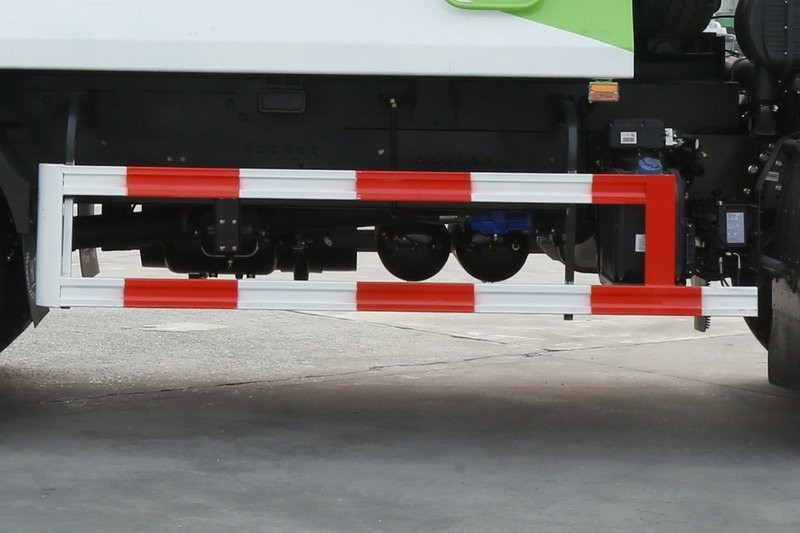

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 4050+1350mm
- Body length
- 8.35 meters
- Body width
- 2.55 meters
- Body height
- 3.6 meters
- Front track
- 2040mm
- Rear wheelbase
- 1880/1880mm
- Vehicle weight
- 12.5 tons
- Rated load
- 12.37 tons
- Total mass
- 25 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 15 degrees
- Departure angle
- 25 degree
- Origin
- Hubei Shiyan
- Market segments
- Urban construction debris
- Remark
- Optional speed ratio 5.92, with engine braking
Engine parameters
- engine model
- Dongfeng Renault dCi420-51
- Engine brand
- Dongfeng Renault
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 11.12L
- Emission Standards
- National Five
- Maximum horsepower
- 420 HP
- Maximum output power
- 309kW
- Maximum torque
- 2000N·m
- Maximum torque speed
- 1000-1400rpm
- Rated speed
- 1800rpm
- Engine form
- In-line six-cylinder, supercharged intercooling, liquid cooling, high-pressure common rail, compression ignition
Gearbox parameters
- Gearbox model
- Fast 12JSD200
- Gearbox brand
- fast
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 300x90x(8+8)mm
- Front axle description
- 9T
- Allowable load on front axle
- 7000kg
- Rear axle description
- Dongfeng 300 wheel reduction cast steel
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 5.26
- Number of spring leaves
- 10/13
- Tire brand
- wind god
- Tire specifications
- 12.00R20 16PR
- Number of tires
- 10
- Fuel tank capacity
- 350L
- Carton length
- 5.6 meters
- Cargo box width
- 2.3 meters
- Cargo box height
- 1.5 m
- Container form
- Self-unloading
