FAWQD Jiefang Han V heavy truck 310 horsepower 8X4 6.8 meter dump truck chassis
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 1900+3200+1350mm
- Body length:
- 9.76 meters
- Body width:
- 2.5 meters
- Body height:
- 3.25 meters
- Front track:
- 1950/1950mm
- Rear wheelbase:
- 1847/1847mm
- Vehicle weight:
- 14.77 tons

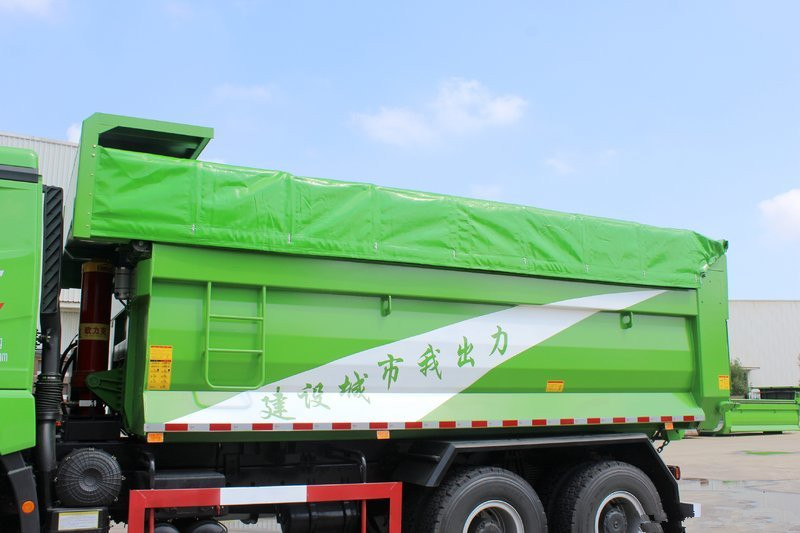

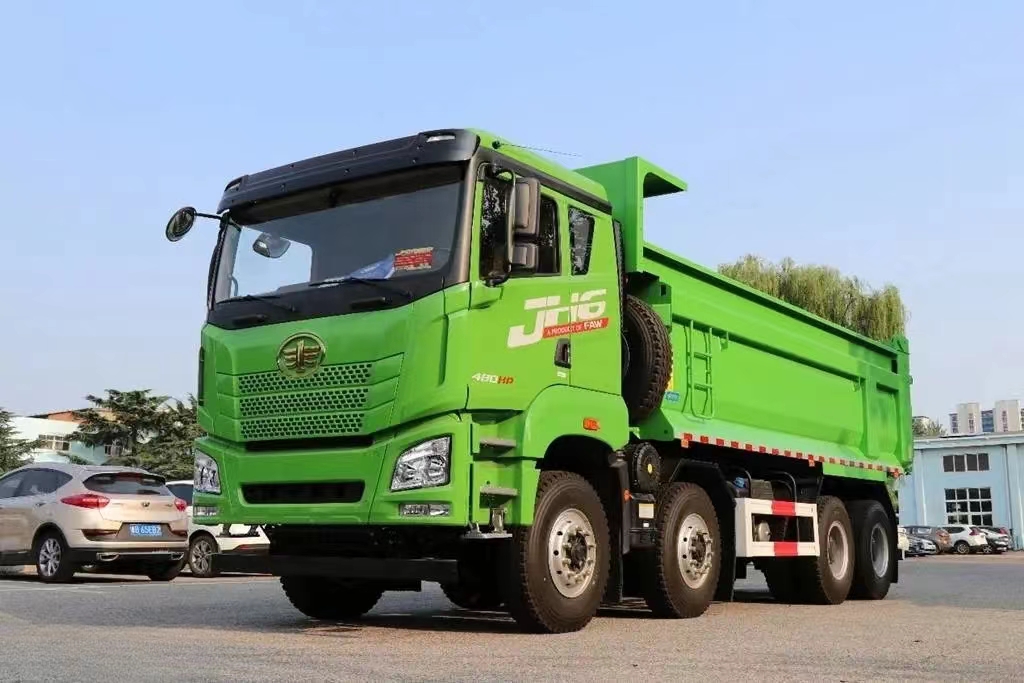

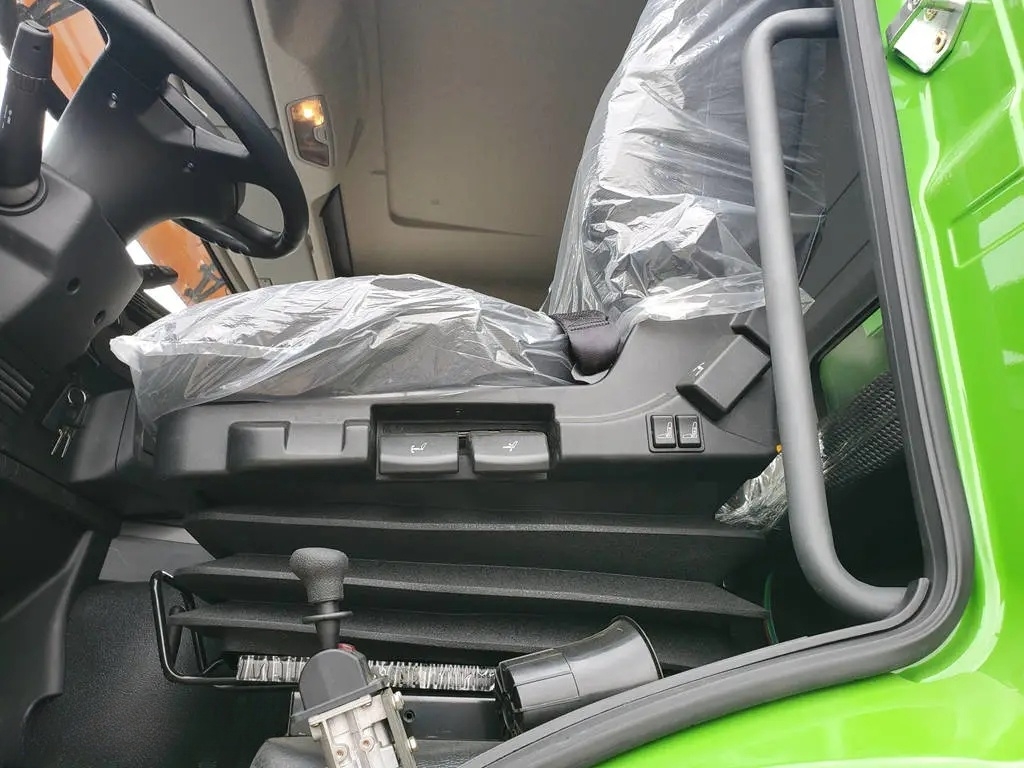

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 1900+3200+1350mm
- Body length
- 9.76 meters
- Body width
- 2.5 meters
- Body height
- 3.25 meters
- Front track
- 1950/1950mm
- Rear wheelbase
- 1847/1847mm
- Vehicle weight
- 14.77 tons
- Rated load
- 16.1 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 24 degrees
- Departure angle
- 42 degrees
- Origin
- Qingdao/Chengdu
- Market segments
- Urban construction waste, road transportation
- Remark
- Internal spline power take-off, front lower protection, Hanshuibao, desert air filter, straight rod structure rear suspension
Engine parameters
- engine model
- Weichai WP10.310E53
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 9.726L
- Emission Standards
- National Five
- Maximum horsepower
- 310 HP
- Maximum output power
- 228kW
- Maximum torque
- 1500N·m
- Maximum torque speed
- 1200-1500rpm
- Rated speed
- 1900rpm
- Engine form
- In-line six-cylinder, electronically controlled high-voltage common rail SCR
Gearbox parameters
- Gearbox model
- Fast 10JSD160B
- Gearbox brand
- fast
- Forward gear
- 10 gears
- Number of reverse gears
- 2
Chassis parameters
- Allowable load on front axle
- 6500/6500kg
- Rear axle description
- LB reinforced ten-ton stamping and welding bridge
- Allowable load on rear axle
- 18000kg
- Speed ratio
- 5.73
- Number of spring leaves
- 12/12/10
- Suspension type (front/rear)
- leaf spring
- Tire specifications
- 11.00-20 18PR
- Number of tires
- 12
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 400L
- Carton length
- 6.8 meters
- Cargo box width
- 2.3 meters
- Cargo box height
- 1.225 meters
- Container form
- Self-unloading
