SHACMAN Auto Heavy Truck Delonghi New M3000 Standard Version 350 HP 8X4 5.6m Dump Truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 1800+2375+1400mm
- Body length:
- 8.36 meters
- Body width:
- 2.55 meters
- Body height:
- 3.45 meters
- Front track:
- 2011/2011mm
- Rear wheelbase:
- 1800/1800mm
- Vehicle weight:
- 14.77 tons

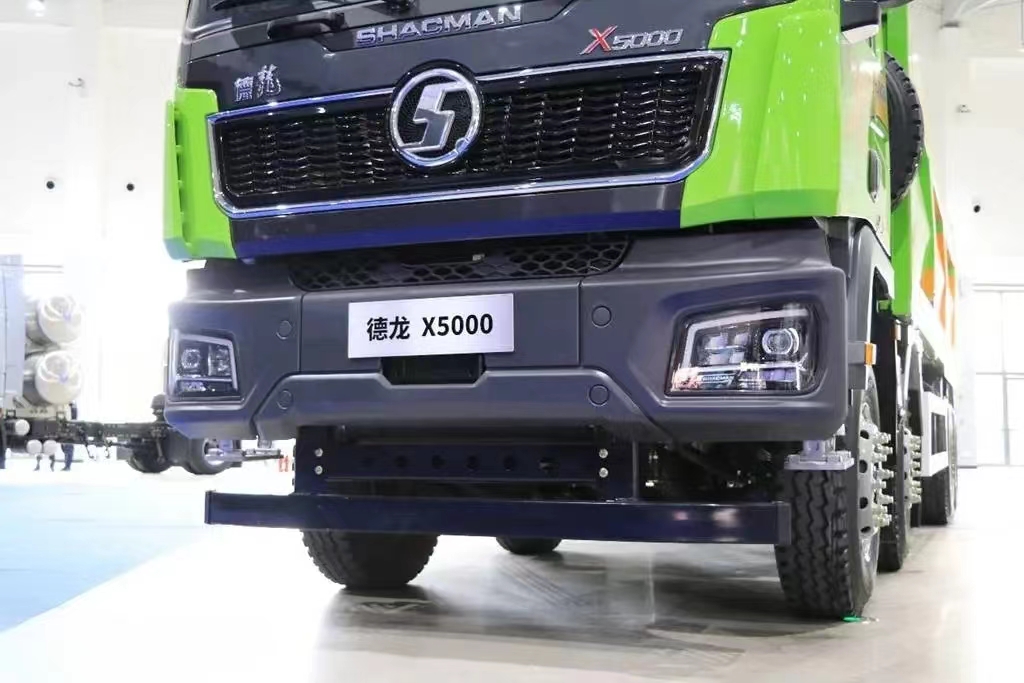

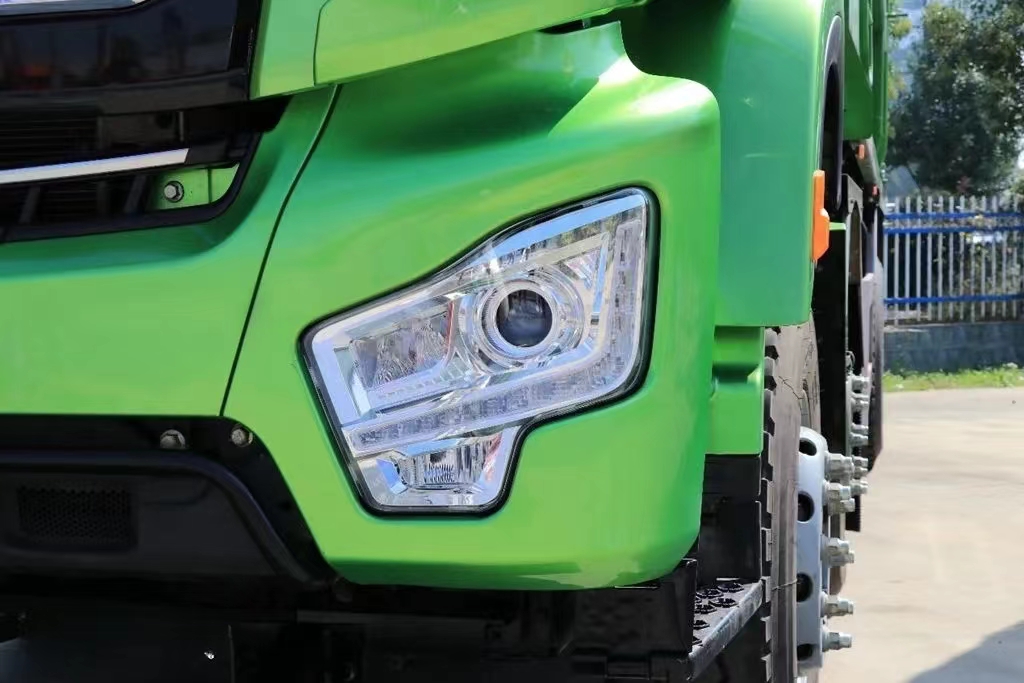

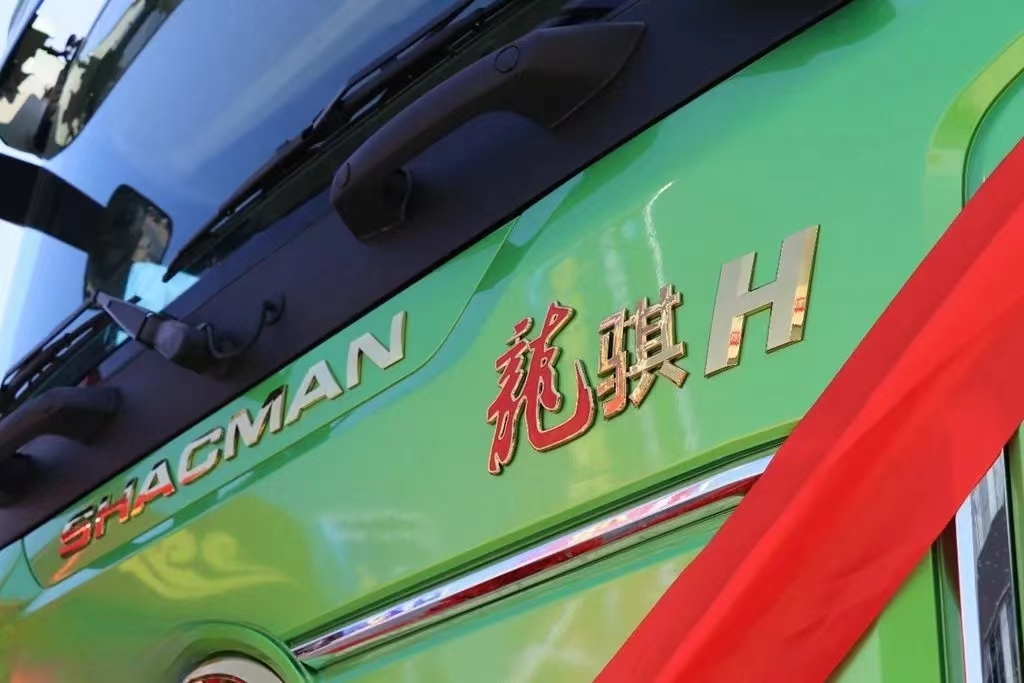

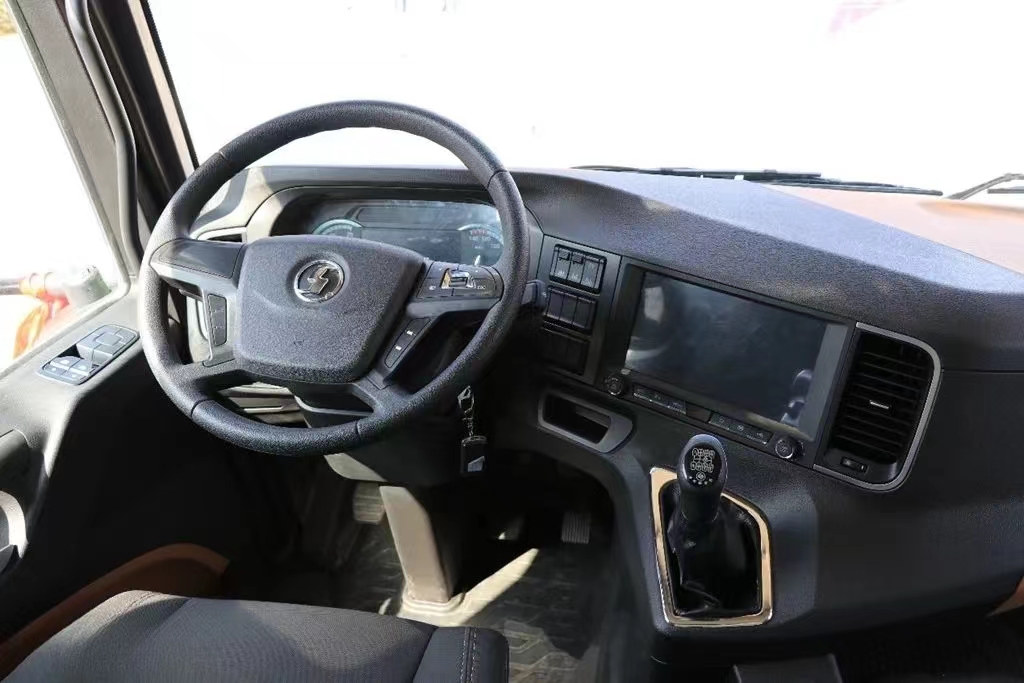

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 1800+2375+1400mm
- Body length
- 8.36 meters
- Body width
- 2.55 meters
- Body height
- 3.45 meters
- Front track
- 2011/2011mm
- Rear wheelbase
- 1800/1800mm
- Vehicle weight
- 14.77 tons
- Rated load
- 16.1 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 18 degrees
- Departure angle
- 20 degrees
- Origin
- Xi'an, Shaanxi
- Market segments
- Urban construction debris
- Remark
- Tianxingjian Zhiya version BD car terminal, 180Ah maintenance-free battery;
Engine parameters
- engine model
- Weichai WP10.350E53
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 9.726L
- Emission Standards
- National Five
- Maximum horsepower
- 350 HP
- Maximum output power
- 257kW
- Maximum torque
- 1600N·m
- Maximum torque speed
- 1200-1600rpm
- Rated speed
- 1900rpm
- Engine form
- Electronically controlled high voltage common rail+SCR
Gearbox parameters
- Gearbox model
- Fast 12JSD180TA
- Gearbox brand
- fast
- Forward gear
- 12 gears
- Number of reverse gears
- 2
- Shell material
- Aluminum shell
Chassis parameters
- Front axle description
- 7.5TMAN
- Allowable load on front axle
- 6500/6500kg
- Rear axle description
- 16T MAN double-stage reduction axle
- Allowable load on rear axle
- 18000(two-axle group)kg
- Number of spring leaves
- 10/10/10
- Tire specifications
- 12.00R20
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 300L
- Carton length
- 5.6 meters
- Cargo box width
- 2.35 meters
- Cargo box height
- 1.5 m
- Container form
- Self-unloading
