SHACMAN Auto Heavy Duty Truck Delong M3000S Composite Version 350 HP 8X4 6.8m Dump Truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 1800+3575+1400mm
- Body length:
- 9.9 meters
- Body width:
- 2.55 meters
- Body height:
- 3.5 meters
- Front track:
- 2011/2011mm
- Rear wheelbase:
- 1860/1860mm
- Vehicle weight:
- 15.5 tons

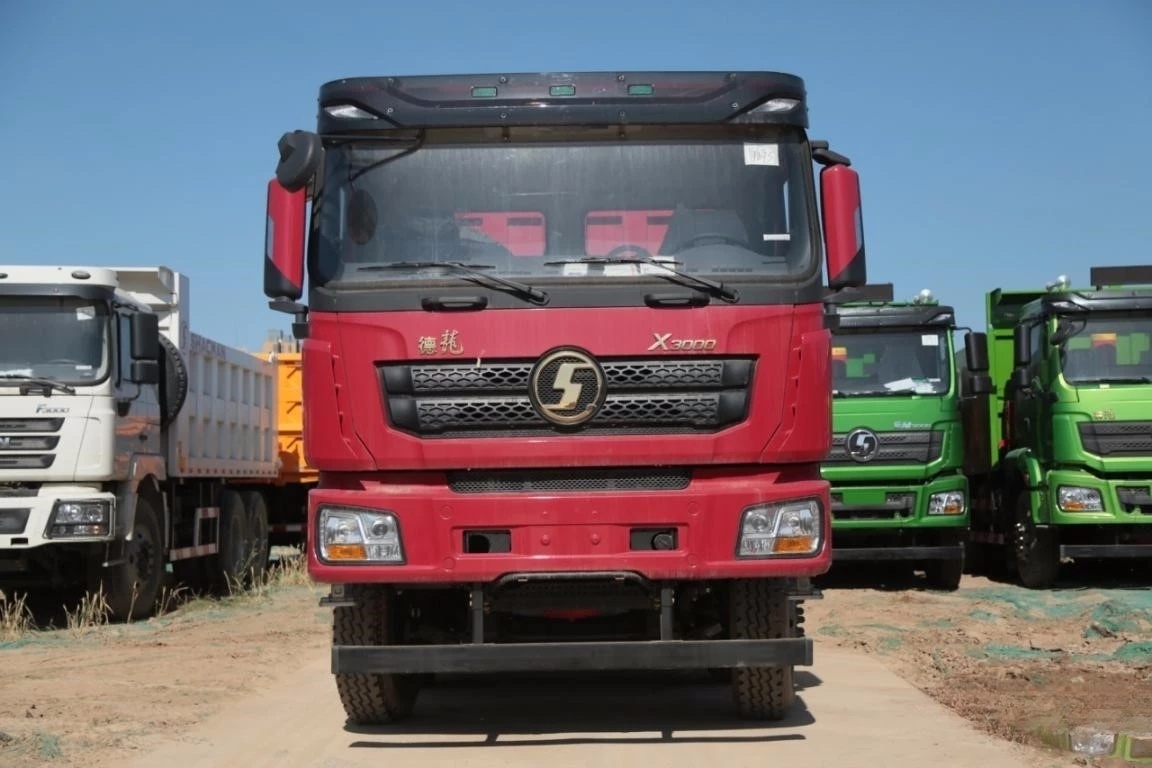

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 1800+3575+1400mm
- Body length
- 9.9 meters
- Body width
- 2.55 meters
- Body height
- 3.5 meters
- Front track
- 2011/2011mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 15.5 tons
- Rated load
- 15.37 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 17 degrees
- Departure angle
- 20 degrees
- Origin
- Xi'an, Shaanxi
- Market segments
- Road transport
- Version
- Composite board
Engine parameters
- engine model
- Weichai WP9H350E62
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 8.8L
- Emission Standards
- National VI
- Maximum horsepower
- 350 HP
- Maximum output power
- 257kW
- Maximum torque
- 1700N·m
- Maximum torque speed
- 1100-1400rpm
- Rated speed
- 1900rpm
- Engine form
- CR+DOC+DPF+Hi_SCR
Gearbox parameters
- Gearbox model
- Fast 12 gears
- Gearbox brand
- fast
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- MAN5.5T
- Allowable load on rear axle
- MAN13Tkg
- Number of spring leaves
- 14/14/12,10/10/10
- Number of tires
- 12
- Tire specifications
- 11.00R20
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 400L
- Carton length
- 6.8 meters
- Cargo box width
- 2.35 meters
- Cargo box height
- 1.5 m
