SHACMAN Auto Heavy Truck Delonghi New M3000 350 HP 6X4 5.6m Dump Truck
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3775+1400mm
- Body length:
- 8.36 meters
- Body width:
- 2.55 meters
- Body height:
- 3.45 meters
- Front track:
- 2011mm
- Rear wheelbase:
- 1860/1860mm
- Vehicle weight:
- 12.5 tons

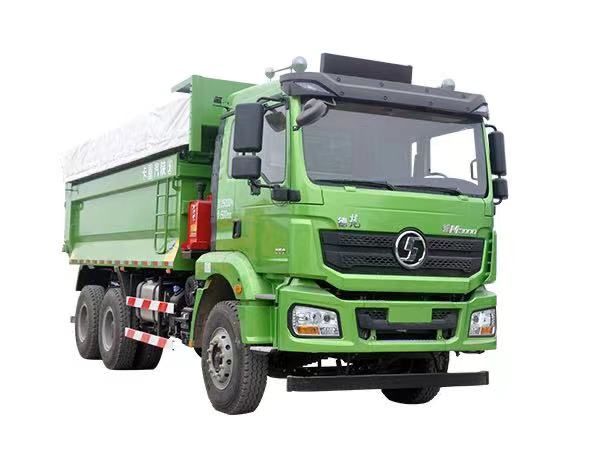

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3775+1400mm
- Body length
- 8.36 meters
- Body width
- 2.55 meters
- Body height
- 3.45 meters
- Front track
- 2011mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 12.5 tons
- Rated load
- 12.37 tons
- Total mass
- 25 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 28 degrees
- Departure angle
- 20 degrees
- Origin
- Xi'an, Shaanxi
- Market segments
- Urban construction debris
- Remark
- Optional speed ratio 5.92; optional fuel tank: 300L
Engine parameters
- engine model
- Weichai WP10.350E53
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 9.726L
- Emission Standards
- National Five
- Maximum horsepower
- 350 HP
- Maximum output power
- 257kW
- Maximum torque
- 1600N·m
- Maximum torque speed
- 1200-1600rpm
- Rated speed
- 1900rpm
- Engine form
- Electronically controlled high voltage common rail+SCR
Gearbox parameters
- Gearbox model
- Fast 10JSD160B
- Gearbox brand
- fast
- Forward gear
- 10 gears
- Number of reverse gears
- 2
- Shell material
- iron shell
Chassis parameters
- Allowable load on front axle
- 7000kg
- Rear axle description
- 16T MAN double-stage cast bridge
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 5.262
- Number of spring leaves
- 10/12
- clutch
- Φ430
- Steering gear
- Domestic
- Tire specifications
- 11.00R20 18PR,12.00R20 16PR
- Number of tires
- 10
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 400L
- Carton length
- 5.6 meters
- Cargo box width
- 2.35 meters
- Cargo box height
- 1.5 m
- Container form
- Back flip dump type
- Sealing cover form
- Electric sealing cover
- Cargo box type
- U-shaped box
