SHACMAN Automobile Cummins Longxiao Highway Standard Elite Edition 490 HP 8X4 6.5m Dump Truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 1950+3025+1400mm
- Body length:
- 9.45 meters
- Body width:
- 2.55 meters
- Body height:
- 3.5 meters
- Front track:
- 2036/2036mm
- Rear wheelbase:
- 1860/1860mm
- Vehicle weight:
- 15.5 tons

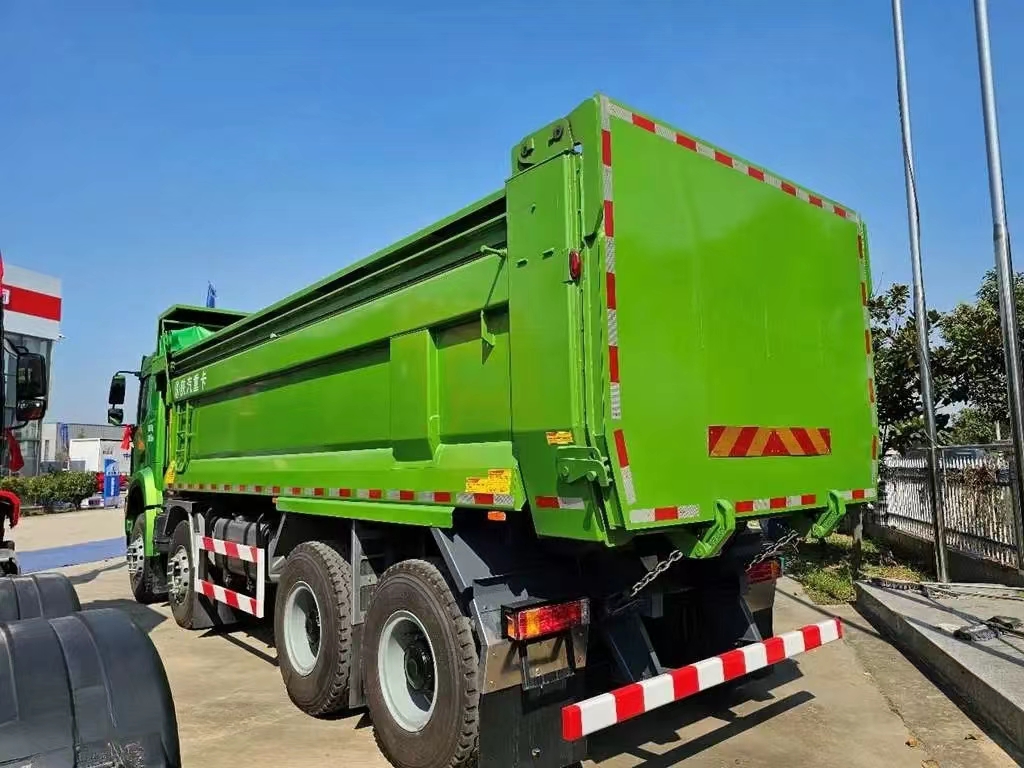

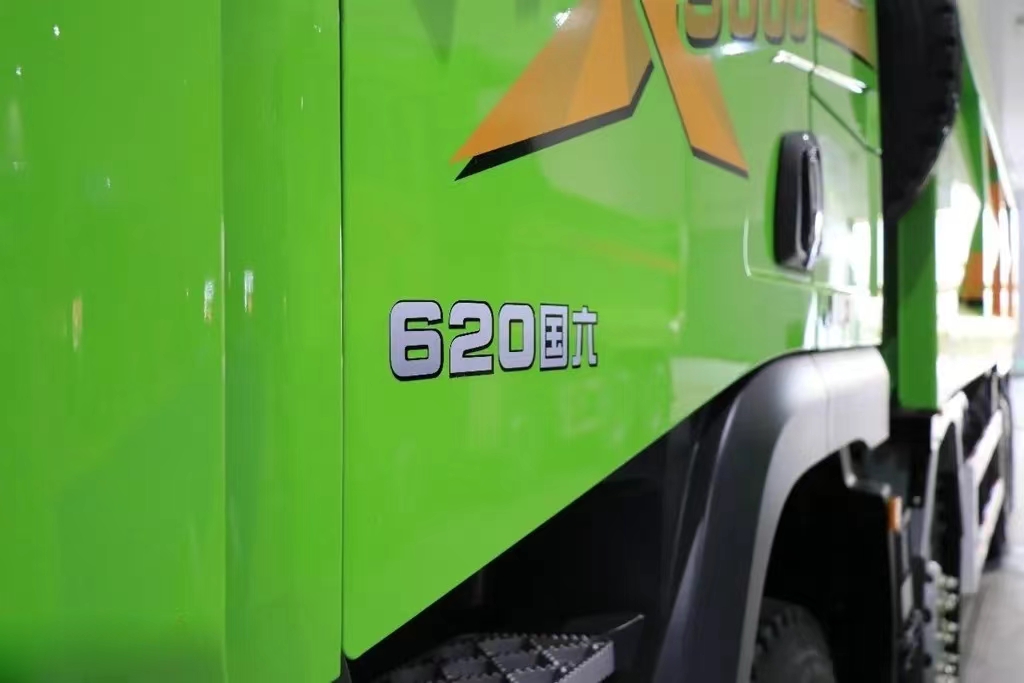

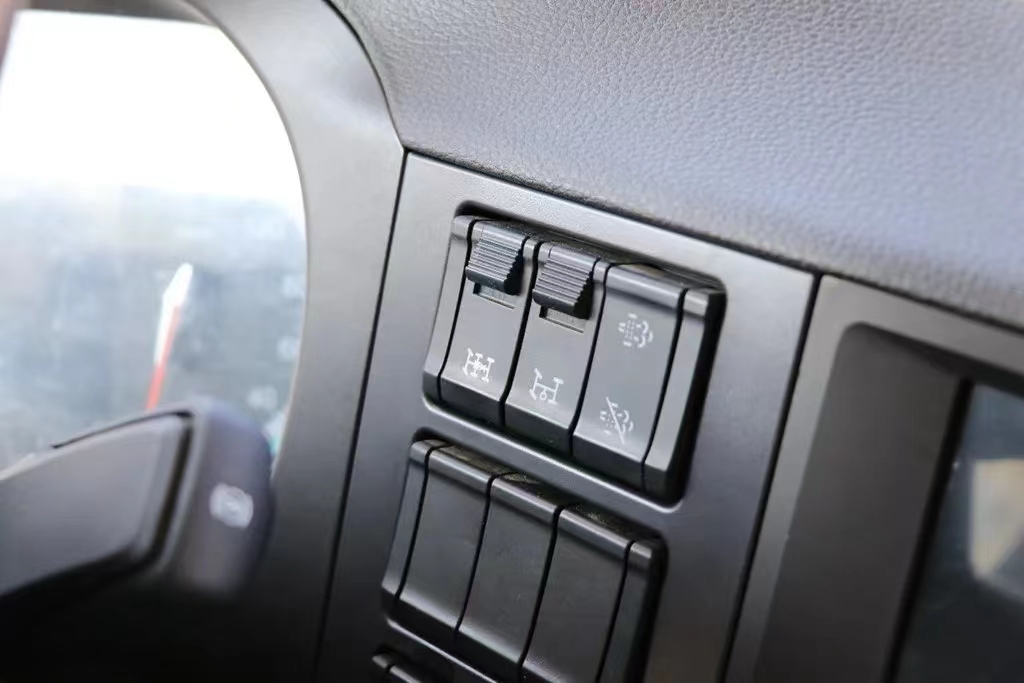

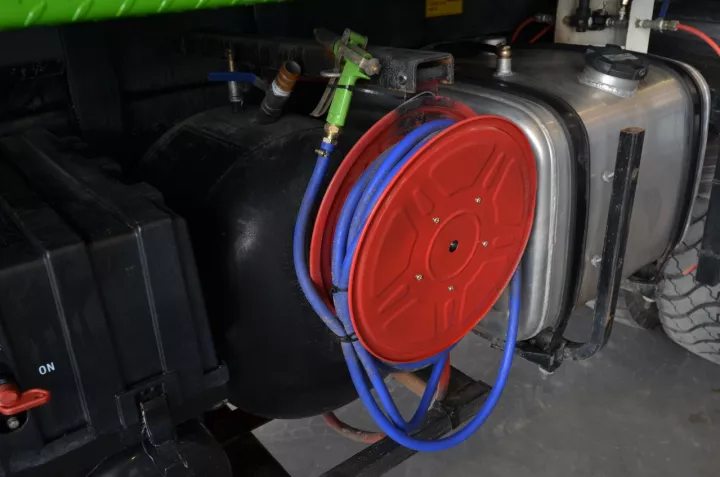

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 1950+3025+1400mm
- Body length
- 9.45 meters
- Body width
- 2.55 meters
- Body height
- 3.5 meters
- Front track
- 2036/2036mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 15.5 tons
- Rated load
- 15.37 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 17 degrees
- Departure angle
- 17 degrees
- Origin
- Baoji, Shaanxi
- Market segments
- Road transport
- Version
- Highway Standard Elite Edition
Engine parameters
- engine model
- Xi'an Cummins X12NS6B490
- Engine brand
- Xi'an Cummins
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 11.8L
- Emission Standards
- National VI
- Maximum horsepower
- 490 HP
- Maximum output power
- 360kW
- Maximum torque
- 2300N·m
- Maximum torque speed
- 1000-1400rpm
- Rated speed
- 1900rpm
Gearbox parameters
- Gearbox model
- Fast S13MDQ
- Gearbox brand
- fast
- Forward gear
- 13 gears
- Number of reverse gears
- 1
- Shell material
- Aluminum shell
Chassis parameters
- Frame size
- 850×300(8+7)mm
- Allowable load on front axle
- 6500/6500kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 5.92
- Suspension type (front/rear)
- Multi-leaf spring/multi-leaf spring (four riding bolts)
- Number of spring leaves
- 14/14/12
- Tire specifications
- 12.00R20 18PR
- Number of tires
- 12
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 400L
- Carton length
- 6.5 meters
- Cargo box width
- 2.35 meters
- Cargo box height
- 1.5 m
- Container form
- Self-unloading
