SAIC Hongyan Jiebao Heavy Truck 280 HP 6X2 5.2m Dump Truck
Submit purchase requestBasic Information
- Drive form:
- 6X2
- Wheelbase:
- 4800mm
- Body length:
- 7.95 meters
- Body width:
- 2.55 meters
- Body height:
- 3.1 meters
- Front track:
- 2020/2020mm
- Rear wheelbase:
- 1850mm
- Vehicle weight:
- 12.5 tons

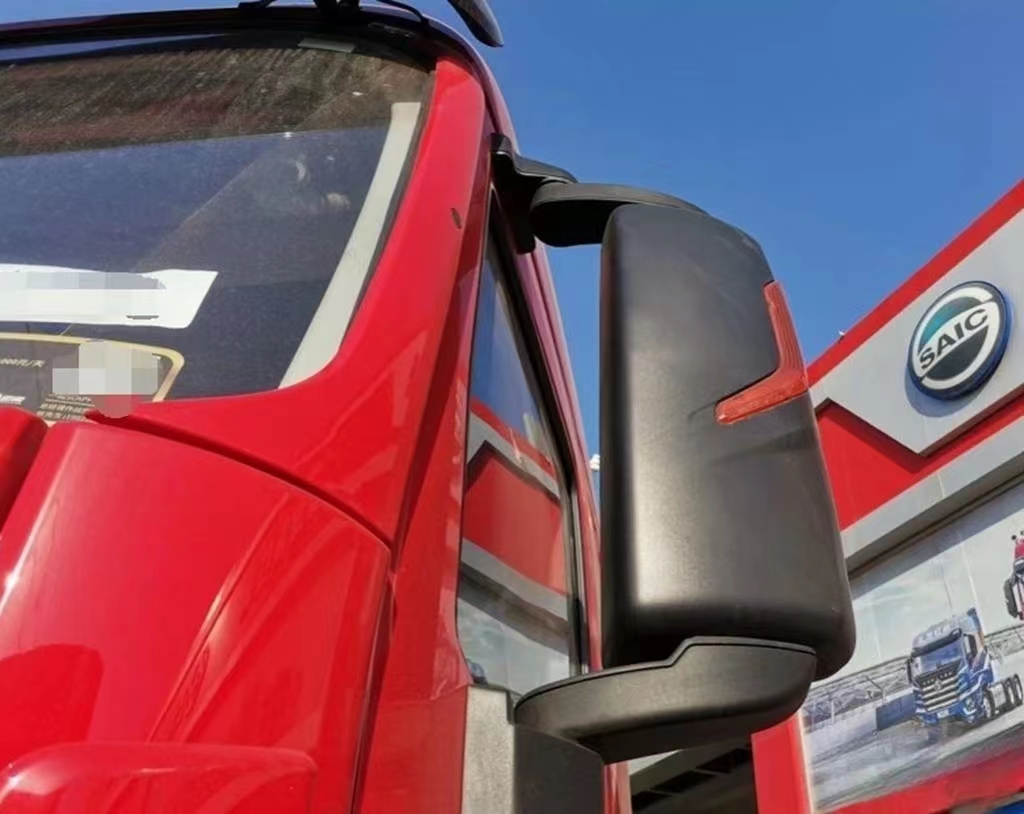

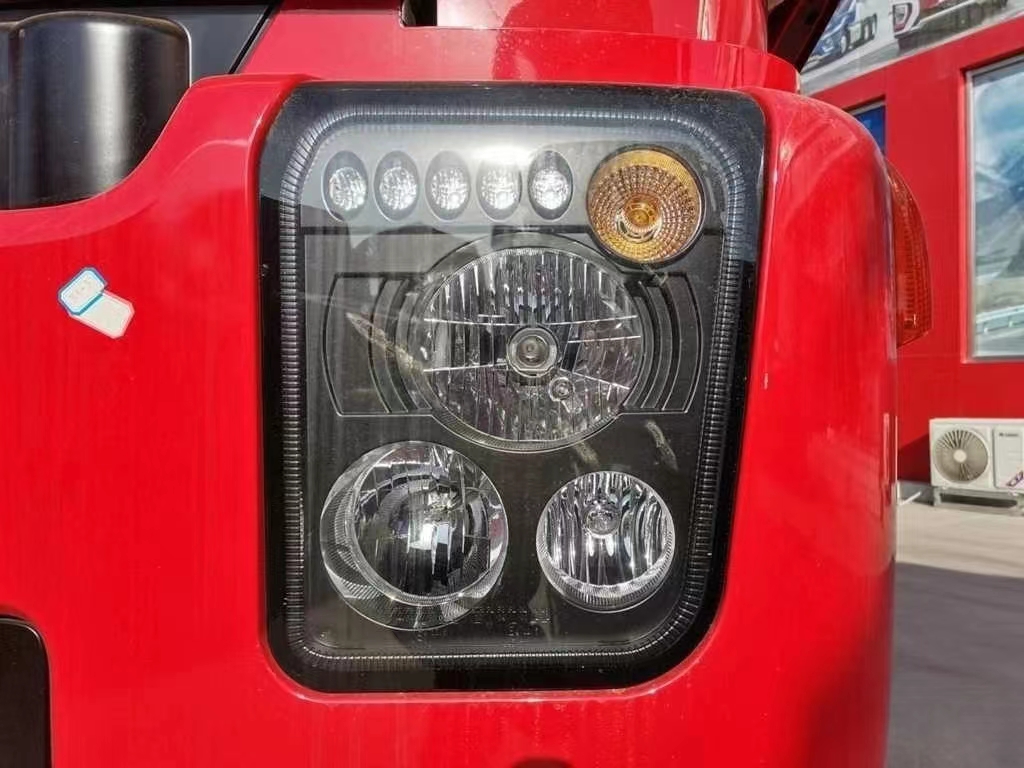

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X2
- Wheelbase
- 4800mm
- Body length
- 7.95 meters
- Body width
- 2.55 meters
- Body height
- 3.1 meters
- Front track
- 2020/2020mm
- Rear wheelbase
- 1850mm
- Vehicle weight
- 12.5 tons
- Rated load
- 12.305 tons
- Total mass
- 25 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 22 degrees
- Departure angle
- 21 degrees
- Origin
- Liuzhou, Guangxi
- Market segments
- Road transport
Engine parameters
- engine model
- Shangchai SC7H280Q5
- Engine brand
- Serve firewood
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 6.44L
- Emission Standards
- National Five
- Maximum horsepower
- 280 HP
- Maximum output power
- 205kW
- Maximum torque
- 1160N·m
- Maximum torque speed
- 1200-1600rpm
- Rated speed
- 2300rpm
- Engine form
- In-line, electronically controlled common rail, four-valve, supercharged and intercooled
Gearbox parameters
- Gearbox model
- Fast 8JS105T
- Gearbox brand
- fast
- Forward gear
- 8 gears
- Number of reverse gears
- 2
Chassis parameters
- Allowable load on front axle
- 6500/7000kg
- Rear axle description
- HY300H
- Allowable load on rear axle
- 11500kg
- Speed ratio
- 5.73
- Number of spring leaves
- 8/8/12+9
- Tire brand
- exquisite
- Tire specifications
- 11.00R20 16PR
- Number of tires
- 8
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 200L
- Carton length
- 5.2 meters
- Cargo box width
- 2.35 meters
- Cargo box height
- 1.5 m
- Container form
- Self-unloading
