SAIC Hongyan Jieshi H6 Composite Enhanced Version 560 HP 8X4 8.2m Dump Truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 2000+4000+1400mm
- Body length:
- 11.06 meters
- Body width:
- 2.55 meters
- Body height:
- 3.46 meters
- Front track:
- 2020/2020mm
- Rear wheelbase:
- 1858/1858mm
- Vehicle weight:
- 14.1 tons

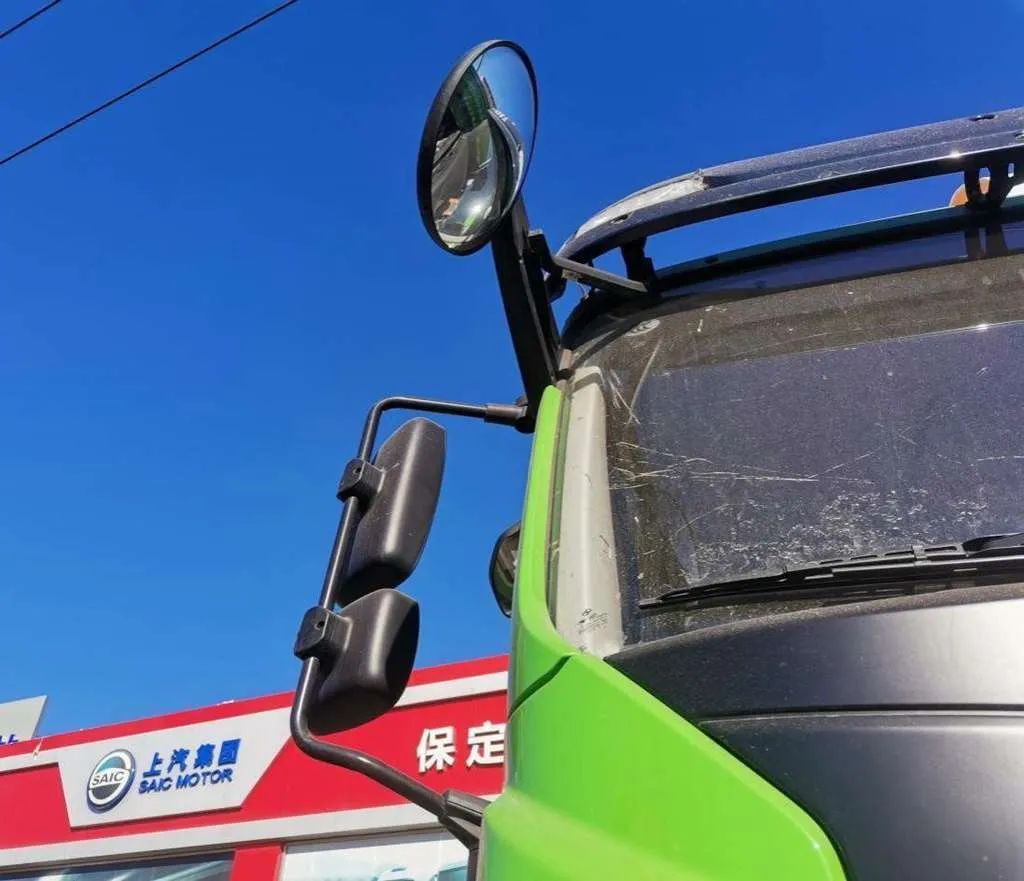

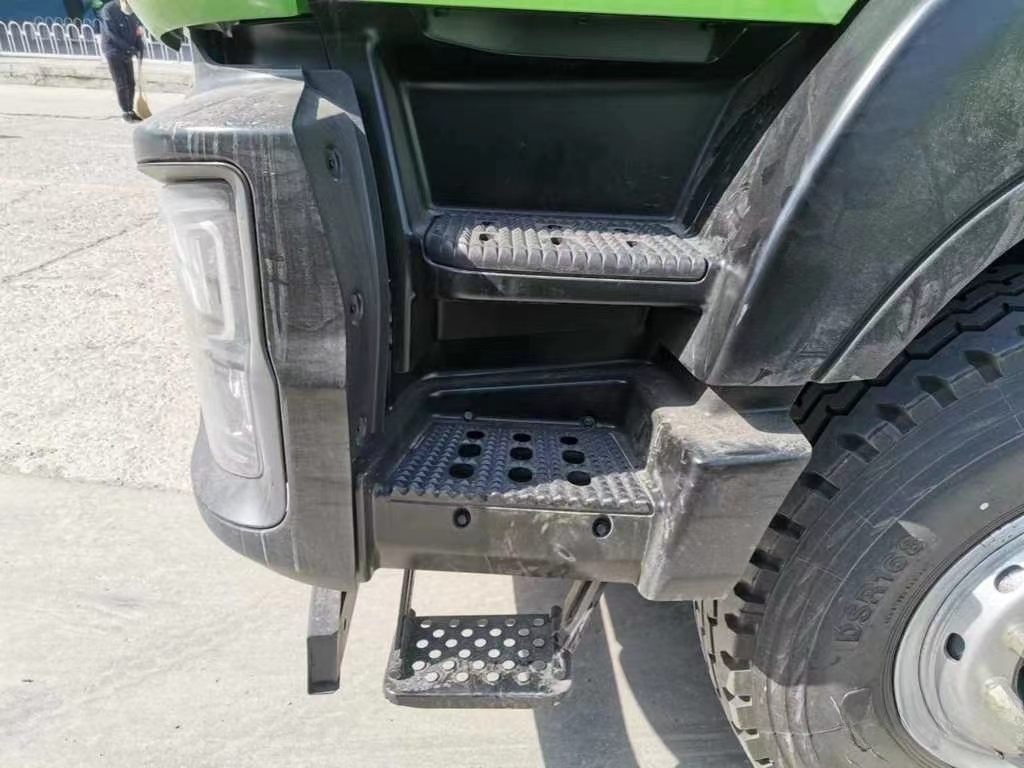

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 2000+4000+1400mm
- Body length
- 11.06 meters
- Body width
- 2.55 meters
- Body height
- 3.46 meters
- Front track
- 2020/2020mm
- Rear wheelbase
- 1858/1858mm
- Vehicle weight
- 14.1 tons
- Rated load
- 16.77 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 16 degrees
- Departure angle
- 18 degrees
- Origin
- Chongqing
- Version
- Composite enhanced version
Engine parameters
- engine model
- Shangchai SC13E560.1Q6
- Engine brand
- Serve firewood
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 12.82L
- Emission Standards
- National VI
- Maximum horsepower
- 560 HP
- Maximum output power
- 412kW
Gearbox parameters
- Gearbox model
- Qi Chi 12TDS2610
- Gearbox brand
- Qi Teeth
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 305×(8+4)mm
- Front axle description
- 7.5T
- Allowable load on front axle
- 6500/6500kg
- Rear axle description
- Double-stage reduction casting bridge
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 5.214
- Number of spring leaves
- 9/9/12
- Tire specifications
- 12R22.5 18PR
- Number of tires
- 12
- Tire type
- Engineering pattern
- Fuel tank capacity
- 400L
- Carton length
- 8.2 meters
- Cargo box width
- 2.4 meters
- Cargo box height
- 1.5 m
- Container form
- Self-unloading
