SINOTRUK HOWO Heavy Truck 380 HP 8X4 6.2m Dump Truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 1800+3200+1350mm
- Body length:
- 9.745 meters
- Body width:
- 2.55 meters
- Body height:
- 3.45 meters
- Front track:
- 2041/2041mm
- Rear wheelbase:
- 1830/1830mm
- Vehicle weight:
- 15.5 tons

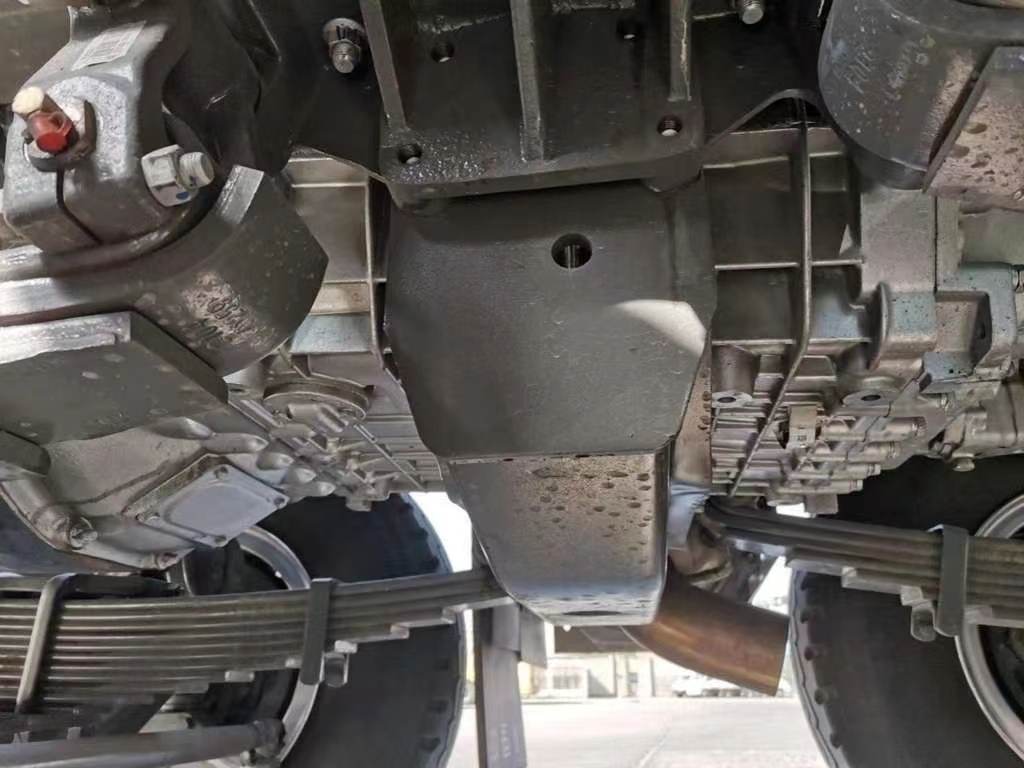

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 1800+3200+1350mm
- Body length
- 9.745 meters
- Body width
- 2.55 meters
- Body height
- 3.45 meters
- Front track
- 2041/2041mm
- Rear wheelbase
- 1830/1830mm
- Vehicle weight
- 15.5 tons
- Rated load
- 15.37 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 16 degrees
- Departure angle
- 27 degrees
- Origin
- Shandong Jinan
- Market segments
- Urban construction waste, road transportation
- Remark
- Standard exhaust system; cold area package; optional: separate heater; vehicle front and lower protection; intercooler protection device
Engine parameters
- engine model
- Sinotruk D10.38-50
- Engine brand
- SINOTRUK
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 9.726L
- Emission Standards
- National Five
- Maximum horsepower
- 380 HP
- Maximum output power
- 276kW
- Maximum torque
- 1560N·m
- Maximum torque speed
- 1200-1500rpm
- Rated speed
- 2000rpm
- Engine form
- In-line six-cylinder, water-cooled, four-stroke, supercharged and intercooled, high-pressure common rail
Gearbox parameters
- Gearbox model
- SINOTRUK HW19712
- Gearbox brand
- SINOTRUK
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 8+8/300 double layer mm
- Front axle description
- HR9
- Allowable load on front axle
- 6500/7000kg
- Rear axle description
- AC16
- Allowable load on rear axle
- 17500(two-axle group)kg
- Speed ratio
- 5.45
- Suspension type (front/rear)
- Reinforce before and after
- Number of spring leaves
- 11/11/12
- Tire specifications
- All steel wire
- Number of tires
- 12
- Fuel tank capacity
- 300L
- Carton length
- 6.2 meters
- Cargo box width
- 2.35 meters
- Cargo box height
- 1.5 m
- Container form
- Self-unloading
