SINOTRUK HOWO Heavy Truck 380 HP 6X4 5.4m Dump Truck
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3625+1350mm
- Body length:
- 8.145 meters
- Body width:
- 2.496 meters
- Body height:
- 3.45 meters
- Front track:
- 2022mm
- Rear wheelbase:
- 1830/1830mm
- Vehicle weight:
- 12.12 tons

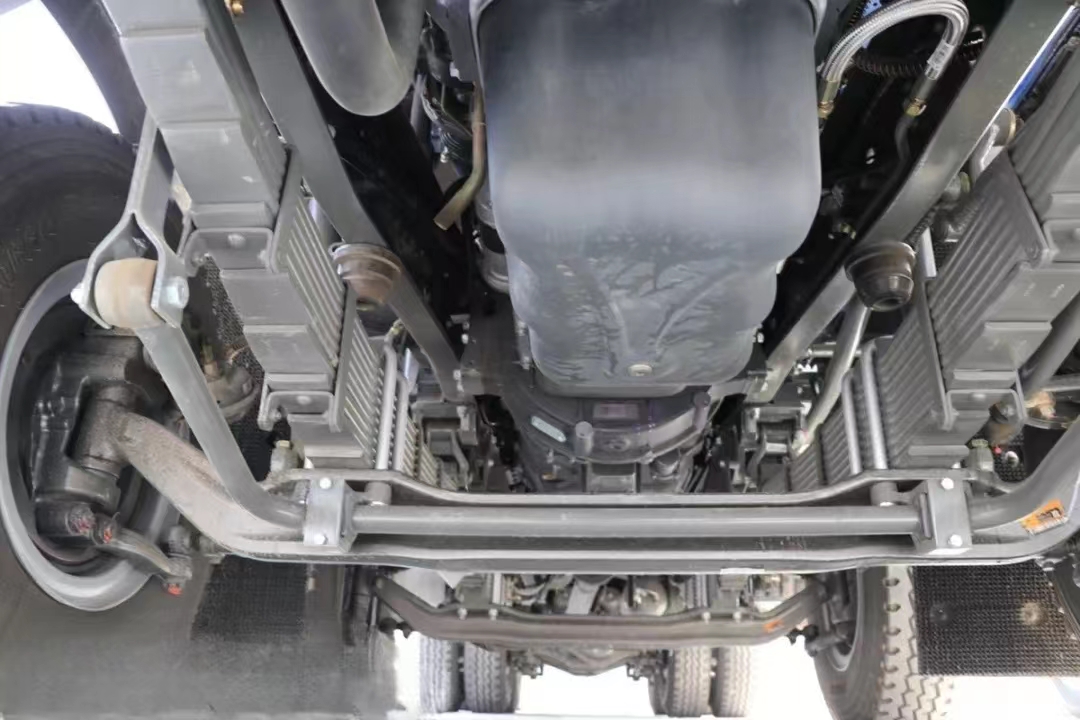

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3625+1350mm
- Body length
- 8.145 meters
- Body width
- 2.496 meters
- Body height
- 3.45 meters
- Front track
- 2022mm
- Rear wheelbase
- 1830/1830mm
- Vehicle weight
- 12.12 tons
- Rated load
- 12.74 tons
- Total mass
- 25 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 14 degrees
- Departure angle
- 26 degrees
- Origin
- Shandong Jinan
- Market segments
- Urban construction waste, mining engineering
Engine parameters
- engine model
- Sinotruk D10.38-50
- Engine brand
- SINOTRUK
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 9.726L
- Emission Standards
- National Five
- Maximum horsepower
- 380 HP
- Maximum output power
- 274kW
- Maximum torque
- 1560N·m
- Maximum torque speed
- 1200-1500rpm
- Rated speed
- 2000rpm
- Engine form
- In-line six-cylinder, water-cooled, four-stroke, supercharged and intercooled, high-pressure common rail
Gearbox parameters
- Gearbox model
- SINOTRUK HW19712
- Gearbox brand
- SINOTRUK
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- HF9
- Allowable load on front axle
- 7000kg
- Rear axle description
- AC16
- Allowable load on rear axle
- 18000(double axle installed)kg
- Speed ratio
- 5.45
- Suspension type (front/rear)
- leaf spring
- Number of spring leaves
- 10/12
- Tire specifications
- 12.00R20
- Number of tires
- 10
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 400L
- Carton length
- 5.4 meters
- Cargo box width
- 2.35 meters
- Cargo box height
- 1.5 m
- Container form
- Self-unloading
