SINOTRUK Haohan N5W light luxury version 340 horsepower 8X4 5.6m dump truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 1800+2800+1350mm
- Body length:
- 8.98 meters
- Body width:
- 2.55 meters
- Body height:
- 3.55 meters
- Front track:
- 1930/1930mm
- Rear wheelbase:
- 1800/1800mm
- Vehicle weight:
- 14.83 tons

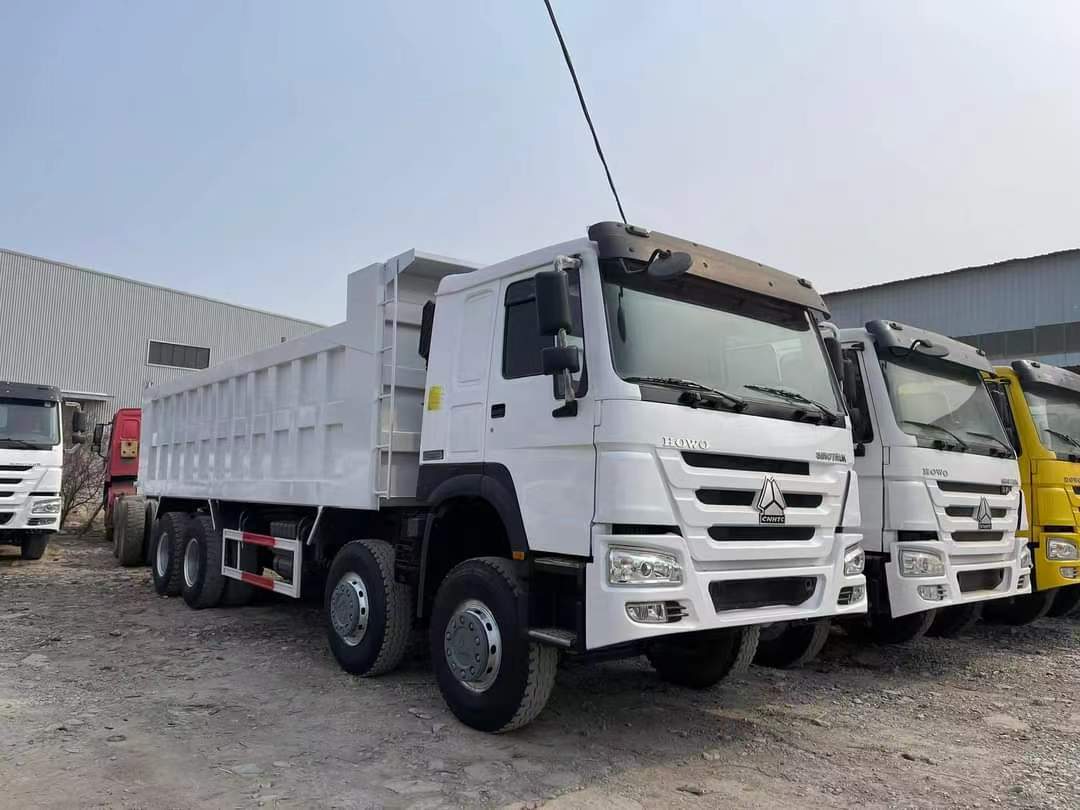

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 1800+2800+1350mm
- Body length
- 8.98 meters
- Body width
- 2.55 meters
- Body height
- 3.55 meters
- Front track
- 1930/1930mm
- Rear wheelbase
- 1800/1800mm
- Vehicle weight
- 14.83 tons
- Rated load
- 16.04 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 17 degrees
- Departure angle
- 16 degrees
- Origin
- Qingdao/Chengdu
- Market segments
- Urban construction debris
- Remark
- HW50 power take-off
- Version
- Light luxury version
Engine parameters
- engine model
- Weichai WP8.340E51
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 7.8L
- Emission Standards
- National Five
- Maximum horsepower
- 340 HP
- Maximum output power
- 250kW
- Maximum torque
- 1400N·m
- Maximum torque speed
- 1200-1700rpm
- Rated speed
- 2100rpm
- Engine form
- Electronically controlled high voltage common rail+EGR
Gearbox parameters
- Gearbox model
- SINOTRUK HW19712L
- Gearbox brand
- SINOTRUK
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- Double-layer frame (8+5/280)mm
- Front axle description
- H653 self-adjusting arm front axle
- Allowable load on front axle
- 6500/6500kg
- Rear axle description
- MCJ12 self-adjusting arm dual rear axle
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 4.63
- Number of spring leaves
- 4/4/5
- Tire specifications
- 12R22.5 18PR
- Number of tires
- 12
- Fuel tank capacity
- 400L
- Carton length
- 5.6 meters
- Cargo box width
- 2.35 meters
- Cargo box height
- 1.5 m
- Container form
- Back flip dump type
