Sinotruk Haohan N6G heavy truck 380 horsepower 8X4 5.6m dump truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 1800+2800+1350mm
- Body length:
- 8.98 meters
- Body width:
- 2.55 meters
- Body height:
- 3.55 meters
- Front track:
- 2022/2022mm
- Rear wheelbase:
- 1830/1830mm
- Vehicle weight:
- 14.83 tons

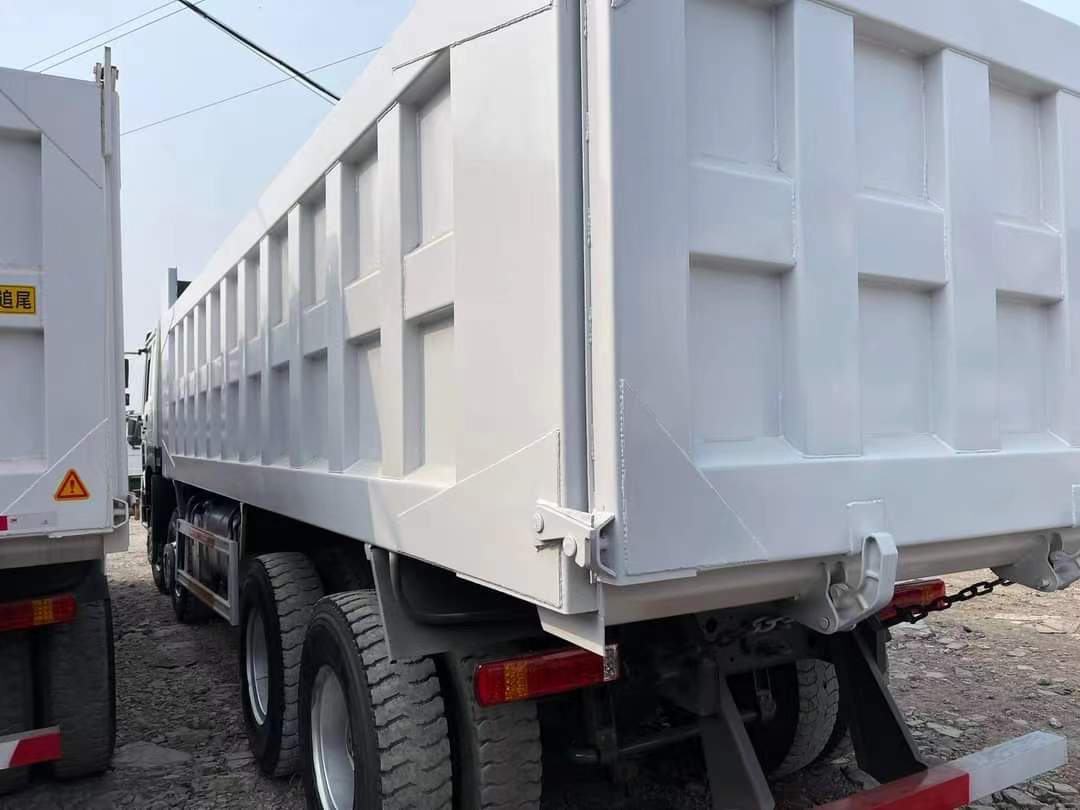

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 1800+2800+1350mm
- Body length
- 8.98 meters
- Body width
- 2.55 meters
- Body height
- 3.55 meters
- Front track
- 2022/2022mm
- Rear wheelbase
- 1830/1830mm
- Vehicle weight
- 14.83 tons
- Rated load
- 16.04 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 17 degrees
- Departure angle
- 16 degrees
- Origin
- Jining City
- Market segments
- Urban construction debris
Engine parameters
- engine model
- Sinotruk MC09.38-50
- Engine brand
- SINOTRUK
- Number of cylinders
- 5
- Fuel type
- diesel fuel
- Displacement
- 8.765L
- Emission Standards
- National Five
- Maximum horsepower
- 380 HP
- Maximum output power
- 276kW
- Maximum torque
- 1800N·m
- Maximum torque speed
- 1100-1400rpm
- Rated speed
- 1900rpm
- Engine form
- In-line, four-stroke, supercharged and intercooled, BOSCH high-pressure common rail CP3.4+
Gearbox parameters
- Gearbox model
- SINOTRUK HW19712
- Gearbox brand
- SINOTRUK
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Allowable load on front axle
- 6500/7000kg
- Rear axle description
- AC16 Mercedes Benz bridge
- Allowable load on rear axle
- 17500(two-axle group)kg
- Suspension type (front/rear)
- Reinforced multi-leaf spring
- Number of spring leaves
- 11/11/12
- Tire specifications
- 12.00R20 18PR
- Number of tires
- 12
- Carton length
- 5.6 meters
- Cargo box width
- 2.3 meters
- Cargo box height
- 1.5 m
