Sinotruk Haohan N7W heavy truck standard version 400 horsepower 8X4 7.2m dump truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 1800+3500+1350mm
- Body length:
- 9.96 meters
- Body width:
- 2.55 meters
- Body height:
- 3.55 meters
- Front track:
- 2022/2022mm
- Rear wheelbase:
- 1830/1830mm
- Vehicle weight:
- 15.04 tons

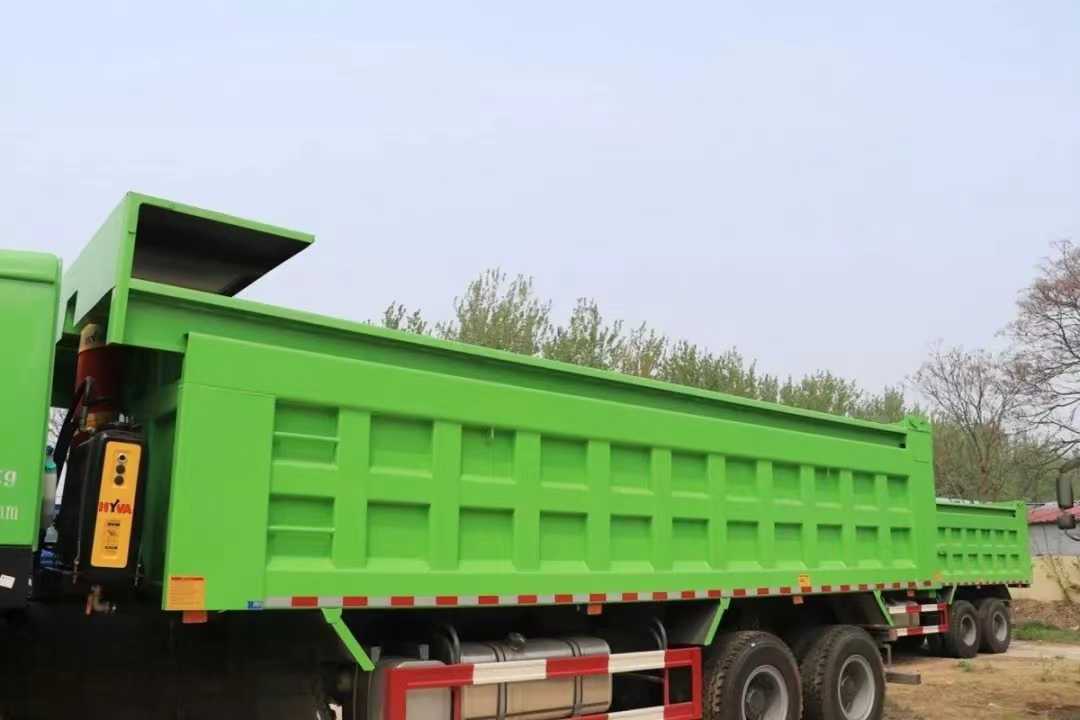

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 1800+3500+1350mm
- Body length
- 9.96 meters
- Body width
- 2.55 meters
- Body height
- 3.55 meters
- Front track
- 2022/2022mm
- Rear wheelbase
- 1830/1830mm
- Vehicle weight
- 15.04 tons
- Rated load
- 15.83 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 17 degrees
- Departure angle
- 21 degrees
- Origin
- Jining, Shandong
- Market segments
- Urban construction debris
Engine parameters
- engine model
- Weichai WP10H400E50
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 9.5L
- Emission Standards
- National Five
- Maximum horsepower
- 400 HP
- Maximum output power
- 294kW
- Maximum torque
- 1900N·m
- Maximum torque speed
- 1200-1300rpm
- Rated speed
- 1900rpm
- Engine form
- Electronically controlled high voltage common rail+SCR
Gearbox parameters
- Gearbox model
- SINOTRUK HW19712L
- Gearbox brand
- SINOTRUK
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- (8+5/280)mm
- Front axle description
- H653 self-adjusting arm front axle
- Allowable load on front axle
- 6500/7000kg
- Rear axle description
- MCJ12 self-adjusting arm dual rear axle
- Allowable load on rear axle
- 17500(two-axle group)kg
- Speed ratio
- 4.63
- Number of spring leaves
- 4/4/-,4/4/5,4/4/12,11/11/-,11/11/12, left 14 right 13/left 14 right 13/12, 8/8/10
- Tire specifications
- 12.00R20 18PR
- Number of tires
- 12
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 400L
- Carton length
- 7.2 meters
- Cargo box width
- 2.35 meters
- Cargo box height
- 1.5 m
- Container form
- Back flip dump type
