SINOTRUK HOWO T5G series heavy truck 340 horsepower 6X4 6.3m dump truck
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 4100+1350mm
- Body length:
- 8.93 meters
- Body width:
- 2.496 meters
- Body height:
- 3.45 meters
- Front track:
- 2022,2041mm
- Rear wheelbase:
- 1830/1830mm
- Vehicle weight:
- 12.19 tons

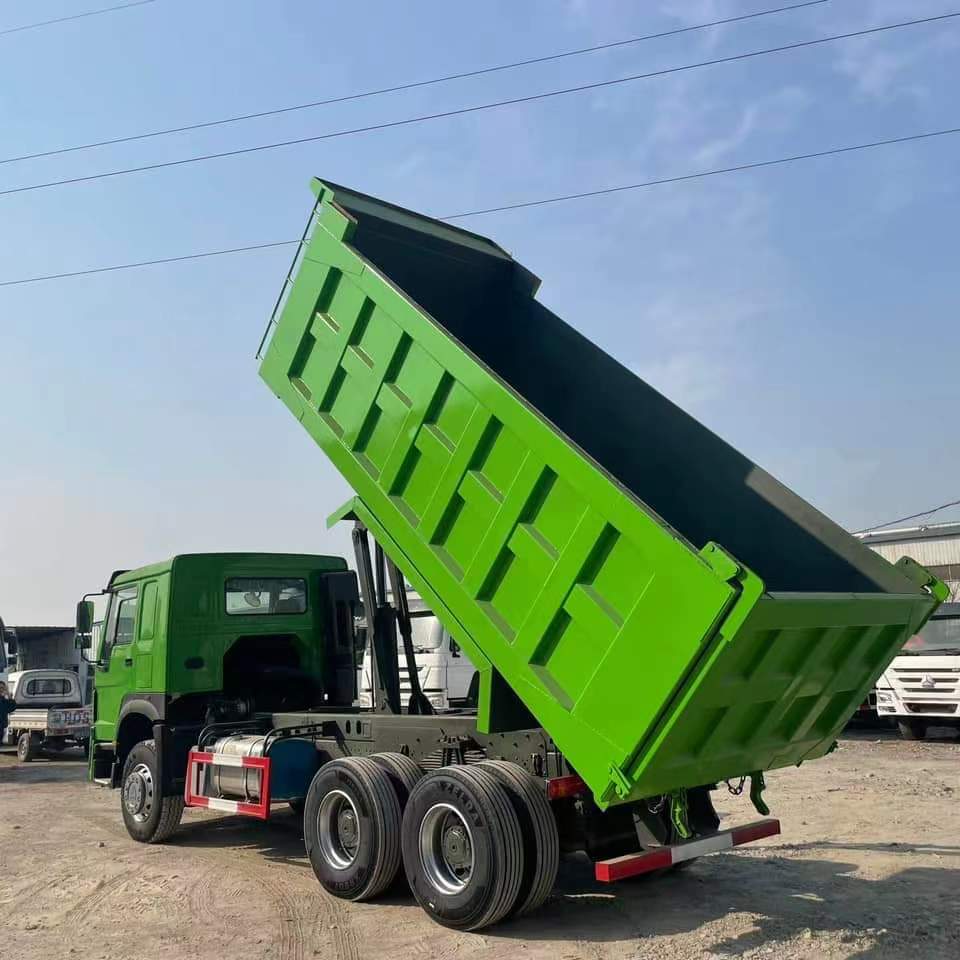

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 4100+1350mm
- Body length
- 8.93 meters
- Body width
- 2.496 meters
- Body height
- 3.45 meters
- Front track
- 2022,2041mm
- Rear wheelbase
- 1830/1830mm
- Vehicle weight
- 12.19 tons
- Rated load
- 12.68 tons
- Total mass
- 25 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 19 degrees
- Departure angle
- 18 degrees
- Origin
- Shandong Jinan
- Market segments
- Urban construction waste, mining engineering
Engine parameters
- engine model
- Sinotruk MC07.34-40
- Engine brand
- SINOTRUK
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 6.87L
- Emission Standards
- National IV
- Maximum horsepower
- 340 HP
- Maximum output power
- 248kW
- Maximum torque
- 1250N·m
- Maximum torque speed
- 1200-1800rpm
- Rated speed
- 2300rpm
- Engine form
- In-line, water-cooled, four-stroke, supercharged and intercooled
Gearbox parameters
- Gearbox model
- SINOTRUK HW15710
- Gearbox brand
- SINOTRUK
- Forward gear
- 10 gears
- Number of reverse gears
- 2
Chassis parameters
- Rear axle description
- HF7 disc type/HC16 disc type
- Speed ratio
- 6.3
- Number of spring leaves
- 11/10
- Number of tires
- 10
- Tire specifications
- 12.00R20
- Fuel tank capacity
- 300L
- Carton length
- 6.3 meters
- Cargo box width
- 2.3 meters
- Cargo box height
- 1.07 meters
