SINOTRUK HOWO T5G series heavy truck 310 horsepower 6X4 5.8m dump truck
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3600+1350mm
- Body length:
- 8.23 meters
- Body width:
- 2.496 meters
- Body height:
- 3.45 meters
- Front track:
- 2022mm
- Rear wheelbase:
- 1830/1830mm
- Vehicle weight:
- 12.05 tons

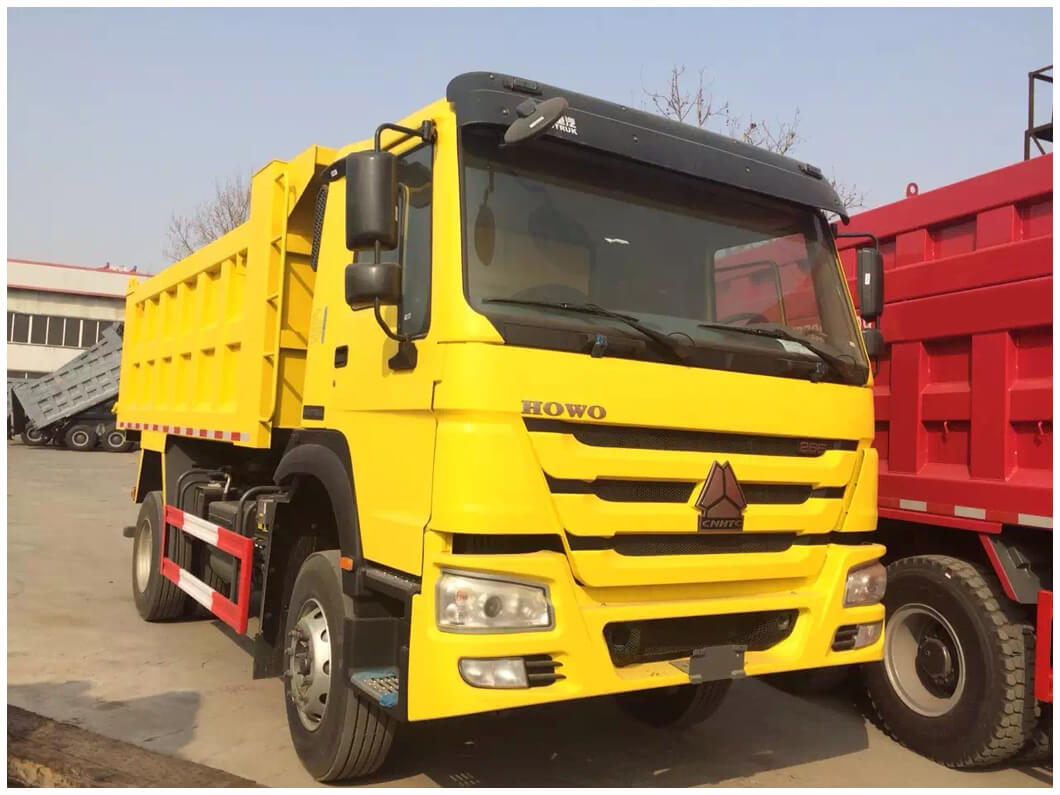

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3600+1350mm
- Body length
- 8.23 meters
- Body width
- 2.496 meters
- Body height
- 3.45 meters
- Front track
- 2022mm
- Rear wheelbase
- 1830/1830mm
- Vehicle weight
- 12.05 tons
- Rated load
- 12.82 tons
- Total mass
- 25 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 19 degrees
- Departure angle
- 19 degrees
- Origin
- Shandong Jinan
- Market segments
- Urban construction waste, mining engineering
Engine parameters
- engine model
- Sinotruk MC07.31-40
- Engine brand
- SINOTRUK
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 6.87L
- Emission Standards
- National IV
- Maximum horsepower
- 310 HP
- Maximum output power
- 228kW
- Maximum torque
- 1230N·m
- Maximum torque speed
- 1200-1800rpm
- Rated speed
- 2300rpm
- Engine form
- In-line, water-cooled, four-stroke, supercharged and intercooled
Gearbox parameters
- Gearbox model
- SINOTRUK HW19712
- Gearbox brand
- SINOTRUK
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Rear axle description
- AC16
- Allowable load on rear axle
- 16000kg
- Speed ratio
- 6.5
- Number of spring leaves
- 11/12
- Tire specifications
- 12.00R20
- Number of tires
- 10

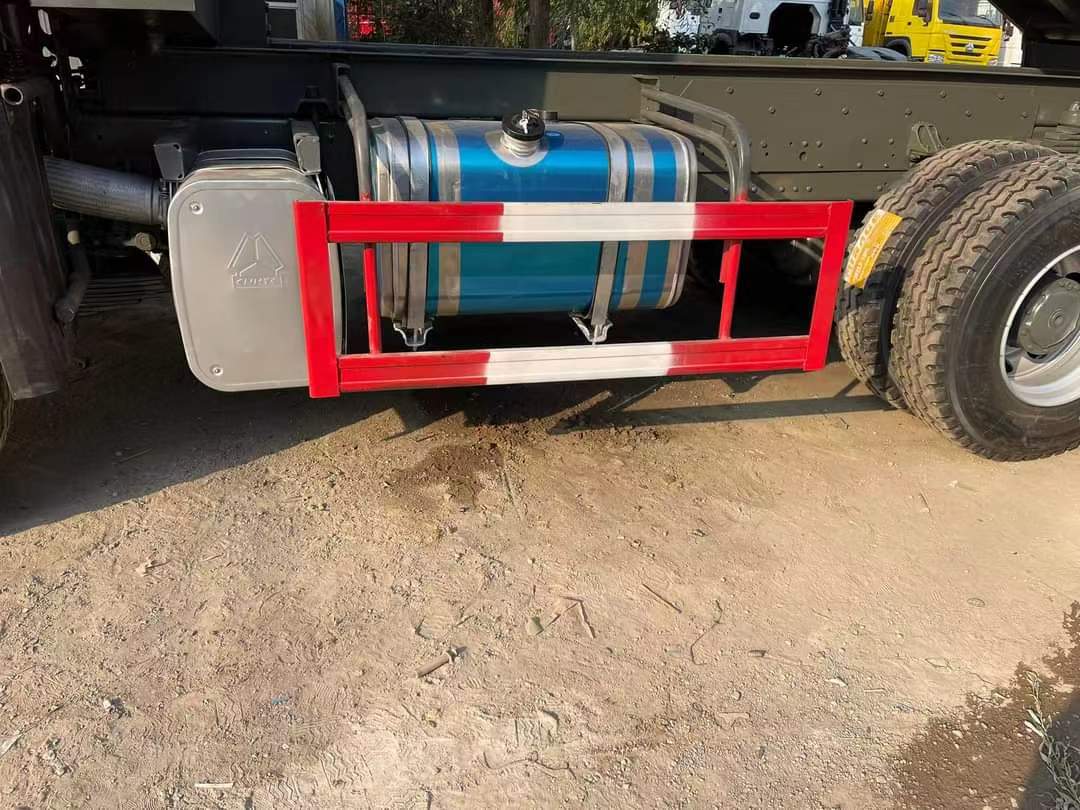

- Fuel tank capacity
- 300L
- Carton length
- 5.8 meters
- Cargo box width
- 2.3 meters
- Cargo box height
- 1.165 meters
- Container form
- Self-unloading
