SINOTRUK HOWO T5G Heavy Truck 340 HP 8X4 5.6m Dump Truck
Submit purchase requestBasic Information
- Drive form:
- 8X4
- Wheelbase:
- 1800+2800+1350mm
- Body length:
- 8.48 meters
- Body width:
- 2.496 meters
- Body height:
- 3.45 meters
- Front track:
- 2020/2020mm
- Rear wheelbase:
- 1830/1830mm
- Vehicle weight:
- 14.87 tons

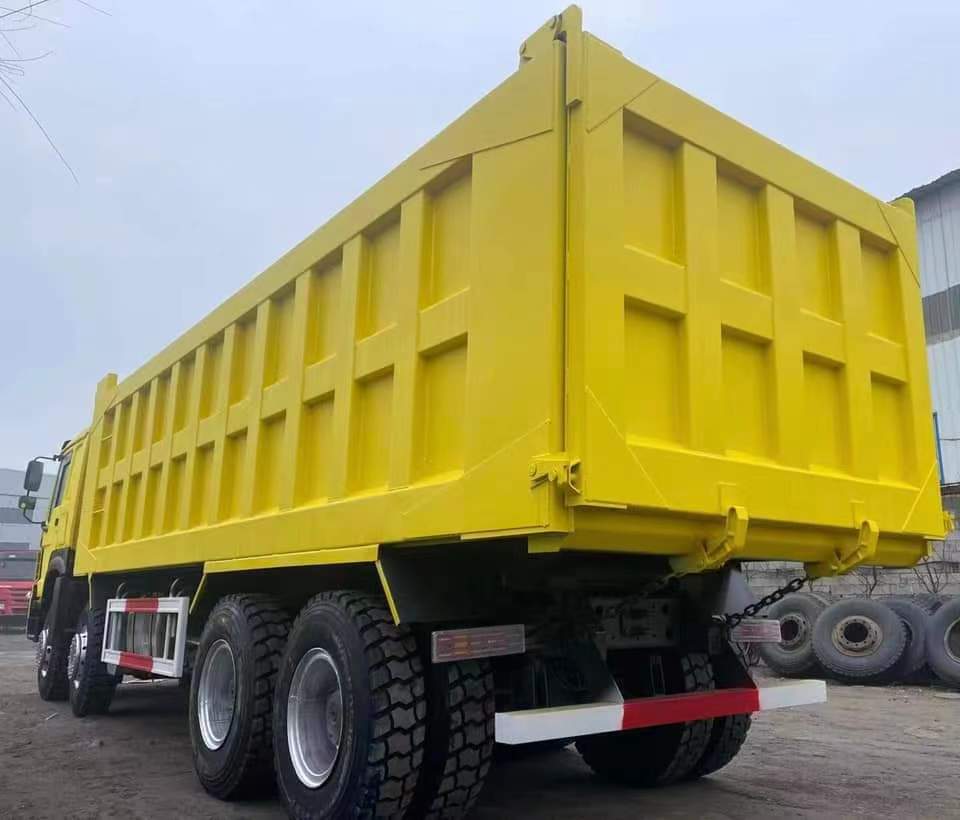

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 8X4
- Wheelbase
- 1800+2800+1350mm
- Body length
- 8.48 meters
- Body width
- 2.496 meters
- Body height
- 3.45 meters
- Front track
- 2020/2020mm
- Rear wheelbase
- 1830/1830mm
- Vehicle weight
- 14.87 tons
- Rated load
- 16 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach angle
- 19 degrees
- Departure angle
- 31 degrees
- Origin
- Shandong Jinan
- Market segments
- Urban construction waste, road transportation
Engine parameters
- engine model
- Sinotruk MC07.34-50
- Engine brand
- SINOTRUK
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Displacement
- 6.87L
- Emission Standards
- National Five
- Maximum horsepower
- 340 HP
- Maximum output power
- 248kW
- Maximum torque
- 1250N·m
- Maximum torque speed
- 1200-1800rpm
- Rated speed
- 2300rpm
- Engine form
- In-line, water-cooled, four-stroke, supercharged and intercooled
Gearbox parameters
- Gearbox model
- SINOTRUK HW15710C
- Gearbox brand
- SINOTRUK
- Forward gear
- 10 gears
- Number of reverse gears
- 2
Chassis parameters
- Allowable load on front axle
- 6500/7000kg
- Rear axle description
- HC16 Steyr reinforced double rear axle (drum)
- Allowable load on rear axle
- 17500(two-axle group)kg
- Speed ratio
- 5.73
- Number of spring leaves
- 11/11/10,11/11/-
- Tire specifications
- 12R22.5 18PR,12.00R20 18PR,11.00R20 18PR,11.00-20 18PR
- Number of tires
- 12
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 400L
- Carton length
- 5.6 meters
- Cargo box width
- 2.3 meters
- Cargo box height
- 0.9 meters
- Container form
- Back flip dump type
