JAC Kirin J6 330HP 8X4 7.6m dump truck
Submit purchase requestBasic Information
- Drive type:
- 8X4
- Wheelbase:
- 1950+3300+1350mm
- engine:
- Yuchai YCK08330-60
- Gearbox:
- Fast 10JSD140B+QH50
- Body length:
- 10.33 m
- Body width:
- 2.55 m
- Ride height:
- 3.25 m
- Front track:
- 2080/2080mm

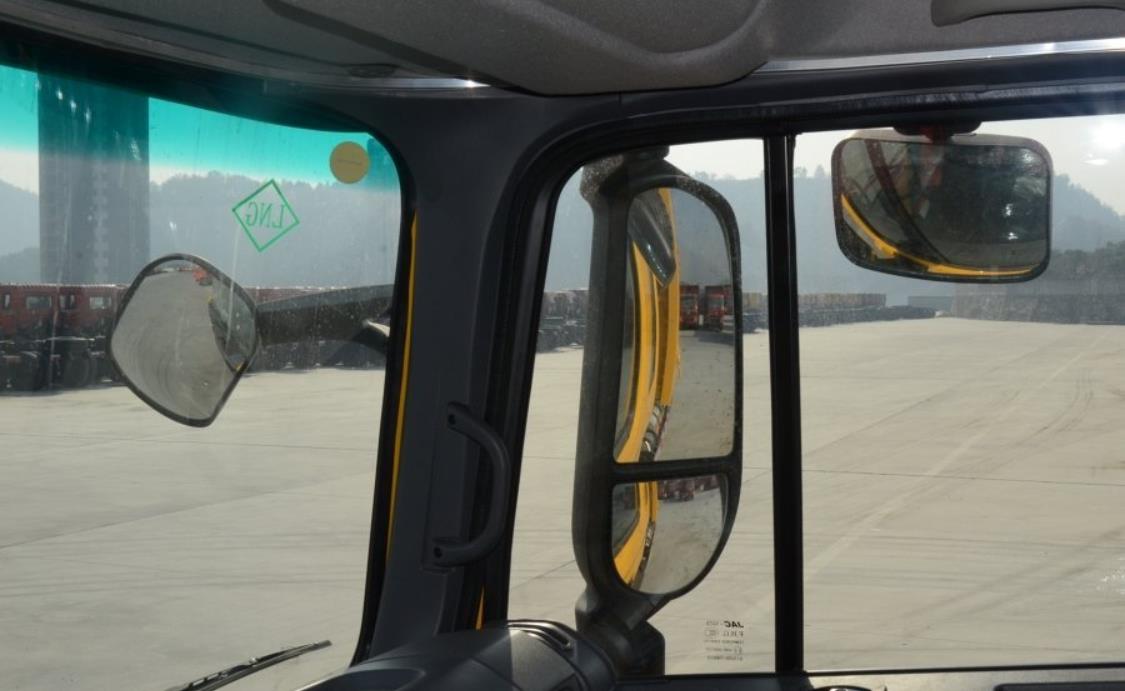

Truck Picture
Truck Configuration
Basic Information
- Drive type
- 8X4
- Wheelbase
- 1950+3300+1350mm
- engine
- Yuchai YCK08330-60
- Gearbox
- Fast 10JSD140B+QH50
- Body length
- 10.33 m
- Body width
- 2.55 m
- Ride height
- 3.25 m
- Front track
- 2080/2080mm
- Rear track
- 1880/1880mm
- Vehicle weight
- 15.5 tons
- Rated load
- 15.37 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach Angle
- 15 degrees
- Departure angle
- 11 degrees
- Origin
- Hefei, Anhui
Engine parameters
- engine model
- Yuchai YCK08330-60
- Engine brand
- Yuchai
- Number of cylinders
- 6 cylinders
- Fuel type
- diesel fuel
- Displacement
- 7.7L
- Emission Standards
- National VI
- Maximum horsepower
- 330 hp
- Maximum output power
- 243kW
- Maximum torque
- 1350N·m
- Maximum torque speed
- 1200-1700rpm
- Rated speed
- 2200rpm
- Engine Type
- High pressure common rail+EGR+DOC+DPF+SCR+ASC
Gearbox parameters
- Gearbox model
- Fast 10JSD140B
- Gearbox brand
- fast
- Forward gear
- 10 levels
- Reverse gear number
- 2
- Shifting method
- Manual
Chassis parameters
- Frame size
- 280mm
- Front axle description
- 5T
- Permissible load on front axle
- 6500/6500kg
- Rear axle description
- 440
- Permissible load on rear axle
- 18000(two-axle group)kg
- Number of springs
- 9/9/10
- Number of tires
- 12
- Tire specifications
- 10.00R20 18PR
- Fuel tank material
- Aluminum Alloy
- Fuel tank capacity
- 200L
