Foton Auman Planetary 350HP 8X4 6.5m Dump Truck
Submit purchase requestBasic Information
- Drive type:
- 8X4
- Wheelbase:
- 2000+3150+1350mm
- engine:
- Yuchai YCK08350-60
- Gearbox:
- Fast 10JSD160T
- Rear axle ratio:
- 4.625
- Body length:
- 9.425 m
- Body width:
- 2.55 m
- Ride height:
- 3.41 m

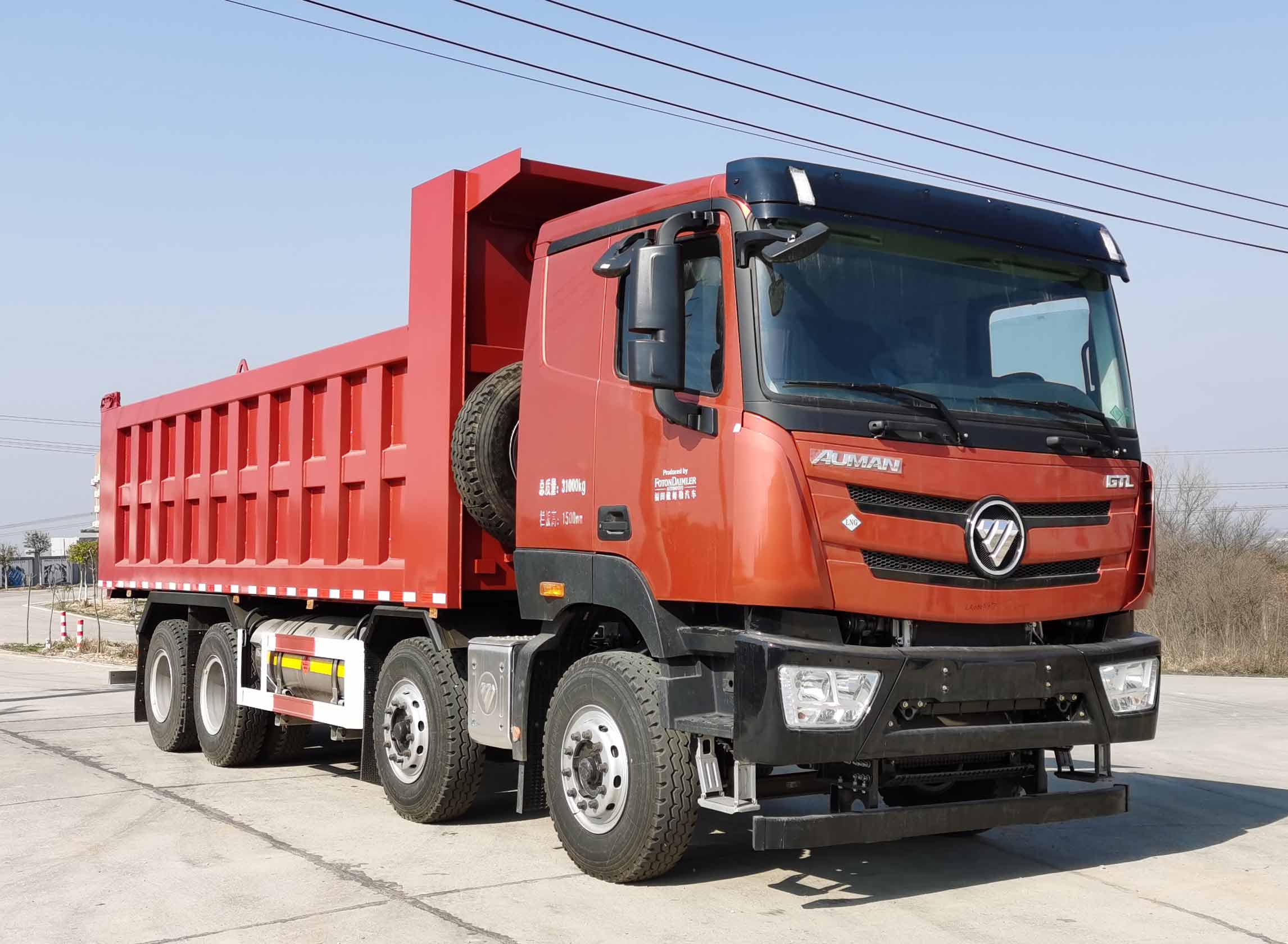

Truck Picture
Truck Configuration
Basic Information
- Drive type
- 8X4
- Wheelbase
- 2000+3150+1350mm
- engine
- Yuchai YCK08350-60
- Gearbox
- Fast 10JSD160T
- Rear axle ratio
- 4.625
- Body length
- 9.425 m
- Body width
- 2.55 m
- Ride height
- 3.41 m
- Front track
- 2040/2040mm
- Rear track
- 1865/1865mm
- Vehicle weight
- 12.5 tons
- Rated load
- 18.37 tons
- Total mass
- 31 tons
- Tonnage level
- Heavy Truck
- Approach Angle
- 19 degrees
- Departure angle
- 15 degrees
- Origin
- Beijing
Engine parameters
- engine model
- Yuchai YCK08350-60
- Engine brand
- Yuchai
- Number of cylinders
- 6 cylinders
- Fuel type
- diesel fuel
- Displacement
- 7.7L
- Emission Standards
- National VI
- Maximum horsepower
- 350 hp
- Maximum output power
- 257kW
- Maximum torque
- 1450N·m
- Maximum torque speed
- 1300-1500rpm
- Rated speed
- 2200rpm
- Engine Type
- High pressure common rail+EGR+DOC+DPF+SCR+ASC
Gearbox parameters
- Gearbox model
- Fast 10JSD160T
- Gearbox brand
- fast
- Forward gears
- 10 levels
- Reverse gear number
- 2
- Shell material
- Aluminum shell
- Shifting method
- Manual
Chassis parameters
- Frame size
- 286 double layer mm
- Front axle description
- 5T
- Permissible load on front axle
- 6500/6500kg
- Rear axle description
- 13T
- Permissible load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 4.625
- Number of springs
- 10/10/10
- Steering gear
- Domestic
- Number of tires
- 12
- Tire specifications
- 11.00R20 18PR
- Fuel tank material
- Aluminum Alloy
- Fuel tank capacity
- 350L
