SAIC Hongyan GENLYON C6 Heavy Duty Edition 560HP 6X4 6.6m Dump Truck
Submit purchase requestBasic Information
- Drive type:
- 6X4
- Wheelbase:
- 4700+1400mm
- engine:
- Shanghai Diesel SC13E560.1Q6
- Gearbox:
- Fast 13JSDX260T
- Rear axle ratio:
- 5.214
- Body length:
- 9.585 m
- Body width:
- 2.55 m
- Ride height:
- 3.46 m

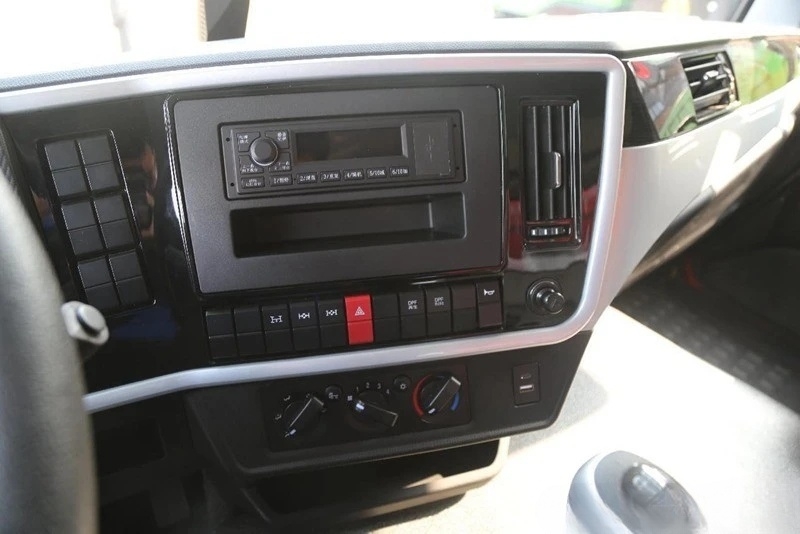

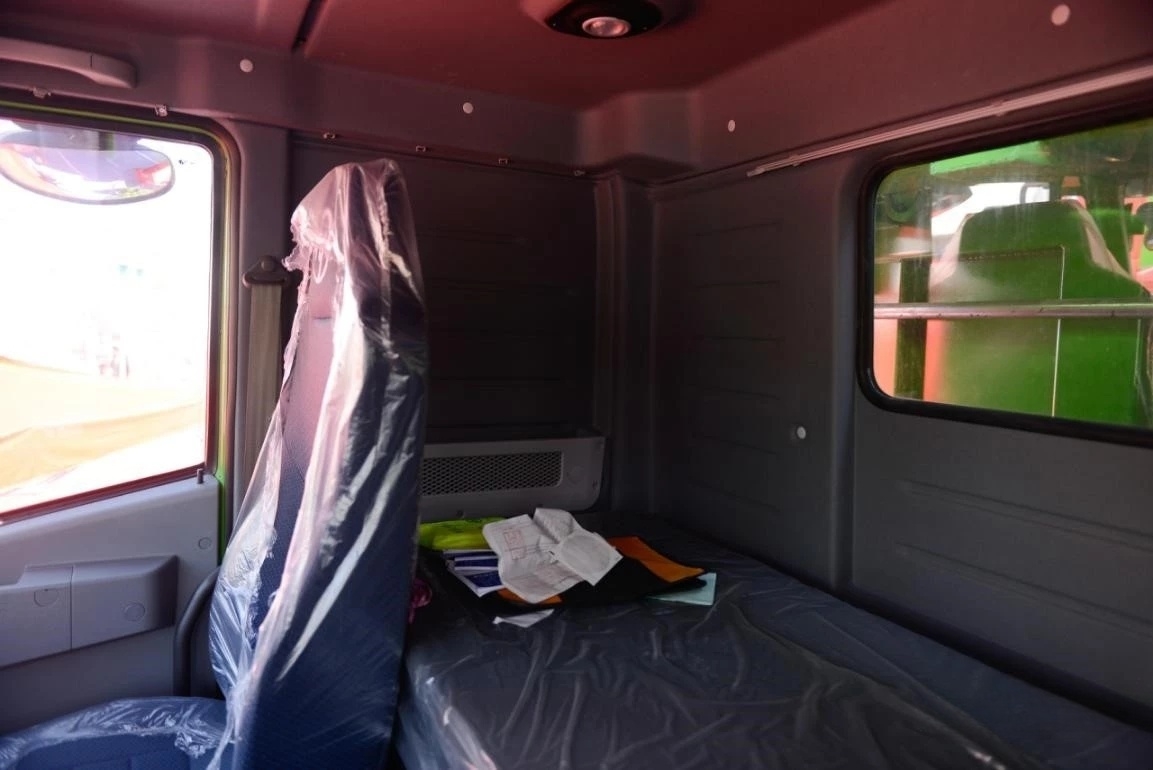

Truck Picture
Truck Configuration
Basic Information
- Drive type
- 6X4
- Wheelbase
- 4700+1400mm
- engine
- Shanghai Diesel SC13E560.1Q6
- Gearbox
- Fast 13JSDX260T
- Rear axle ratio
- 5.214
- Body length
- 9.585 m
- Body width
- 2.55 m
- Ride height
- 3.46 m
- Front track
- 2020mm
- Rear track
- 1858/1858mm
- Vehicle weight
- 12.5 tons
- Rated load
- 12.37 tons
- Total mass
- 25 tons
- Tonnage level
- Heavy Truck
- Approach Angle
- 16 degrees
- Departure angle
- 16 degrees
- Origin
- Chongqing
- Version
- Reloaded version
Engine parameters
- engine model
- Shanghai Diesel SC13E560.1Q6
- Engine brand
- Shangchai
- Number of cylinders
- 6 cylinders
- Fuel type
- diesel fuel
- Displacement
- 12.82L
- Emission Standards
- National VI
- Maximum horsepower
- 560 hp
- Maximum output power
- 412kW
Gearbox parameters
- Gearbox model
- Fast 13JSDX260T
- Gearbox brand
- Fast
- Forward gear
- 13 gears
- Reverse gear number
- 2
- Shifting method
- Manual
Chassis parameters
- Frame size
- 980/865×317×8+8mm
- Front axle description
- 7.5T
- Permissible load on front axle
- 7000kg
- Rear axle description
- HY320
- Permissible load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 5.214
- Number of springs
- 8/12
- Number of tires
- 10

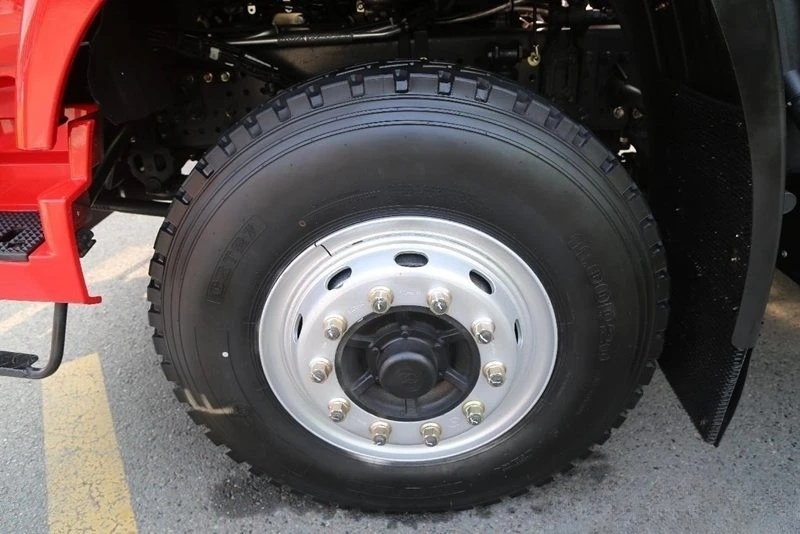

- Tire specifications
- 12.00R20 16PR
- Fuel tank capacity
- 400L
