Dongfeng Liuzhou Motor New Chenglong M3 245HP 6X2 4.6m dump truck
Submit purchase requestBasic Information
- Drive type:
- 6X2
- Wheelbase:
- 2550+1350mm
- engine:
- Yuchai YCS06245-60
- Gearbox:
- Fast 10JSD120
- Rear axle ratio:
- 5.921
- Body length:
- 7.21 m
- Body width:
- 2.5 m
- Ride height:
- 3.2 m

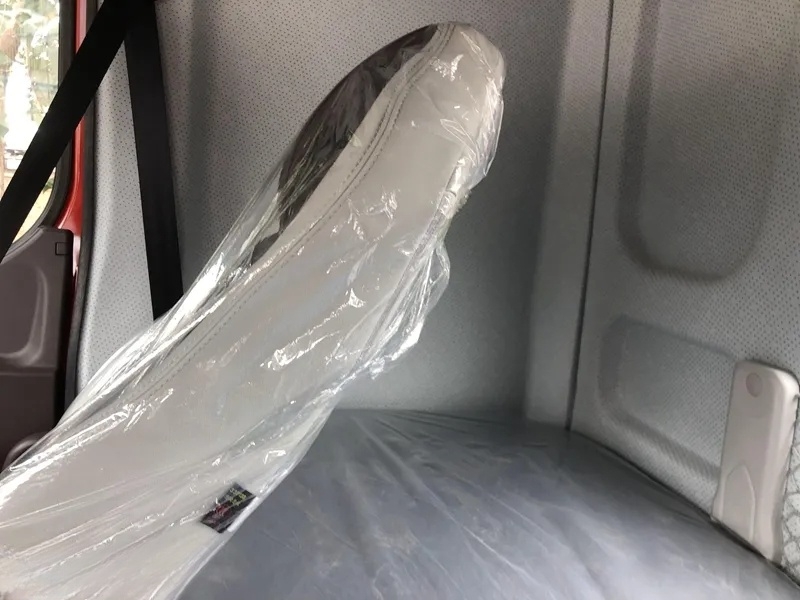

Truck Picture
Truck Configuration
Basic Information
- Drive type
- 6X2
- Wheelbase
- 2550+1350mm
- engine
- Yuchai YCS06245-60
- Gearbox
- Fast 10JSD120
- Rear axle ratio
- 5.921
- Body length
- 7.21 m
- Body width
- 2.5 m
- Ride height
- 3.2 m
- Front track
- 1890mm
- Rear track
- 1960/1860mm
- Vehicle weight
- 9.65 tons
- Rated load
- 14.655 tons
- Total mass
- 24.5 tons
- Tonnage level
- Heavy Truck
- Approach Angle
- 18 degrees
- Departure angle
- 19 degrees
- Origin
- Liuzhou, Guangxi
- Remark
- Optional gearbox 10JS90A-B.
Engine parameters
- engine model
- Yuchai YCS06245-60
- Engine brand
- Yuchai
- Number of cylinders
- 6 cylinders
- Fuel type
- diesel fuel
- Displacement
- 6.23L
- Emission Standards
- National VI
- Maximum horsepower
- 245 hp
- Maximum output power
- 180kW
- Maximum torque
- 850N·m
- Maximum torque speed
- 1200-1700rpm
- Rated speed
- 2300rpm
- Engine Type
- High pressure common rail+EGR+DOC+DPF+SCR+ASC
Gearbox parameters
- Gearbox model
- Fast 10JSD120
- Gearbox brand
- Fast
- Forward gear
- 10 levels
- Reverse gear number
- 2
- Shifting method
- Manual
Chassis parameters
- Frame size
- 282(8+4)860 straight mm
- Front axle description
- 5.5T front axle
- Permissible load on front axle
- 6500kg
- Rear Axle Description
- 20T cast steel single rear axle
- Permissible load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 5.921
- Number of springs
- 11/2+-/12+9
- clutch
- Φ430
- Number of tires
- 8
- Tire specifications
- 11.00R20 18PR
- Fuel tank capacity
- 160L
