Dongfeng Liuqi New Chenglong M3 270 HP 4X2 4.7m dump truck
Submit purchase requestBasic Information
- Drive form:
- 4X2
- Wheelbase:
- 4200mm
- Body length:
- 7.295 meters
- Body width:
- 2.545 meters
- Body height:
- 3.2 meters
- Front track:
- 1980mm
- Rear wheelbase:
- 1860mm
- Vehicle weight:
- 9 tons

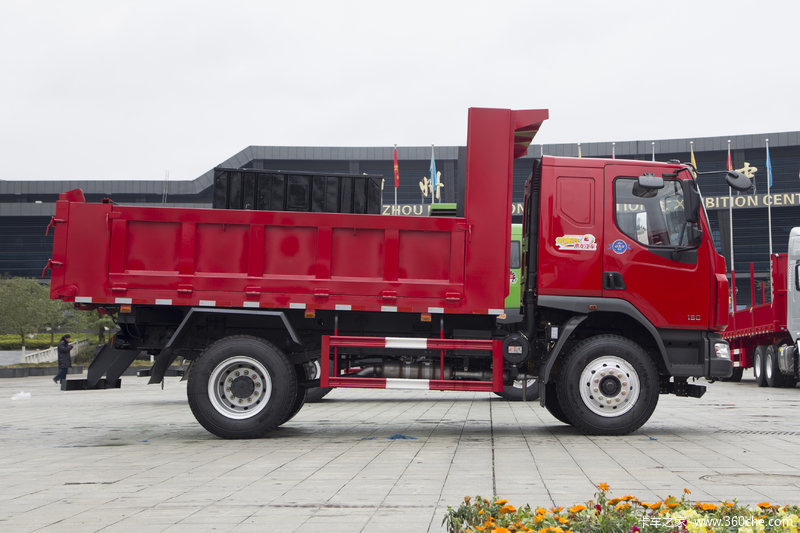

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 4X2
- Wheelbase
- 4200mm
- Body length
- 7.295 meters
- Body width
- 2.545 meters
- Body height
- 3.2 meters
- Front track
- 1980mm
- Rear wheelbase
- 1860mm
- Vehicle weight
- 9 tons
- Rated load
- 8.805 tons
- Total mass
- 18 tons
- Tonnage level
- medium card
- Approach angle
- 20 degrees
- Departure angle
- 18 degrees
- Origin
- Liuzhou, Guangxi
- Remark
- Full floating cab suspension
Engine parameters
- engine model
- Yuchai YCS06270-60
- Engine brand
- Yuchai
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Displacement
- 6.23L
- Emission Standards
- National VI
- Maximum horsepower
- 270 HP
- Maximum output power
- 199kW
- Maximum torque
- 1050N·m
- Maximum torque speed
- 1200-1700rpm
- Rated speed
- 2300rpm
- Engine form
- High voltage common rail+EGR+DOC+DPF+SCR+ASC
Gearbox parameters
- Gearbox model
- Fast 10JSD120
- Gearbox brand
- fast
- Forward gear
- 10 gears
- Number of reverse gears
- 2
- Shifting method
- Manual
Chassis parameters
- Frame size
- 282(8+4)mm
- Front axle description
- 6.5T
- Allowable load on front axle
- 6500kg
- Rear axle description
- 300 cast steel
- Allowable load on rear axle
- 11500kg
- Speed ratio
- 5.262
- Number of spring leaves
- 11/12+9
- clutch
- Φ430
- Steering gear
- Domestic
- Number of tires
- 6
- Tire specifications
- 11.00R20 18PR
- Fuel tank capacity
- 280L
