Dongfeng Liuqi Chenglong H7 heavy truck 600 horsepower 6X4 AMT automatic transmission tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3300+1350mm
- engine:
- Yuchai 6K1360-60
- Gearbox:
- Fast F12JZ26A
- Rear axle speed ratio:
- 3.364
- Body length:
- 7.16 meters
- Body width:
- 2.525 meters
- Body height:
- 3.69 meters

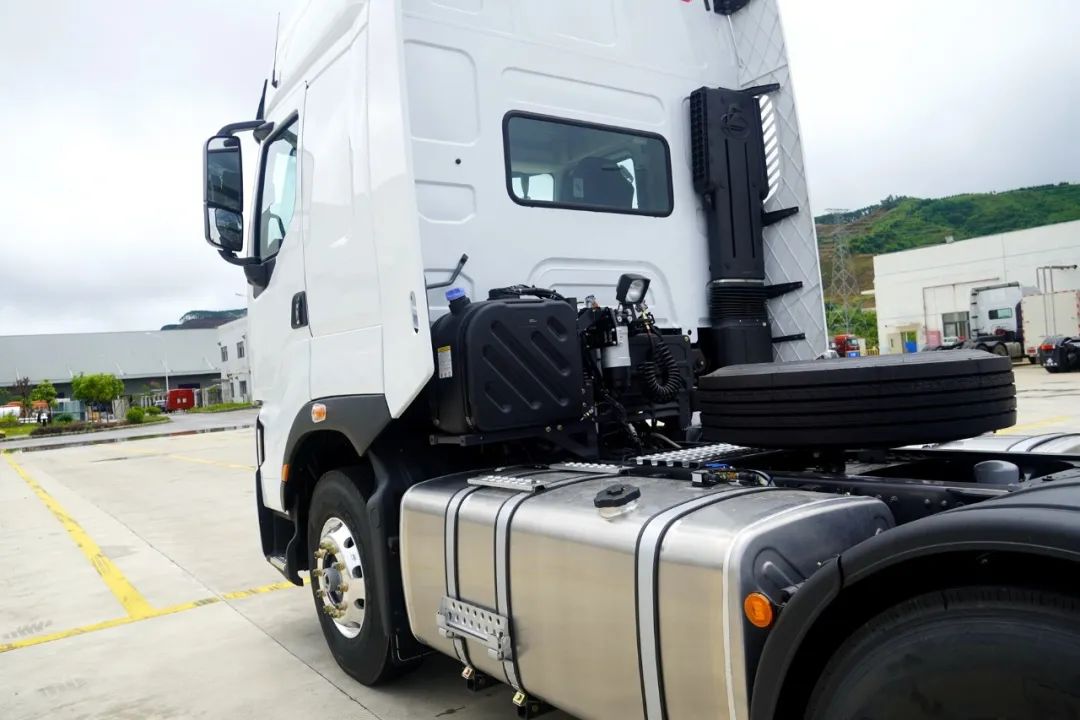

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3300+1350mm
- engine
- Yuchai 6K1360-60
- Gearbox
- Fast F12JZ26A
- Rear axle speed ratio
- 3.364
- Body length
- 7.16 meters
- Body width
- 2.525 meters
- Body height
- 3.69 meters
- Front track
- 2040mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 8.8 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 89km/h
- Origin
- Liuzhou, Guangxi
- Tonnage level
- Heavy Truck
Engine parameters
- engine model
- Yuchai 6K1360-60
- Engine brand
- Yuchai
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 12.94L
- Emission Standards
- National VI
- Maximum horsepower
- 600 HP
- Maximum output power
- 441kW
- Maximum torque
- 2600N·m
- Maximum torque speed
- 950-1400rpm
- Rated speed
- 1900rpm
Gearbox parameters
- Gearbox model
- Fast F12JZ26A
- Shifting method
- AMT automated manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 282 single layer mm
- Front axle description
- 153 Strengthen (Kangmai)
- Rear axle description
- 2*new 440
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 3.364
- Number of spring leaves
- 2/3
- clutch
- Φ430
- Steering gear
- Domestic
- Saddle
- 50#
- Tire specifications
- 12R22.5 18PR (front aluminum and rear light)
- Number of tires
- 10
- Fuel tank/gas tank material
- Aluminum alloy
- Fuel tank capacity
- 800+350L aluminum (integrated urea tank)L
