SINOTRUK HOWO TH7 heavy truck 630 horsepower 6X4 AMT automatic transmission tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3400+1400mm
- engine:
- Weichai WP14T630E62
- Gearbox:
- SINOTRUK HW16-HD27
- Body length:
- 7.318 meters
- Body width:
- 2.496 meters
- Body height:
- 3.94 meters
- Front track:
- 2022mm

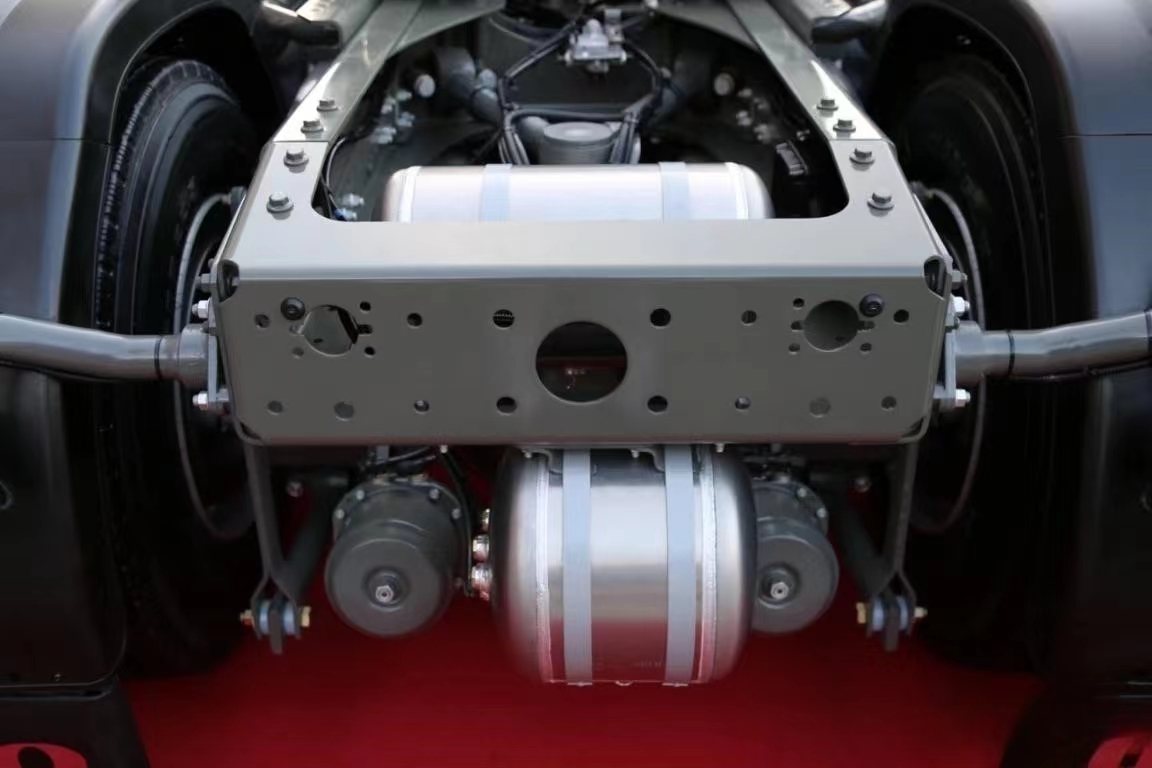

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3400+1400mm
- engine
- Weichai WP14T630E62
- Gearbox
- SINOTRUK HW16-HD27
- Body length
- 7.318 meters
- Body width
- 2.496 meters
- Body height
- 3.94 meters
- Front track
- 2022mm
- Rear wheelbase
- 1830/1830mm
- Vehicle weight
- 8.8 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 89km/h
- Origin
- Shandong Jinan
- Tonnage level
- Heavy Truck
Engine parameters
- engine model
- Weichai WP14T630E62
- Engine brand
- Weichai
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 13.5L
- Emission Standards
- National VI
- Maximum horsepower
- 630 HP
- Maximum output power
- 463kW
- Maximum torque
- 463kW
- Maximum torque speed
- 900-1400rpm
- Rated speed
- 1800rpm
Gearbox parameters
- Gearbox model
- SINOTRUK HW16-HD27
- Shifting method
- AMT automated manual
- Forward gear
- 16 gears
- Number of reverse gears
- 2
Chassis parameters
- Rear axle description
- MCY12BGS
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Number of spring leaves
- 2/3
- Number of tires
- 10
- Tire specifications
- 12R22.5 18PR
