SINOTRUK Haohan N7G heavy truck 440 horsepower 6X4 tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3400+1400mm
- engine:
- Sinotruk MC11.44-60
- Gearbox:
- SINOTRUK 12 gear
- Rear axle speed ratio:
- 4.11
- Body length:
- 7.05 meters
- Body width:
- 2.55 meters
- Body height:
- 3.09 meters

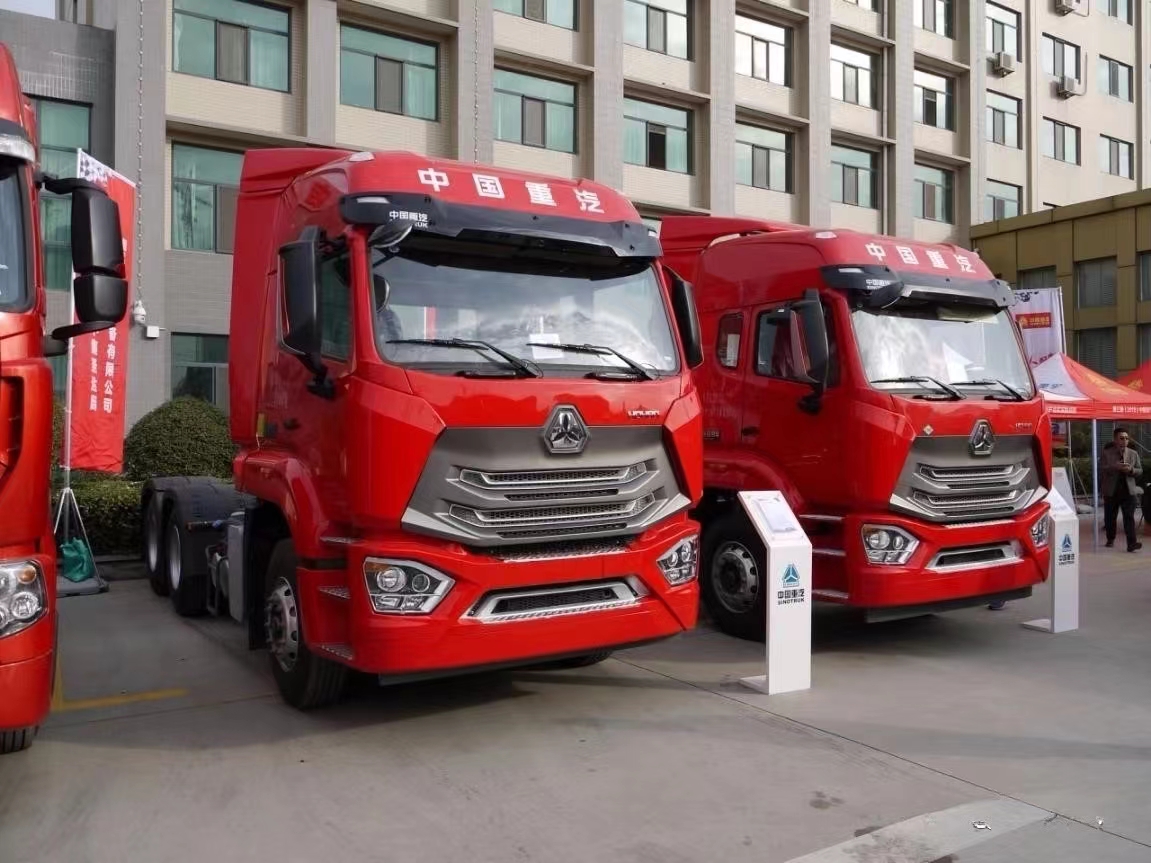

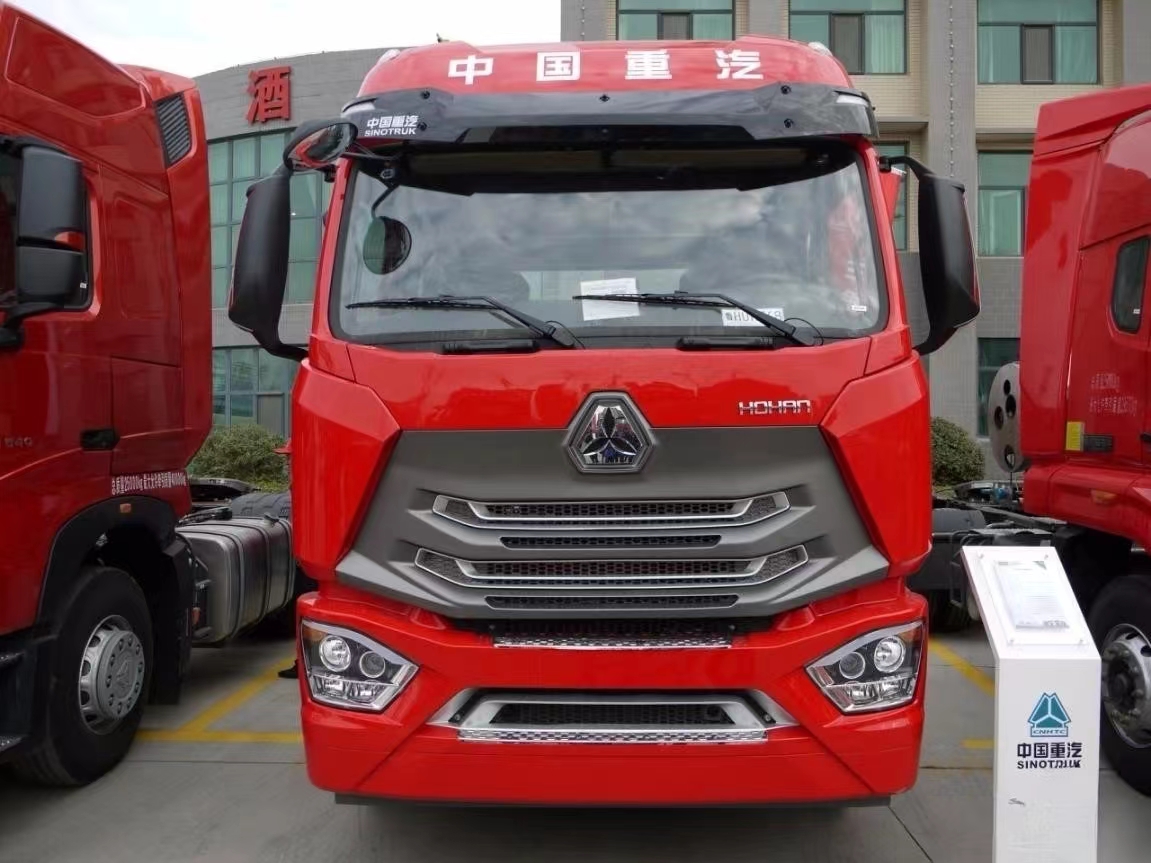

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3400+1400mm
- engine
- Sinotruk MC11.44-60
- Gearbox
- SINOTRUK 12 gear
- Rear axle speed ratio
- 4.11
- Body length
- 7.05 meters
- Body width
- 2.55 meters
- Body height
- 3.09 meters
- Front track
- 1996mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 8.8 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 102km/h
- Market segments
- Logistics distribution, coal transportation
- Origin
- Jining, Shandong
- Tonnage level
- Heavy Truck
- Remark
- Cold area bag, smart communication B, comfort bag, plus nitrogen and oxygen sensor
Engine parameters
- engine model
- Sinotruk MC11.44-60
- Engine brand
- SINOTRUK
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 10.518L
- Emission Standards
- National VI
- Maximum horsepower
- 440 HP
- Maximum output power
- 324kW
- Maximum torque
- 2100N·m
- Maximum torque speed
- 1000-1400rpm
- Rated speed
- 1900rpm
- Technical route
- Common Rail SCR
Gearbox parameters
- Gearbox model
- Sinotruk 12-speed
- Shifting method
- Manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- H153
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 4.11
- Number of spring leaves
- 3/5
- Saddle
- 90#
- Number of tires
- 10
- Tire specifications
- 12R22.5
- Fuel tank capacity
- 700L
