JAC V7 heavy truck 560 horsepower 6X4 AMT automatic transmission tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 4500+1350mm
- engine:
- Dongfeng Cummins Z14NS6B560
- Gearbox:
- ZF 12TX2621TD
- Rear axle speed ratio:
- 2.85
- Body length:
- 8.175 meters
- Body width:
- 2.55 meters
- Body height:
- 3.85 meters

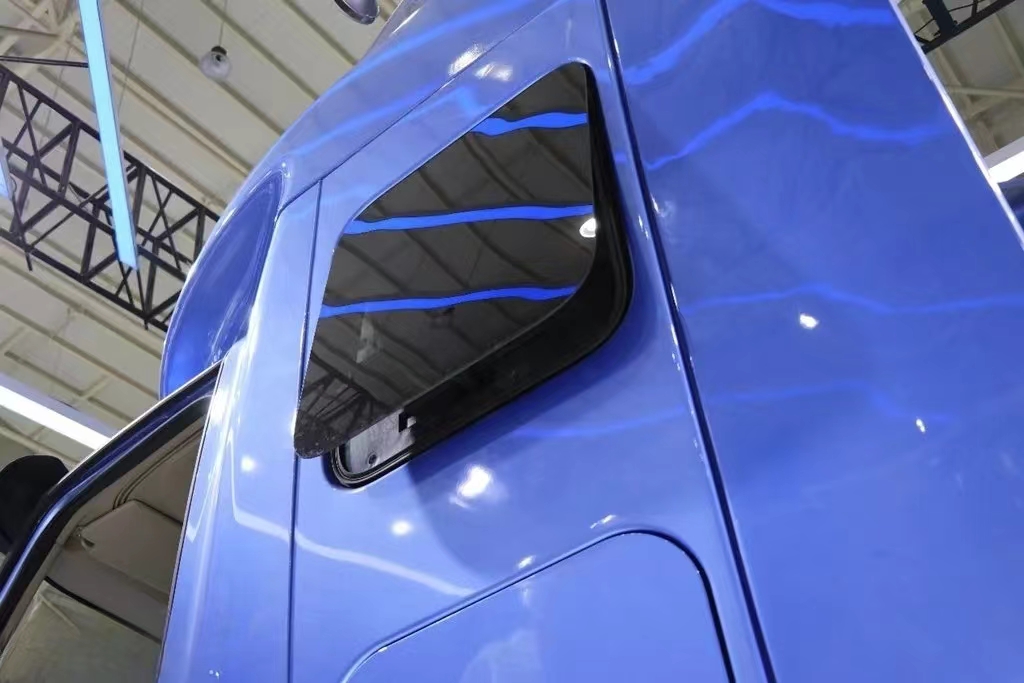

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 4500+1350mm
- engine
- Dongfeng Cummins Z14NS6B560
- Gearbox
- ZF 12TX2621TD
- Rear axle speed ratio
- 2.85
- Body length
- 8.175 meters
- Body width
- 2.55 meters
- Body height
- 3.85 meters
- Front track
- 2100mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 8.8 tons
- Total mass
- 25 tons
- Total traction mass
- 40.5 tons
- Maximum speed
- 110km/h
- Market segments
- Logistics distribution
- Origin
- Hefei, Anhui
- Tonnage level
- Heavy Truck
- Remark
- Optional speed ratio 2.64
Engine parameters
- engine model
- Dongfeng Cummins Z14NS6B560
- Engine brand
- Dongfeng Cummins
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 13.48L
- Emission Standards
- National VI
- Maximum horsepower
- 560 HP
- Maximum output power
- 418kW
- Maximum torque
- 2650N·m
- Maximum torque speed
- 900-1400rpm
- Rated speed
- 1800rpm
Gearbox parameters
- Gearbox model
- ZF 12TX2621TD
- Shifting method
- AMT automated manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 2.85
- Number of spring leaves
- 2/-/-
- Number of tires
- 10
- Tire specifications
- 12R22.5 18PR
