Shaanxi Auto Heavy Duty Truck Delonghi X6000 560 HP 6X4 AMT Automatic Tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3300+1350mm
- engine:
- Weichai WP13H560E68A
- Gearbox:
- Fast S16AD
- Rear axle speed ratio:
- 2.846
- Body length:
- 7.08 meters
- Body width:
- 2.55 meters
- Body height:
- 3.8 meters

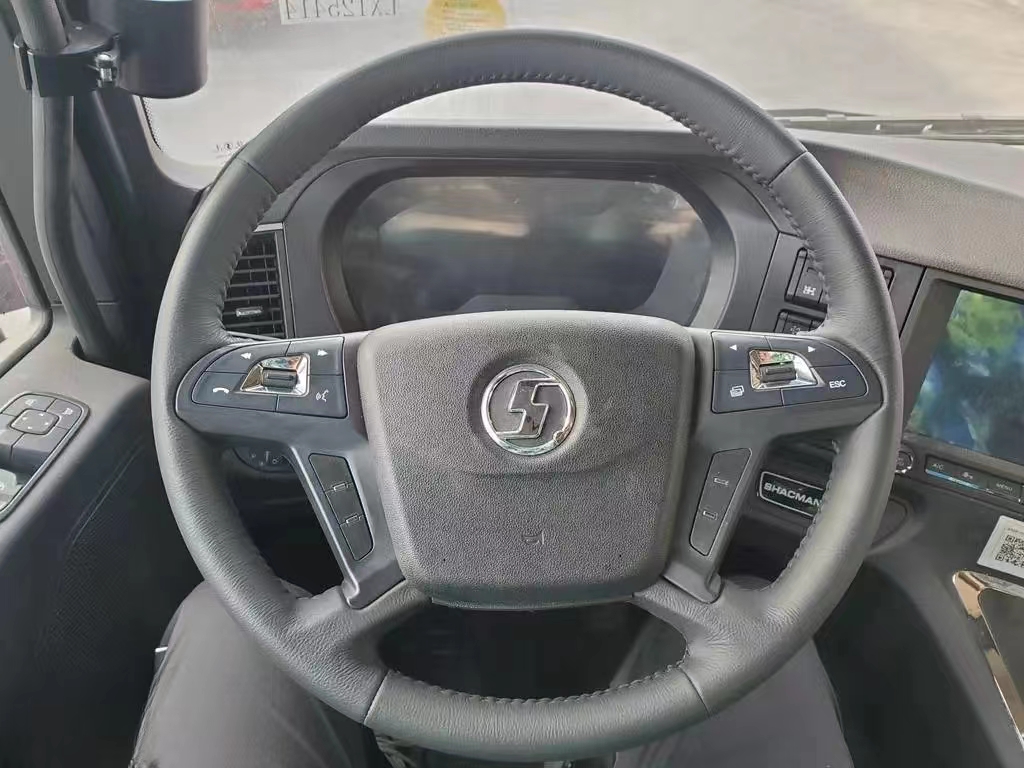

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3300+1350mm
- engine
- Weichai WP13H560E68A
- Gearbox
- Fast S16AD
- Rear axle speed ratio
- 2.846
- Body length
- 7.08 meters
- Body width
- 2.55 meters
- Body height
- 3.8 meters
- Front track
- 2070mm
- Rear wheelbase
- 1880/1880mm
- Vehicle weight
- 8.87 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 89km/h
- Origin
- Xi'an, Shaanxi
- Tonnage level
- Heavy Truck
Engine parameters
- engine model
- Weichai WP13H560E68A
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 12.9L
- Emission Standards
- Euro six
- Maximum horsepower
- 560 HP
- Maximum output power
- 412kW
- Maximum torque
- 2585N·m
- Maximum torque speed
- 900-1300rpm
- Rated speed
- 1600rpm
Gearbox parameters
- Gearbox model
- Fast S16AD
- Shifting method
- AMT automated manual
- Forward gear
- 16 gears
- Number of reverse gears
- 2
Chassis parameters
- Fuel tank/gas tank material
- Aluminum alloy
- Fuel tank capacity
- 1000L
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 2.846
- Number of spring leaves
- 2/4
- Saddle
- 90
- Number of tires
- 10
- Tire specifications
- 295-80R22.5
