DFAC Liuqi Chenglong H7 heavy truck 460 horsepower 4X2 tractor
Submit purchase requestBasic Information
- Drive form:
- 4X2
- Wheelbase:
- 3800mm
- engine:
- Dongfeng Cummins ISZ460 51
- Gearbox:
- Fast 12JSD160TA
- Rear axle speed ratio:
- 4.444
- Body length:
- 6.04 meters
- Body width:
- 2.495 meters
- Body height:
- 3.93 meters

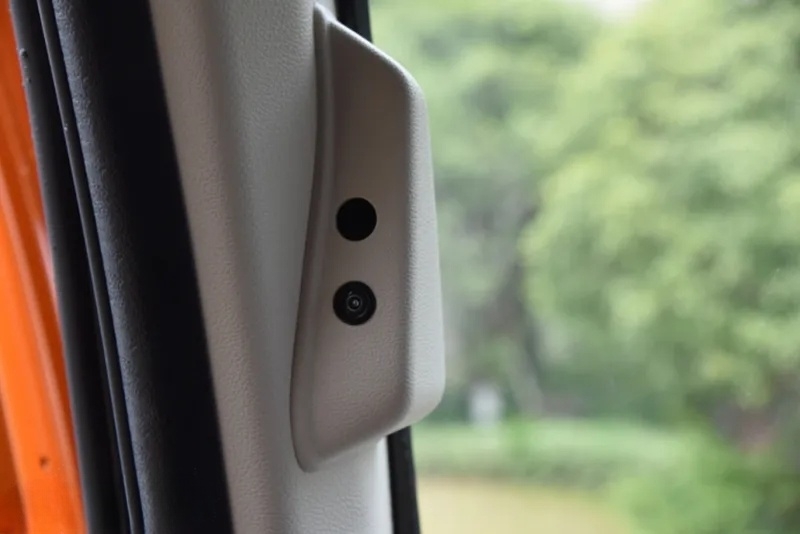

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 4X2
- Wheelbase
- 3800mm
- engine
- Dongfeng Cummins ISZ460 51
- Gearbox
- Fast 12JSD160TA
- Rear axle speed ratio
- 4.444
- Body length
- 6.04 meters
- Body width
- 2.495 meters
- Body height
- 3.93 meters
- Front track
- 2040mm
- Rear wheelbase
- 1820mm
- Vehicle weight
- 6.8 tons
- Total mass
- 17.995 tons
- Total traction mass
- 35 tons
- Maximum speed
- 100km/h
- Market segments
- Express Express
- Origin
- Liuzhou, Guangxi
- Tonnage level
- Heavy Truck
Engine parameters
- engine model
- Dongfeng Cummins ISZ460 51
- Engine brand
- Dongfeng Cummins
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 13L
- Emission Standards
- National Five
- Maximum horsepower
- 460 horsepower
- Maximum output power
- 338kW
- Maximum torque
- 2330N·m
- Maximum torque speed
- 1100-1300rpm
- Rated speed
- 1900rpm
- Technical route
- Common Rail SCR
Gearbox parameters
- Gearbox model
- Fast 12JSD160TA
- Shifting method
- Manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Rear axle description
- FS160 rear axle
- Allowable load on front axle
- 6505kg
- Allowable load on rear axle
- 11490kg
- Speed ratio
- 4.444
- Hanging form
- Front few leaf springs, rear air suspension
- Number of spring leaves
- 2/-
- Number of tires
- 6
- Tire specifications
- 11.00R20,12R22.5
- Fuel tank/gas tank material
- Aluminum alloy
- Fuel tank capacity
- 450+600L
