SAIC Hongyan C6 Heavy Truck PRO 460 HP 6X4 Tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3350+1400mm
- engine:
- Shangfeihong F3GCE611A*M
- Gearbox:
- Fast 12JSDX220TA-B
- Body length:
- 6.885 meters
- Body width:
- 2.55 meters
- Body height:
- 3.64 meters
- Front track:
- 2020mm

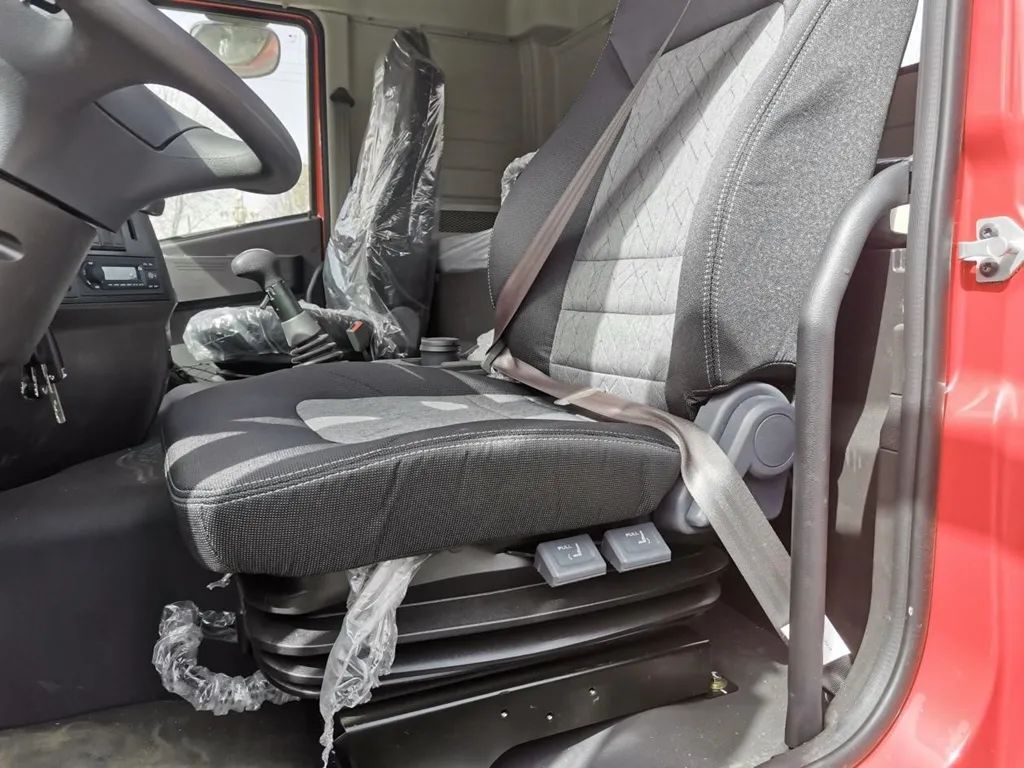

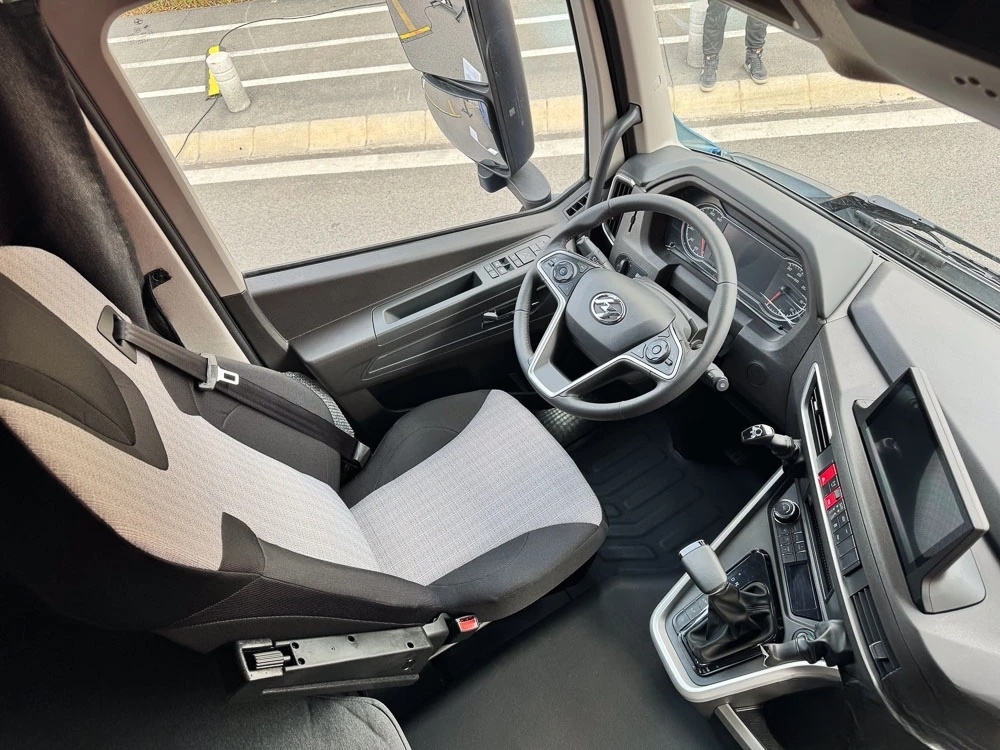

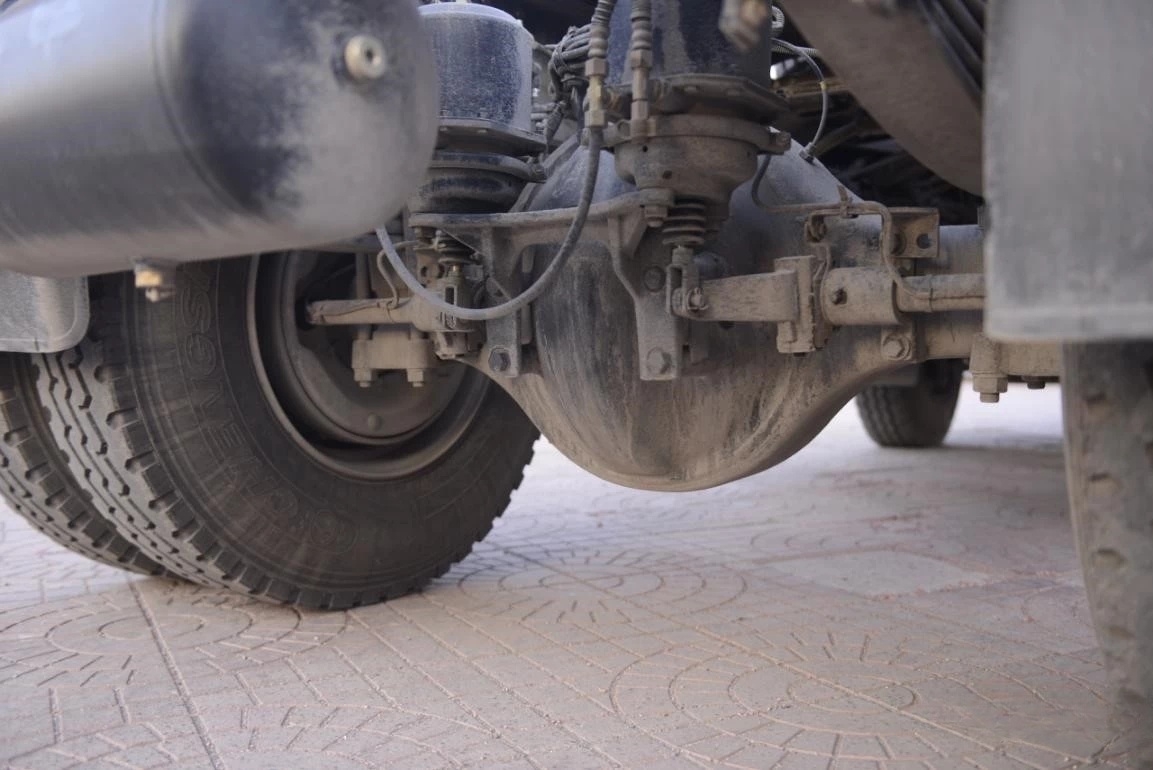

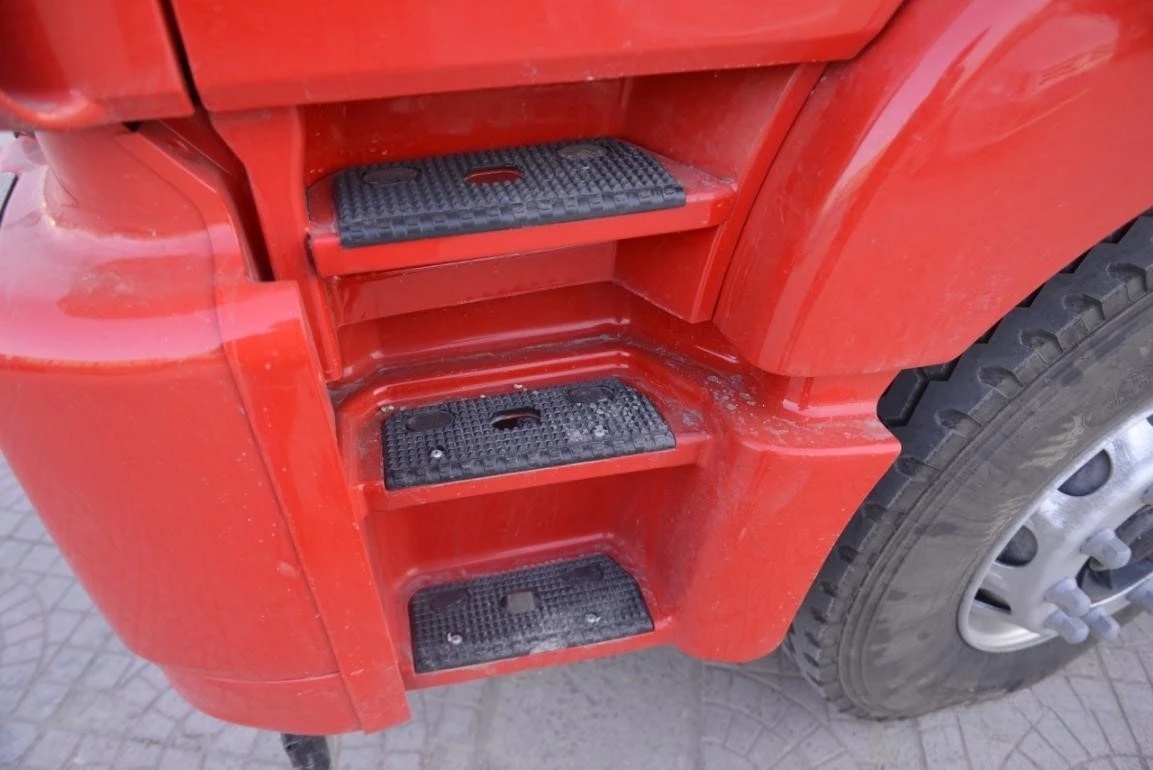

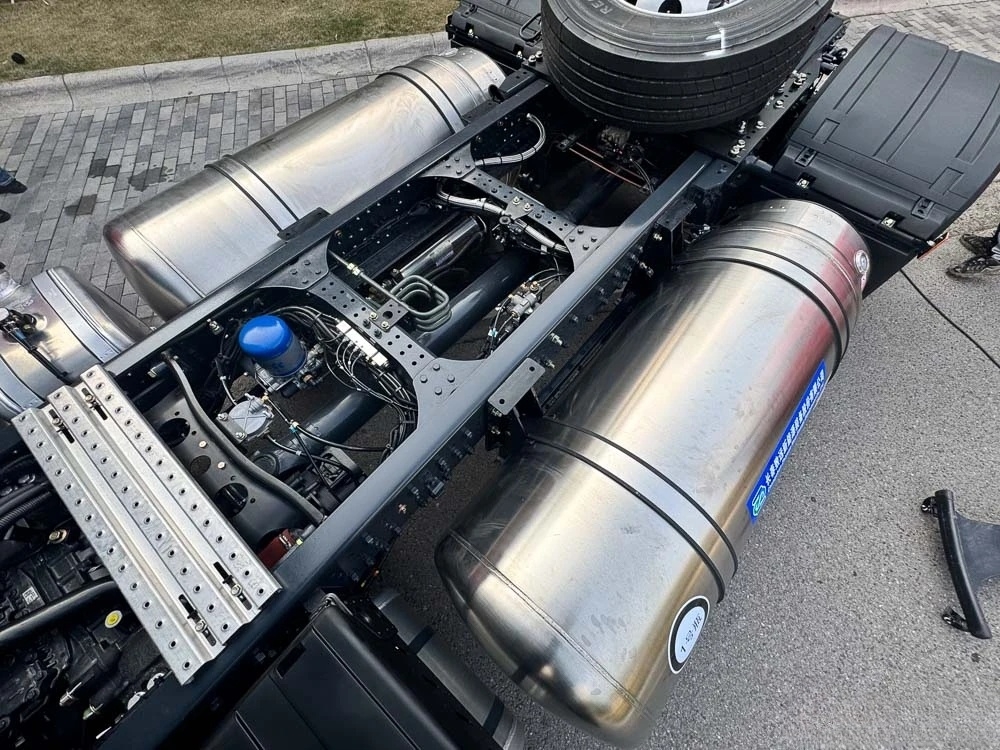

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3350+1400mm
- engine
- Shangfeihong F3GCE611A*M
- Gearbox
- Fast 12JSDX220TA-B
- Body length
- 6.885 meters
- Body width
- 2.55 meters
- Body height
- 3.64 meters
- Front track
- 2020mm
- Rear wheelbase
- 1858/1858mm
- Vehicle weight
- 8.87 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 120km/h
- Market segments
- Coal transportation, sand and gravel transportation
- Origin
- Chongqing
- Tonnage level
- Heavy Truck
Engine parameters
- engine model
- Shangfeihong F3GCE611A*M
- Engine brand
- Shangfeihong
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 11.12L
- Emission Standards
- National VI
- Maximum horsepower
- 460 HP
- Maximum output power
- 338kW
- Maximum torque
- 2100N·m
- Maximum torque speed
- 1100-1500rpm
- Rated speed
- 1900rpm
Gearbox parameters
- Gearbox model
- Fast 12JSDX220TA-B
- Shifting method
- Manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Rear axle description
- 435 single-stage deceleration stamping and welding bridge
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Number of spring leaves
- 2/3
- Saddle
- 90#
- Number of tires
- 10
- Tire specifications
- 12R22.5
- Fuel tank/gas tank material
- Aluminum alloy
- Fuel tank capacity
- 700L
