SAIC Hongyan H6 560 horsepower 6X4 tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3400+1400mm
- engine:
- Shangchai SC13E560Q6
- Gearbox:
- Fast C12JSDQXL260TA
- Rear axle speed ratio:
- 3.083
- Body length:
- 7.26 meters
- Body width:
- 2.55 meters
- Body height:
- 3.96 meters

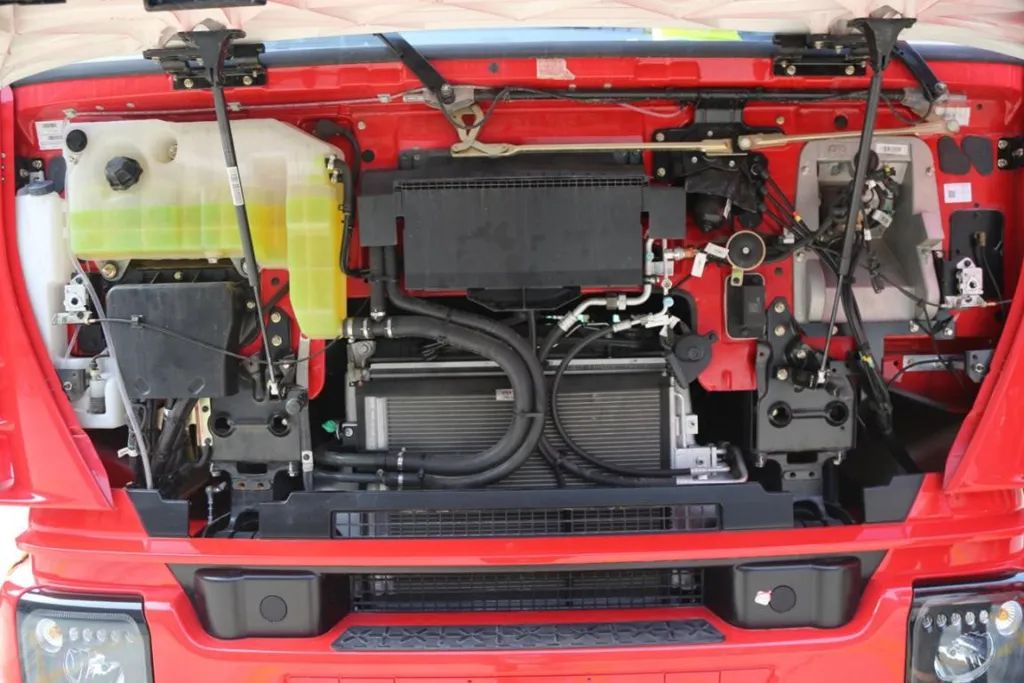

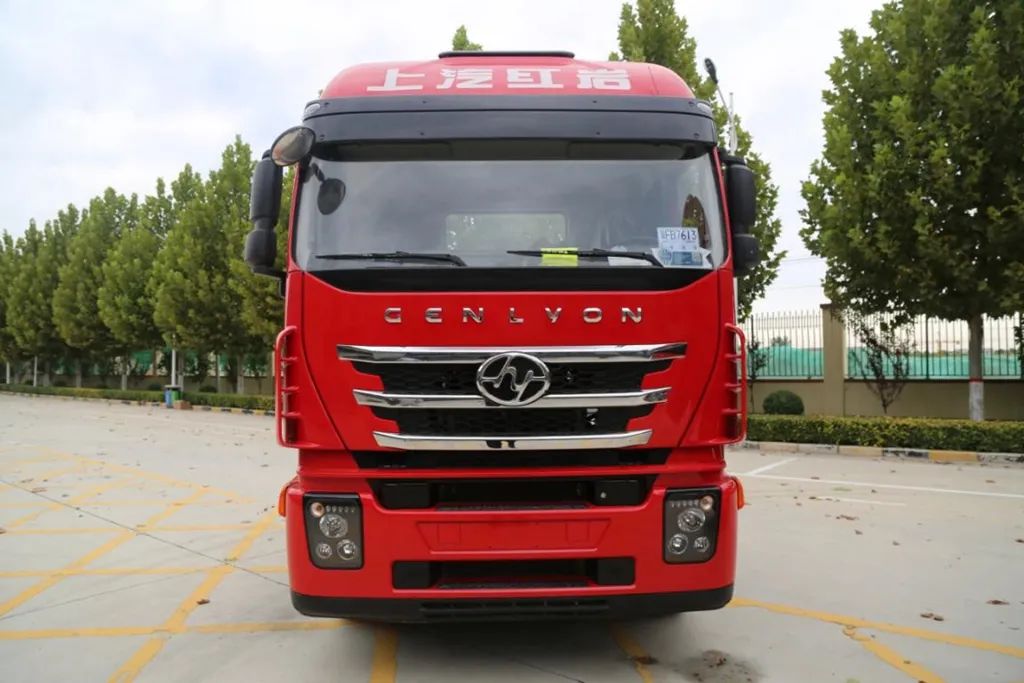

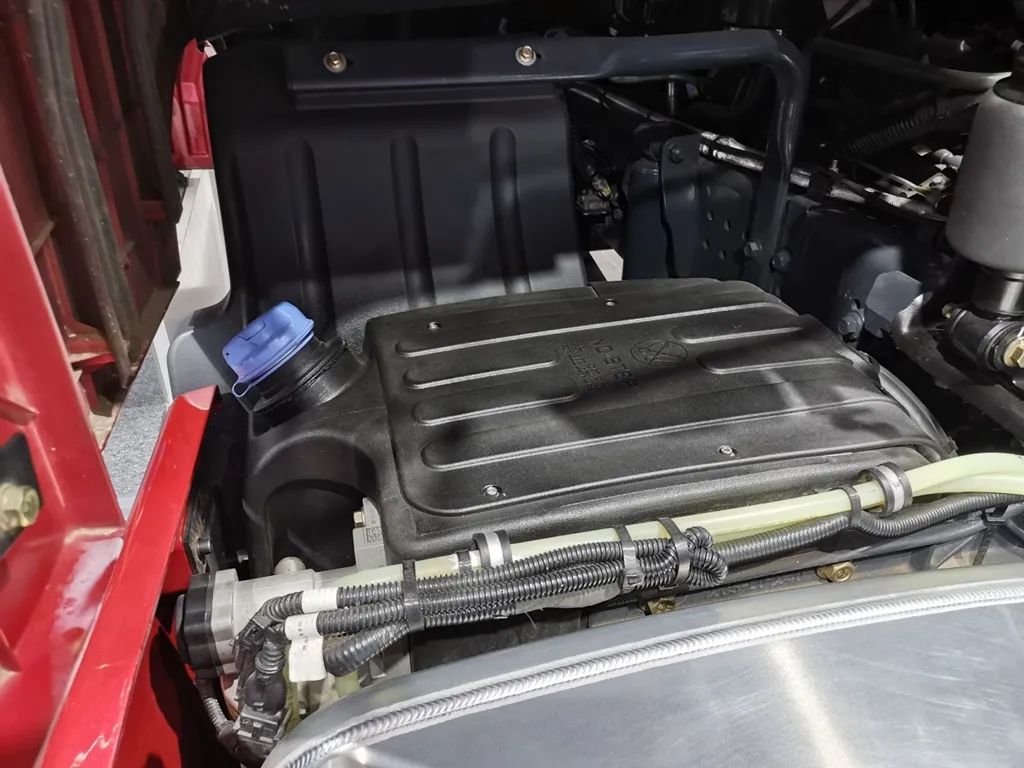

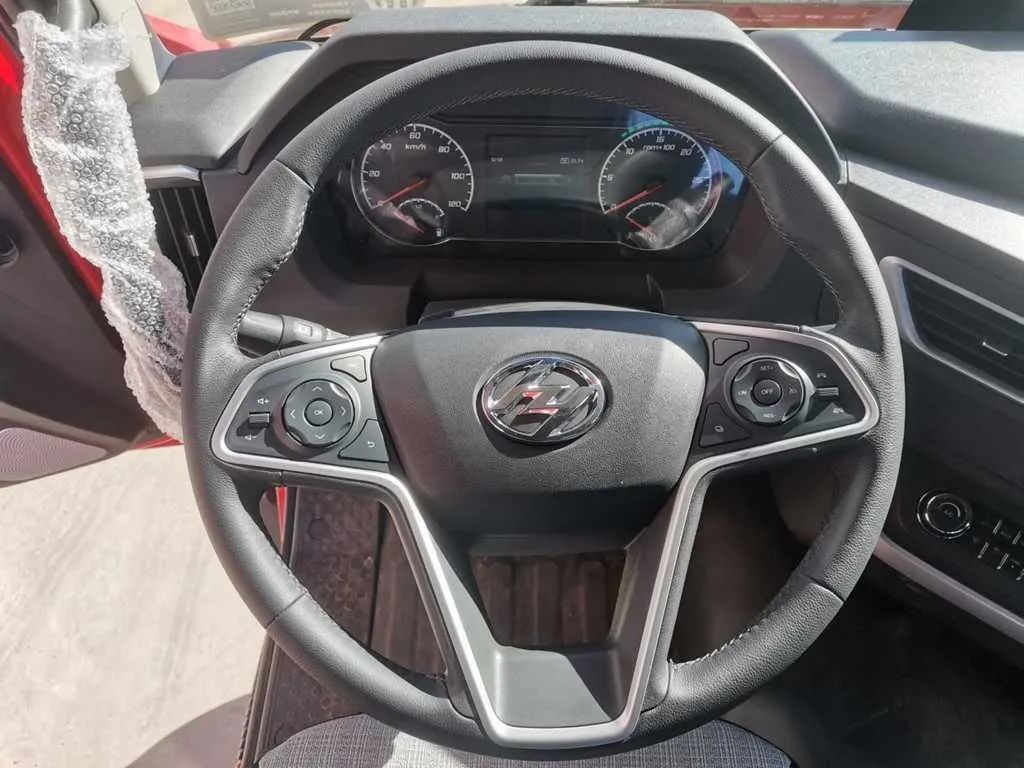

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3400+1400mm
- engine
- Shangchai SC13E560Q6
- Gearbox
- Fast C12JSDQXL260TA
- Rear axle speed ratio
- 3.083
- Body length
- 7.26 meters
- Body width
- 2.55 meters
- Body height
- 3.96 meters
- Market segments
- Logistics distribution, cold chain transportation
- Origin
- Chongqing
- Tonnage level
- Heavy Truck
Engine parameters
- engine model
- Shangchai SC13E560Q6
- Engine brand
- Serve firewood
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 12.82L
- Emission Standards
- National VI
- Maximum horsepower
- 560 HP
- Maximum torque
- 2600N·m
- Maximum torque speed
- 1000-1400rpm
Gearbox parameters
- Gearbox model
- Fast C12JSDQXL260TA
- Shifting method
- Manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 280×80×8mm
- Front axle description
- 6.5T
- Rear axle description
- 457 bridge
- Speed ratio
- 3.083
- Number of spring leaves
- 2/-
- clutch
- Φ430
- Saddle
- 50#
- Number of tires
- 10
- Tire specifications
- 12R22.5
- Fuel tank/gas tank material
- Aluminum alloy
- Fuel tank capacity
- 810L
