SAIC Hongyan H6 heavy truck 560 horsepower 6X4 AMT tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3350+1400mm
- engine:
- Foton Cummins X13NS6B560
- Gearbox:
- ZF ZF12TX2621TD
- Rear axle speed ratio:
- 2.846
- Body length:
- 6.91 meters
- Body width:
- 2.55 meters
- Body height:
- 3.715 meters

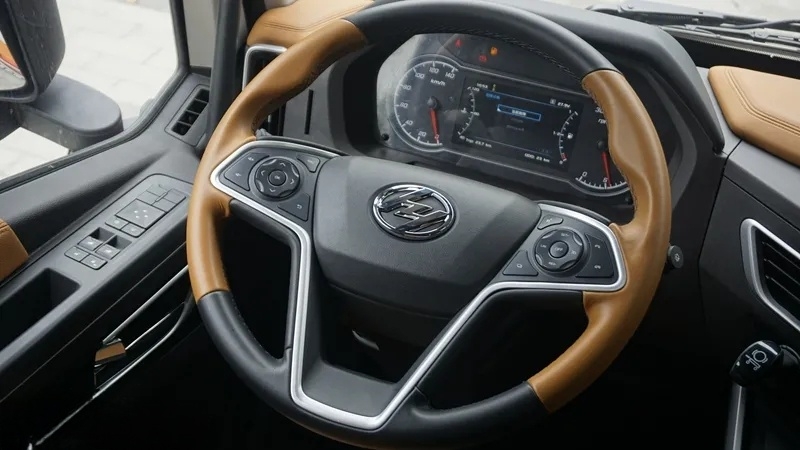

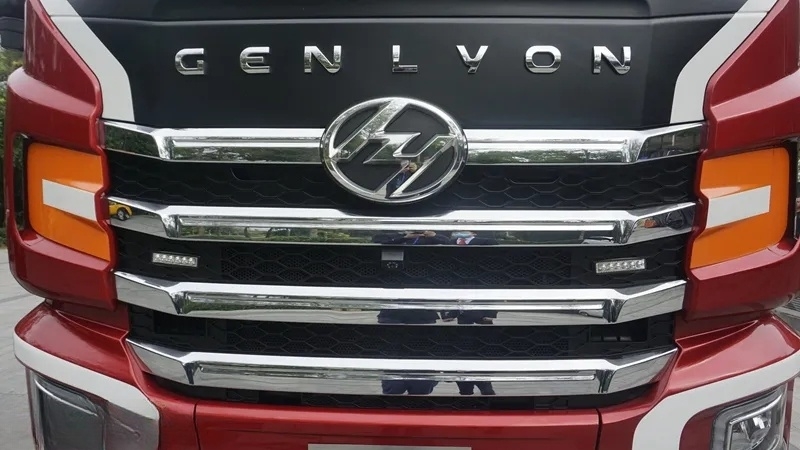

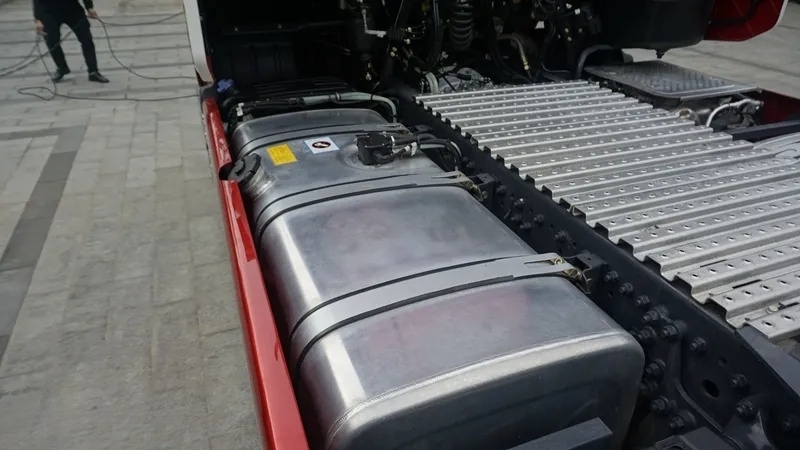

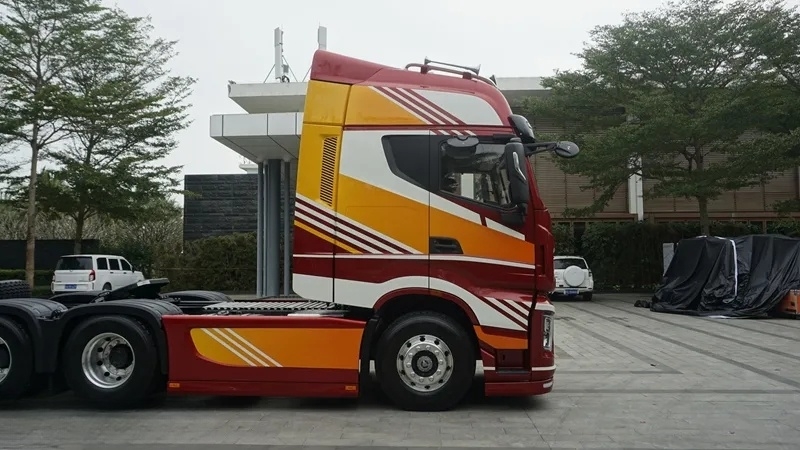

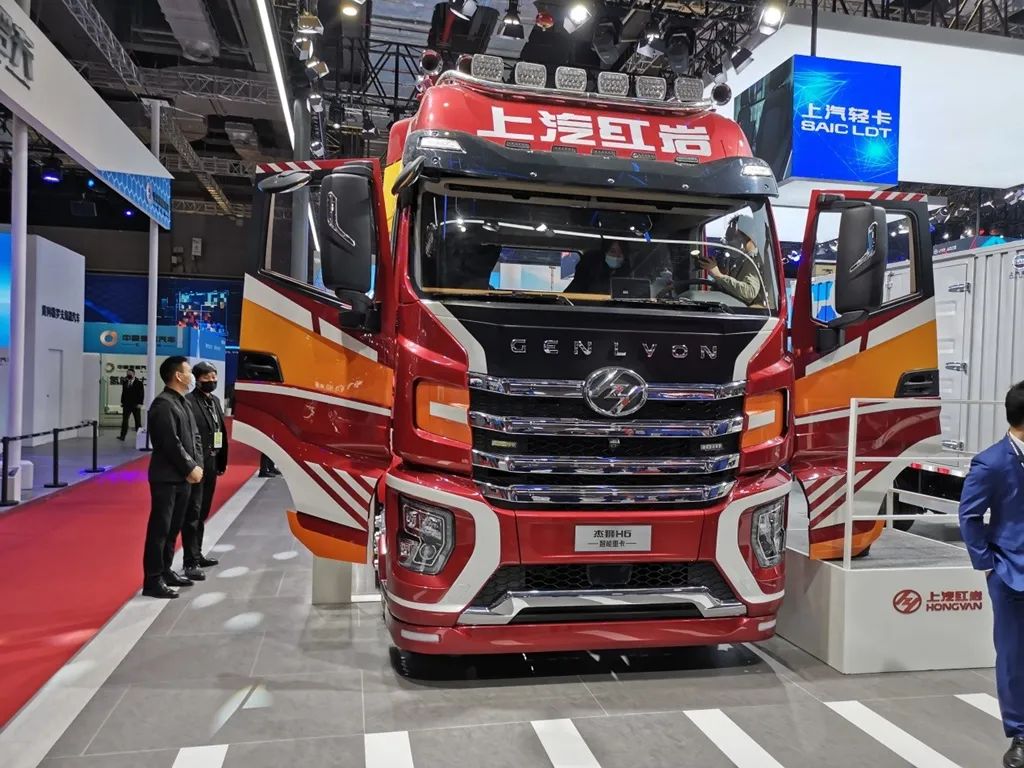

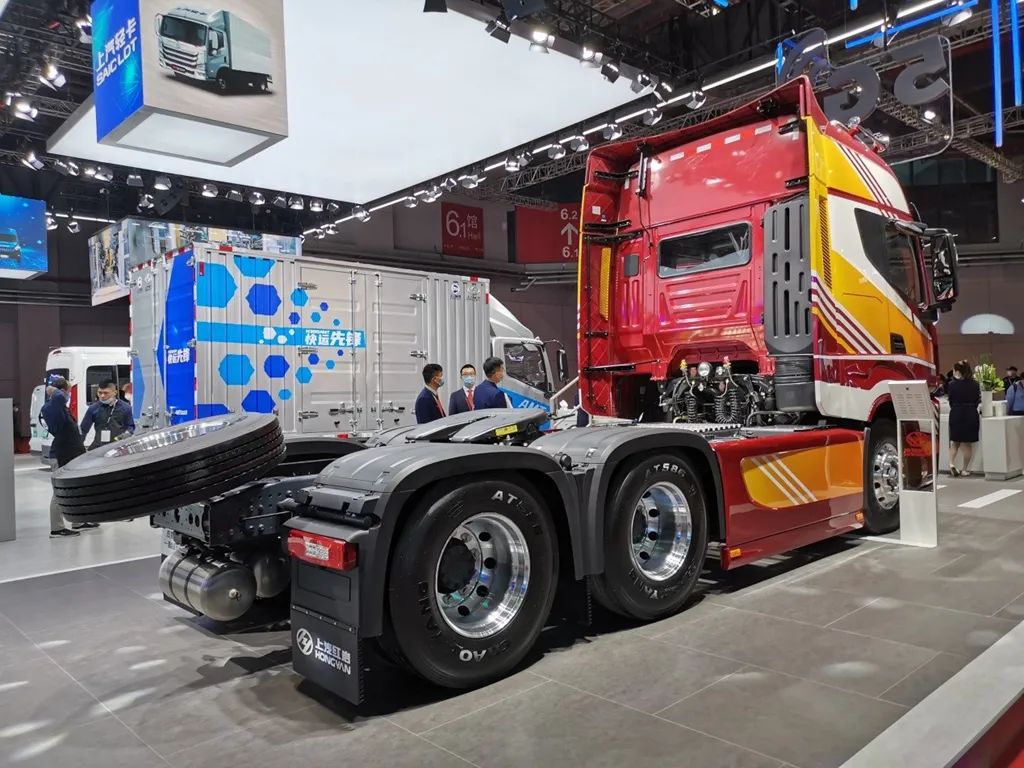

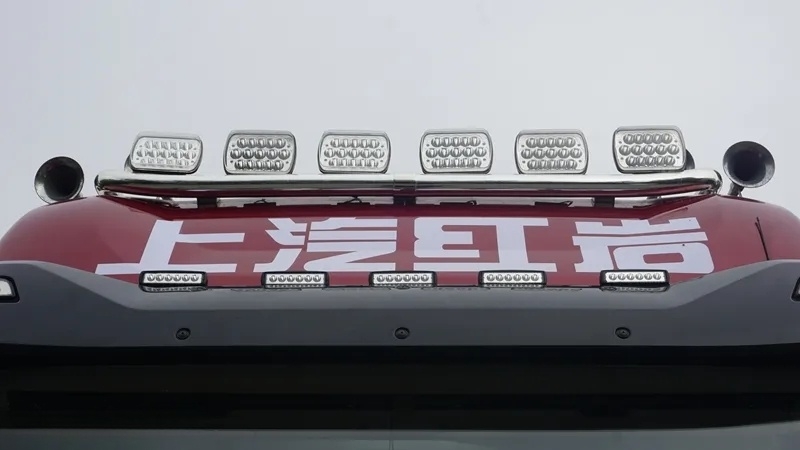

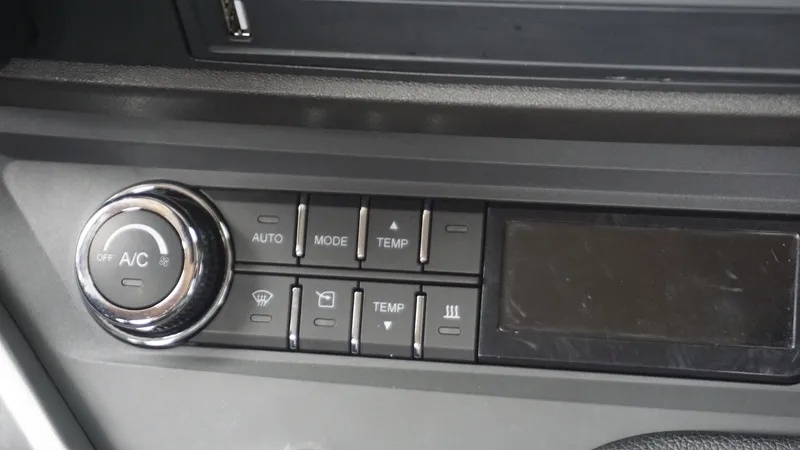

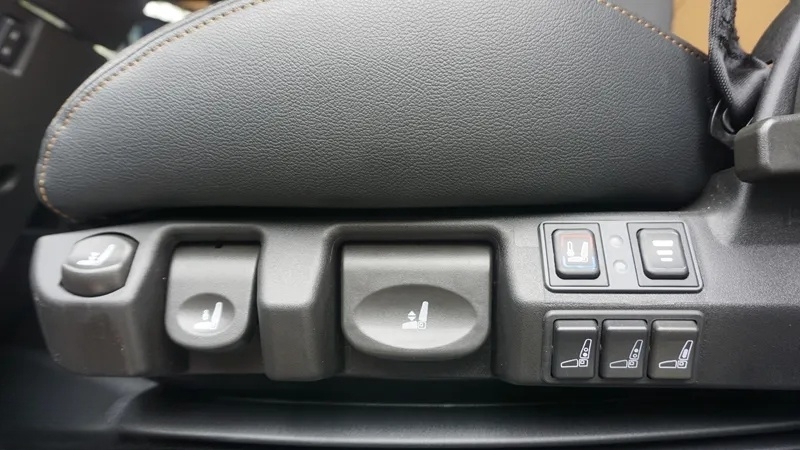

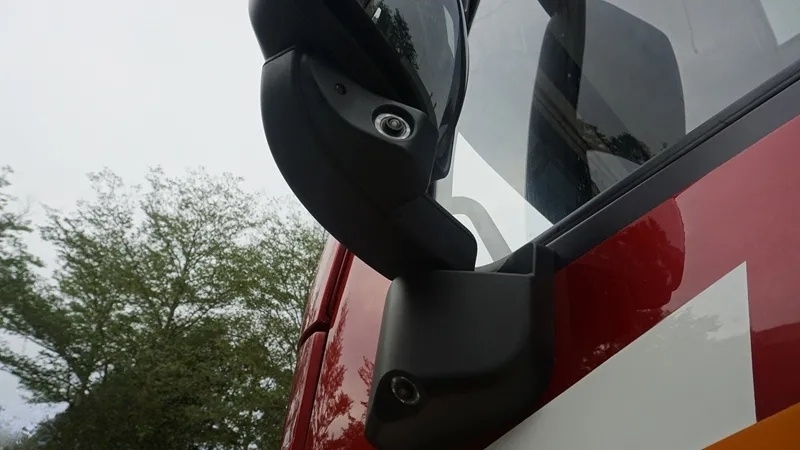

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3350+1400mm
- engine
- Foton Cummins X13NS6B560
- Gearbox
- ZF ZF12TX2621TD
- Rear axle speed ratio
- 2.846
- Body length
- 6.91 meters
- Body width
- 2.55 meters
- Body height
- 3.715 meters
- Front track
- 2020mm
- Rear wheelbase
- 1858/1858mm
- Vehicle weight
- 8.87 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 89km/h
- Origin
- Chongqing Northern New Area
- Version
- European standard high-end version
Engine parameters
- engine model
- Foton Cummins X13NS6B560
- Engine brand
- Foton Cummins
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 12.9L
- Emission Standards
- National VI
- Maximum horsepower
- 560 HP
- Maximum output power
- 412kW
- Maximum torque
- 2600N·m
- Maximum torque speed
- 1000-1400rpm
- Rated speed
- 1800rpm
Gearbox parameters
- Gearbox model
- ZF ZF12TX2621TD
- Shifting method
- AMT automated manual
- Forward gear
- 12 gears
- Number of reverse gears
- 4
Chassis parameters
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 2.846
- Number of spring leaves
- 3/6
- Number of tires
- 10
- Tire specifications
- 12R22.5 18PR
