JAC V7 heavy truck 510 horsepower 6X4 AMT automatic transmission long head tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 4150+1350mm
- engine:
- Foton Cummins ISGe5-510
- Gearbox:
- ZF 12TX2621TD
- Rear axle speed ratio:
- 2.85
- Body length:
- 8.175 meters
- Body width:
- 2.55 meters
- Body height:
- 3.85 meters

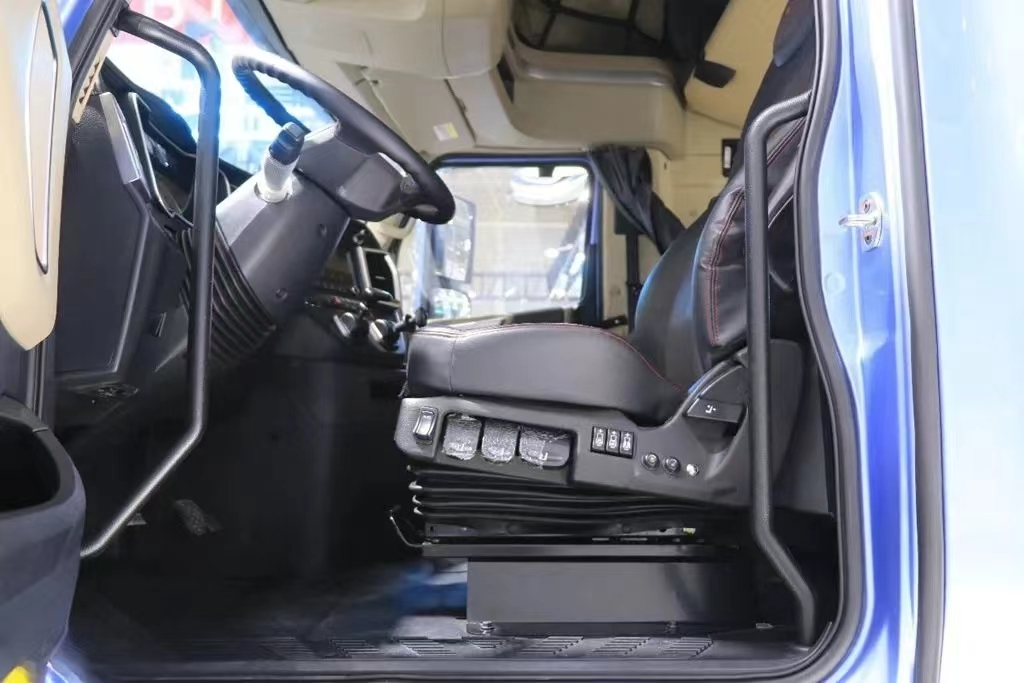

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 4150+1350mm
- engine
- Foton Cummins ISGe5-510
- Gearbox
- ZF 12TX2621TD
- Rear axle speed ratio
- 2.85
- Body length
- 8.175 meters
- Body width
- 2.55 meters
- Body height
- 3.85 meters
- Front track
- 2070mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 8.8 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 110km/h
- Minimum turning diameter
- 20 meters
- Origin
- Hefei, Anhui
- Tonnage level
- Heavy Truck
- Remark
- Optional speed ratio 3.08; one-button start, MP5, air heater, on-board WIFI, ESS driving assistance (Internet of Vehicles system)
Engine parameters
- engine model
- Foton Cummins ISGe5-510
- Engine brand
- Foton Cummins
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 11.8L
- Emission Standards
- National Five
- Maximum horsepower
- 510 HP
- Maximum output power
- 375kW
- Maximum torque
- 2300N·m
- Maximum torque speed
- 1100-1400rpm
- Rated speed
- 1900rpm
Gearbox parameters
- Gearbox model
- ZF 12TX2621TD
- Shifting method
- AMT automated manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- 6.5T
- Rear axle description
- 13T, single-stage reduction axle
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 2.85
- Number of spring leaves
- 2/-
- Suspension type (front/rear)
- Front steel plate rear airbag
- Saddle
- 50#
- Number of tires
- 10
- Tire specifications
- 12R22.5 18PR
