Qingdao FAW JH6 heavy truck pilot version 510 horsepower 6X4 AMT automatic transmission tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3450+1350mm
- engine:
- Weichai WP13.510E62
- Gearbox:
- Fast F12JZ26A
- Body length:
- 7 meters
- Body width:
- 2.55 meters
- Body height:
- 3.91 meters
- Front track:
- 2020mm

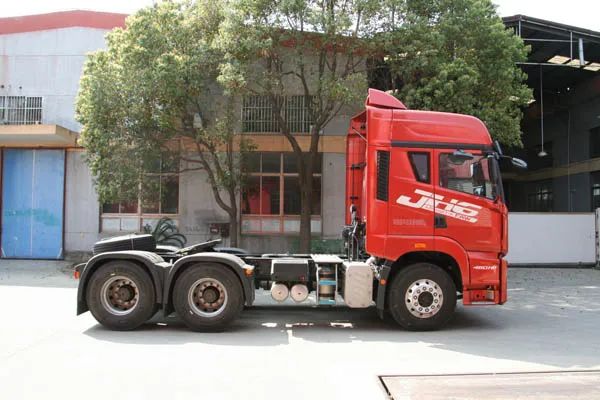

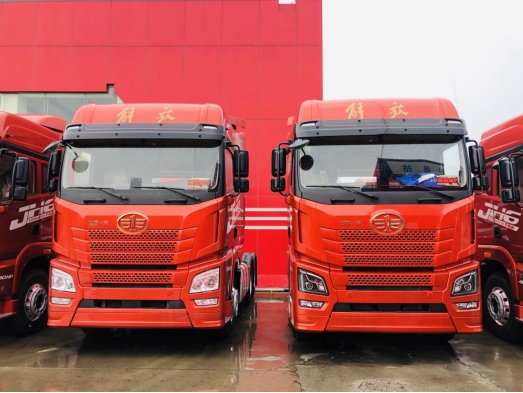

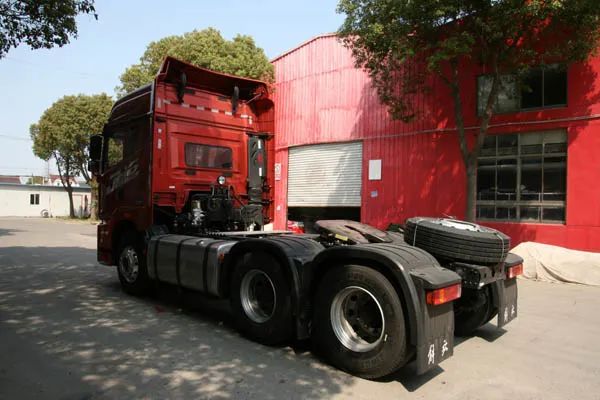

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3450+1350mm
- engine
- Weichai WP13.510E62
- Gearbox
- Fast F12JZ26A
- Body length
- 7 meters
- Body width
- 2.55 meters
- Body height
- 3.91 meters
- Front track
- 2020mm
- Rear wheelbase
- 1830/1830mm
- Vehicle weight
- 8.805 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 89km/h
- Origin
- Qingdao
- Tonnage level
- Heavy Truck
- Version
- Pilot version
Engine parameters
- engine model
- Weichai WP13.510E62
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 12.54L
- Emission Standards
- National VI
- Maximum horsepower
- 510 HP
- Maximum output power
- 382kW
- Maximum torque
- 2400N·m
- Maximum torque speed
- 950-1400rpm
- Rated speed
- 1900rpm
- Technical route
- Common Rail SCR
Gearbox parameters
- Gearbox model
- Fast F12JZ26A
- Shifting method
- AMT automated manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Number of spring leaves
- 2/3
- Number of tires
- 10
- Tire specifications
- 12R22.5
