Qingdao FAW JH6 heavy truck Zhizun version 610 horsepower 6X4 AMT automatic transmission tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3450+1350mm
- engine:
- Weichai WP14T610E62
- Gearbox:
- Fast F16JZ28A
- Rear axle speed ratio:
- 2.688
- Body length:
- 7.15 meters
- Body width:
- 2.5 meters
- Body height:
- 3.705 meters

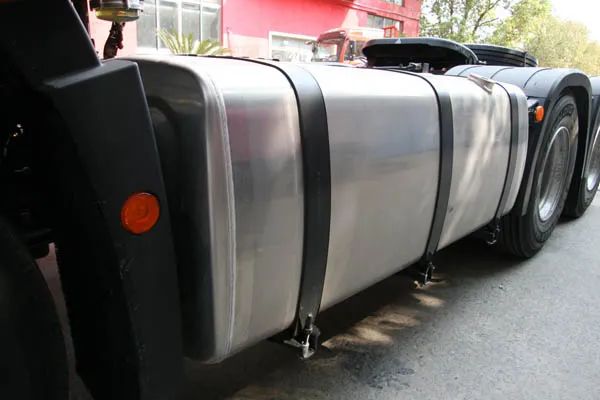

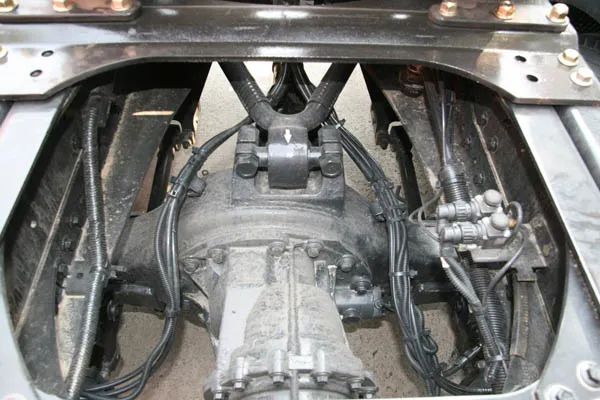

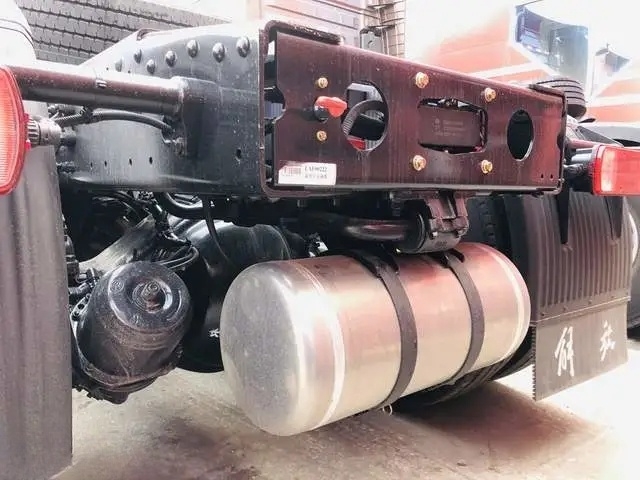

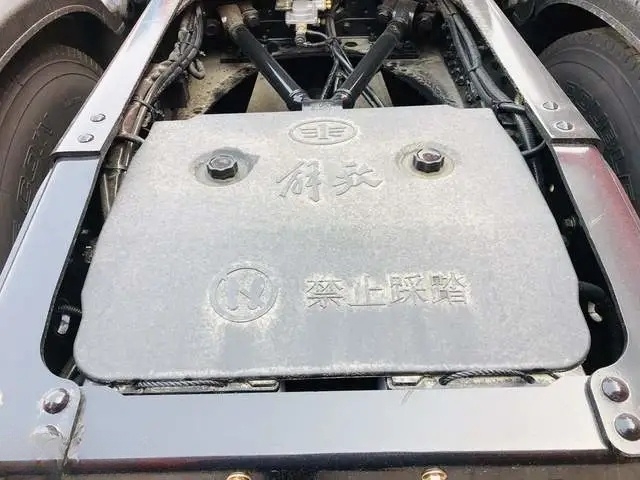

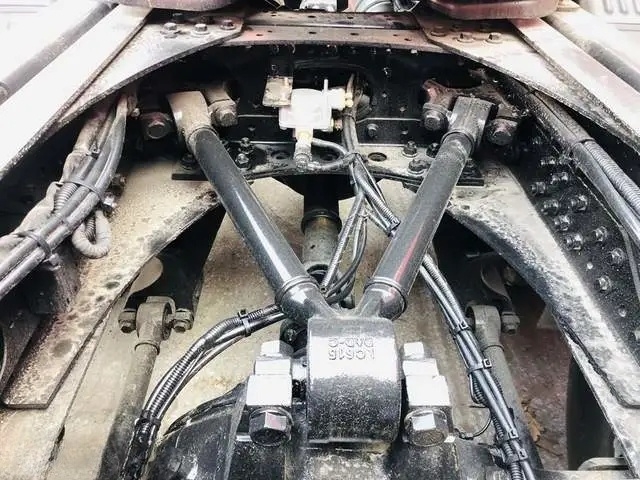

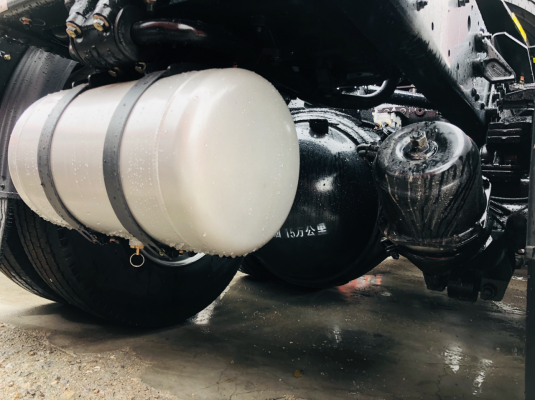

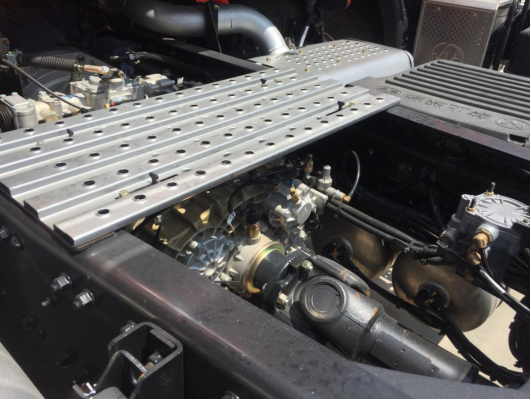

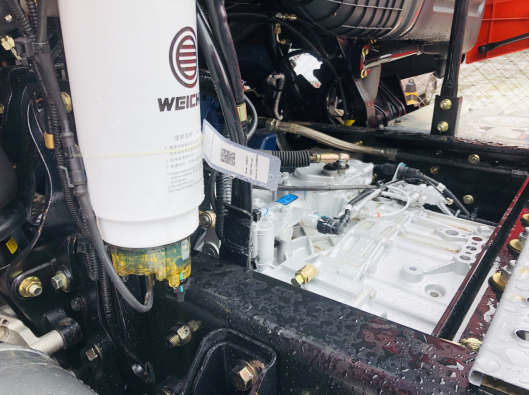

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3450+1350mm
- engine
- Weichai WP14T610E62
- Gearbox
- Fast F16JZ28A
- Rear axle speed ratio
- 2.688
- Body length
- 7.15 meters
- Body width
- 2.5 meters
- Body height
- 3.705 meters
- Front track
- 2042mm
- Rear wheelbase
- 1852/1852mm
- Vehicle weight
- 8.805 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 89km/h
- Origin
- Qingdao,Chengdu
- Tonnage level
- Heavy Truck
Engine parameters
- engine model
- Weichai WP14T610E62
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 13.5L
- Emission Standards
- National VI
- Maximum horsepower
- 610 HP
- Maximum output power
- 448kW
- Maximum torque
- 2750N·m
- Maximum torque speed
- 900-1400rpm
- Rated speed
- 1800rpm
Gearbox parameters
- Gearbox model
- Fast F16JZ28A
- Shifting method
- AMT automated manual
- Forward gear
- 16 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 300*80*8mm
- Rear axle description
- 435 bridge
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 2.688
- Number of spring leaves
- 2/3
- Number of tires
- 10
- Tire specifications
- 12R22.5 18PR
