Qingdao FAW HanV heavy truck 375 horsepower 6X4 tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3150+1350mm
- engine:
- Weichai WP10H375E50
- Gearbox:
- Fast 12JSD180TA
- Rear axle speed ratio:
- 4.111
- Body length:
- 6.675 meters
- Body width:
- 2.49 meters
- Body height:
- 3.71 meters

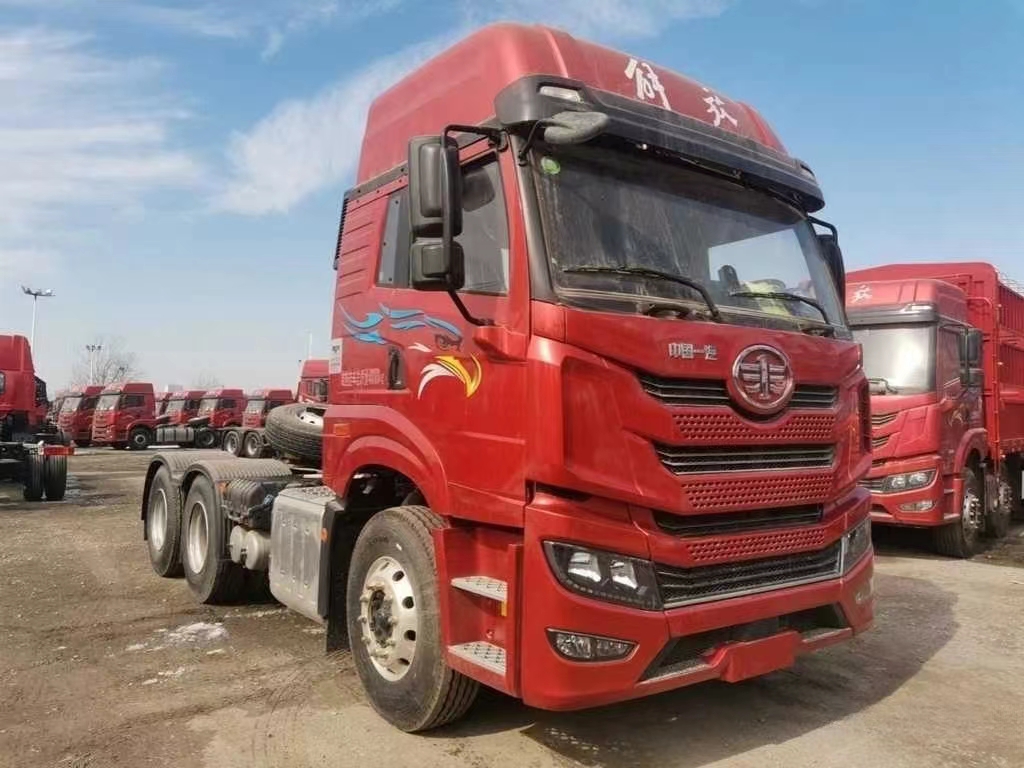

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3150+1350mm
- engine
- Weichai WP10H375E50
- Gearbox
- Fast 12JSD180TA
- Rear axle speed ratio
- 4.111
- Body length
- 6.675 meters
- Body width
- 2.49 meters
- Body height
- 3.71 meters
- Front track
- 2020mm
- Rear wheelbase
- 1817/1847mm
- Vehicle weight
- 8.415 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 107km/h
- Market segments
- Coal transportation, bulk material transportation
- Origin
- Qingdao/Chengdu
- Tonnage level
- Heavy Truck
Engine parameters
- engine model
- Weichai WP10H375E50
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 9.5L
- Emission Standards
- National Five
- Maximum horsepower
- 375 HP
- Maximum output power
- 276kW
- Maximum torque
- 1800N·m
- Maximum torque speed
- 1000-1400rpm
- Rated speed
- 1900rpm
- Technical route
- Common Rail SCR
Gearbox parameters
- Gearbox model
- Fast 12JSD180TA
- Shifting method
- Manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 300X80X8mm
- Front axle description
- A1H single front axle
- Rear axle description
- 435 upgrade stamping and welding bridge
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(double axle installed)kg
- Speed ratio
- 4.111
- Hanging form
- Less in the front/less in the back
- Number of spring leaves
- 3/4
- clutch
- Φ430
- Suspension type (front/rear)
- leaf spring
- Saddle
- Yost 90#
- Number of tires
- 10
- Tire specifications
- 295/80R22.5
- Fuel tank/gas tank material
- Aluminum alloy
- Fuel tank capacity
- 600L
