Qingdao FAW JH5 heavy truck 520 horsepower 6X4 AMT automatic transmission tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3450+1350mm
- engine:
- Xichai CA6DM3-52E67
- Gearbox:
- FAW Jiefang CA12TAX240AR
- Rear axle speed ratio:
- 3.545
- Body length:
- 7.03 meters
- Body width:
- 2.5 meters
- Body height:
- 3.82 meters

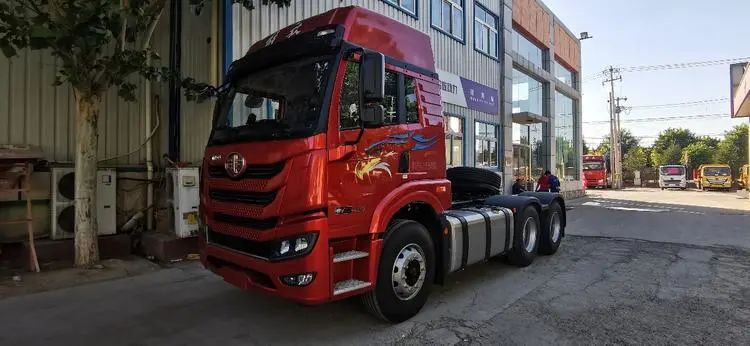

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3450+1350mm
- engine
- Xichai CA6DM3-52E67
- Gearbox
- FAW Jiefang CA12TAX240AR
- Rear axle speed ratio
- 3.545
- Body length
- 7.03 meters
- Body width
- 2.5 meters
- Body height
- 3.82 meters
- Front track
- 2020mm
- Rear wheelbase
- 1852/1852mm
- Vehicle weight
- 8.2 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 89km/h
- Origin
- Qingdao
- Tonnage level
- Heavy Truck
Engine parameters
- engine model
- Xichai CA6DM3-52E67
- Engine brand
- xichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 12.52L
- Emission Standards
- National VI
- Maximum horsepower
- 520 HP
- Maximum output power
- 386kW
Gearbox parameters
- Gearbox model
- FAW Jiefang CA12TAX240AR
- Shifting method
- AMT automated manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 280×80×7mm
- Front axle description
- FAG wheel end
- Rear axle description
- 400 punch solder bridge
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 3.545
- Number of spring leaves
- 2/2
- Number of tires
- 10
- Tire specifications
- 12R22.5 18PR
