SHACMAN Auto Heavy Duty Truck Delonghi New M3000 Lightweight Version 430 HP 6X4 Tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3175+1350mm
- engine:
- Weichai WP12.430E50
- Gearbox:
- Fast 12JSD200TA-B
- Rear axle speed ratio:
- 3.7
- Body length:
- 6.775 meters
- Body width:
- 2.55 meters
- Body height:
- 3.56 meters

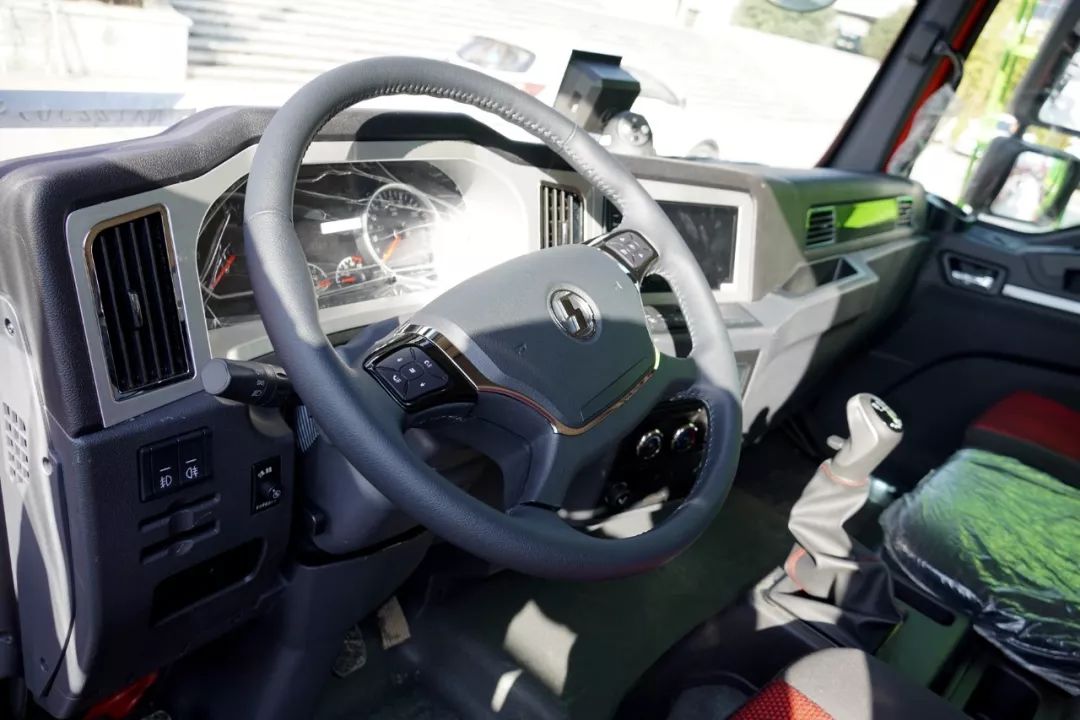

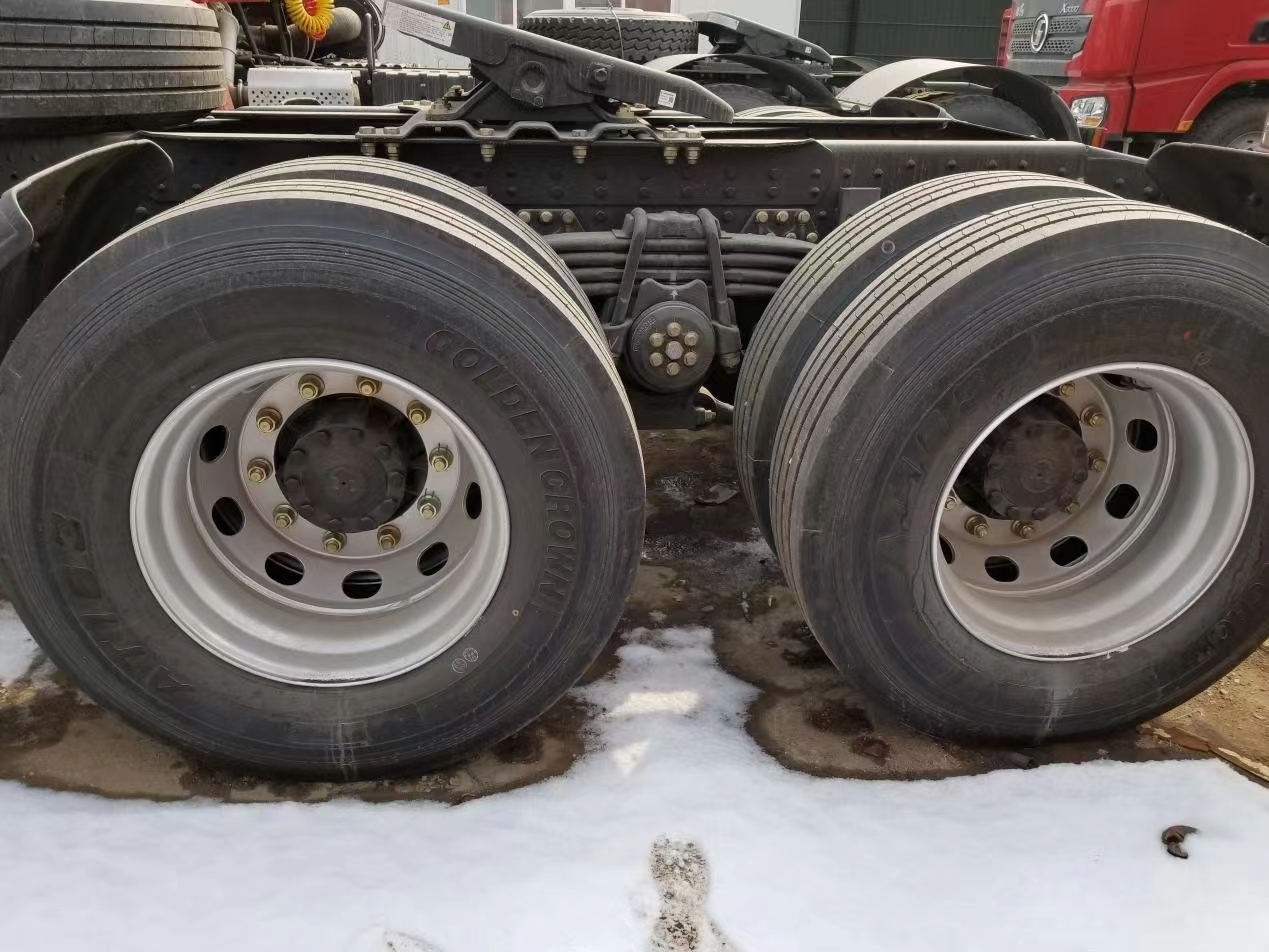

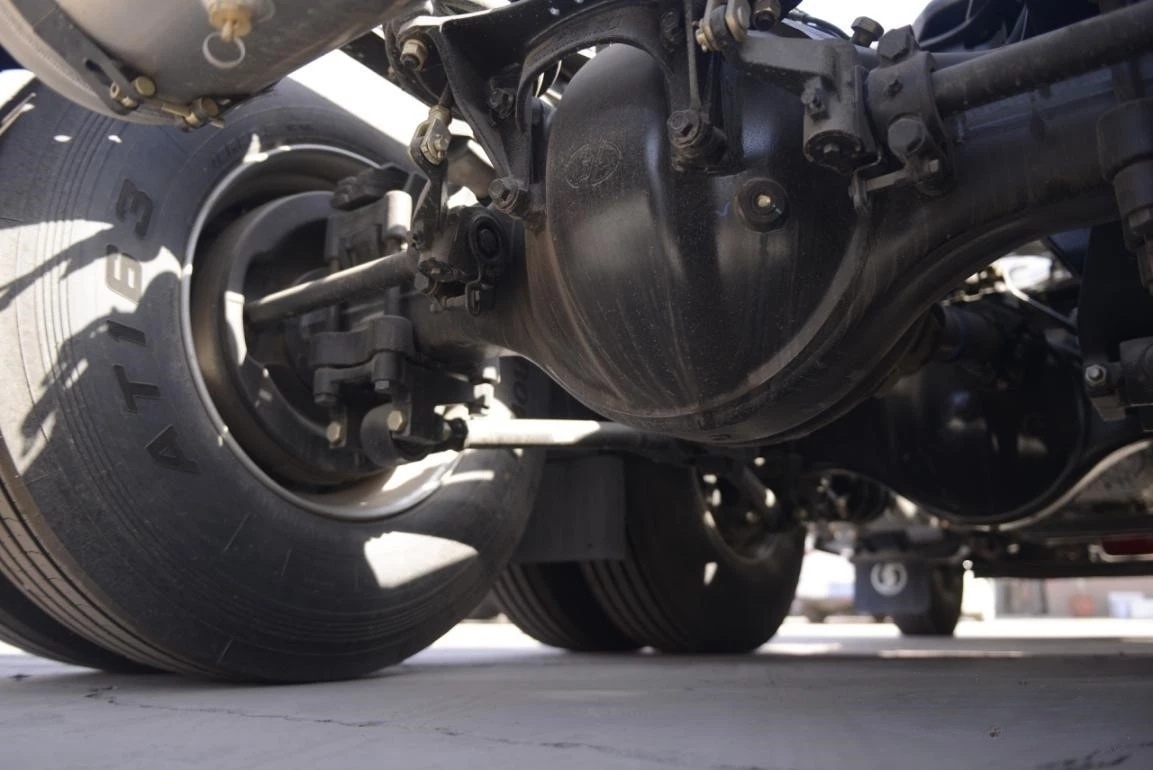

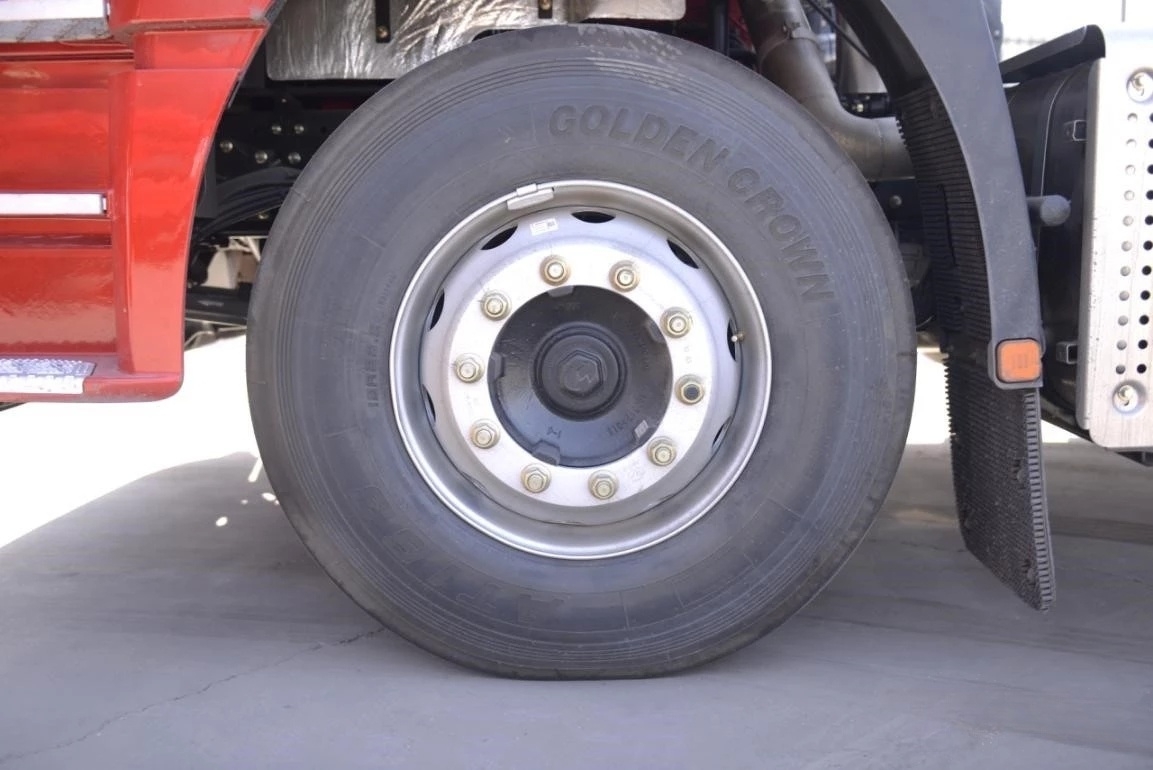

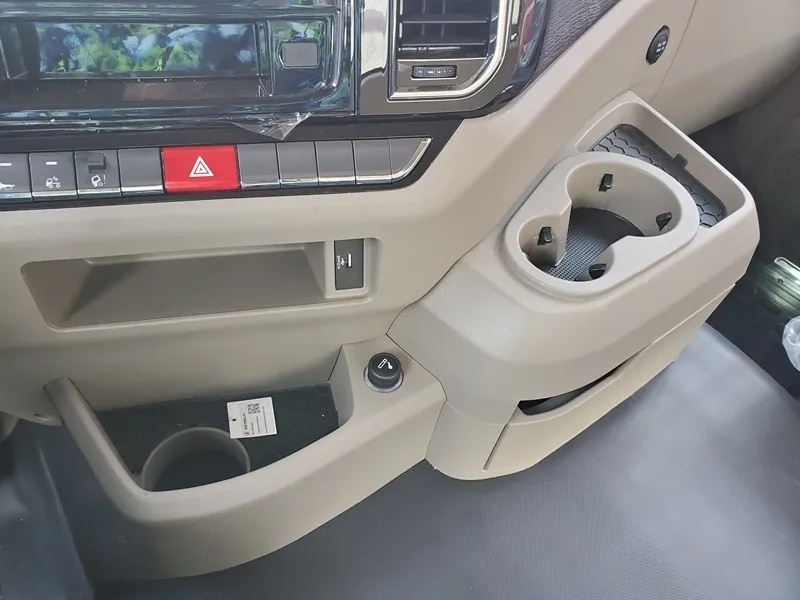

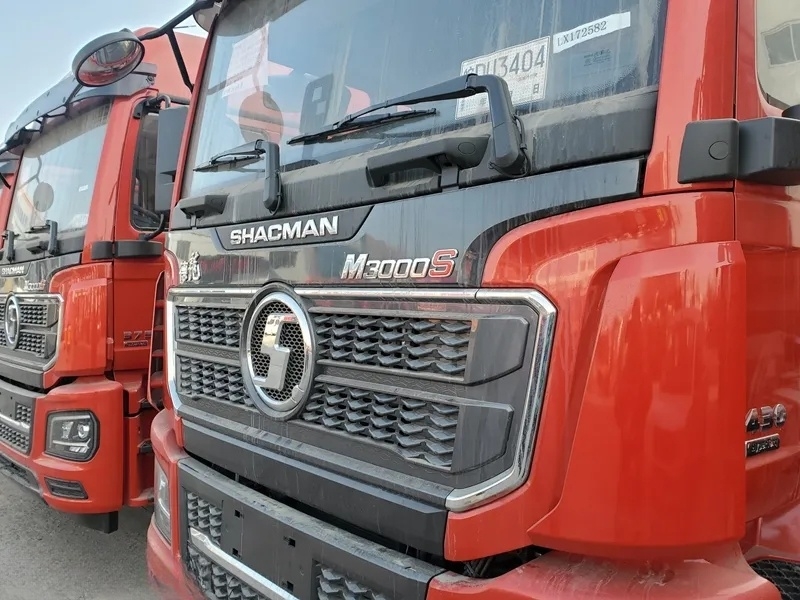

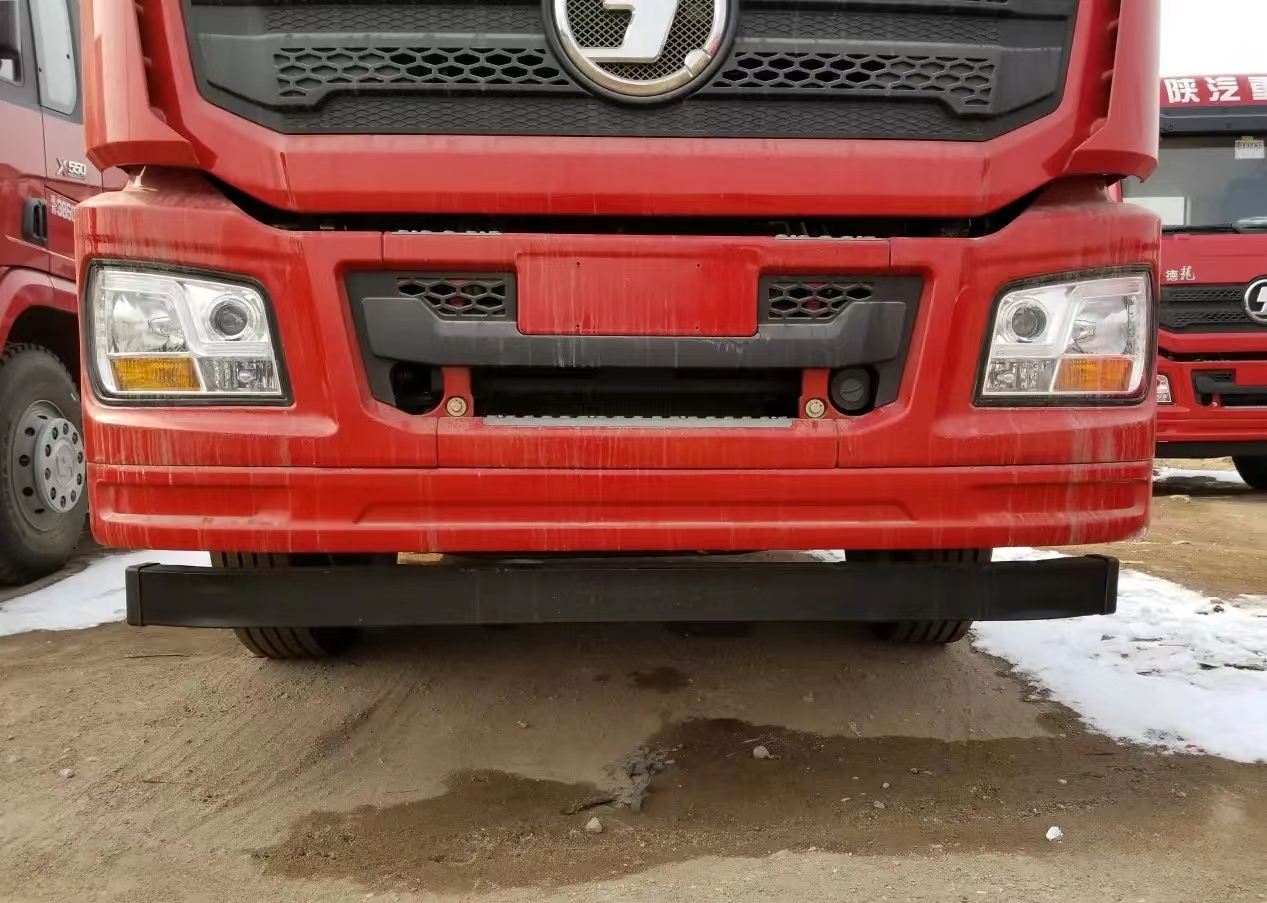

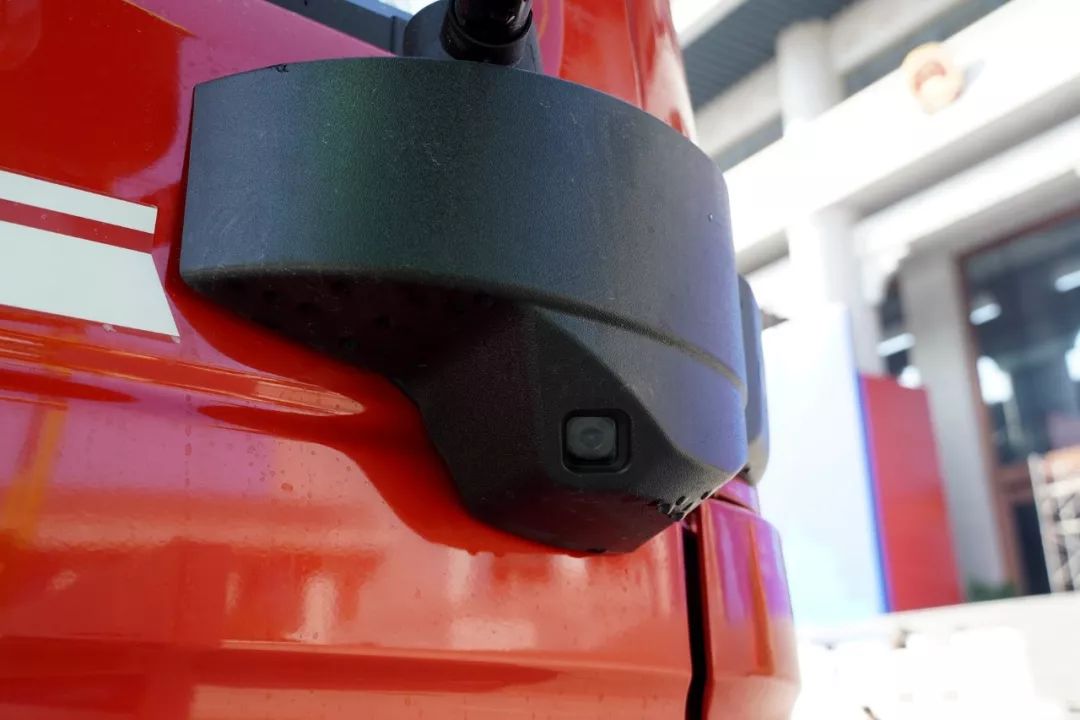

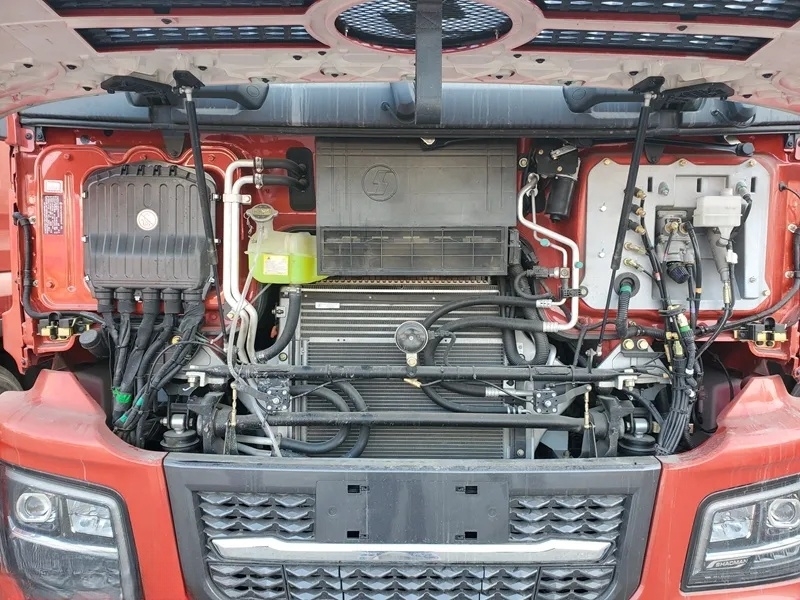

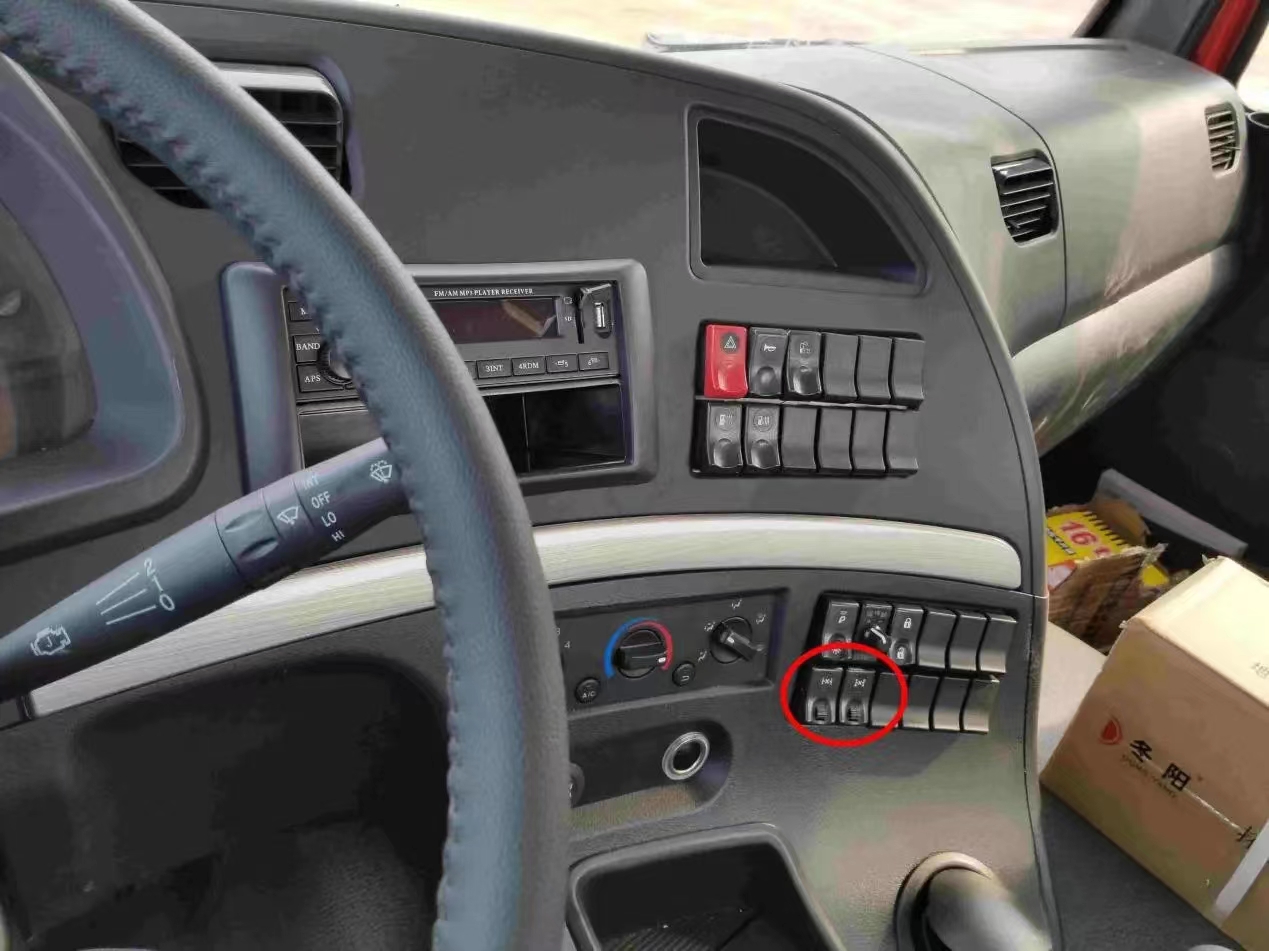

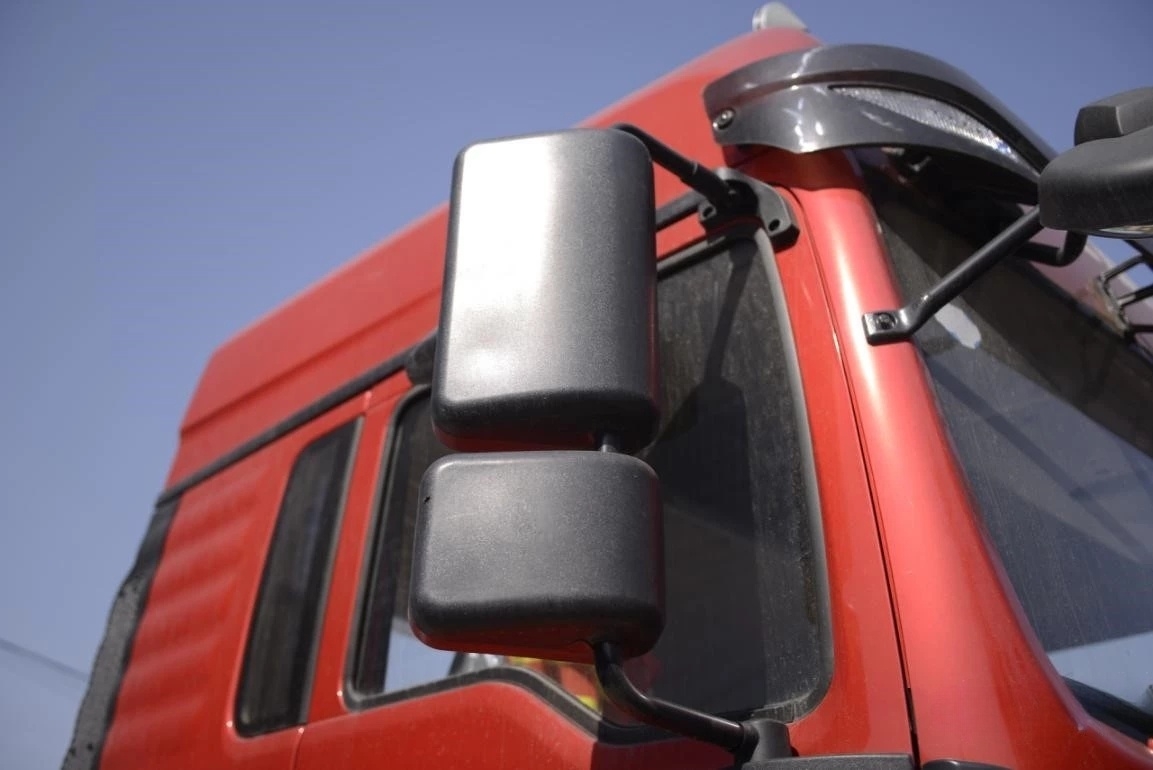

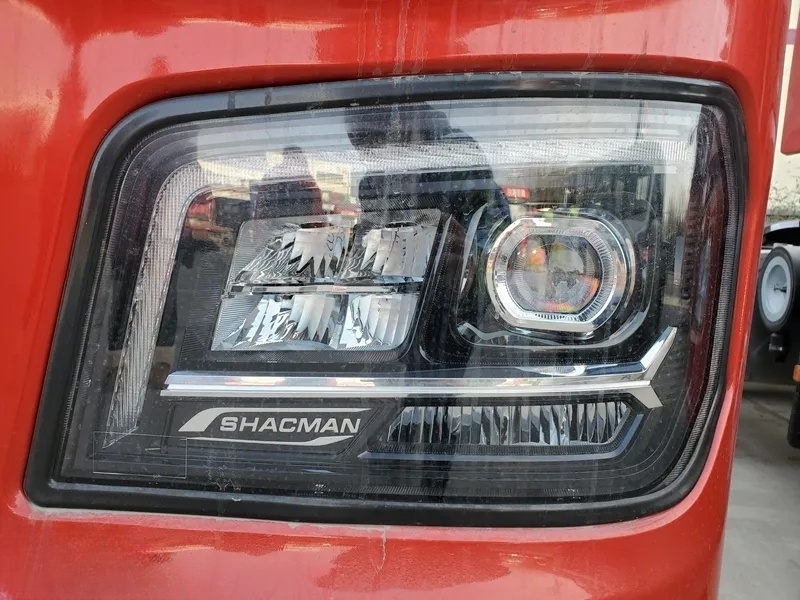

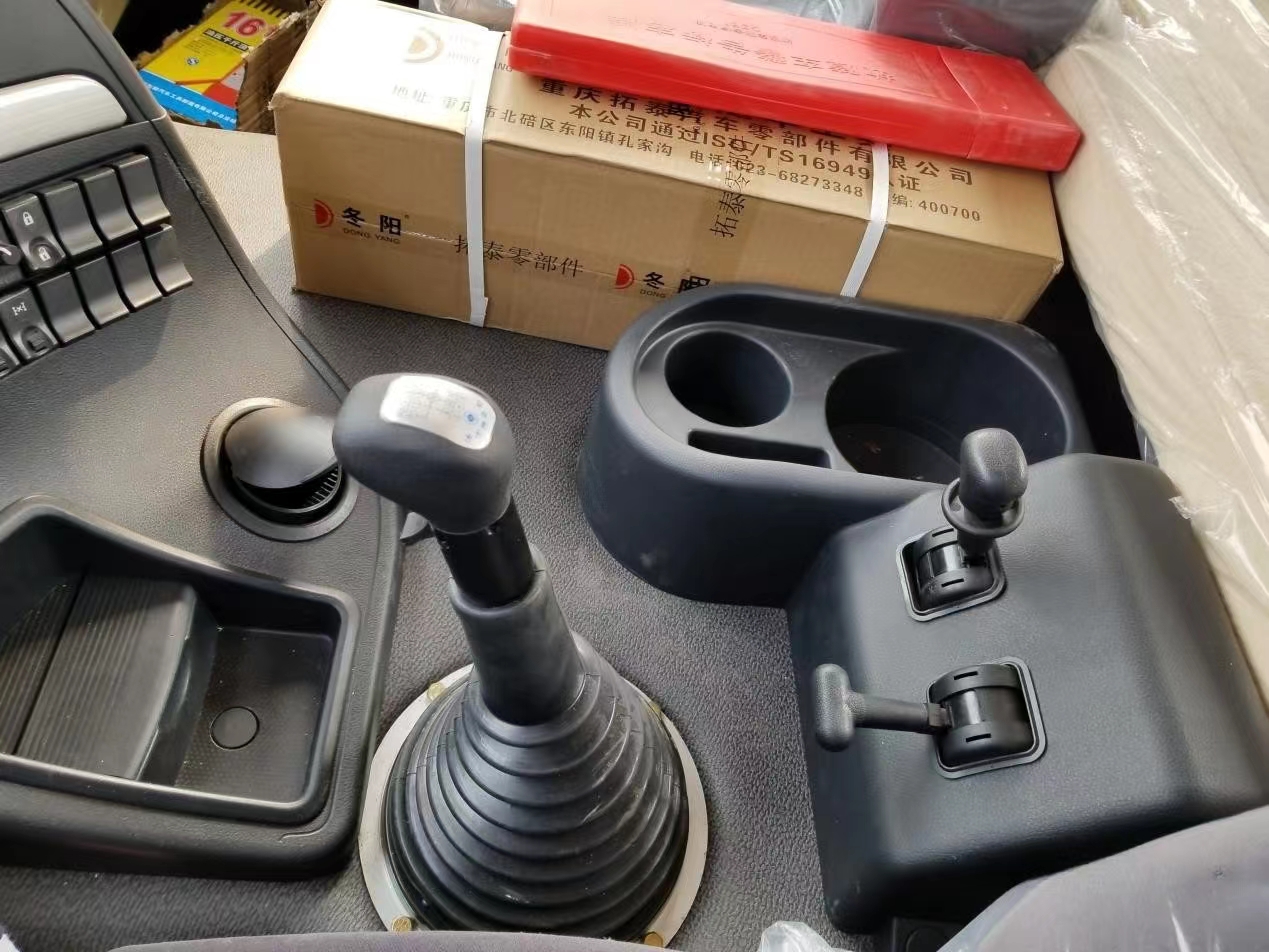

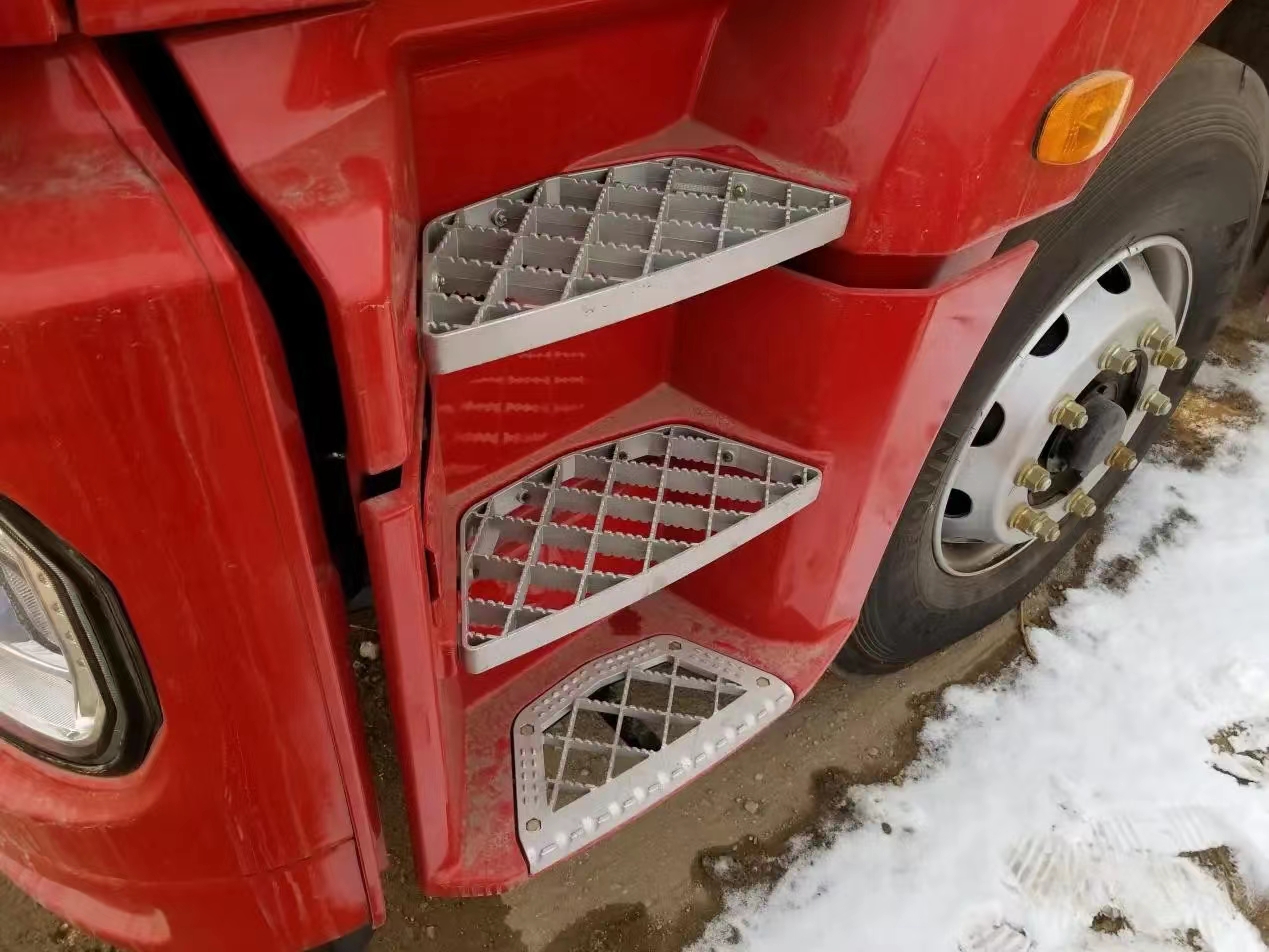

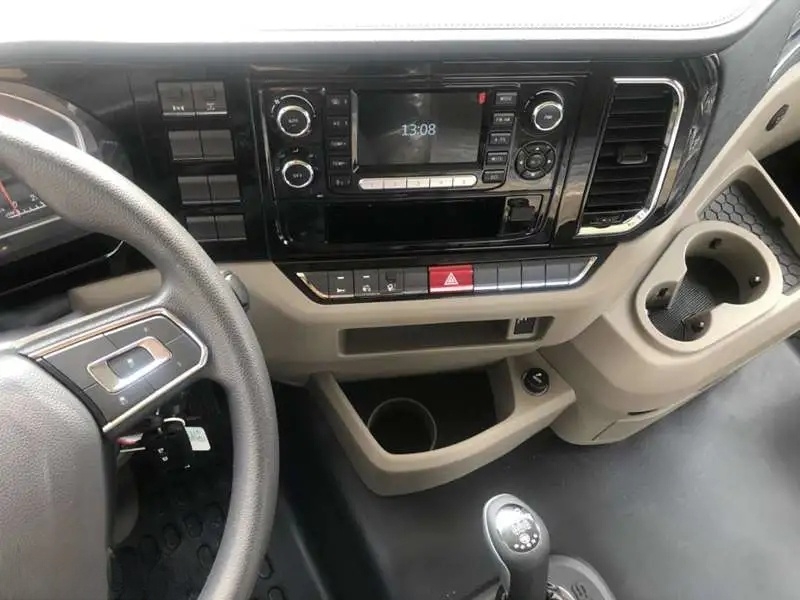

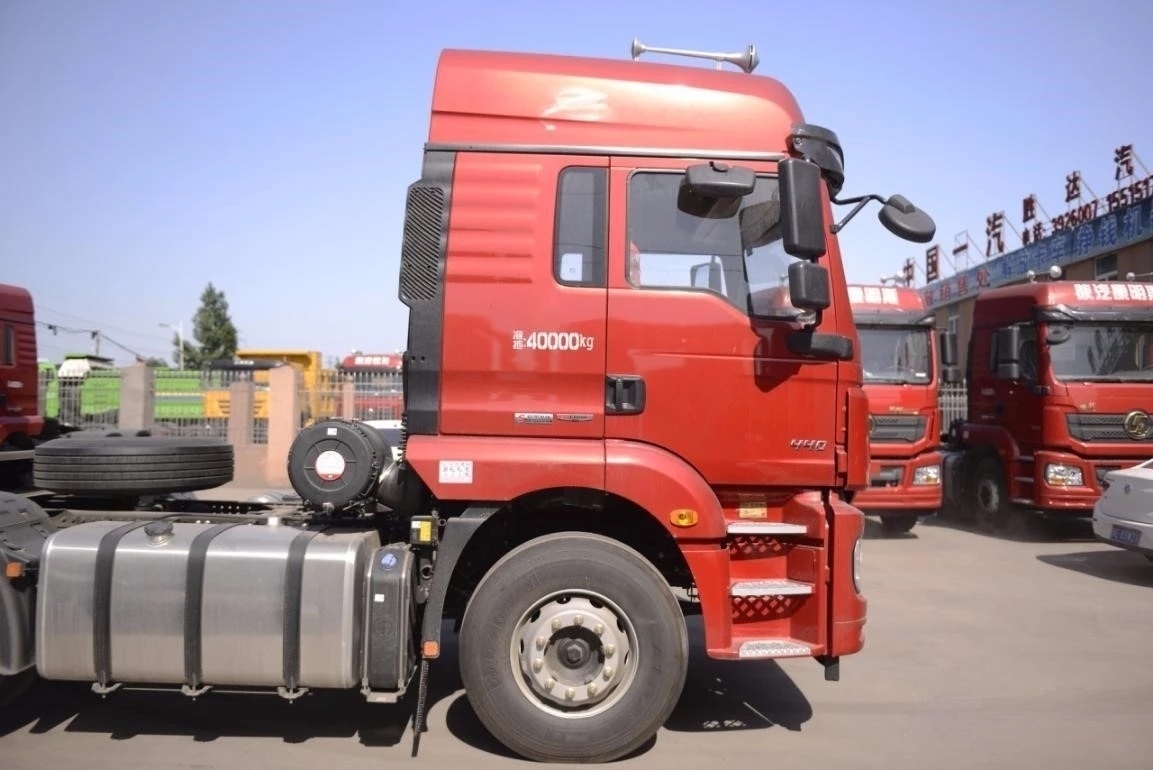

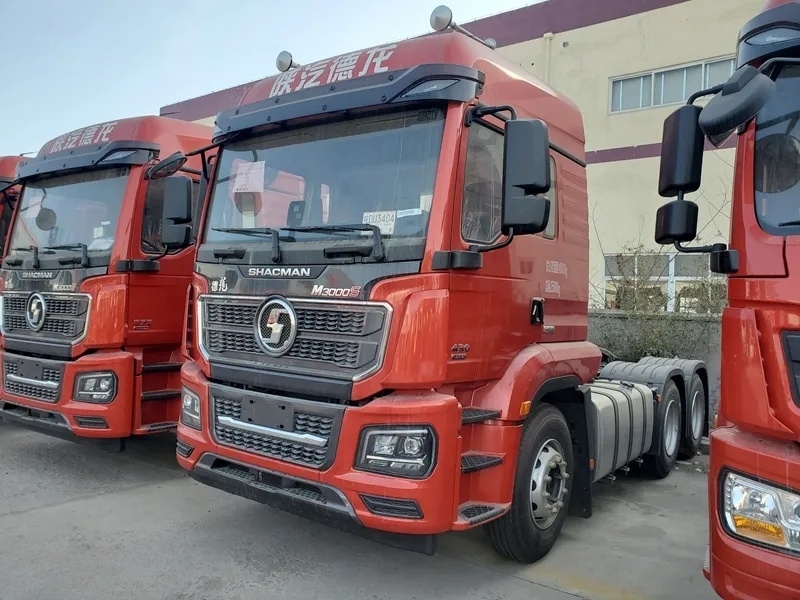

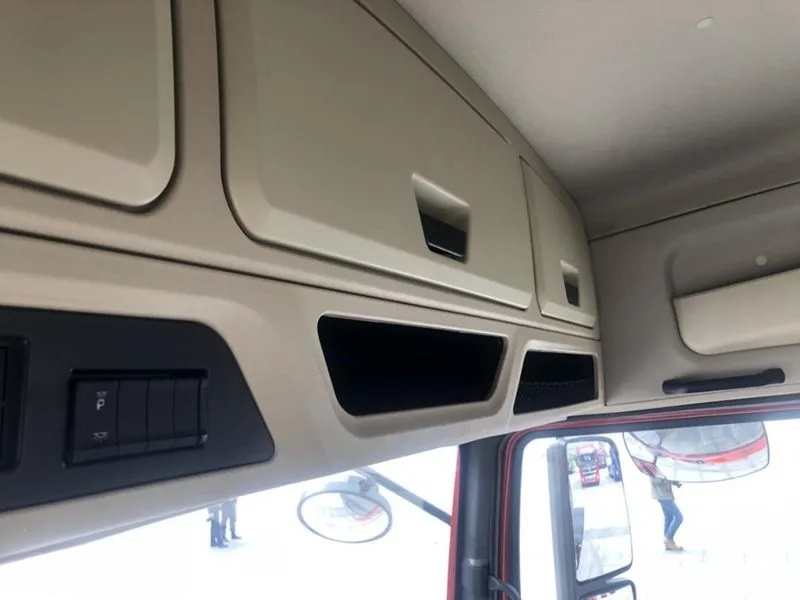

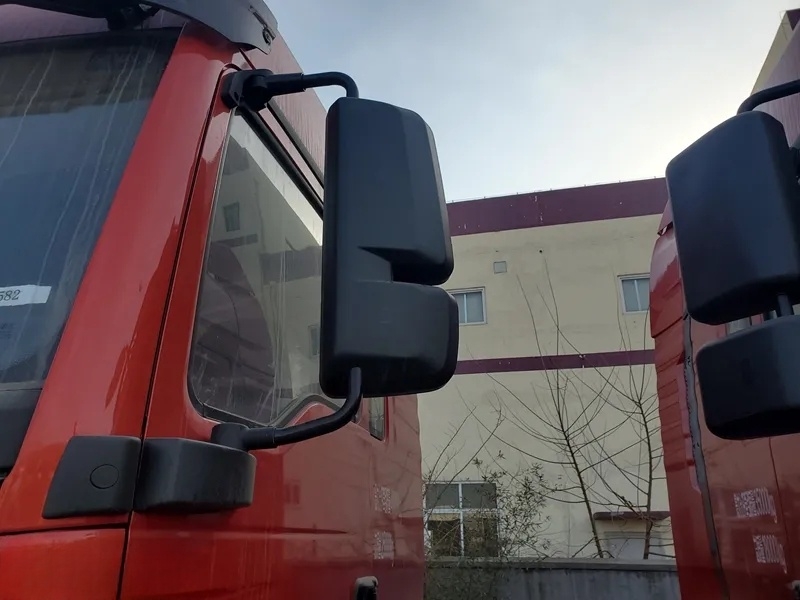

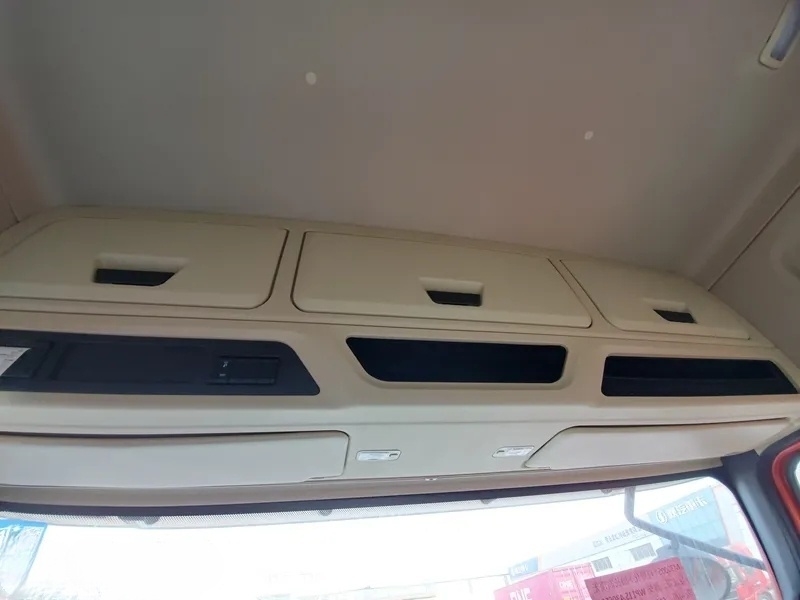

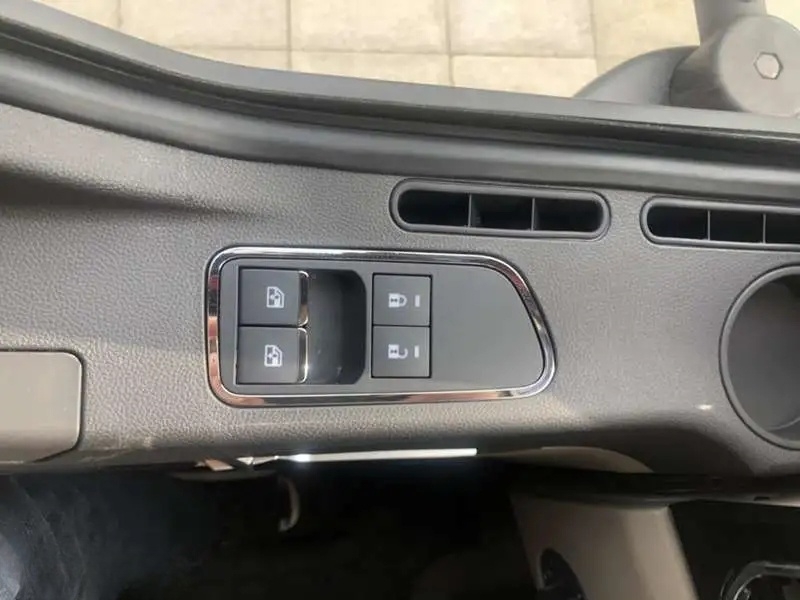

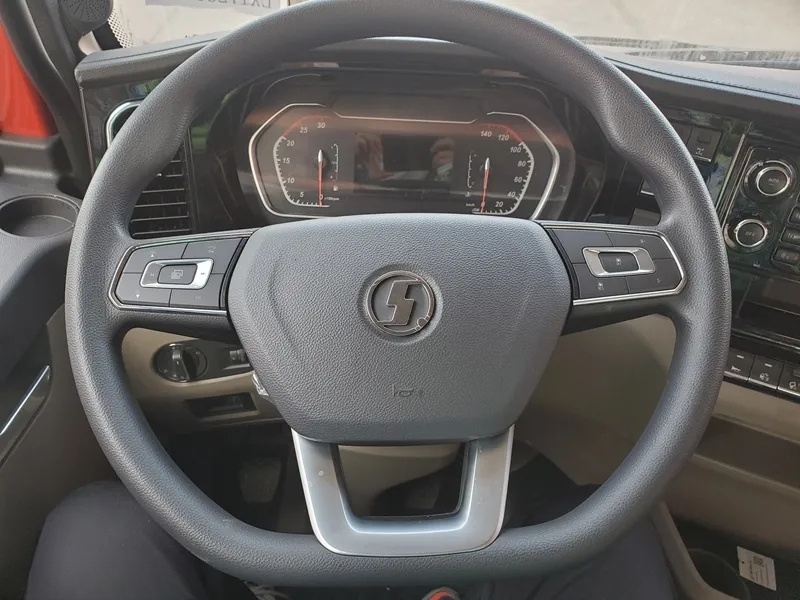

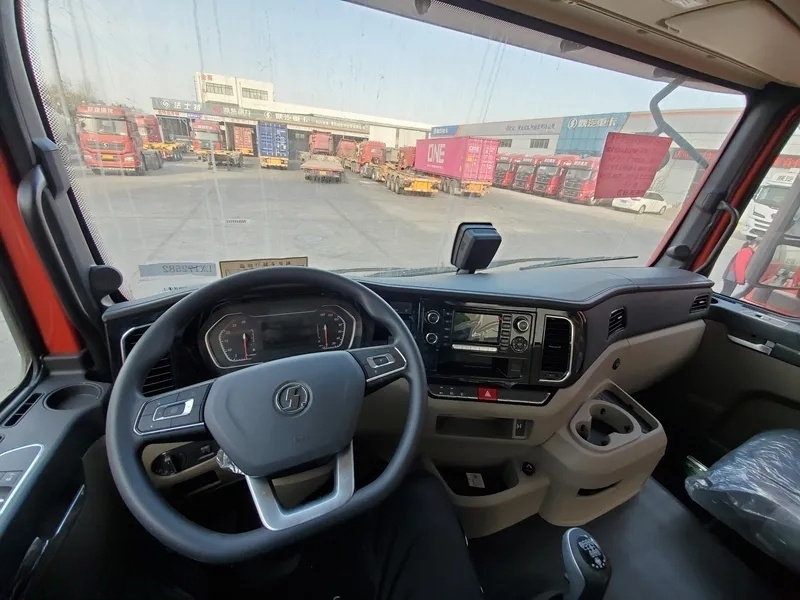

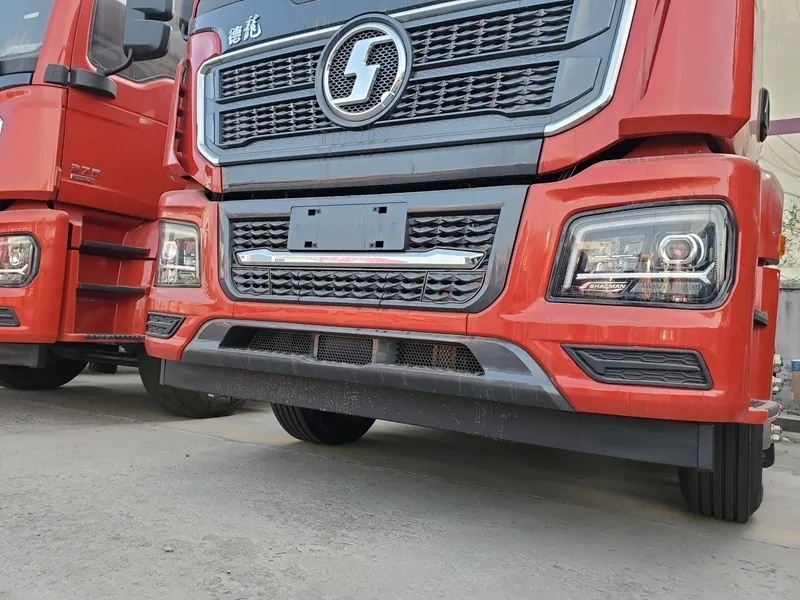

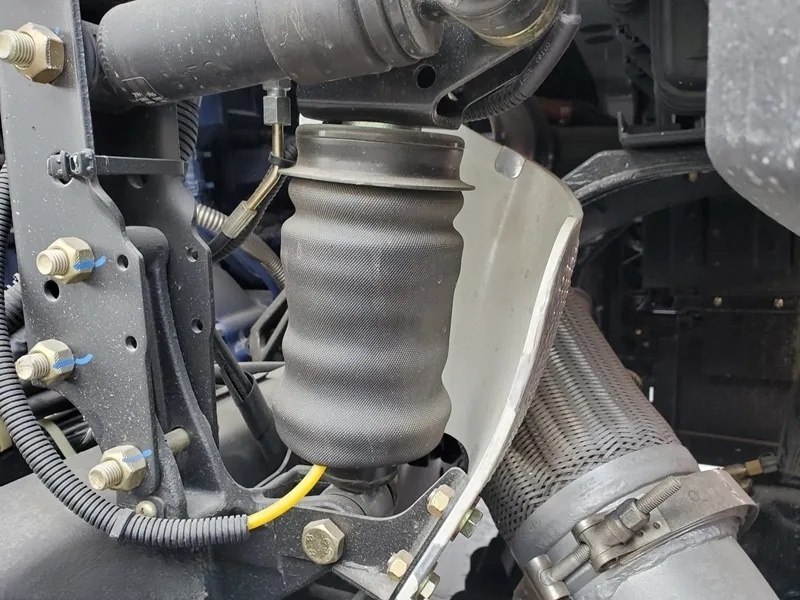

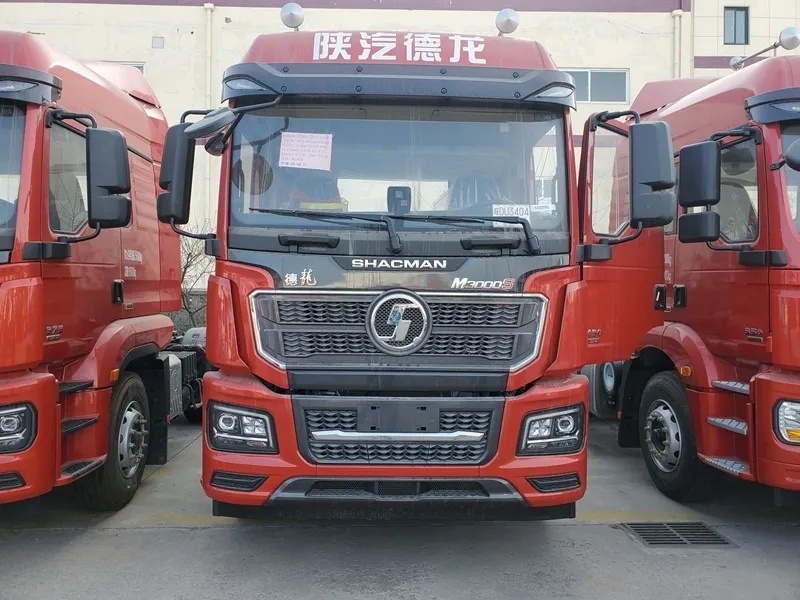

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3175+1350mm
- engine
- Weichai WP12.430E50
- Gearbox
- Fast 12JSD200TA-B
- Rear axle speed ratio
- 3.7
- Body length
- 6.775 meters
- Body width
- 2.55 meters
- Body height
- 3.56 meters
- Front track
- 2036mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 8.6 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 105km/h
- Market segments
- Bulk material transportation
- Origin
- Xi'an, Shaanxi
- Tonnage level
- Heavy Truck
- Version
- Lightweight version
Engine parameters
- engine model
- Weichai WP12.430E50
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 11.596L
- Emission Standards
- National Five
- Maximum horsepower
- 430 HP
- Maximum output power
- 316kW
- Maximum torque
- 2060N·m
- Maximum torque speed
- 1000-1400rpm
- Rated speed
- 1900rpm
Gearbox parameters
- Gearbox model
- Fast 12JSD200TA-B
- Shifting method
- Manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 850×270 (single 8)mm
- Front axle description
- MAN 5.5T maintenance free
- Rear axle description
- 13T MAN single stage
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 3.7
- Number of spring leaves
- 2/3
- Suspension type (front/rear)
- Front and rear few leaf springs
- Saddle
- Lightweight 90#
- Number of tires
- 10
- Tire specifications
- 12.00R20 16PR

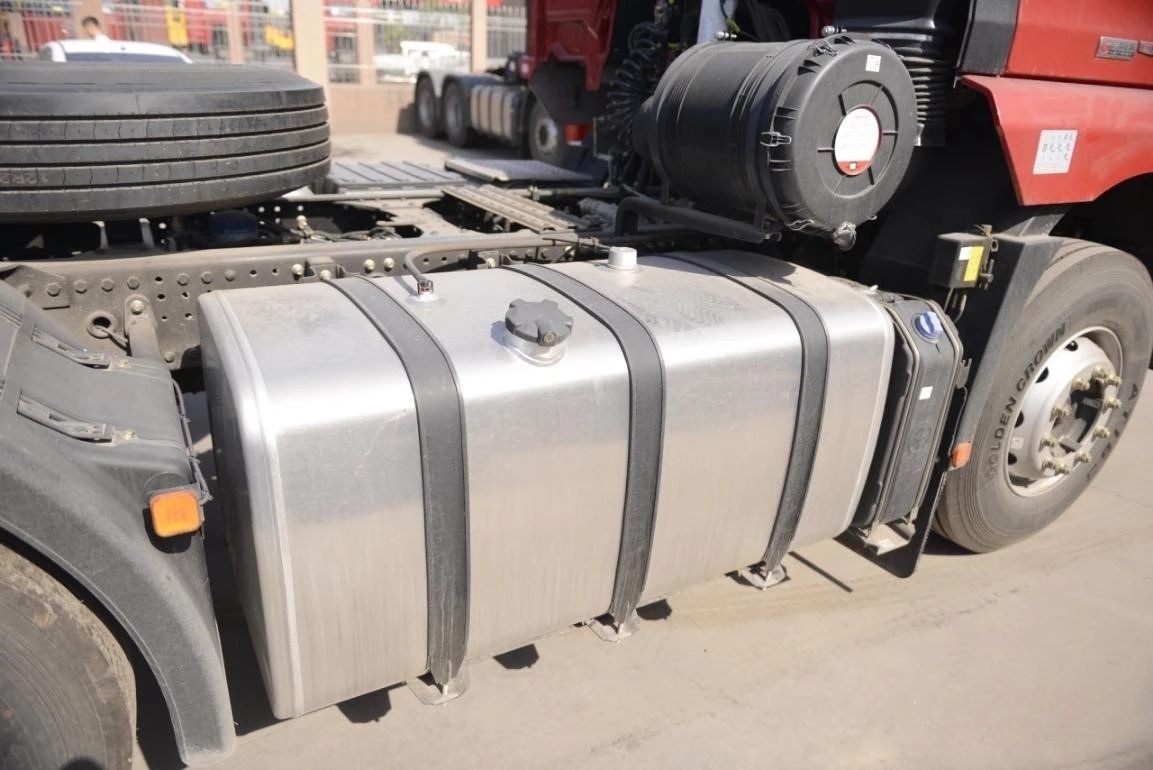

- Fuel tank/gas tank material
- Aluminum alloy
- Fuel tank capacity
- 700L
