SAIC Hongyan Jieshi C6 composite version 560 horsepower 6X4 tractor
Submit purchase requestBasic Information
- Drive type:
- 6X4
- Wheelbase:
- 3350+1400mm
- engine:
- Shangchai SC13E560Q6
- Gearbox:
- Fast 12JSDX240TA
- Rear axle ratio:
- 3.7
- Body length:
- 6.885m
- Body width:
- 2.55 m
- Body height:
- 3.96 m

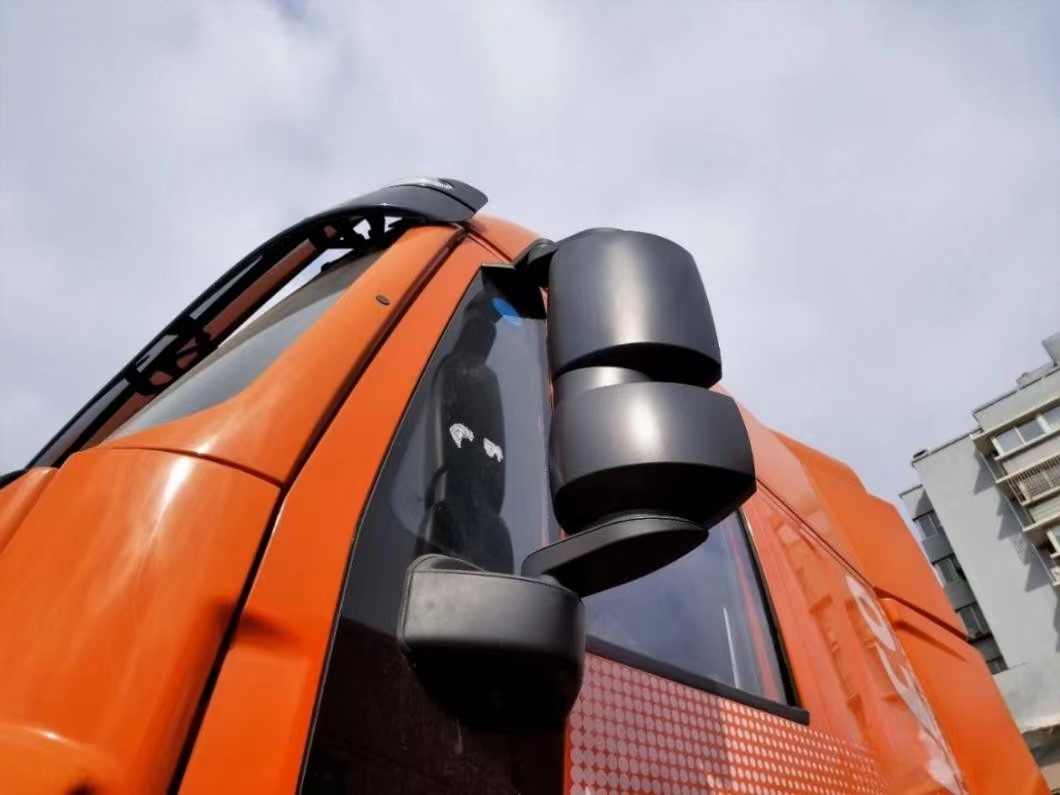

Truck Picture
Truck Configuration
Basic Information
- Drive type
- 6X4
- Wheelbase
- 3350+1400mm
- engine
- Shangchai SC13E560Q6
- Gearbox
- Fast 12JSDX240TA
- Rear axle ratio
- 3.7
- Body length
- 6.885m
- Body width
- 2.55 m
- Body height
- 3.96 m
- Front track
- 2020mm
- Rear track
- 1858/1858mm
- Vehicle weight
- 8.87 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 89km/h
- Market segments
- Coal transportation, sand and gravel transportation
- Origin
- Chongqing
- Tonnage level
- Heavy Truck
- Version
- Composite version
Engine parameters
- engine model
- Shangchai SC13E560Q6
- Engine brand
- Shangchai
- Number of cylinders
- 6 cylinders
- Fuel type
- diesel fuel
- Cylinder arrangement
- In-line
- Displacement
- 12.82L
- Emission Standards
- National VI
- Maximum horsepower
- 560 hp
- Maximum output power
- 412kW
- Maximum torque
- 2600N·m
- Maximum torque speed
- 1100-1400rpm
- Rated speed
- 1800rpm
Gearbox parameters
- Gearbox model
- Fast 12JSDX240TA
- Gearbox brand
- fast
- Shifting method
- Manual
- Forward gears
- 12 gears
- Reverse gear number
- 2
Chassis parameters
- Frame size
- 305×(8+4)mm
- Front axle description
- 6.5T
- Rear axle description
- HY469Q
- Permissible load on front axle
- 7000kg
- Permissible load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 3.7
- Number of springs
- 3/6
- Saddle
- 50#
- Number of tires
- 10
- Tire specifications
- 12R22.5 18PR
- Fuel tank capacity
- 600L
