SAIC Hongyan Jieshi H6 New Dynamic Edition 580HP 6X4 AMT Automatic Transmission Tractor Truck
Submit purchase requestBasic Information
- Drive type:
- 6X4
- Wheelbase:
- 3350+1400mm
- engine:
- Shanghai Diesel SC13E580Q6
- Gearbox:
- Fast F12JZ26
- Rear axle ratio:
- 2.846
- Body length:
- 6.885m
- Body width:
- 2.55 m
- Body height:
- 3.96 m

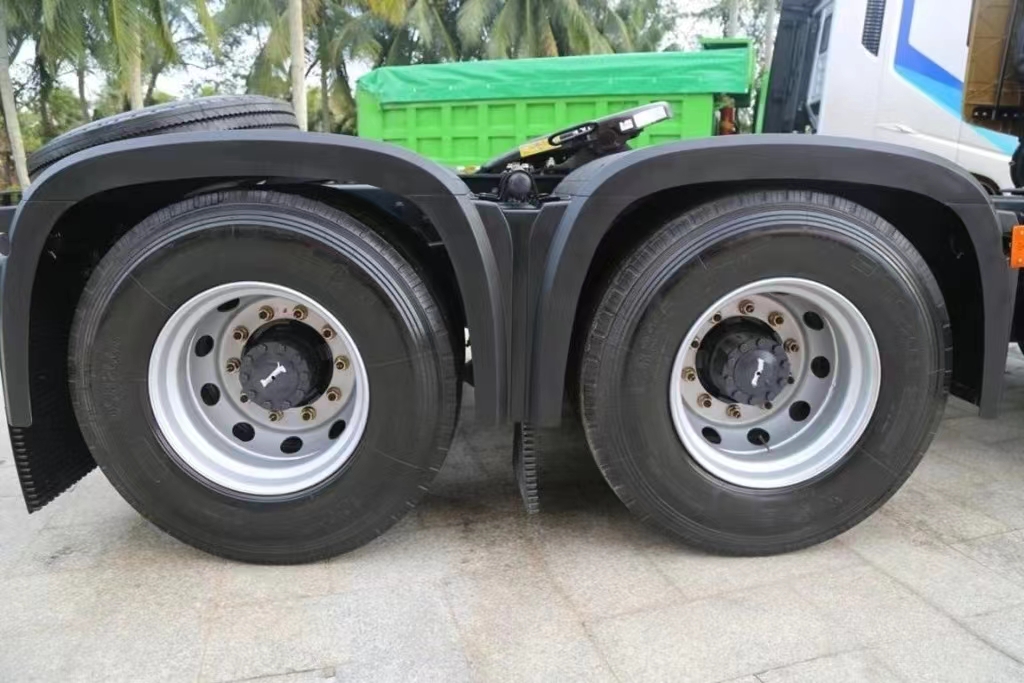

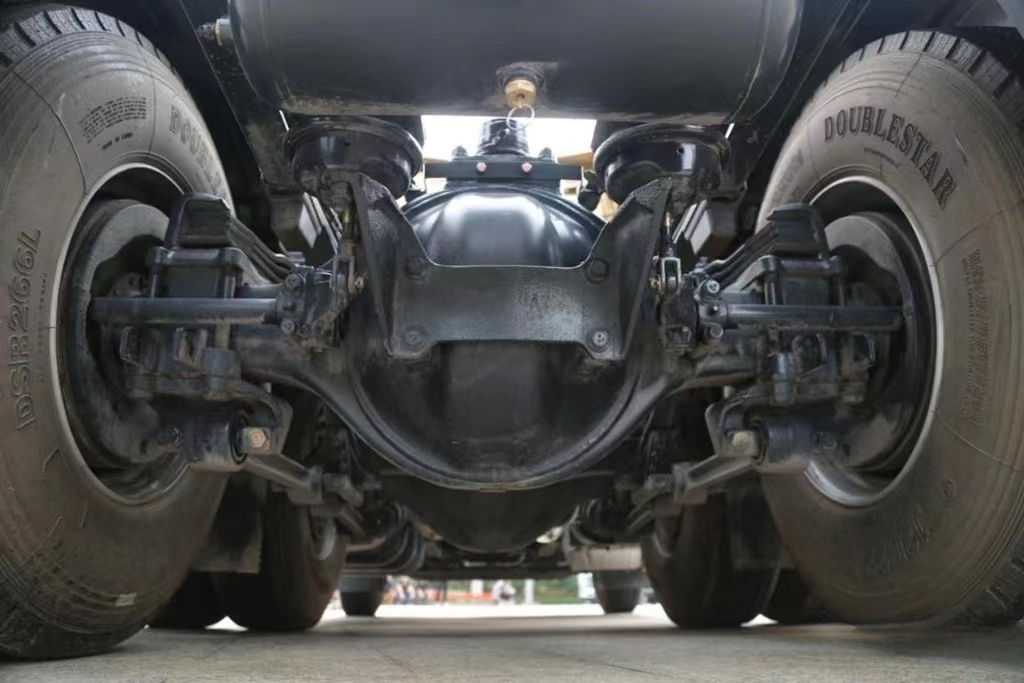

Truck Picture
Truck Configuration
Basic Information
- Drive type
- 6X4
- Wheelbase
- 3350+1400mm
- engine
- Shanghai Diesel SC13E580Q6
- Gearbox
- Fast F12JZ26
- Rear axle ratio
- 2.846
- Body length
- 6.885m
- Body width
- 2.55 m
- Body height
- 3.96 m
- Front track
- 2020mm
- Rear track
- 1858/1858mm
- Vehicle weight
- 8.87 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 89km/h
- Origin
- Chongqing
- Tonnage level
- Heavy Truck
- Version
- New version
Engine parameters
- engine model
- Shanghai Diesel SC13E580Q6
- Engine brand
- Shangchai
- Number of cylinders
- 6 cylinders
- Fuel type
- diesel fuel
- Cylinder arrangement
- In-line
- Displacement
- 12.82L
- Emission Standards
- National VI
- Maximum horsepower
- 580 hp
- Maximum output power
- 426kW
Gearbox parameters
- Gearbox model
- Fast F12JZ26
- Gearbox brand
- Fast
- Shifting method
- AMT
- Forward gears
- 12 gears
- Reverse gear number
- 2
Chassis parameters
- Frame size
- 280×8mm
- Front axle description
- HY5.5T
- Rear axle description
- HY420
- Permissible load on front axle
- 7000kg
- Permissible load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 2.846
- Number of spring leaves
- 2/3
- Saddle
- 50# Strengthen saddle
- Number of tires
- 10
- Tire specifications
- 12R22.5 18PR
- Tire type
- Low rolling resistance tires
- Fuel tank capacity
- 700L+210LL
