SHACMAN Automobile Heavy Duty Truck Delong M3000S Standard Cabinet Version 375 HP 4X2 Tractor
Submit purchase requestBasic Information
- Drive form:
- 4X2
- Wheelbase:
- 3600mm
- engine:
- Weichai WP10H375E62
- Gearbox:
- Fast S12MO
- Rear axle speed ratio:
- 4.111
- Body length:
- 6.175 meters
- Body width:
- 2.55 meters
- Body height:
- 3.84 meters

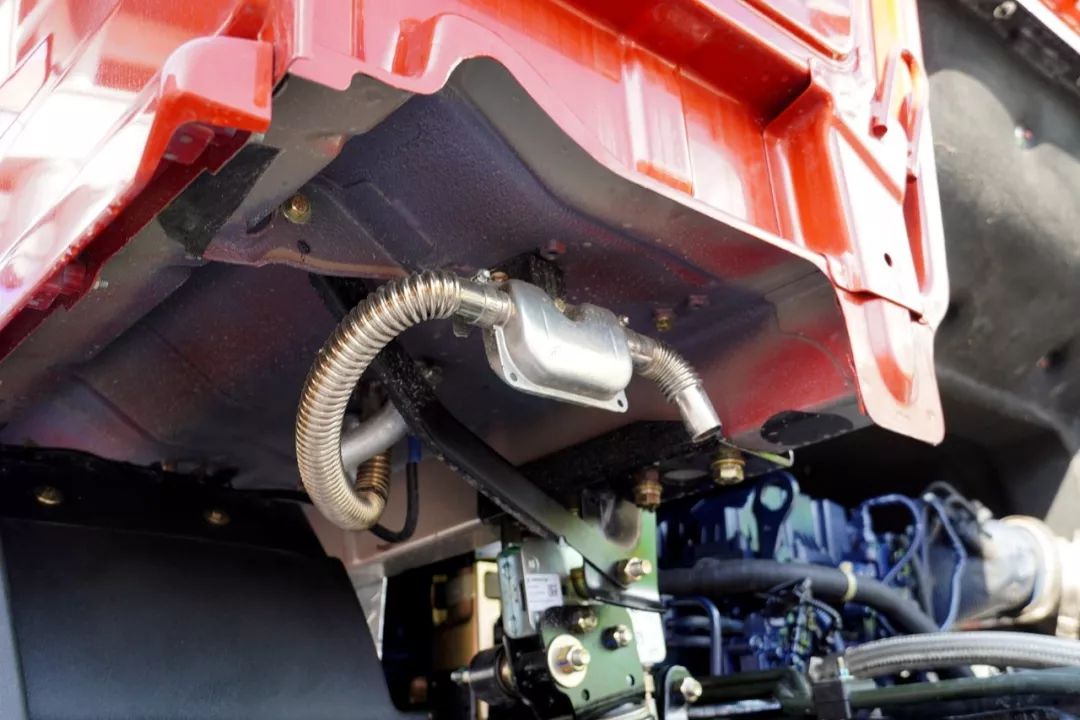

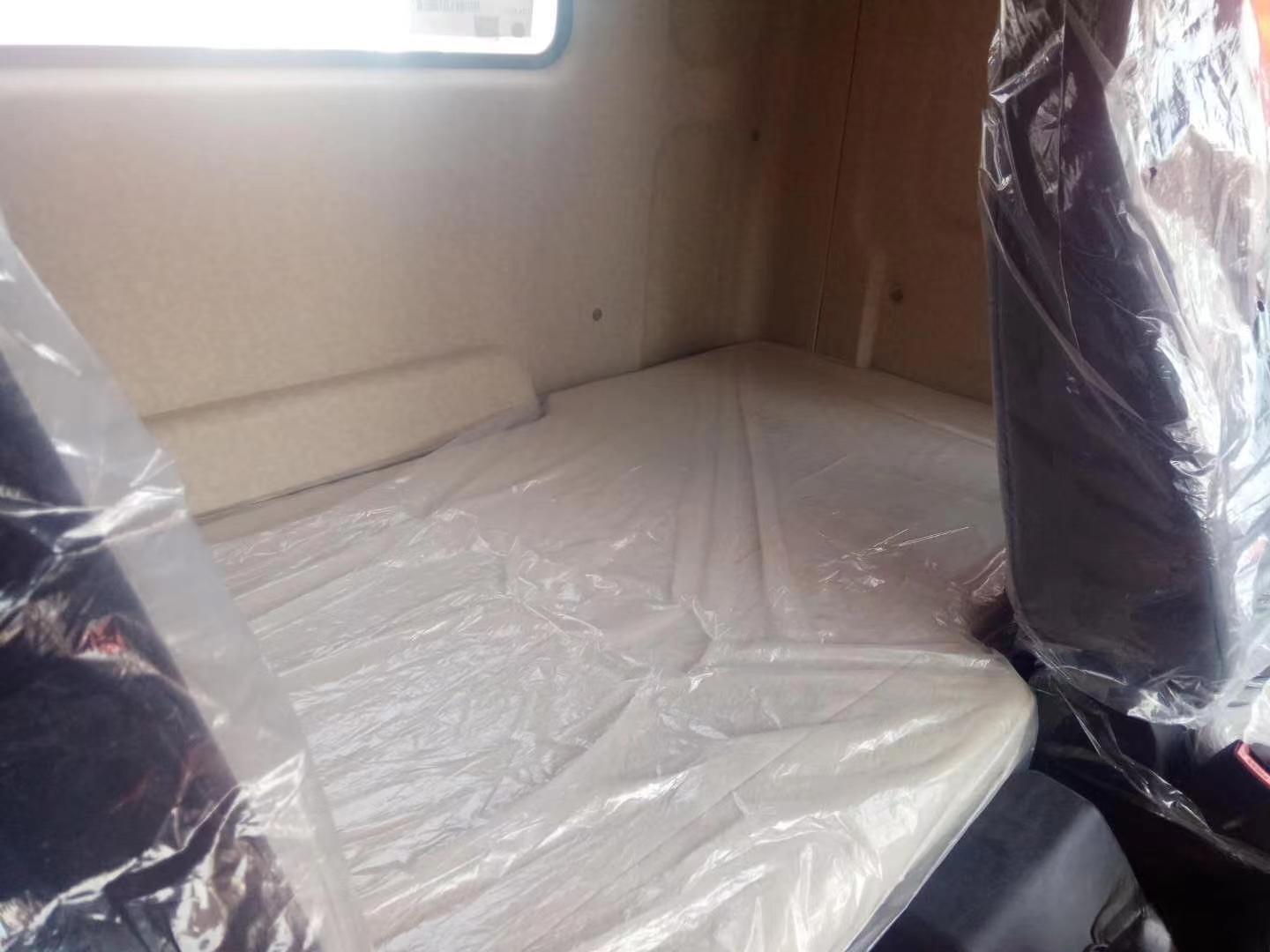

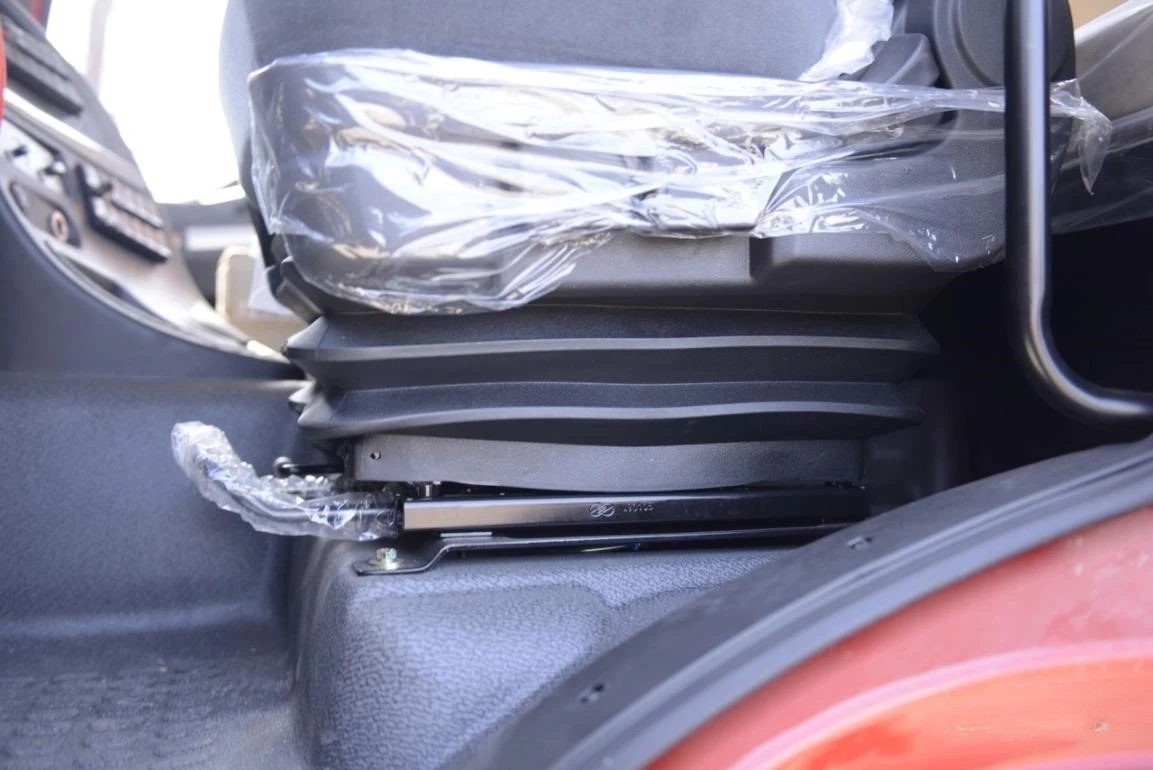

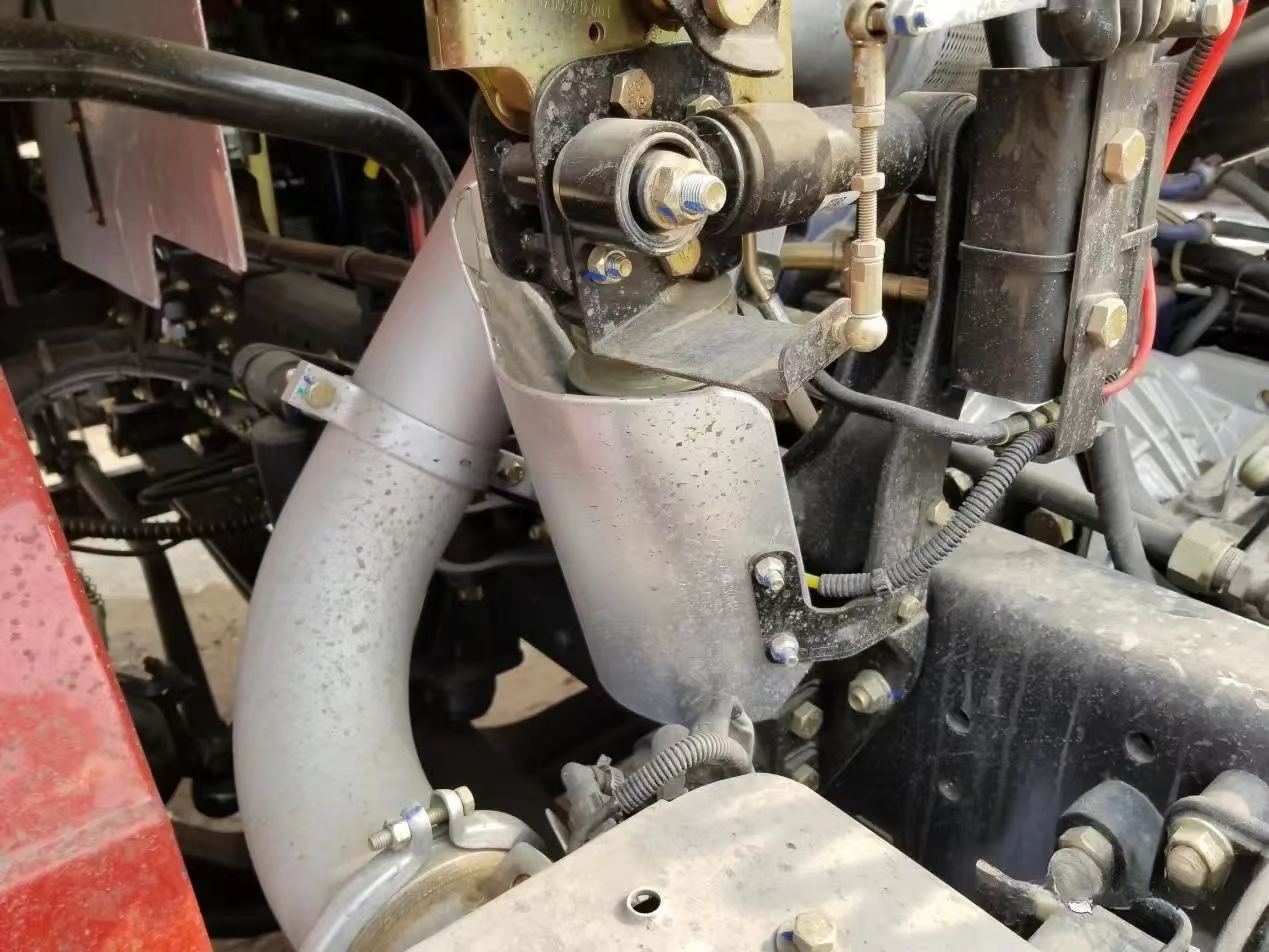

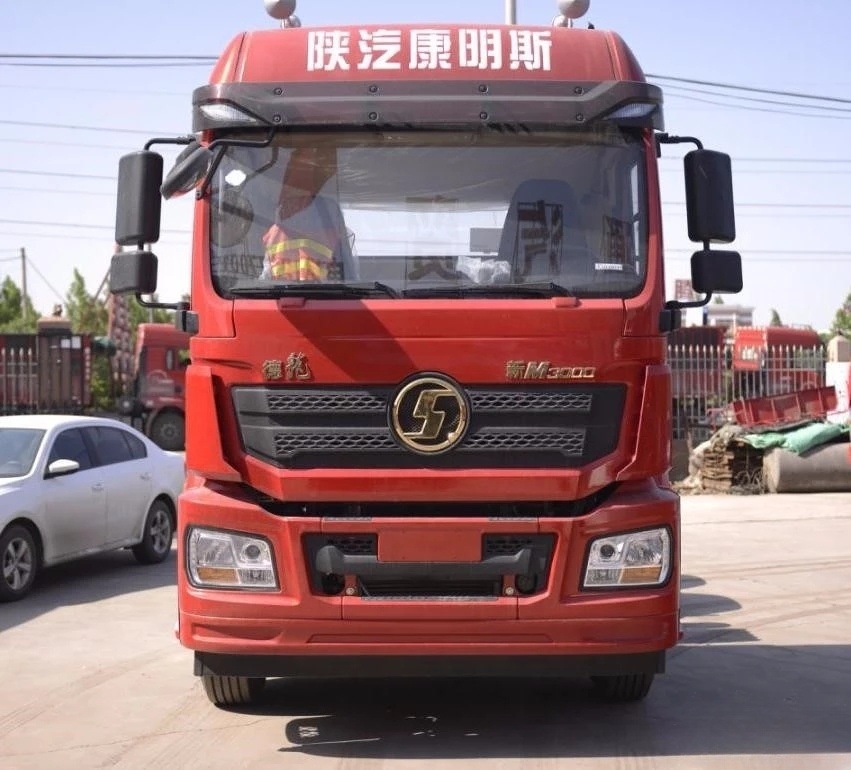

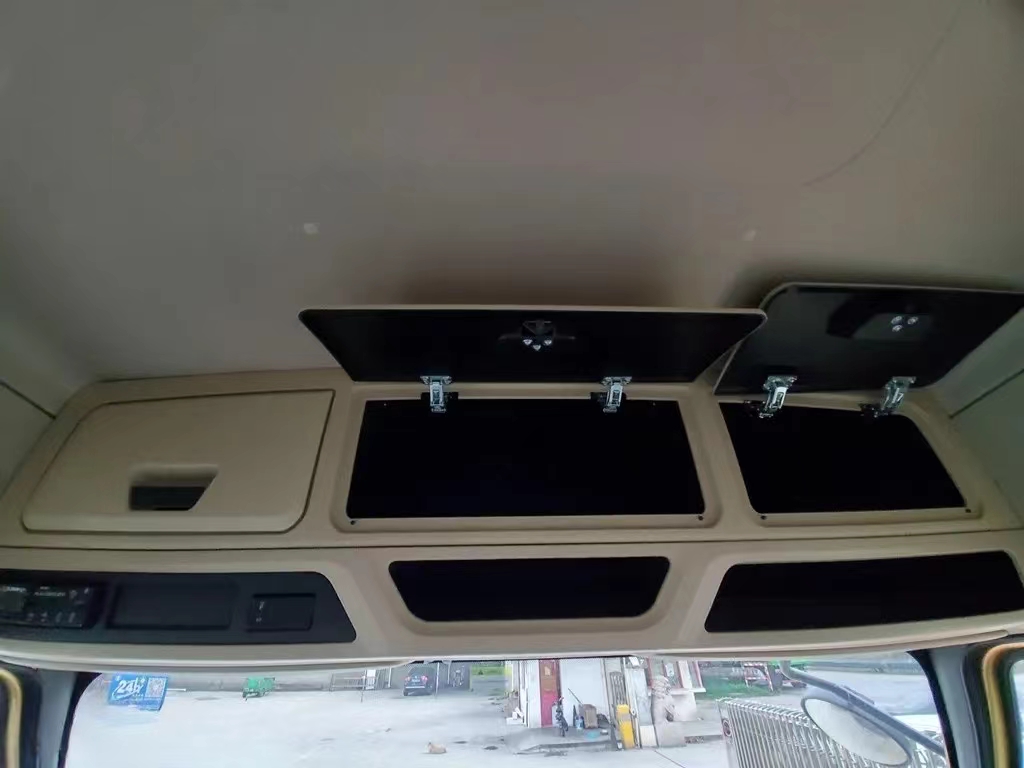

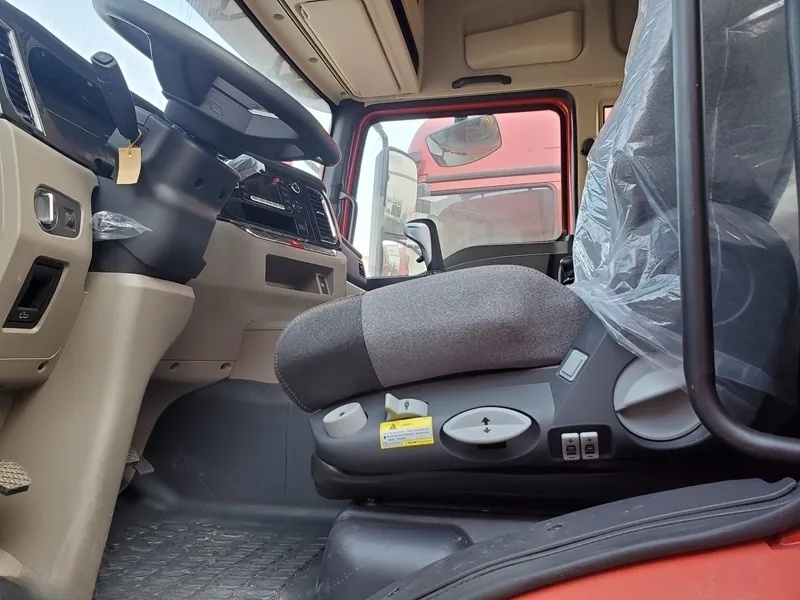

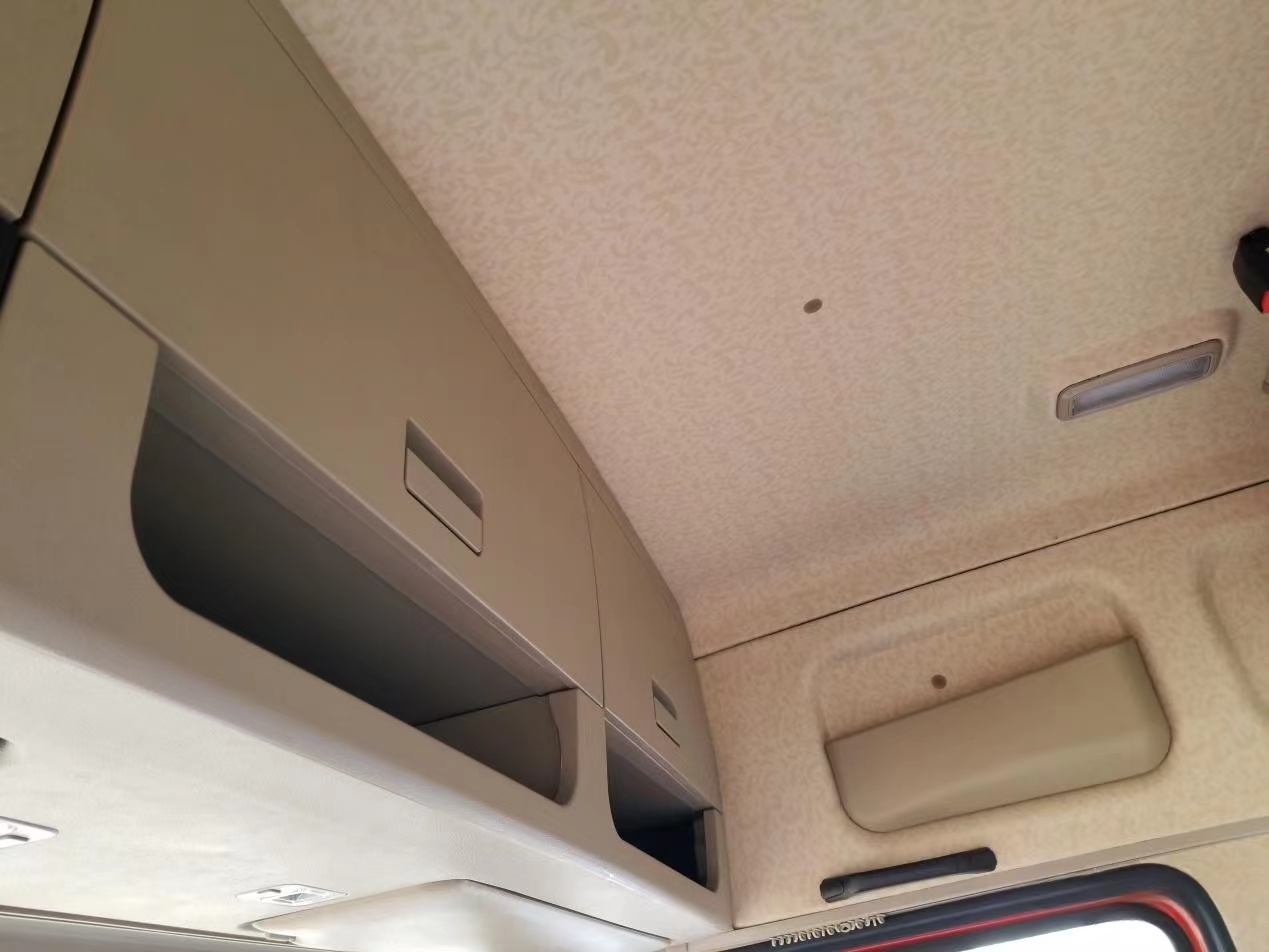

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 4X2
- Wheelbase
- 3600mm
- engine
- Weichai WP10H375E62
- Gearbox
- Fast S12MO
- Rear axle speed ratio
- 4.111
- Body length
- 6.175 meters
- Body width
- 2.55 meters
- Body height
- 3.84 meters
- Front track
- 2036mm
- Rear wheelbase
- 1860mm
- Vehicle weight
- 6.6 tons
- Total mass
- 18 tons
- Total traction mass
- 35.2 tons
- Maximum speed
- 89km/h
- Market segments
- port transportation
- Origin
- Xi'an, Shaanxi
- Tonnage level
- Heavy Truck

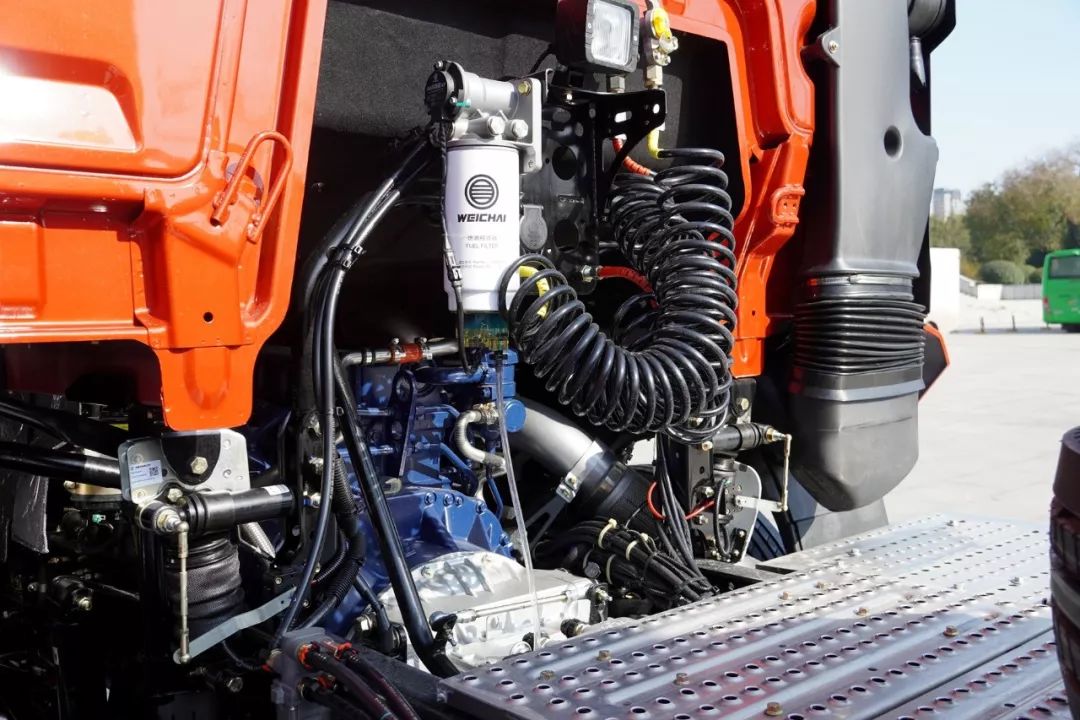

Engine parameters
- engine model
- Weichai WP10H375E62
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 9.5L
- Emission Standards
- National VI
- Maximum horsepower
- 375 HP
- Maximum output power
- 276kW
- Maximum torque
- 1800N·m
- Maximum torque speed
- 1000-1400rpm
- Rated speed
- 1900rpm
Gearbox parameters
- Gearbox model
- Fast S12MO
- Shifting method
- Manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters

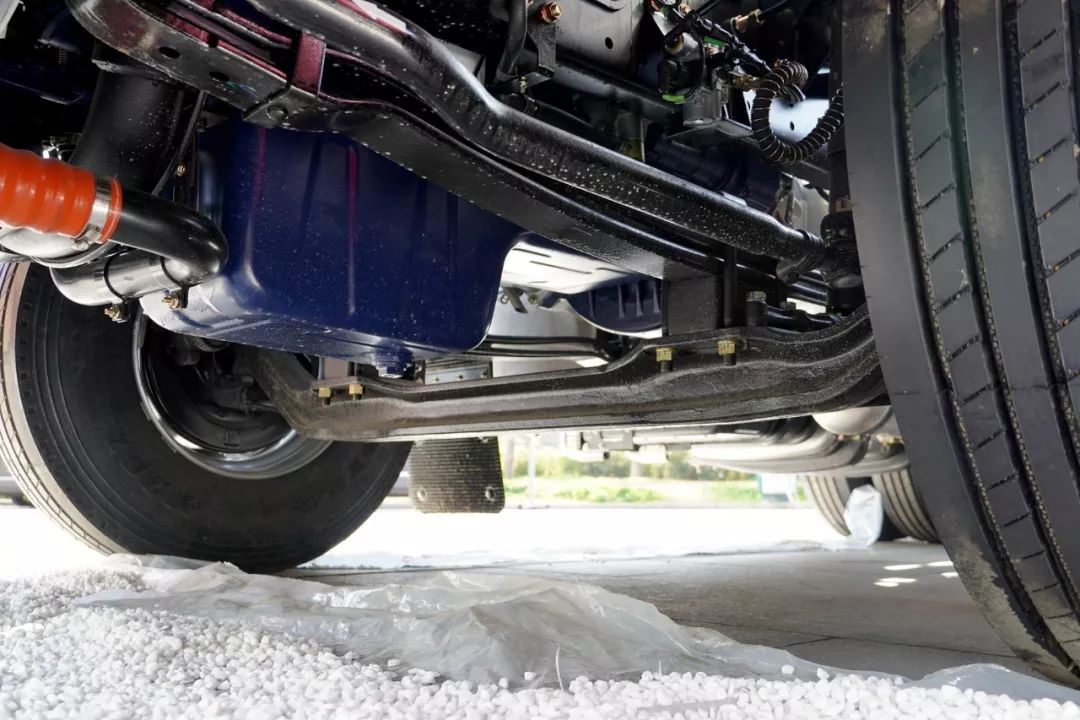

- Front axle description
- Drum front axle

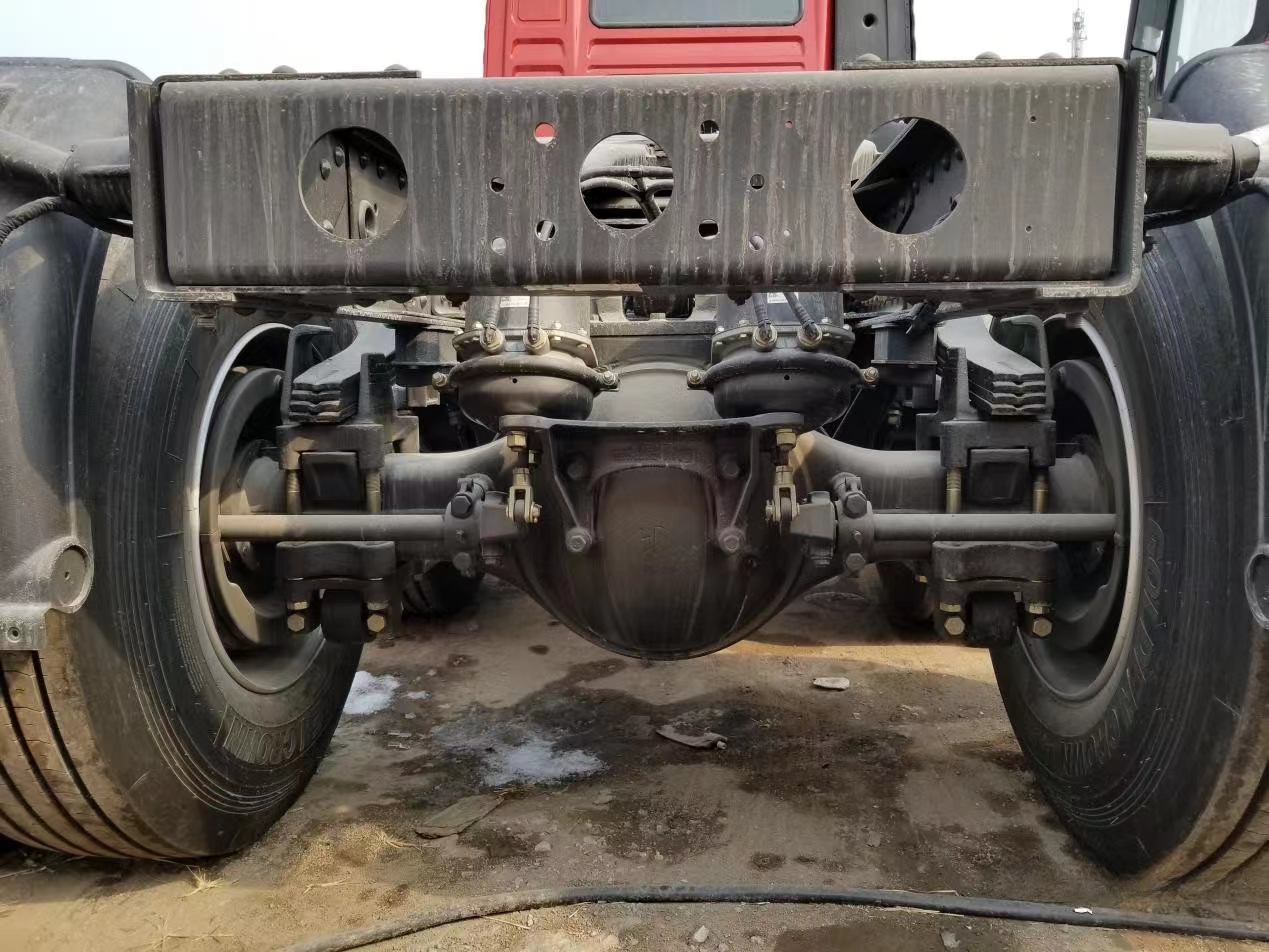

- Rear axle description
- Drum transaxle
- Allowable load on front axle
- 6500kg
- Allowable load on rear axle
- 11500kg
- Speed ratio
- 4.111
- Number of spring leaves
- 3/4+3
- Number of tires
- 6
- Tire specifications
- 12R22.5 18PR

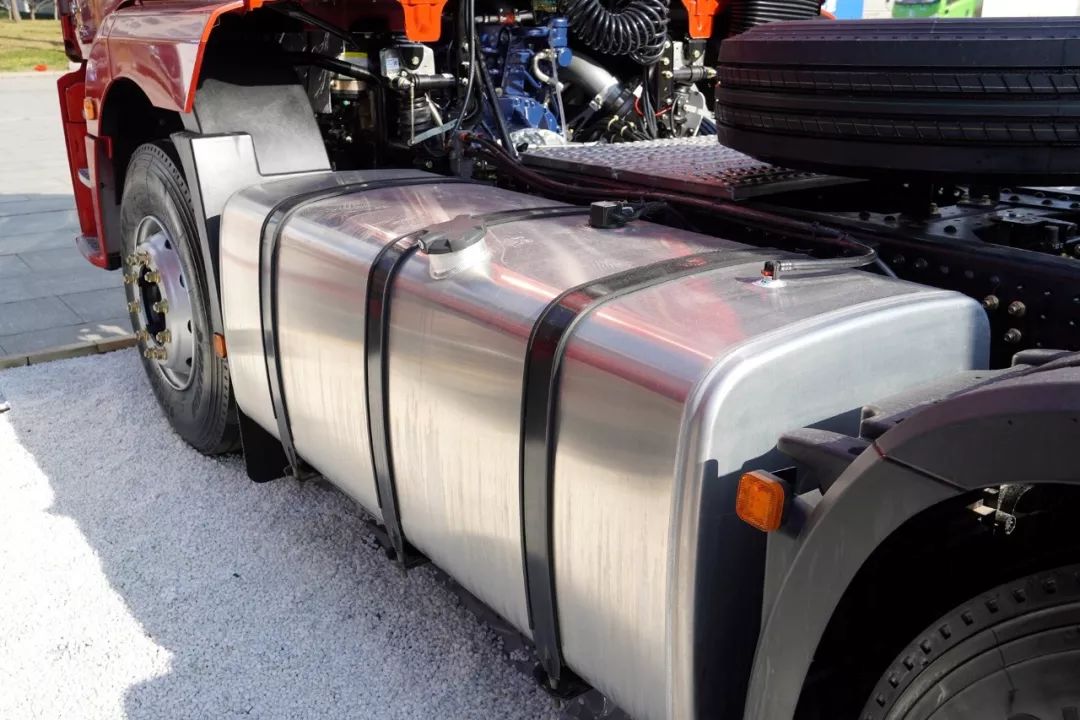

- Fuel tank/gas tank material
- Aluminum alloy
- Fuel tank capacity
- 400L
