SHACMAN Auto Heavy Duty Truck Delong M3000S Classic Version 460 HP 6X4 Tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3300+1350mm
- engine:
- Weichai WP12.460E62
- Gearbox:
- Fast S12MO
- Rear axle speed ratio:
- 3.7
- Body length:
- 6.86 meters
- Body width:
- 2.55 meters
- Body height:
- 3.84 meters

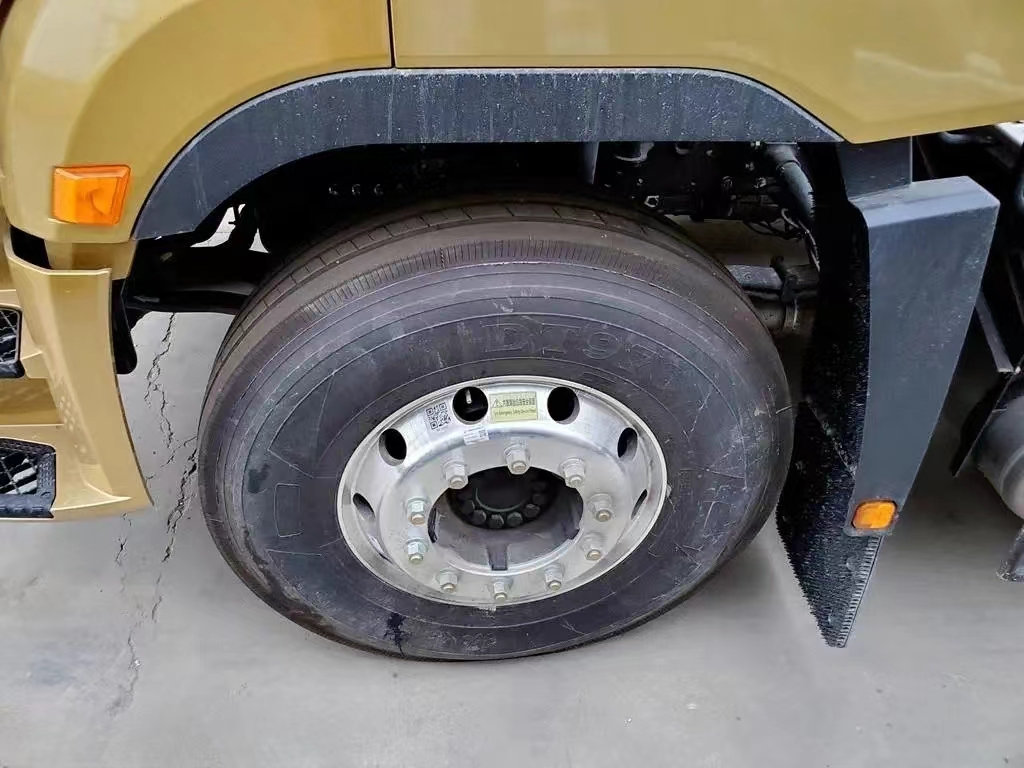

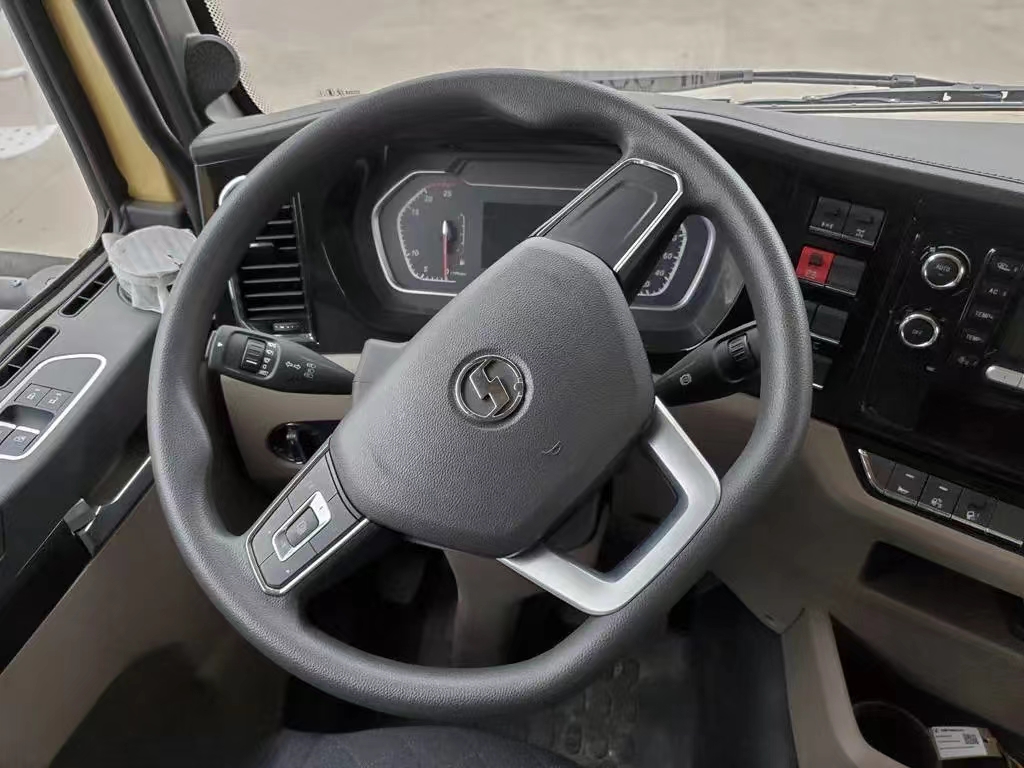

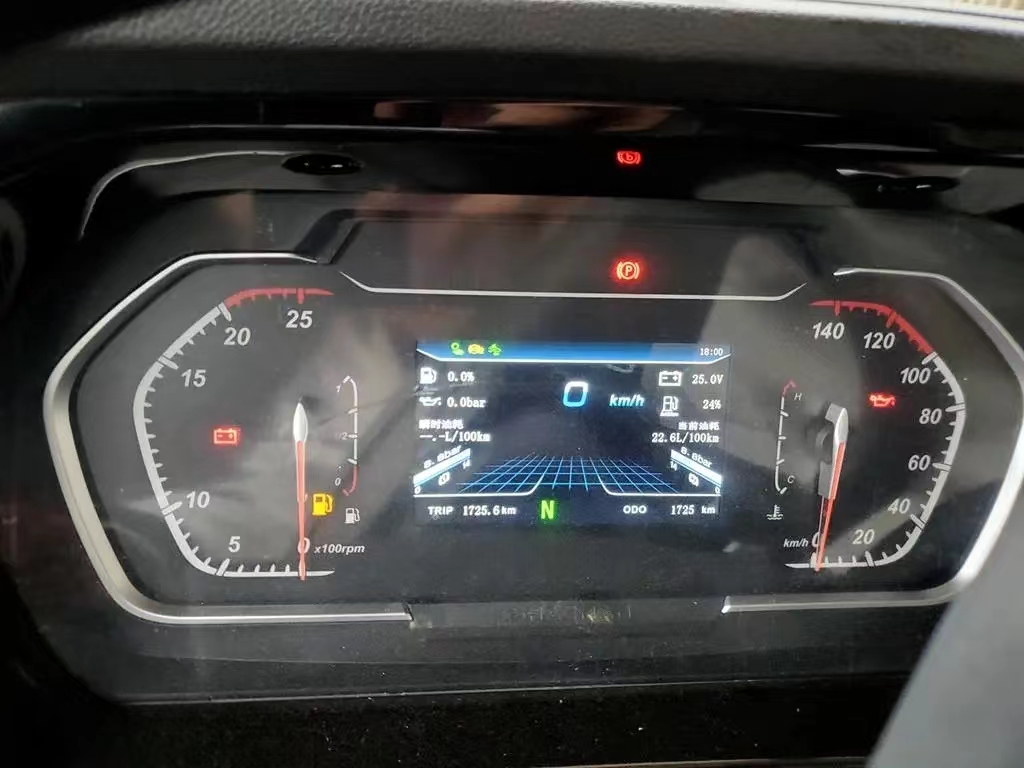

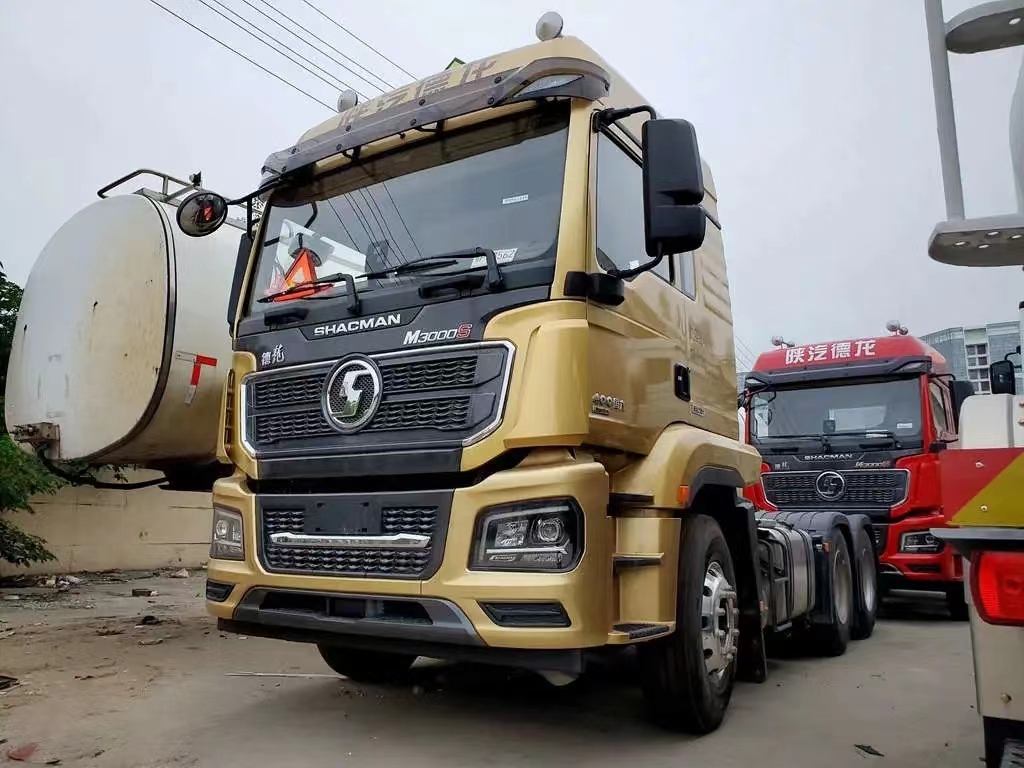

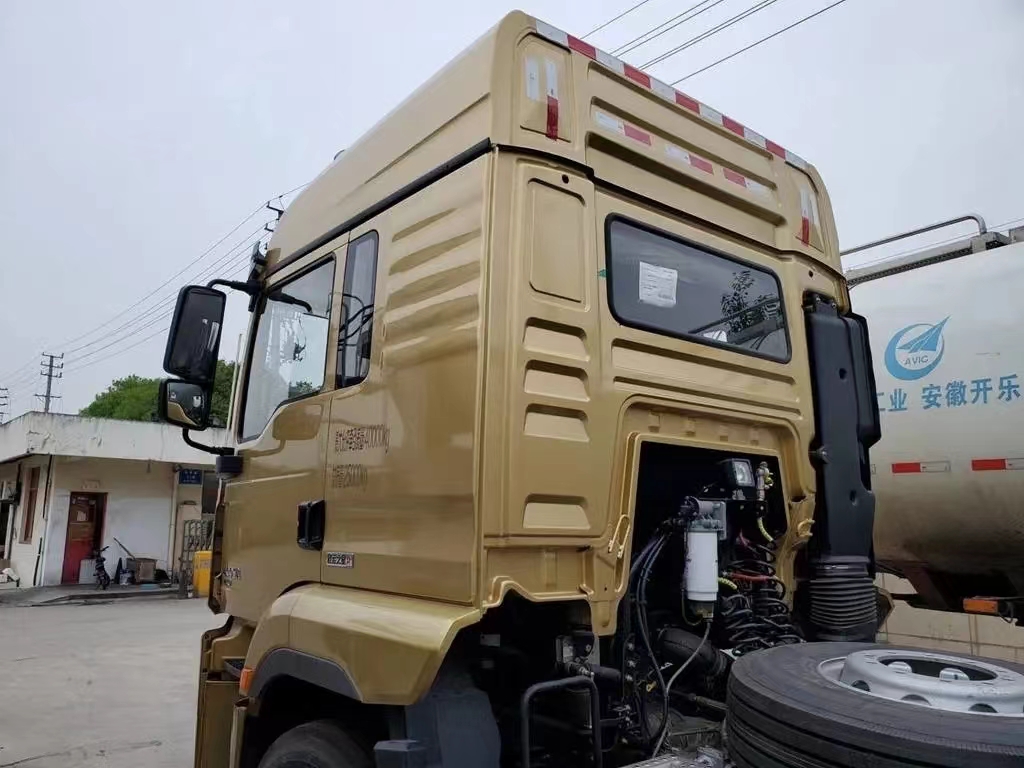

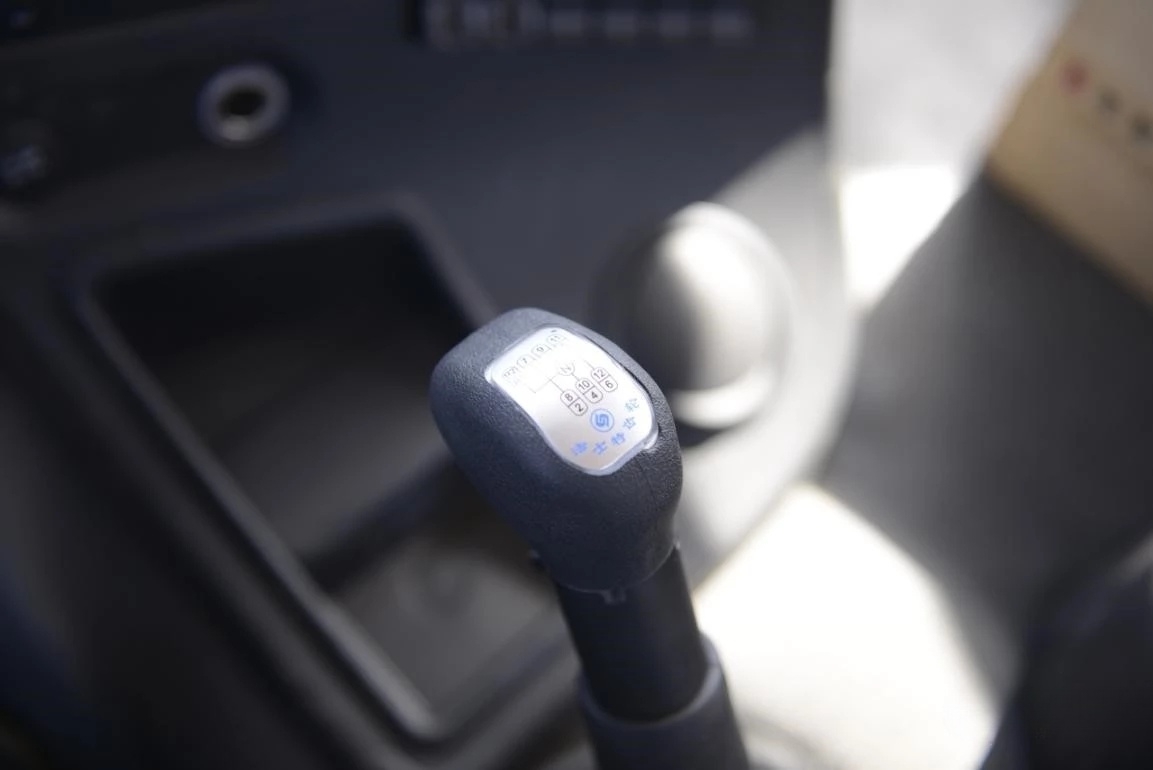

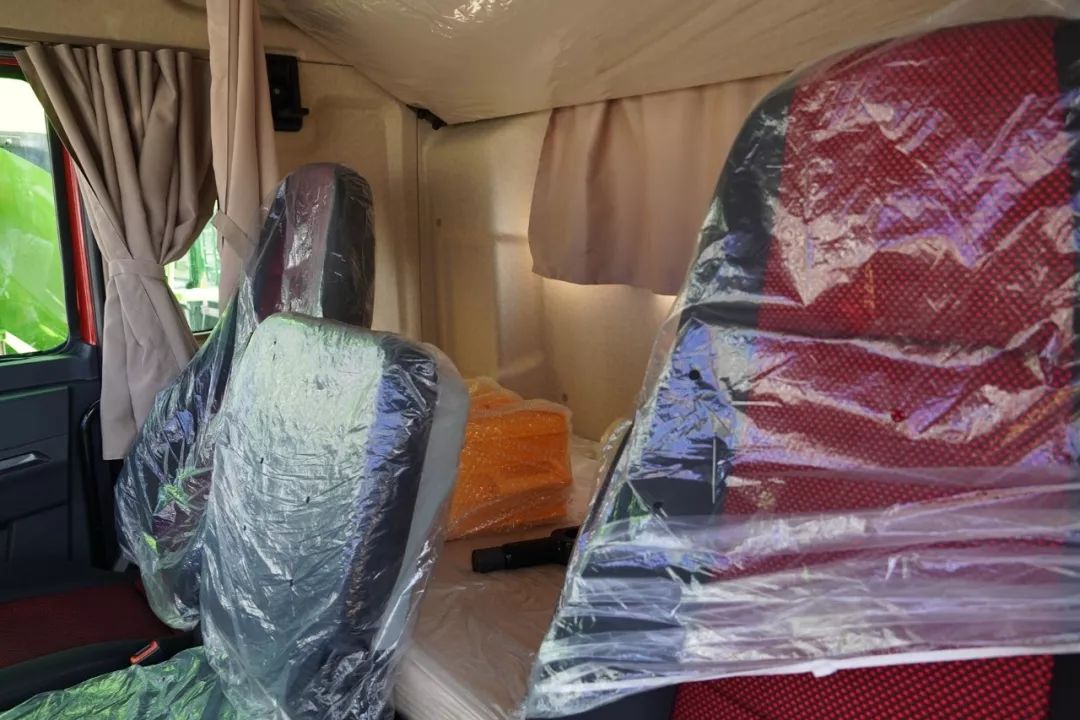

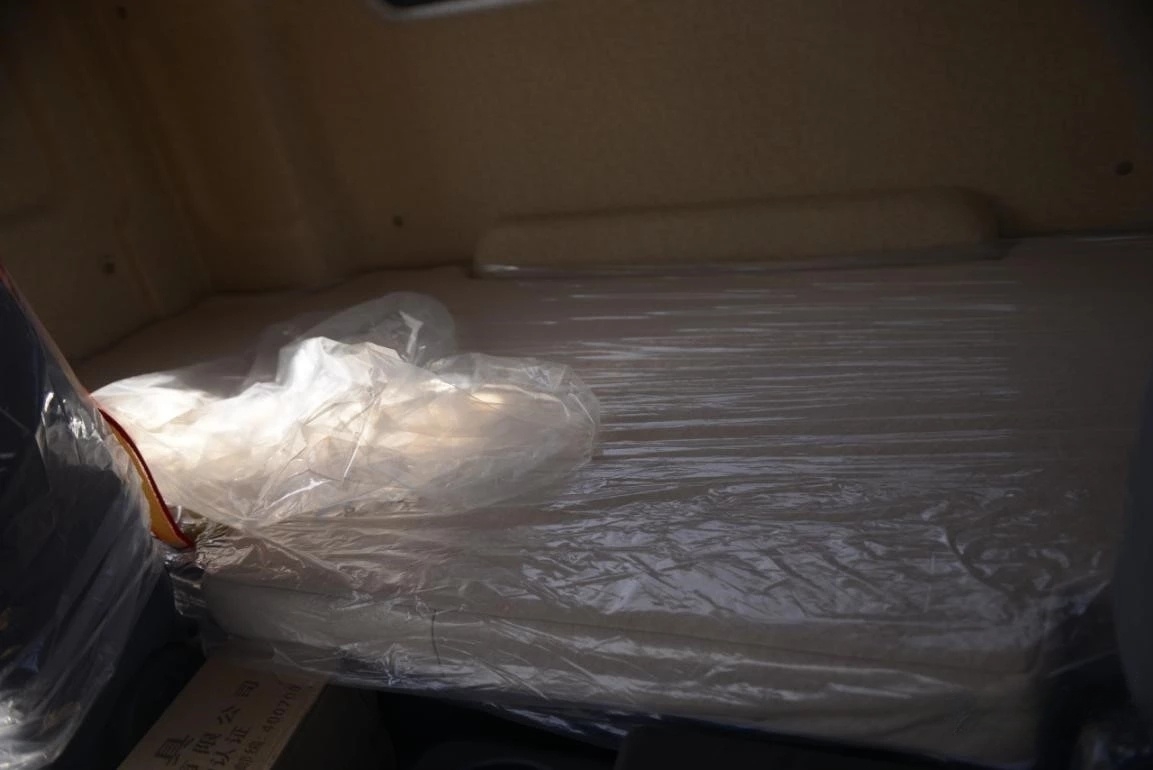

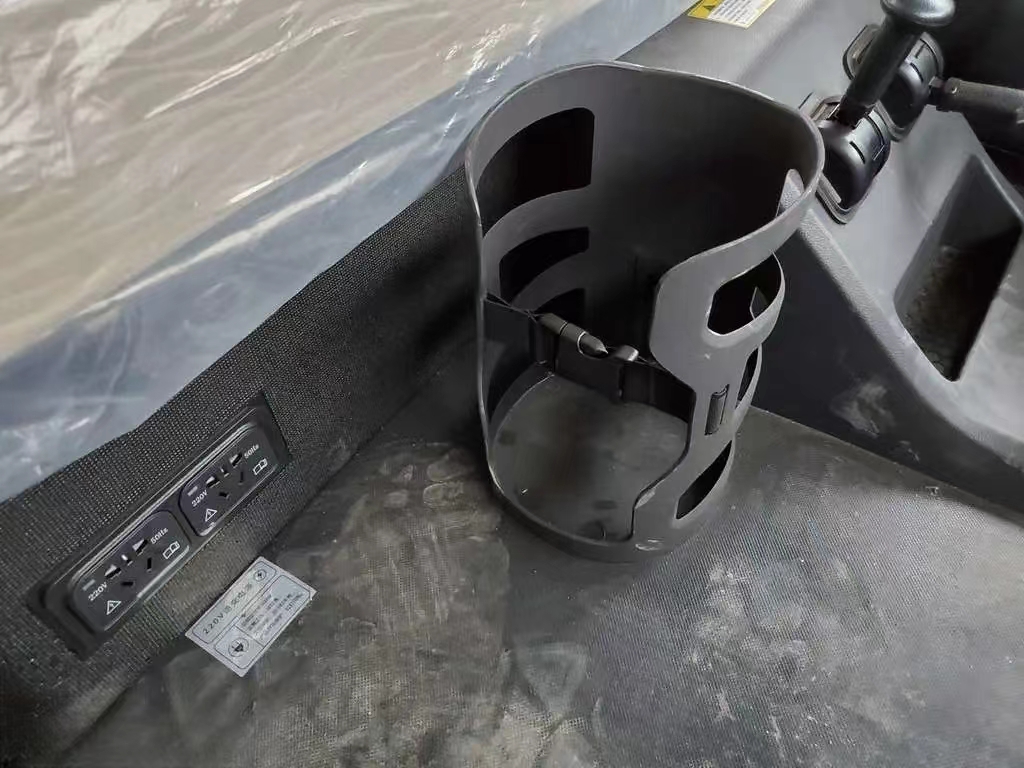

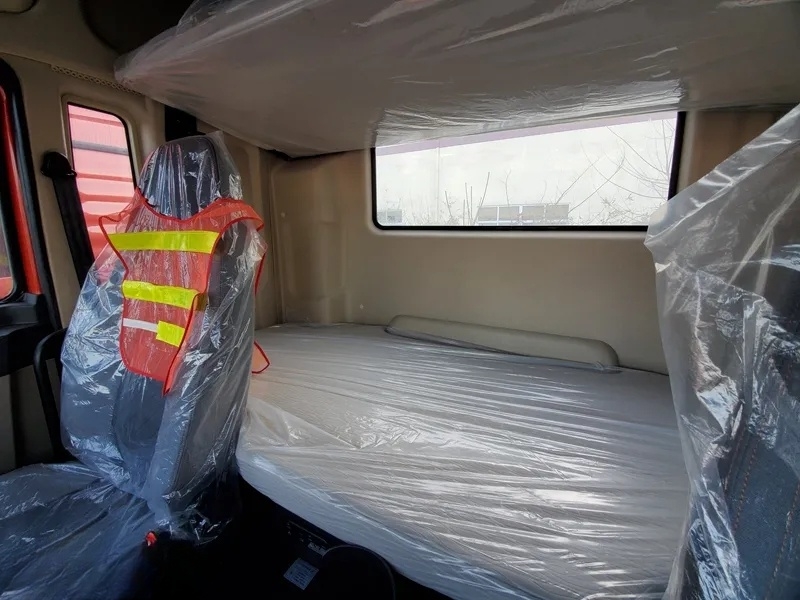

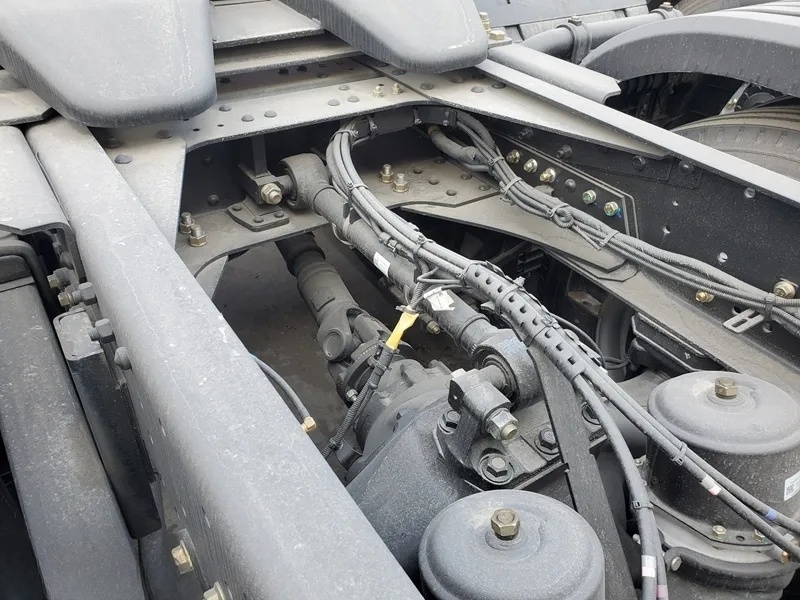

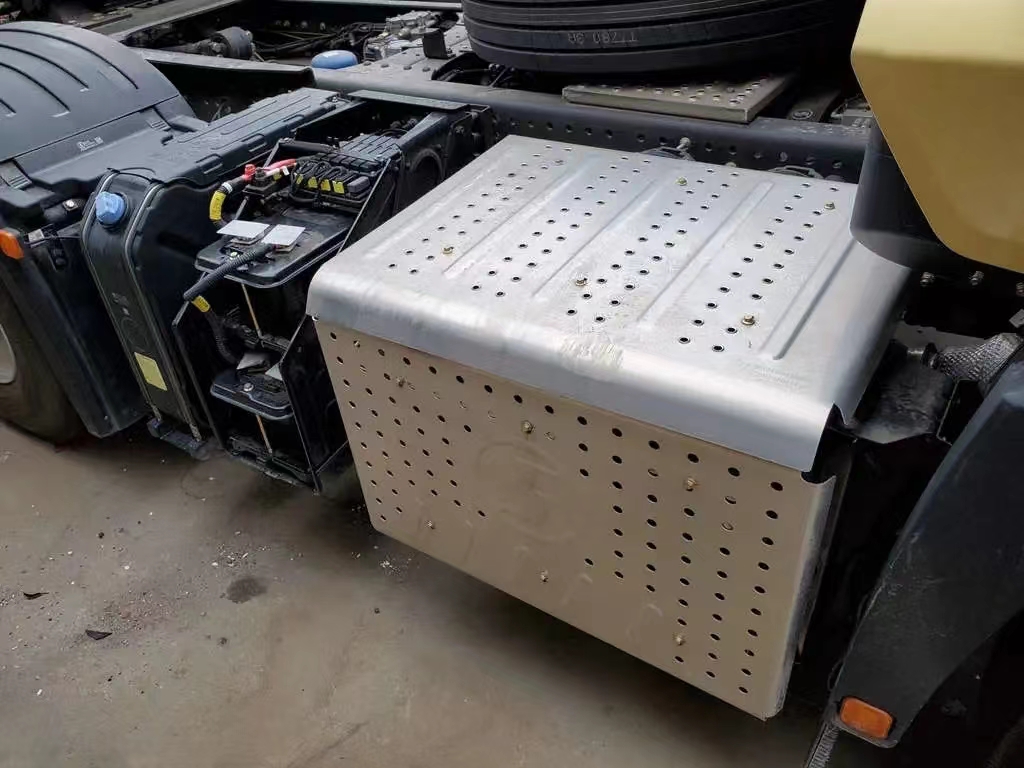

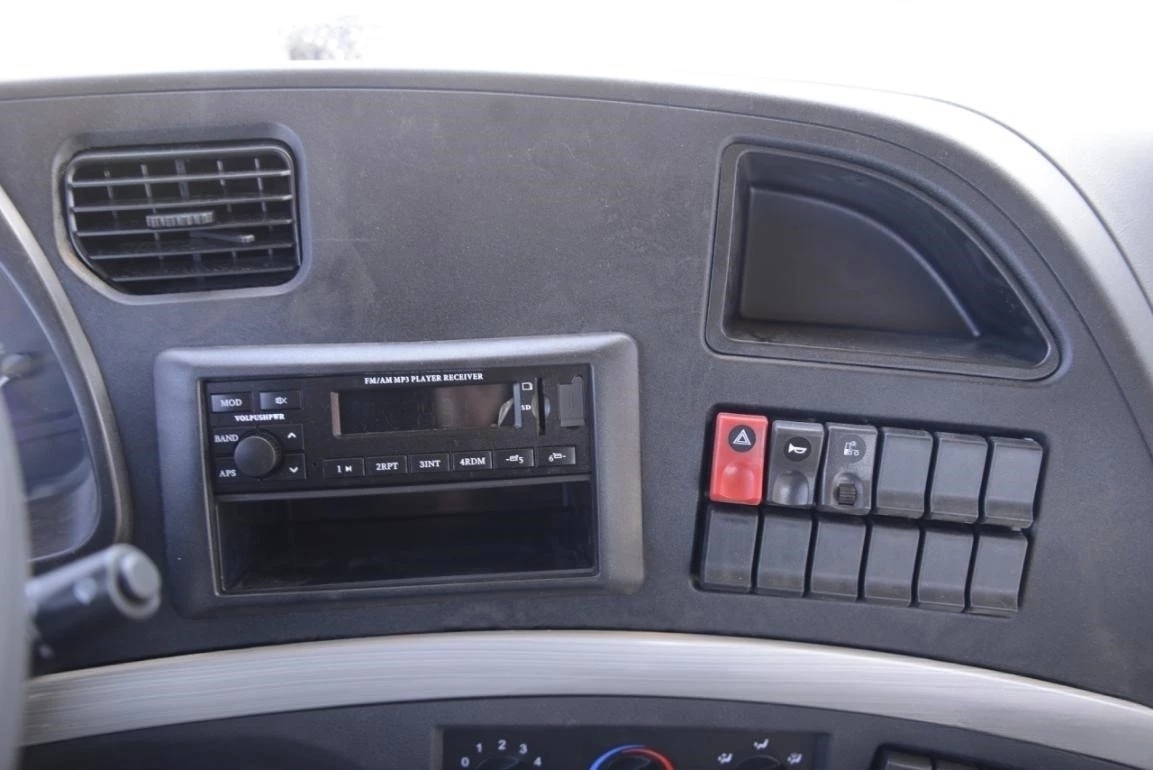

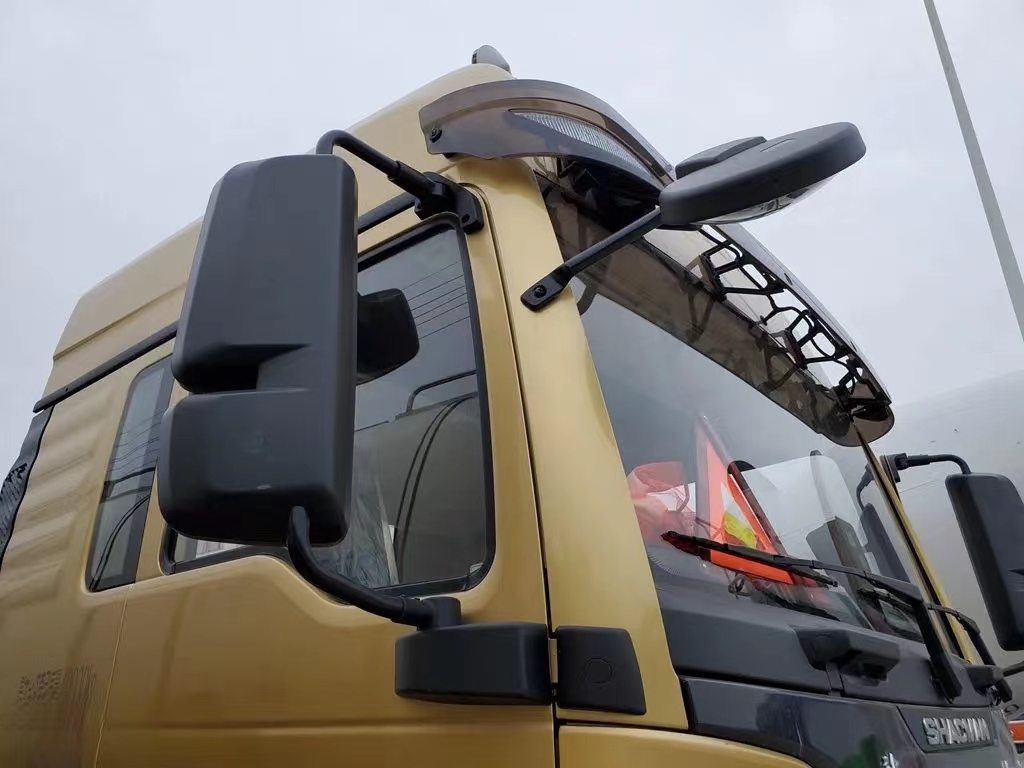

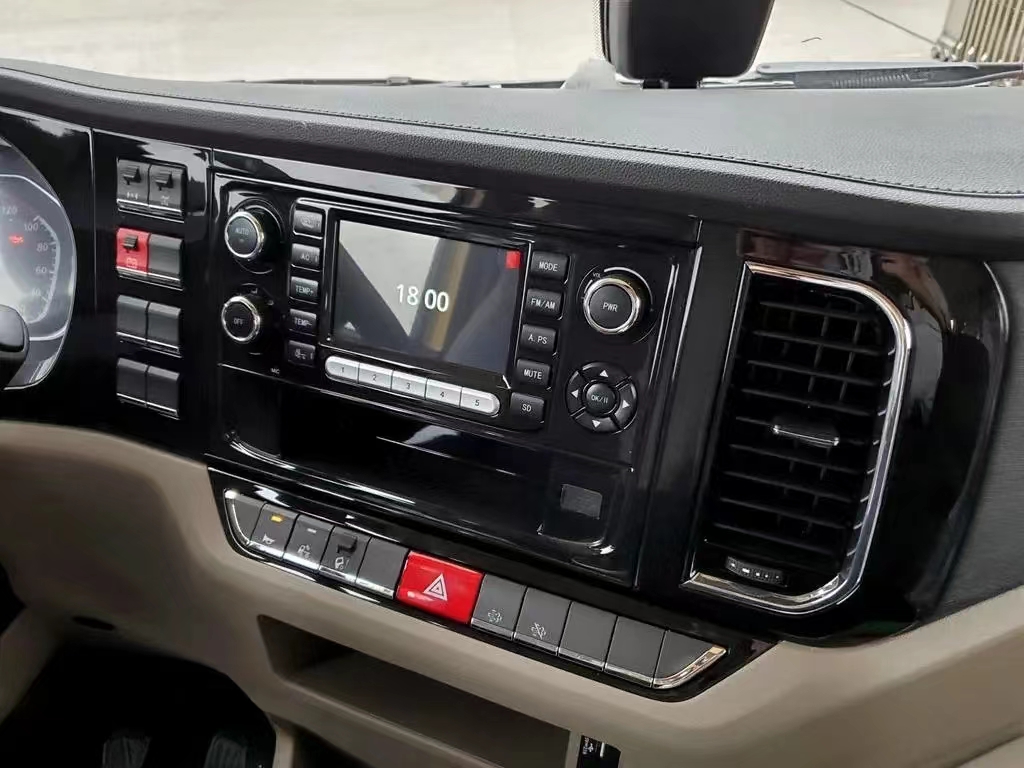

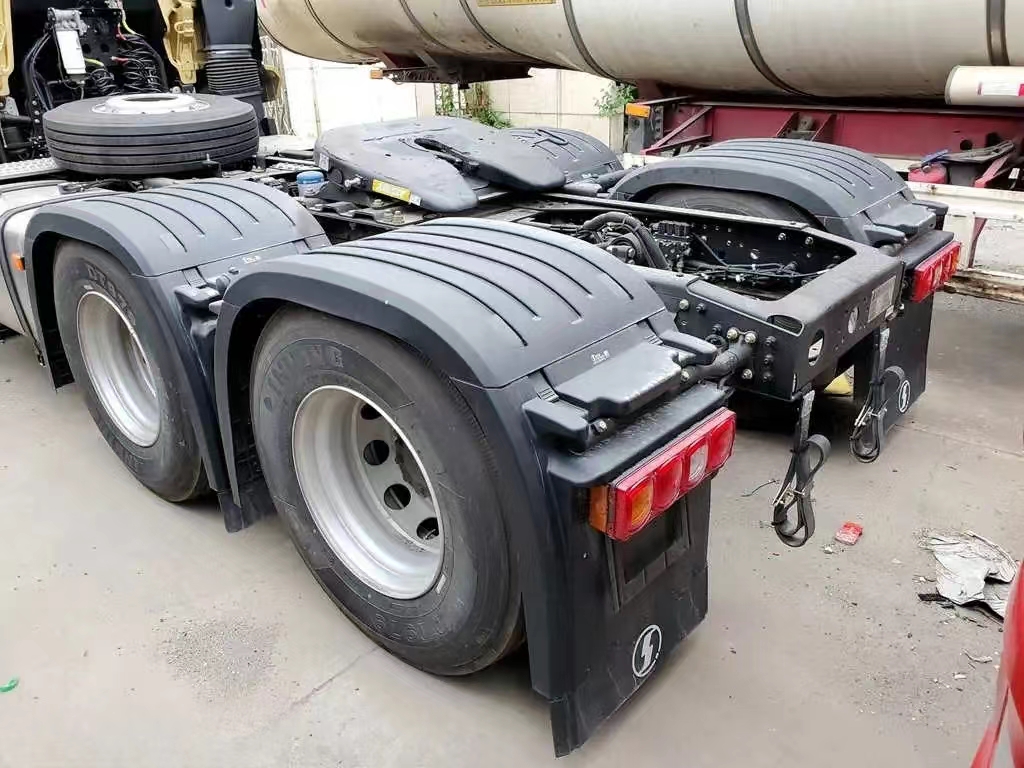

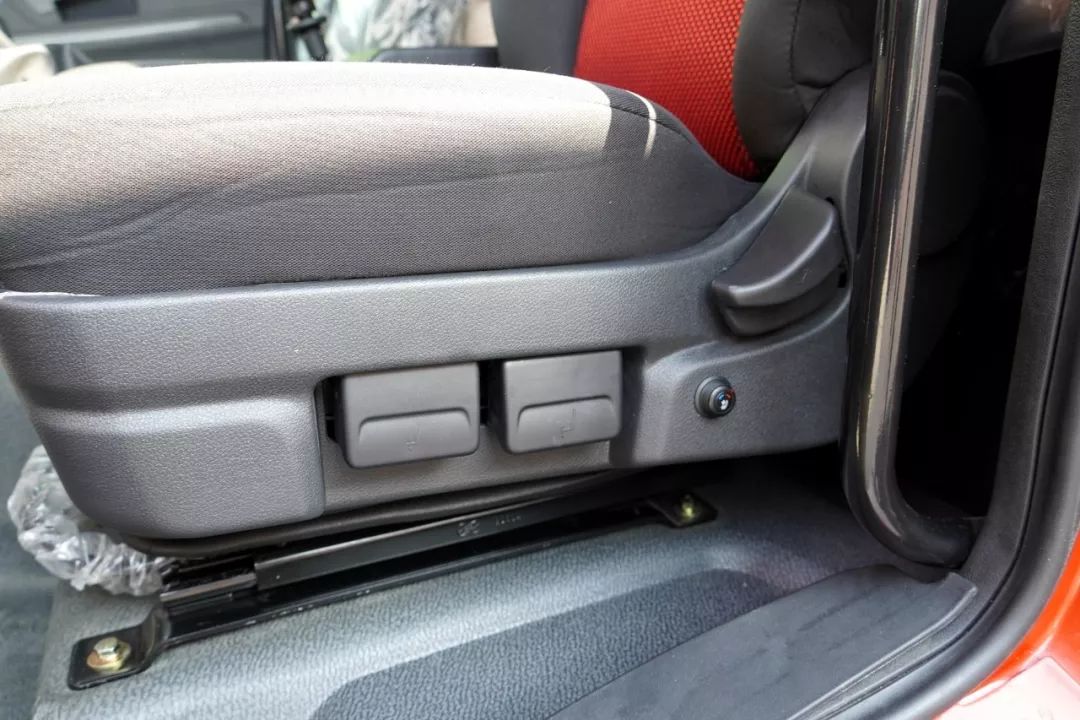

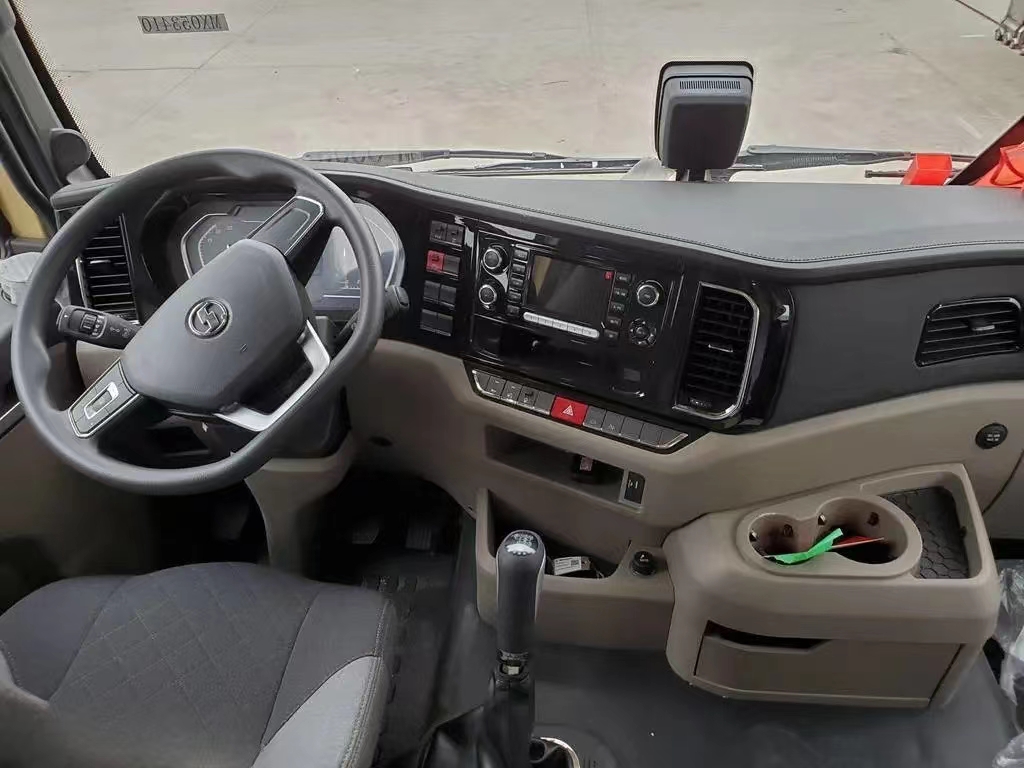

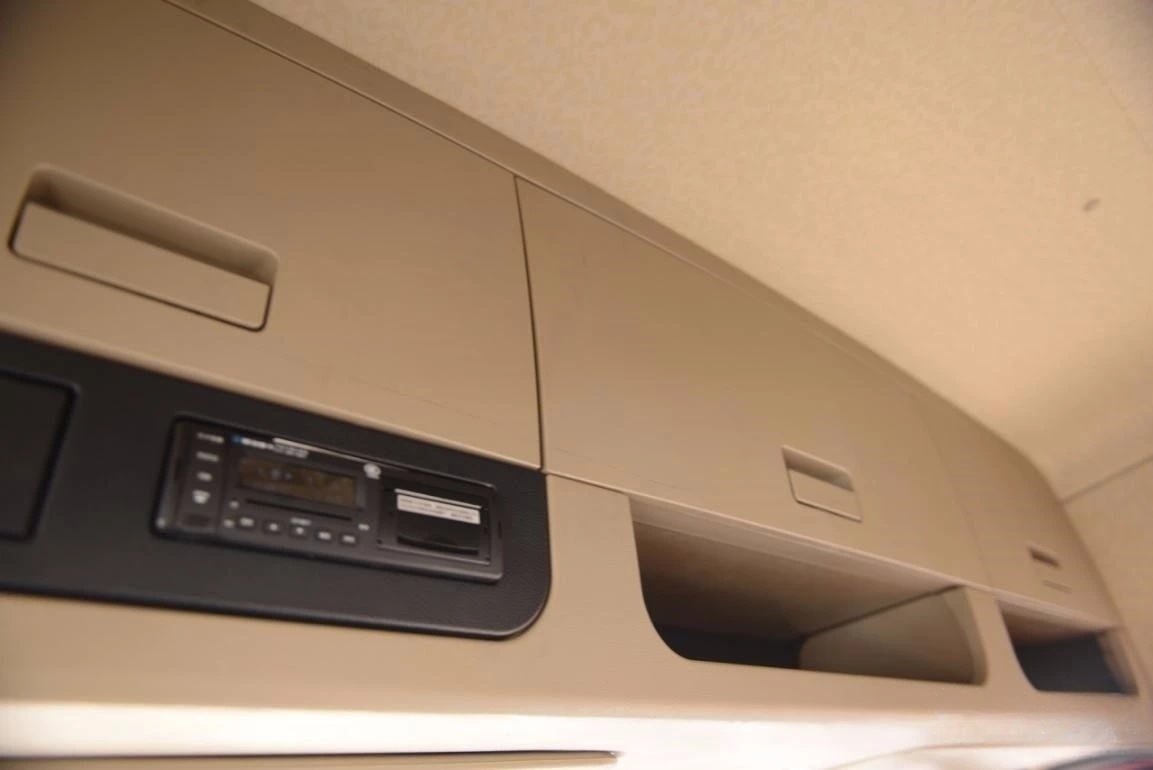

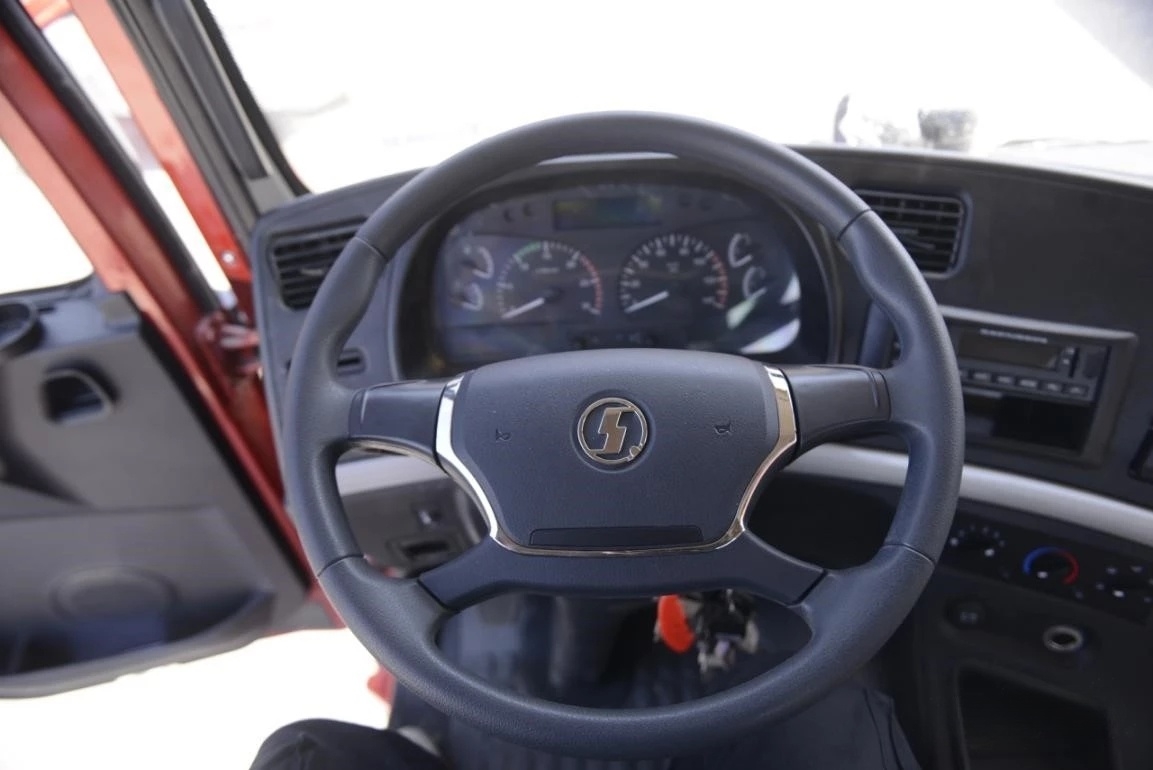

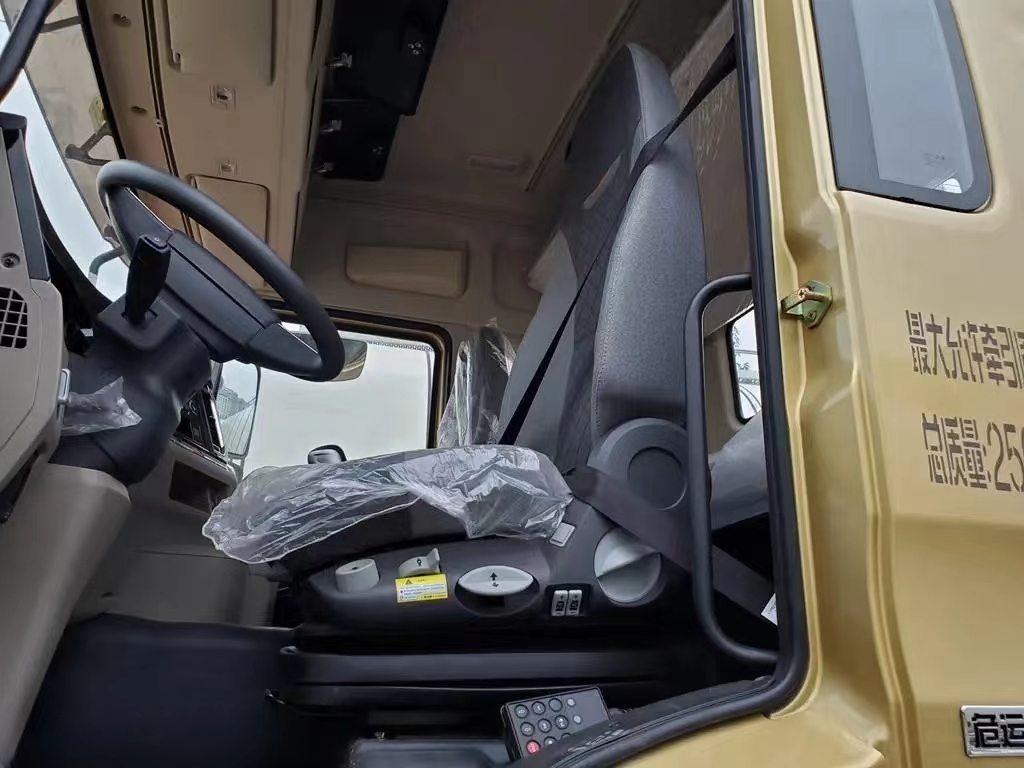

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3300+1350mm
- engine
- Weichai WP12.460E62
- Gearbox
- Fast S12MO
- Rear axle speed ratio
- 3.7
- Body length
- 6.86 meters
- Body width
- 2.55 meters
- Body height
- 3.84 meters
- Front track
- 2036mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 8.8 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 120km/h
- Market segments
- Logistics distribution
- Origin
- Xi'an, Shaanxi
- Tonnage level
- Heavy Truck
- Version
- Classic version
Engine parameters
- engine model
- Weichai WP12.460E62
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 11.6L
- Emission Standards
- National VI
- Maximum horsepower
- 460 HP
- Maximum output power
- 338kW
- Maximum torque
- 2200N·m
- Maximum torque speed
- 1000-1400rpm
- Rated speed
- 1900rpm

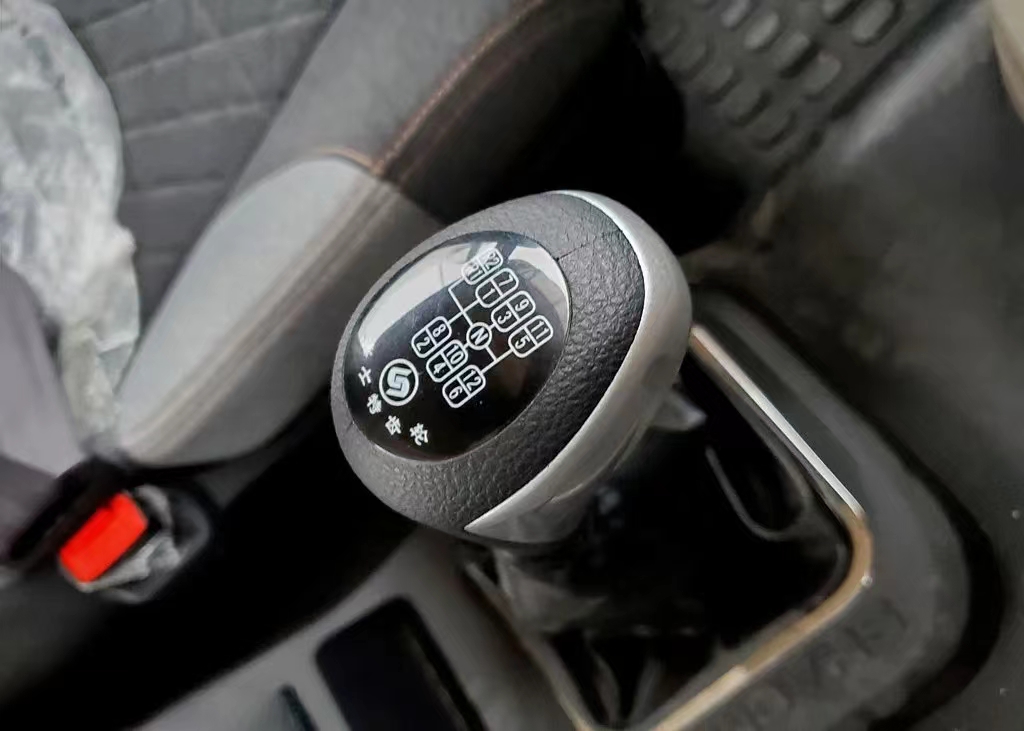

Gearbox parameters
- Gearbox model
- Fast S12MO
- Shifting method
- Manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Frame size
- 850×270(8+4)mm
- Rear axle description
- 13T MAN single stage
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 3.7
- Number of spring leaves
- 2/3,2/-/-,2/2+-/2+-,3/5
- Saddle
- 50
- Number of tires
- 10
- Tire specifications
- 12R22.5 18PR

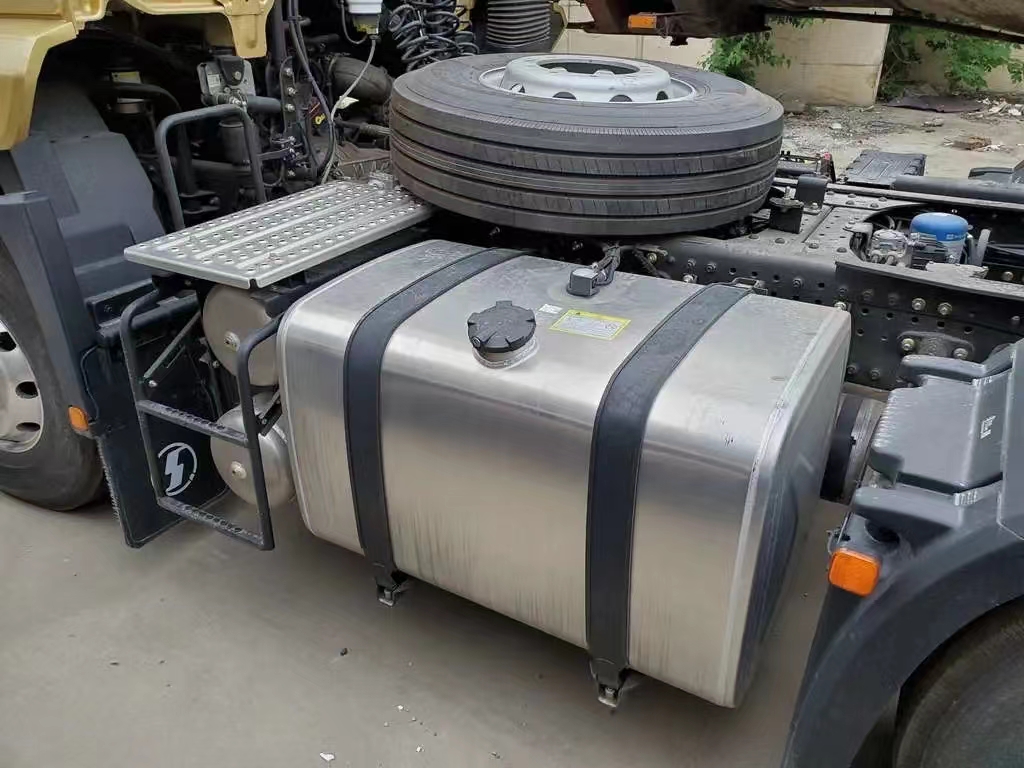

- Fuel tank capacity
- 800L
