SHACMAN Auto Heavy Duty Truck Delong X3000 550 HP 6X4 Tractor (High Roof)
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3175+1400mm
- engine:
- Weichai WP13.550E501
- Gearbox:
- Fast S16MO
- Rear axle speed ratio:
- 4.769
- Body length:
- 7.05 meters
- Body width:
- 2.55 meters
- Body height:
- 3.98 meters

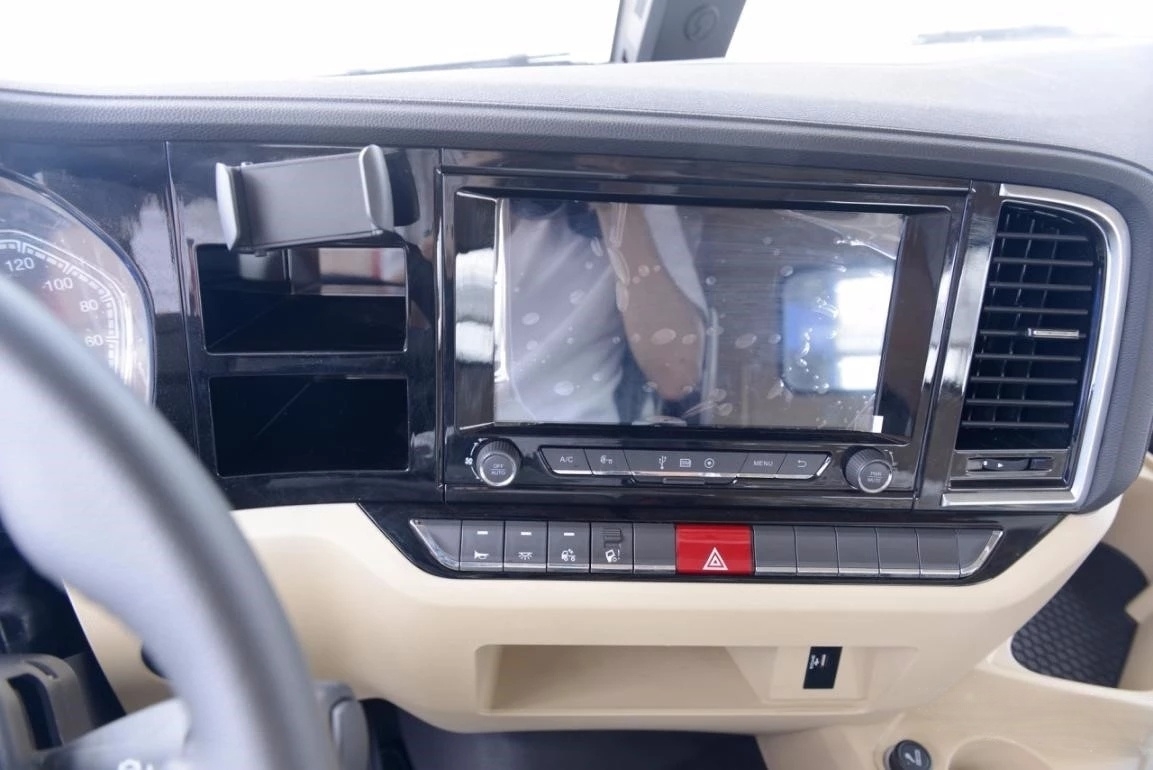

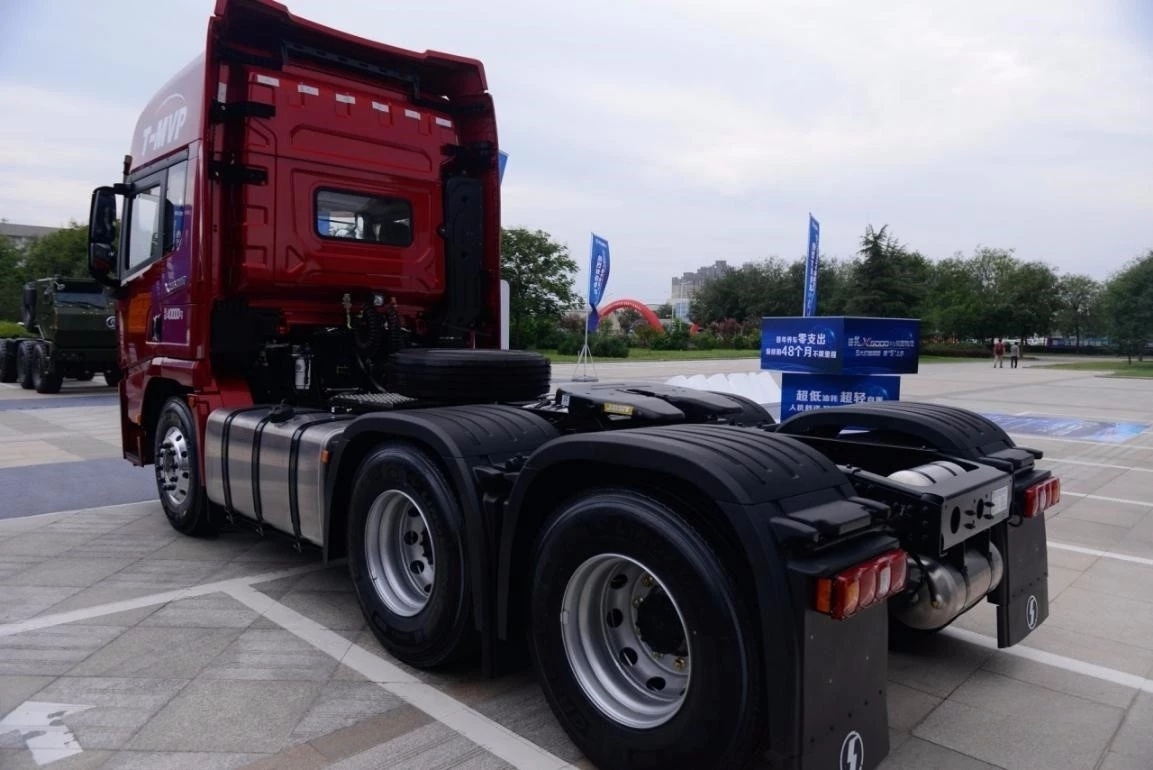

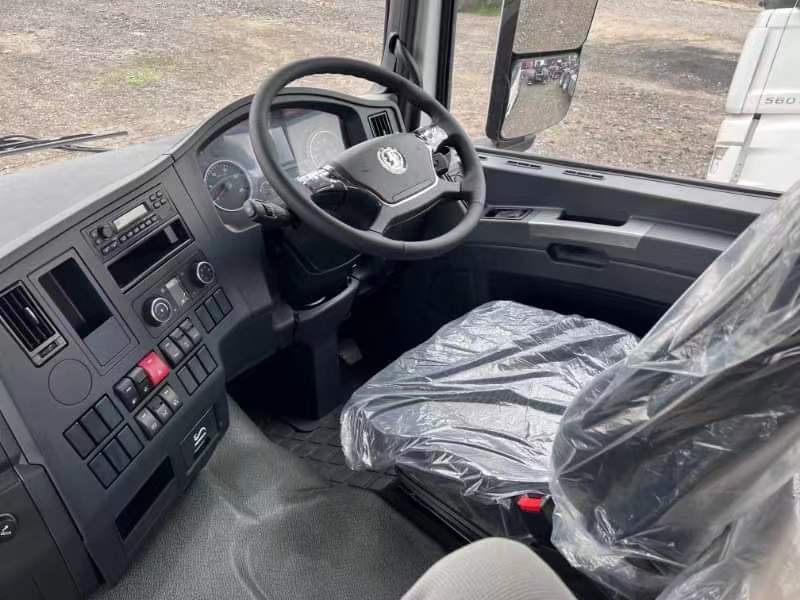

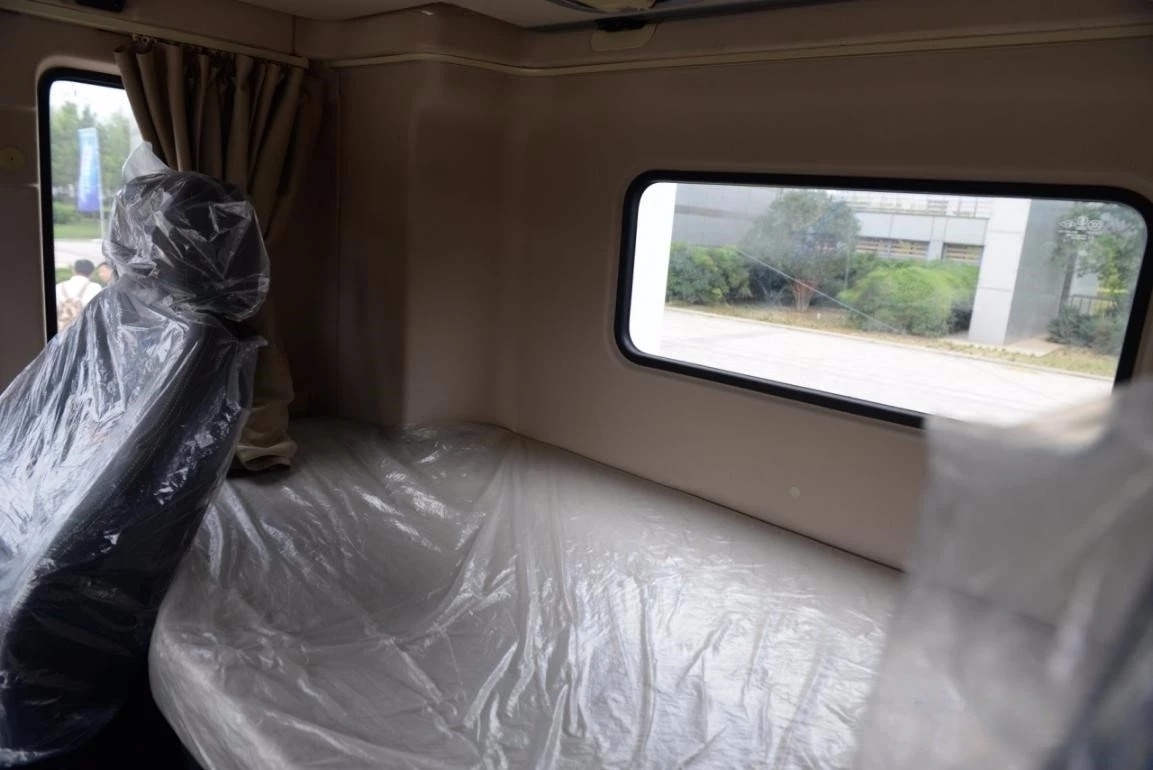

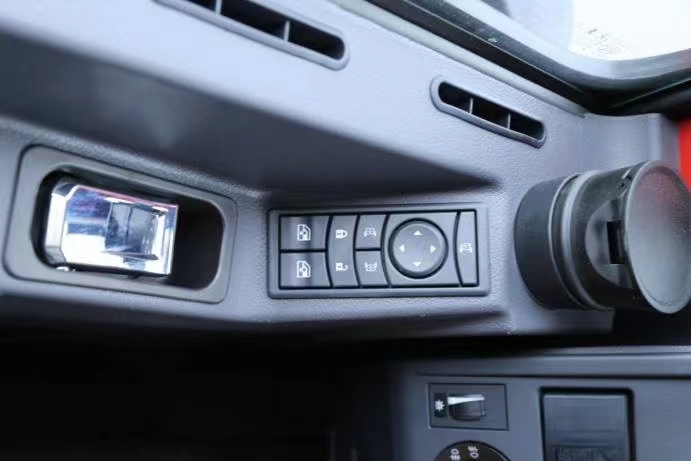

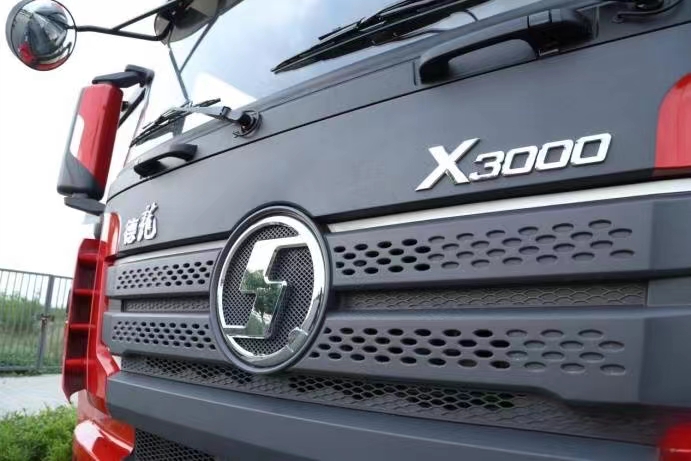

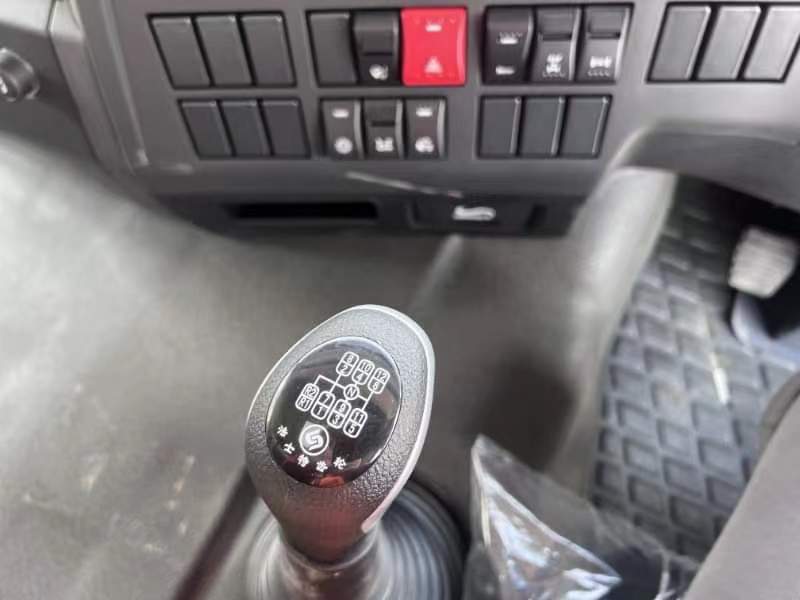

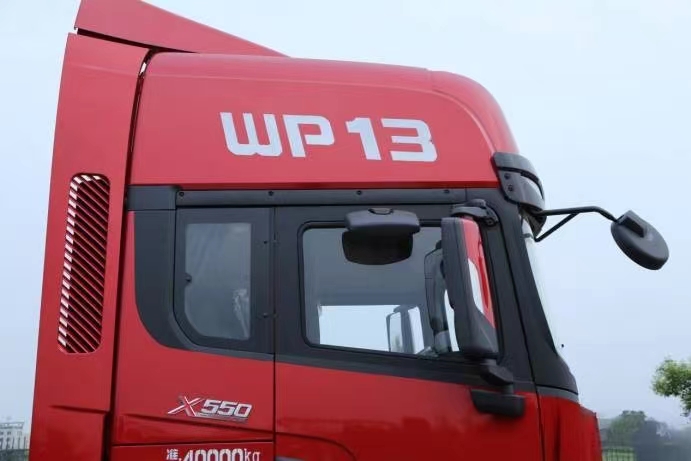

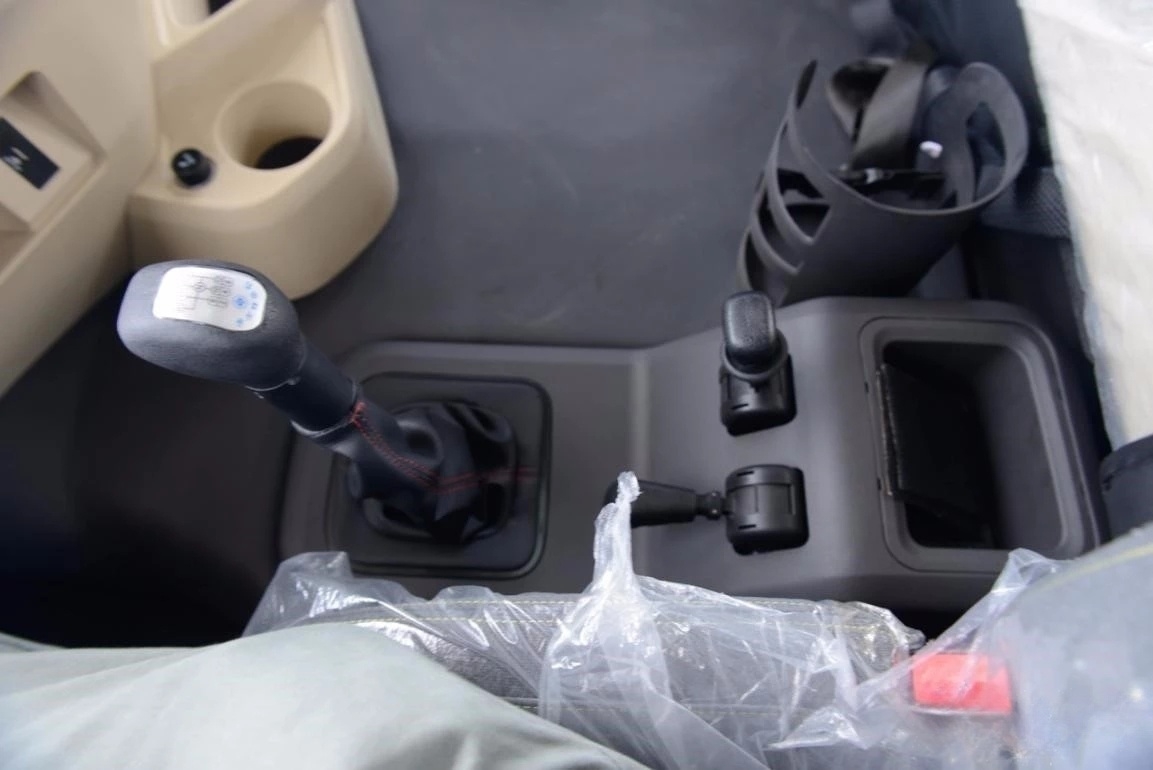

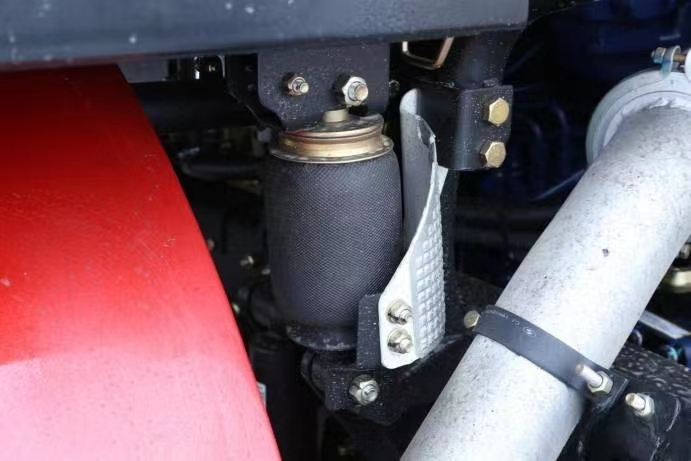

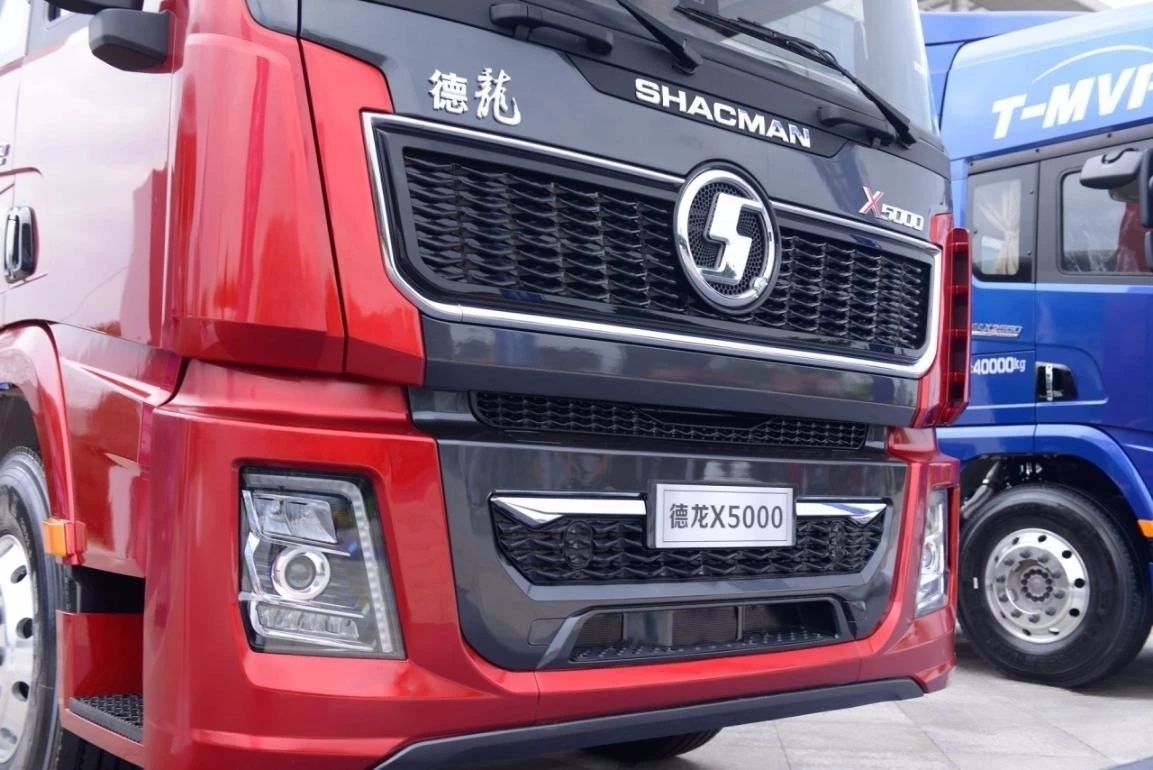

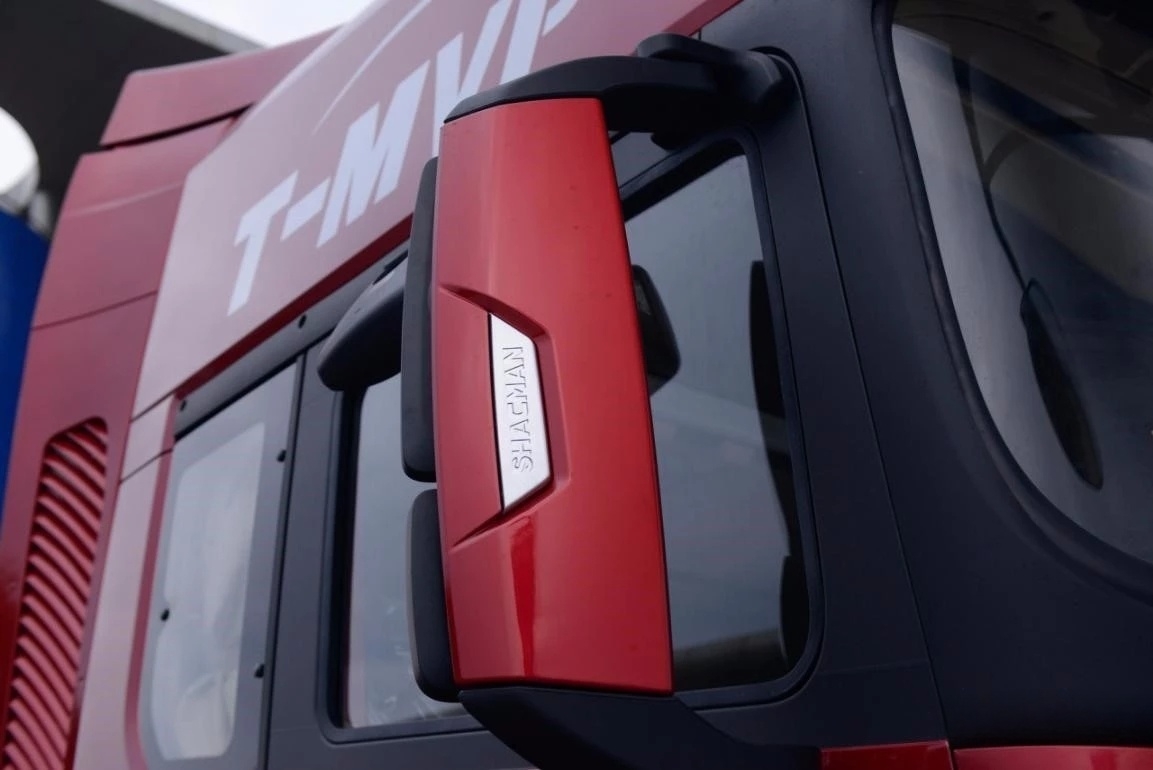

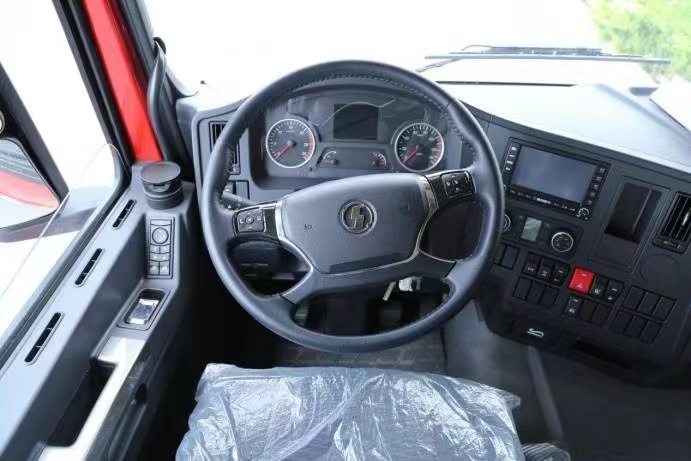

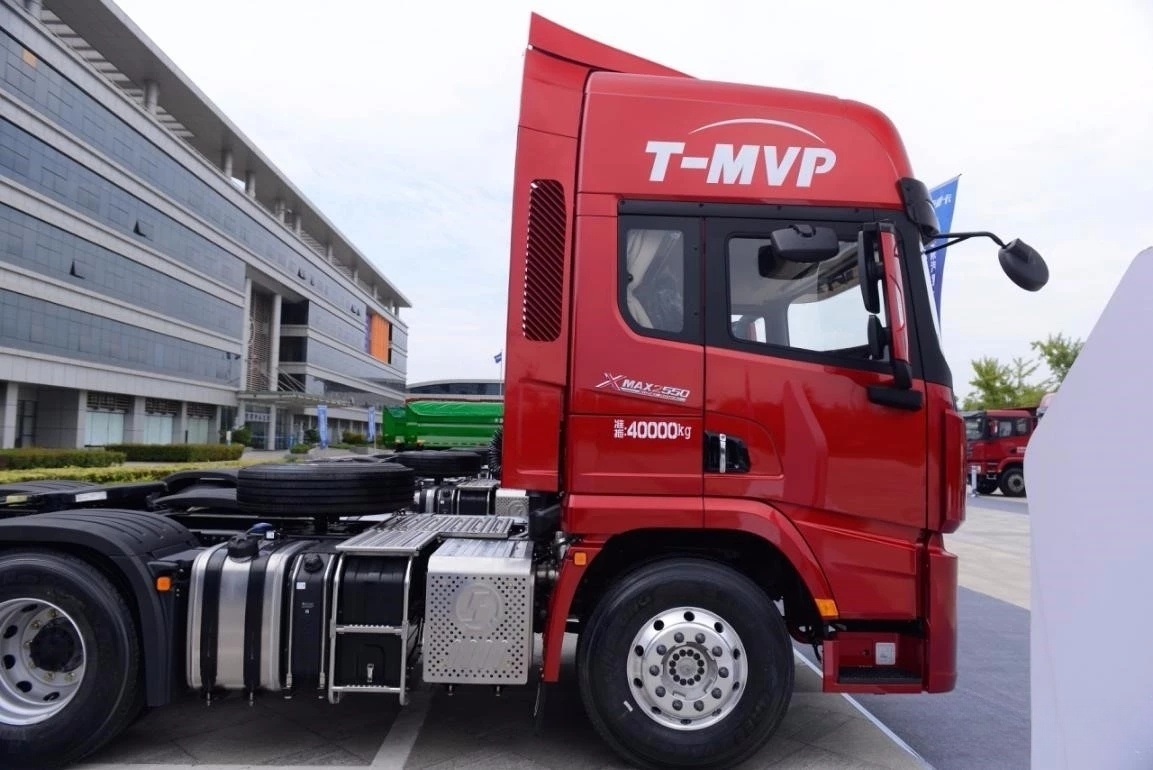

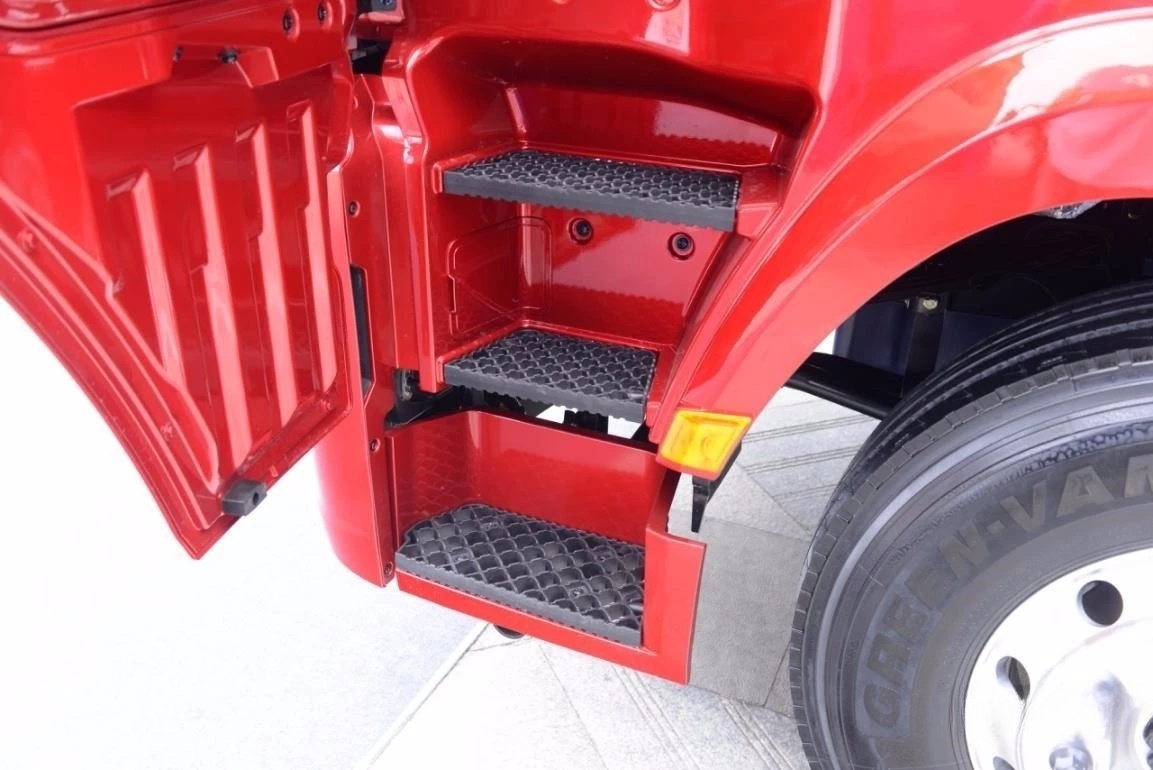

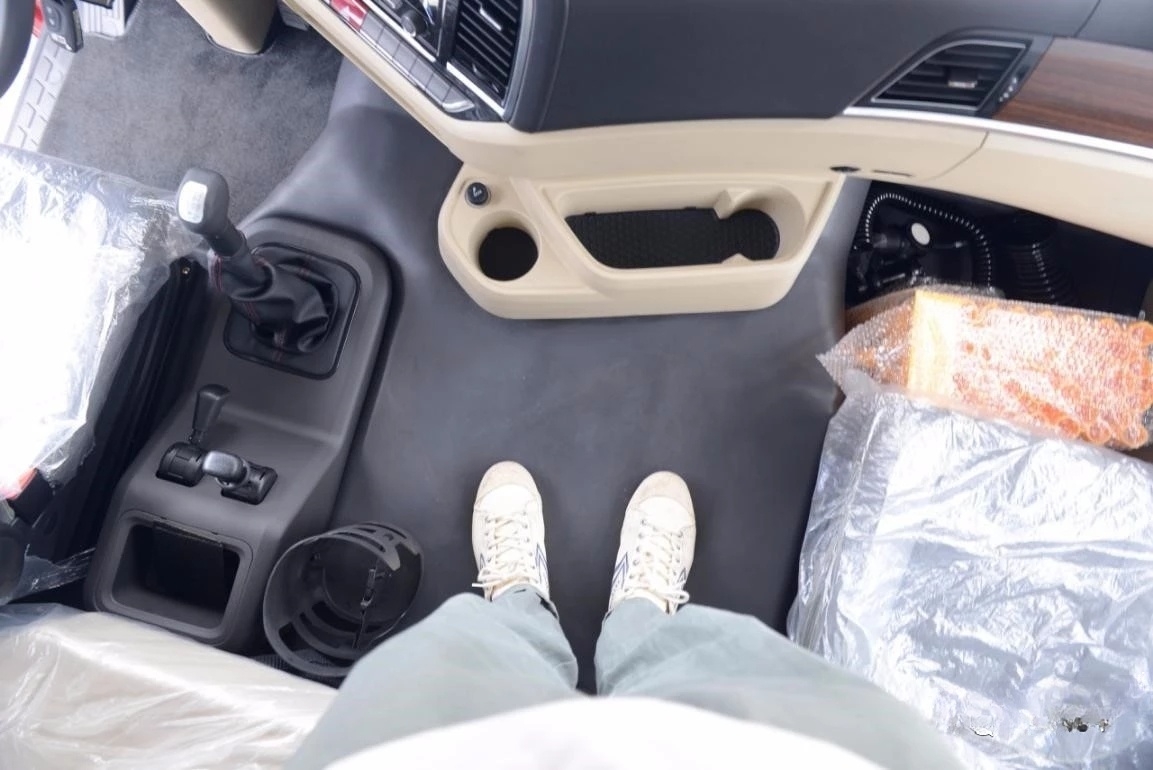

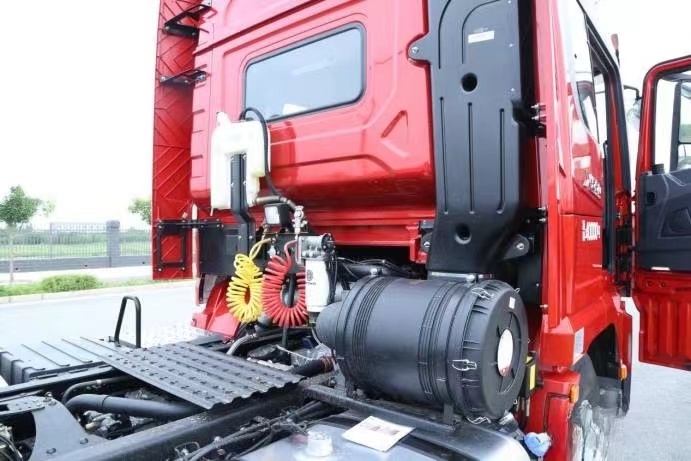

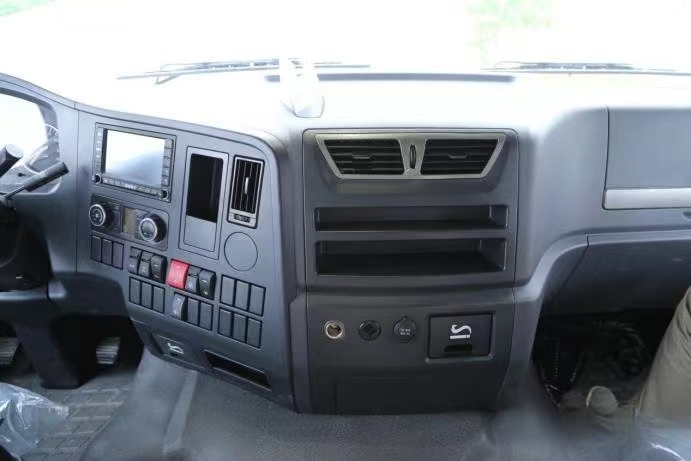

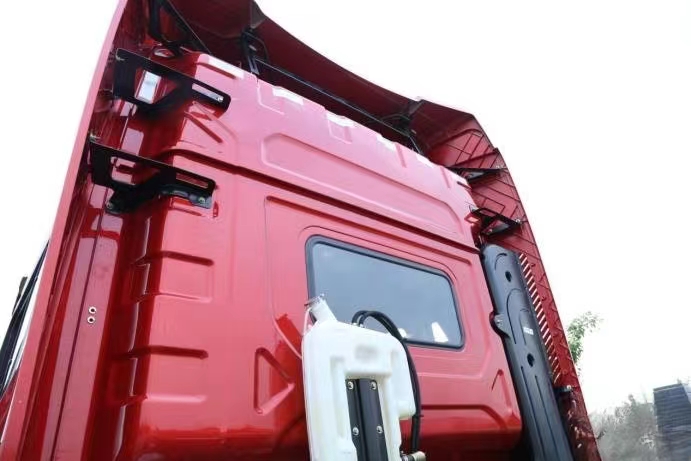

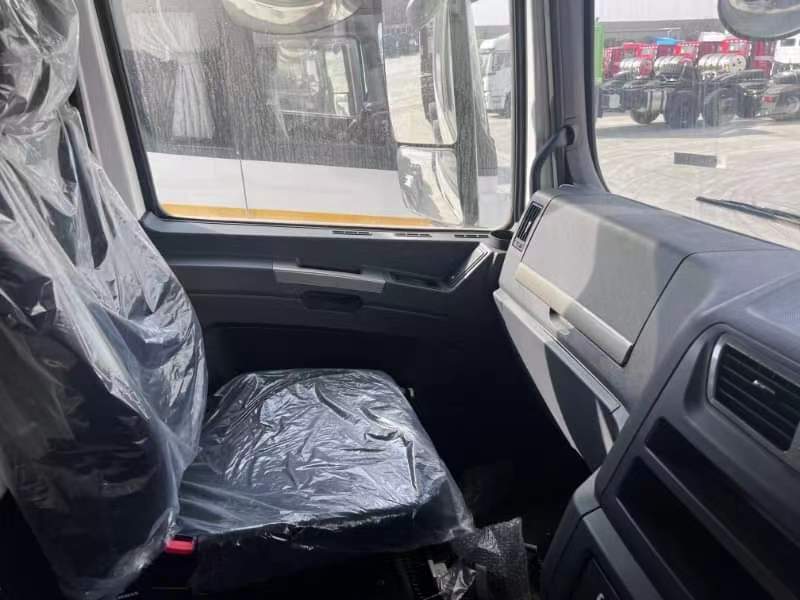

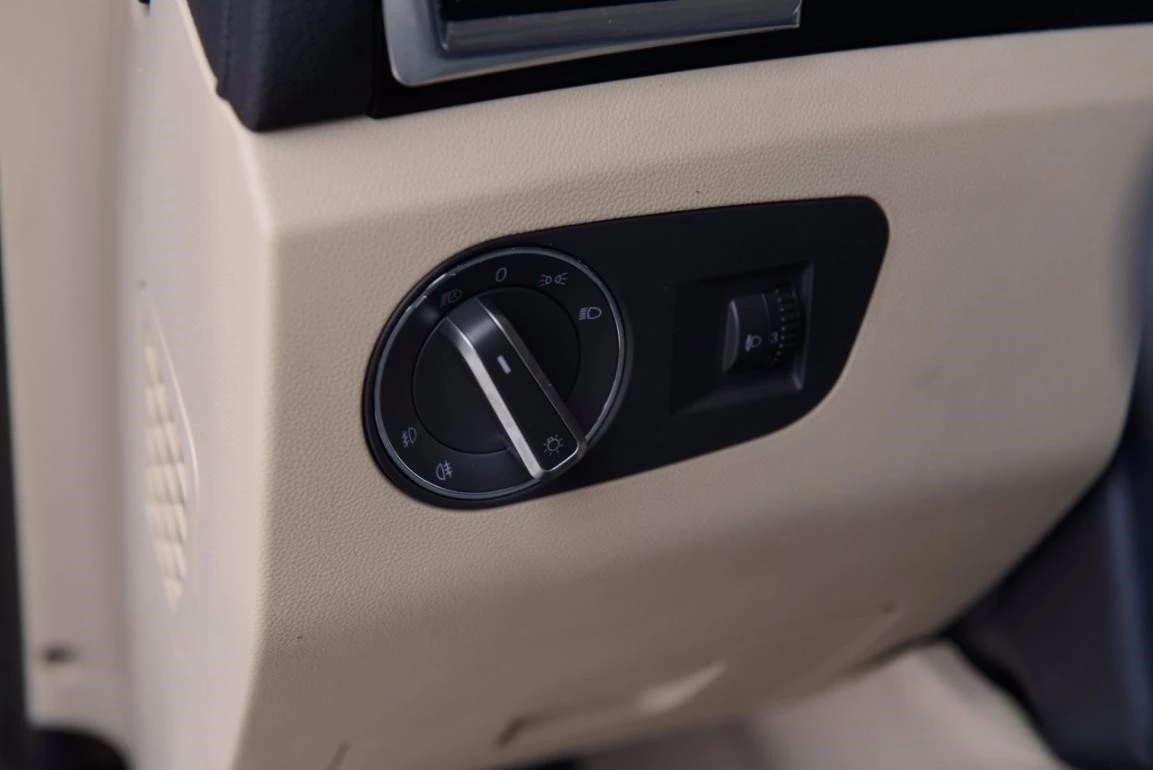

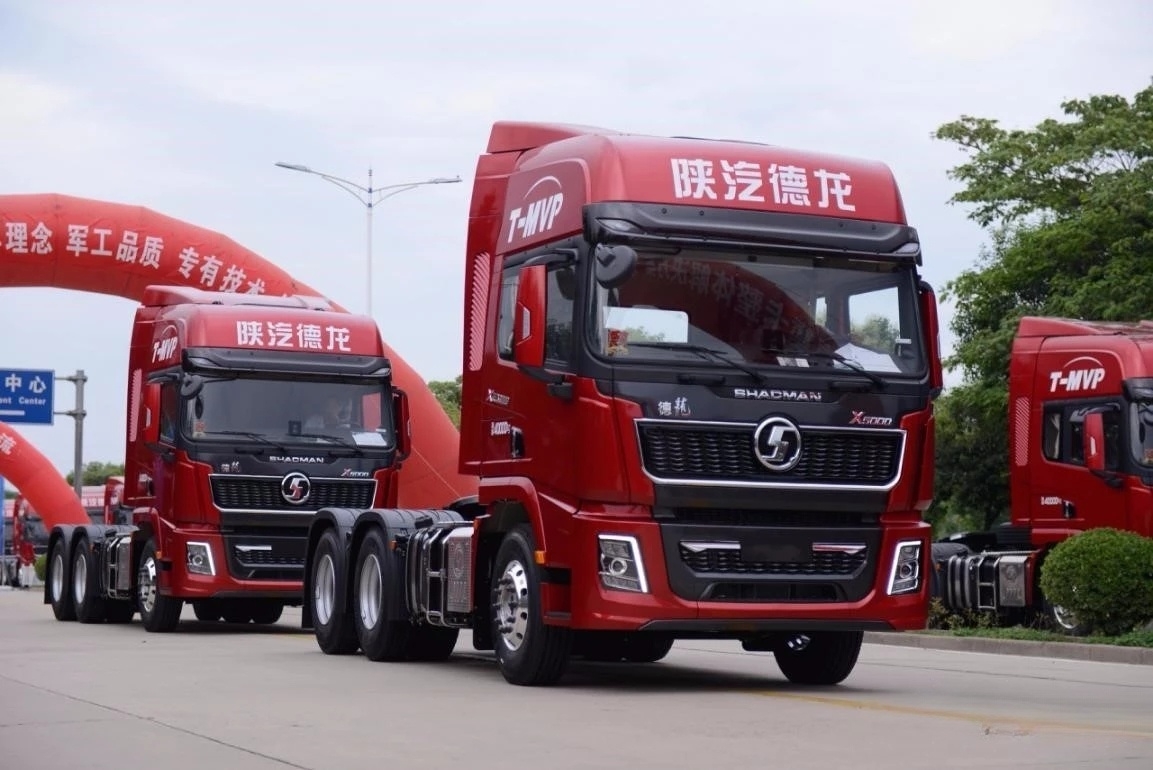

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3175+1400mm
- engine
- Weichai WP13.550E501
- Gearbox
- Fast S16MO
- Rear axle speed ratio
- 4.769
- Body length
- 7.05 meters
- Body width
- 2.55 meters
- Body height
- 3.98 meters
- Front track
- 2070mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 10.3 tons
- Total mass
- 25 tons
- Total traction mass
- 38.5 tons
- Maximum speed
- 109km/h
- Market segments
- Iron powder steel transportation
- Origin
- Xi'an, Shaanxi
- Tonnage level
- Heavy Truck

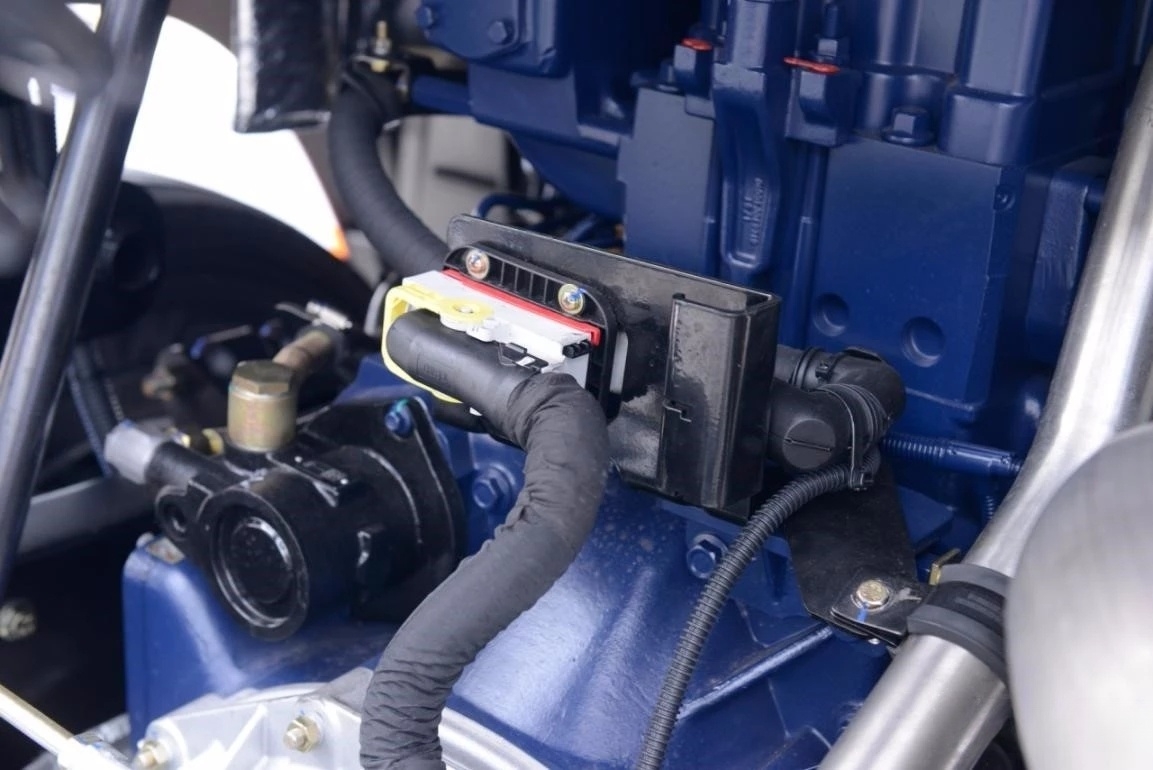

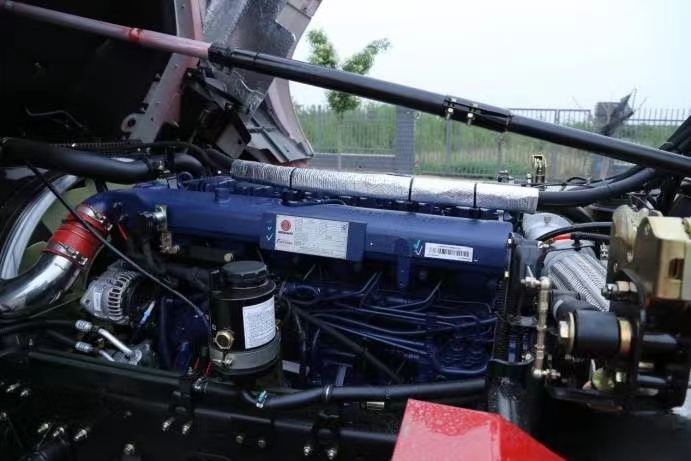

Engine parameters
- engine model
- Weichai WP13.550E501
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 12.54L
- Emission Standards
- National Five
- Maximum horsepower
- 550 HP
- Maximum output power
- 405kW
- Maximum torque
- 2550N·m
- Maximum torque speed
- 1000-1400rpm
- Rated speed
- 1900rpm

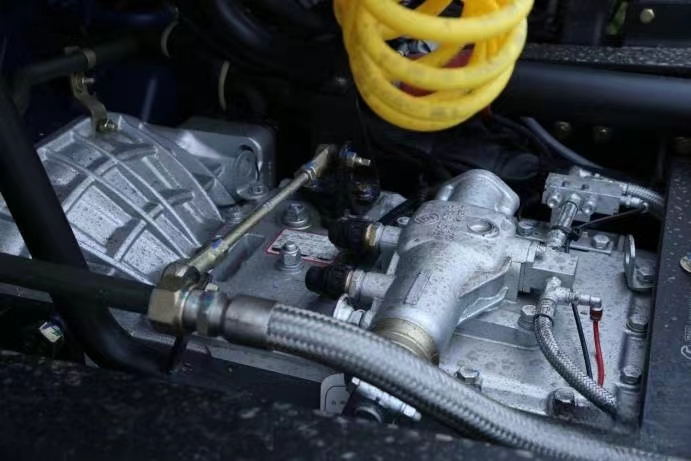

Gearbox parameters
- Gearbox model
- Fast S16MO
- Shifting method
- Manual
- Forward gear
- 16 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- MAN 7.5T maintenance-free

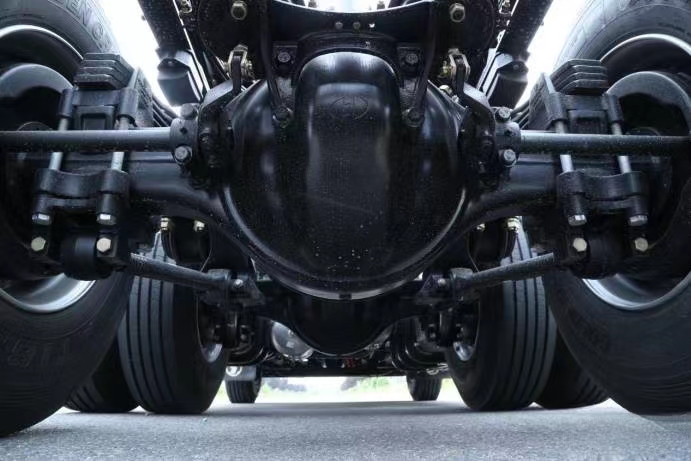

- Rear axle description
- 16T MAN double stage
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(two-axle group)kg
- Speed ratio
- 4.769
- Number of spring leaves
- 10/12
- Suspension type (front/rear)
- Multiple leaf springs front and rear
- Saddle
- 90#

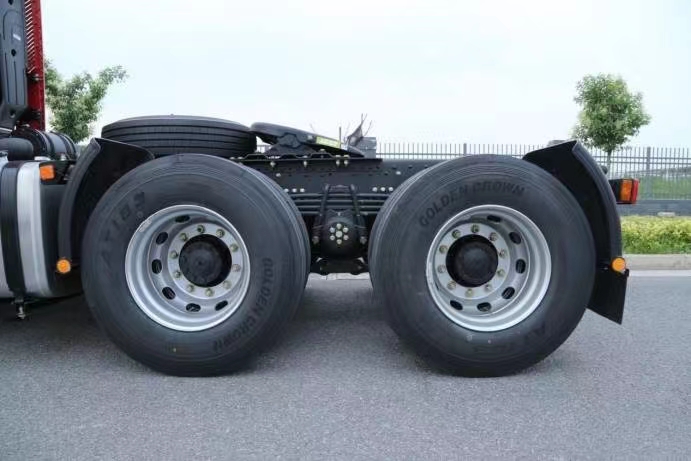

- Tire brand
- 700
- Number of tires
- 10
- Tire specifications
- 12.00R20 16PR
- Frame size
- 850×300(8+7)mm
- Fuel tank/gas tank material
- Aluminum alloy
- Fuel tank capacity
- 700L
