SHACMAN Auto Heavy Duty Truck Delong X3000 500 HP 6X4 Tractor
Submit purchase requestBasic Information
- Drive form:
- 6X4
- Wheelbase:
- 3175+1400mm
- engine:
- Weichai WP13.500E501
- Gearbox:
- Fast 12JSD240T
- Rear axle speed ratio:
- 2.846
- Body length:
- 6.85 meters
- Body width:
- 2.49 meters
- Body height:
- 3.65 meters

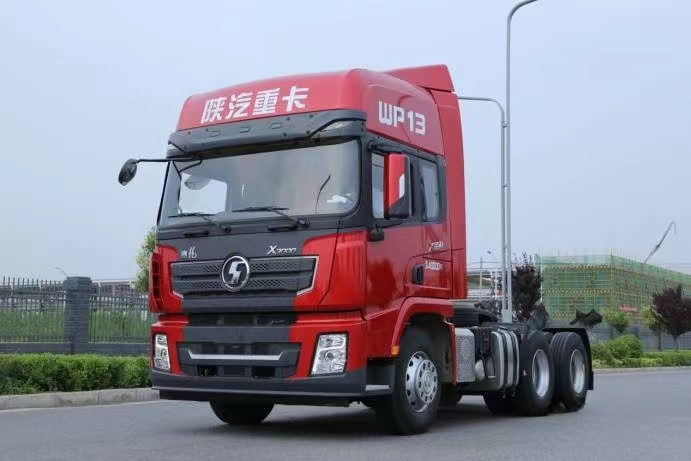

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 6X4
- Wheelbase
- 3175+1400mm
- engine
- Weichai WP13.500E501
- Gearbox
- Fast 12JSD240T
- Rear axle speed ratio
- 2.846
- Body length
- 6.85 meters
- Body width
- 2.49 meters
- Body height
- 3.65 meters
- Front track
- 2036mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 8.8 tons
- Total mass
- 25 tons
- Total traction mass
- 40 tons
- Maximum speed
- 110km/h
- Market segments
- Transportation of daily industrial products
- Origin
- Xi'an, Shaanxi
- Tonnage level
- Heavy Truck
- Remark
- Speed ratio option 4.111
Engine parameters
- engine model
- Weichai WP13.500E501
- Engine brand
- Weichai
- Number of cylinders
- 6
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 12.54L
- Emission Standards
- National Five
- Maximum horsepower
- 500 HP
- Maximum output power
- 368kW
- Maximum torque
- 2400N·m
- Maximum torque speed
- 950-1400rpm
- Rated speed
- 1900rpm
- Technical route
- Common Rail SCR
Gearbox parameters
- Gearbox model
- Fast 12JSD240T
- Shifting method
- Manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
Chassis parameters
- Allowable load on front axle
- 7000kg
- Allowable load on rear axle
- 18000(double axle installed)kg
- Speed ratio
- 2.846
- Number of spring leaves
- 2/4,3/4,3/5
- Number of tires
- 10
- Tire specifications
- 12R22.5 16PR
- Fuel tank/gas tank material
- Aluminum alloy
- Fuel tank capacity
- 600L
