Sinotruk SITRAK 290 horsepower 4X2 AMT truck
Submit purchase requestBasic Information
- Drive form:
- 4X2
- Wheelbase:
- 7100mm
- engine:
- Sinotruk MC07.29-61
- Gearbox:
- SINOTRUK HW11710ACL
- Rear axle speed ratio:
- 3.91
- Body length:
- 12 meters
- Body width:
- 2.55 meters
- Body height:
- 3.83 meters

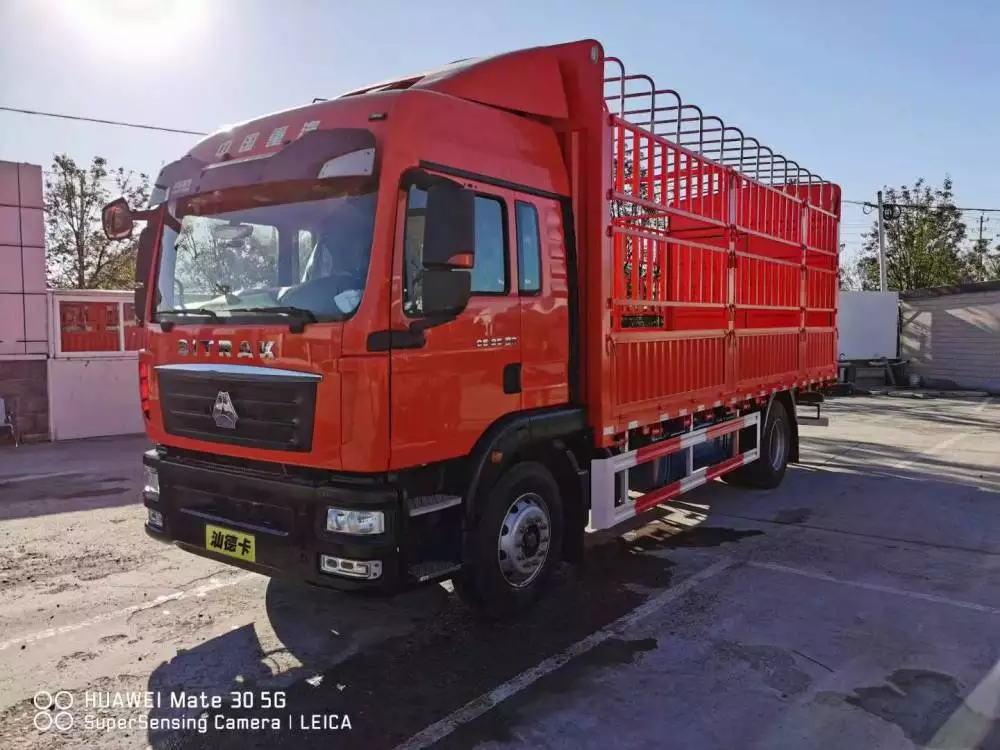

Truck Picture
Truck Configuration
Basic Information
- Drive form
- 4X2
- Wheelbase
- 7100mm
- engine
- Sinotruk MC07.29-61
- Gearbox
- SINOTRUK HW11710ACL
- Rear axle speed ratio
- 3.91
- Body length
- 12 meters
- Body width
- 2.55 meters
- Body height
- 3.83 meters
- Front track
- 1900mm
- Rear wheelbase
- 1850mm
- Vehicle weight
- 6.9 tons
- Rated load
- 10.97 tons
- Total mass
- 18 tons
- Maximum speed
- 89KM/h
- Origin
- Zhangqiu, Shandong
- Tonnage level
- medium card
- Approach angle
- 16 degrees
- Departure angle
- 9 degrees
- Market segments
- Express Express
- Front suspension/rear suspension
- 1.45/3.45 meters
- Version
- Deluxe Edition
Engine parameters
- engine model
- Sinotruk MC07.29-61
- Engine brand
- SINOTRUK
- Common name of engine
- SINOTRUK MC07
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 6.87L
- Emission Standards
- National VI
- Maximum output power
- 213kw
- Maximum horsepower
- 290 HP
- Maximum torque
- 1200N·m
- Maximum torque speed
- 1200-1800RPM
- Rated speed
- 2200RPM
Gearbox parameters
- Gearbox model
- SINOTRUK HW11710ACL
- Shifting method
- AMT automated manual
- Forward gear
- 10 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- 5T front axle
- Allowable load on front axle
- 6500KG
- Rear axle description
- 9T bridge
- Allowable load on rear axle
- 11500KG
- Speed ratio
- 3.91
- Number of spring leaves
- 3/4
- Tire specifications
- 295/80R22.5 18PR
- Number of tires
- 6
- Fuel tank capacity
- 600L
