FAW Jiefang J7 heavy truck classic version 560 horsepower 8X4 9.25m wing opening van truck
Submit purchase requestBasic Information
- type:
- van truck
- Drive form:
- 8X4
- Wheelbase:
- 2000+4500+1350mm
- Box length level:
- 9.3 meters
- engine:
- Xichai CA6DM3-56E66
- Gearbox:
- FAW Jiefang CA12TAX260
- Rear axle speed ratio:
- 3.417
- Body length:
- 12 meters

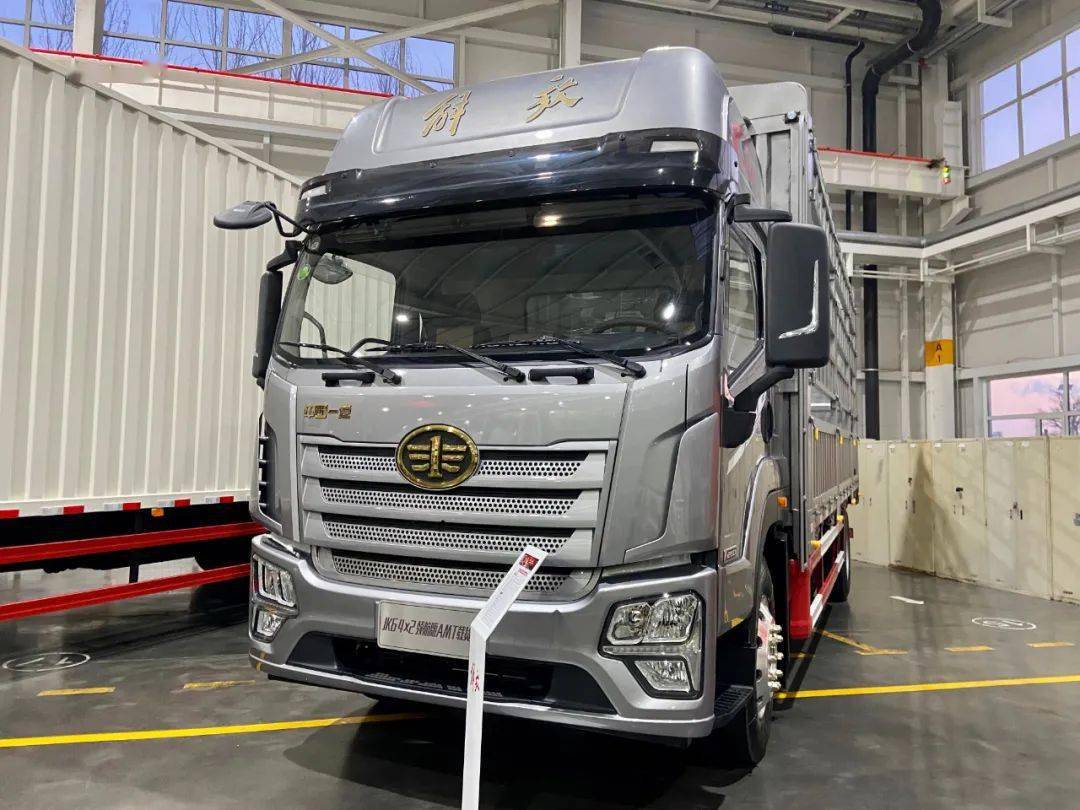

Truck Picture
Truck Configuration
Basic Information
- type
- van truck
- Drive form
- 8X4
- Wheelbase
- 2000+4500+1350mm
- Box length level
- 9.3 meters
- engine
- Xichai CA6DM3-56E66
- Gearbox
- FAW Jiefang CA12TAX260
- Rear axle speed ratio
- 3.417
- Body length
- 12 meters
- Body width
- 2.55 meters
- Body height
- 4 meters
- Front track
- 2050/2050mm
- Rear wheelbase
- 1878/1878mm
- Vehicle weight
- 12.2 tons
- Rated load
- 18.67 tons
- Total mass
- 31 tons
- Maximum speed
- 89KM/h
- Origin
- Changchun, Qingdao, Chengdu
- Tonnage level
- heavy duty truck
- Approach angle
- 18 degrees
- Departure angle
- 14 degrees
- Remark
- Optional: 600L+400L fuel tank
- Front suspension/rear suspension
- 1.515/2.635 meters
- Version
- Classic version
Engine parameters
- engine model
- Xichai CA6DM3-56E66
- Engine brand
- xichai
- Common name of engine
- Xichai 6 cylinder
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 12.52L
- Emission Standards
- National VI
- Maximum output power
- 415kw
- Maximum horsepower
- 560 HP
- Engine oil change interval
- 100,000 kilometers
Gearbox parameters
- Gearbox model
- FAW Jiefang CA12TAX260
- Shifting method
- Manual
- Forward gear
- 12 gears
- Number of reverse gears
- 2
- Shell material
- Aluminum alloy
Chassis parameters
- Front axle description
- New F5N front axle (Conmai wheel hub)
- Allowable load on front axle
- 6500/6500KG
- Frame size
- 300×80×7mm
- Rear axle description
- ф440 lightweight rear axle
- Allowable load on rear axle
- 18000(two-axis group)KG
- Speed ratio
- 3.417
- Number of spring leaves
- 2/2/-
- clutch
- Φ430
- Rear axle oil change interval
- 500,000 kilometers
- Tire brand
- International excellent brand
- Tire specifications
- 12R22.5
- Tire type
- 18-layer tubeless
- Number of tires
- 12
- Fuel tank capacity
- 600L
- Container form
- wingspan
- Carton length
- 9.25 meters
- Cargo box width
- 2.42 meters
- Cargo box height
- 2.6 meters
