FAWQD Jiefang JH6 Heavy Truck Pilot Version 2.0 290 HP 6X2 9.5m Wing Opening Van Truck
Submit purchase requestBasic Information
- type:
- van truck
- Drive form:
- 6X2
- Wheelbase:
- 1900+5600mm
- Box length level:
- 9.5 meters
- engine:
- Xichai CA6DLD-29E6
- Gearbox:
- FAW Jiefang CA10TAX130M
- Rear axle speed ratio:
- 4.111
- Body length:
- 11.995 meters

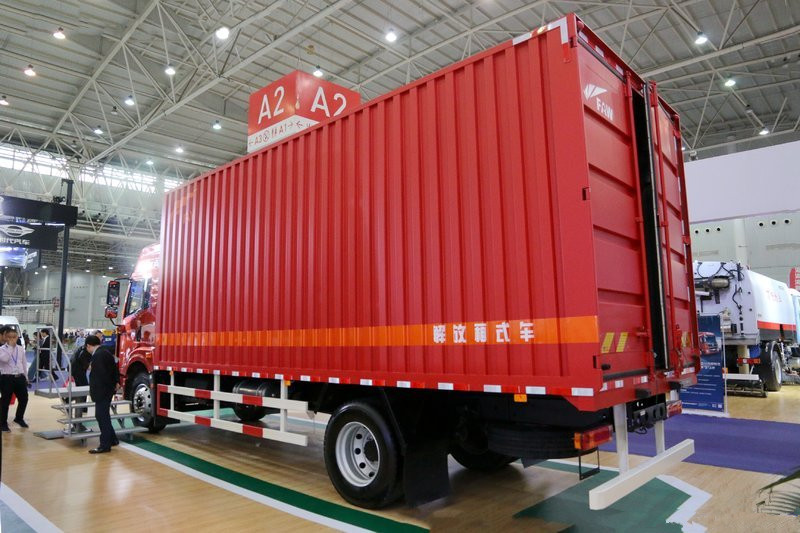

Truck Picture
Truck Configuration
Basic Information
- type
- van truck
- Drive form
- 6X2
- Wheelbase
- 1900+5600mm
- Box length level
- 9.5 meters
- engine
- Xichai CA6DLD-29E6
- Gearbox
- FAW Jiefang CA10TAX130M
- Rear axle speed ratio
- 4.111
- Body length
- 11.995 meters
- Body width
- 2.55 meters
- Body height
- 3.995 meters
- Front track
- 2042/2042mm
- Rear wheelbase
- 1900mm
- Vehicle weight
- 11.2 tons
- Rated load
- 13.67 tons
- Total mass
- 25 tons
- Maximum speed
- 89KM/h
- Origin
- Qingdao
- Tonnage level
- heavy duty truck
- Approach angle
- 19 degrees
- Departure angle
- 12 degrees
- Front suspension/rear suspension
- 1.495/3 meters
- Version
- Pilot version 2.0
Engine parameters
- engine model
- Xichai CA6DLD-29E6
- Engine brand
- xichai
- Common name of engine
- Xichai 6 cylinder
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 6.6L
- Emission Standards
- National VI
- Maximum output power
- 213kw
- Maximum horsepower
- 290 HP
- Maximum torque
- 1100N·m
- Maximum torque speed
- 1300-1610RPM
- Rated speed
- 2300RPM
- Engine form
- 6-cylinder in-line, direct injection, supercharged intercooling, electronically controlled common rail, DOC+DPF+HiSCR post-processing
Gearbox parameters
- Gearbox model
- FAW Jiefang CA10TAX130M
- Shifting method
- Manual
- Forward gear
- 10 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- F5N front axle
- Allowable load on front axle
- 6750/6750KG
- Frame size
- 300*80*8mm
- Rear axle description
- 435 upgrade stamping and welding bridge
- Allowable load on rear axle
- 11500KG
- Speed ratio
- 4.111
- Number of spring leaves
- 3/3/4+3
- Tire specifications
- 12R22.5 18PR
- Number of tires
- 8

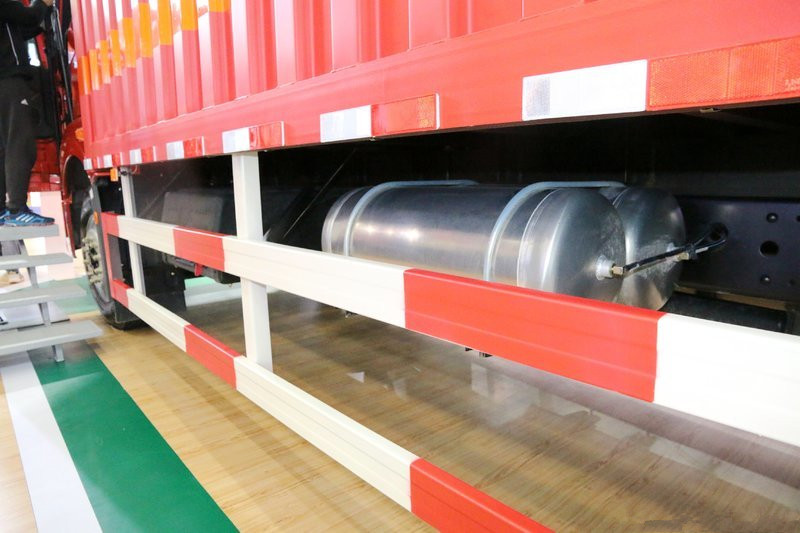

- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 600L
- Container form
- wingspan
- Carton length
- 9.5 meters
- Cargo box width
- 2.43 meters
- Cargo box height
- 2.55 meters
