FAWQD Jiefang JH6 medium truck 260 horsepower 4X2 9.75m box truck
Submit purchase requestBasic Information
- type:
- van truck
- Drive form:
- 4X2
- Wheelbase:
- 7100mm
- Box length level:
- 9.8 meters
- engine:
- Dachai CA6DH1-26E6
- Gearbox:
- Fast 8JS105TA
- Rear axle speed ratio:
- 4.111
- Body length:
- 11.995 meters

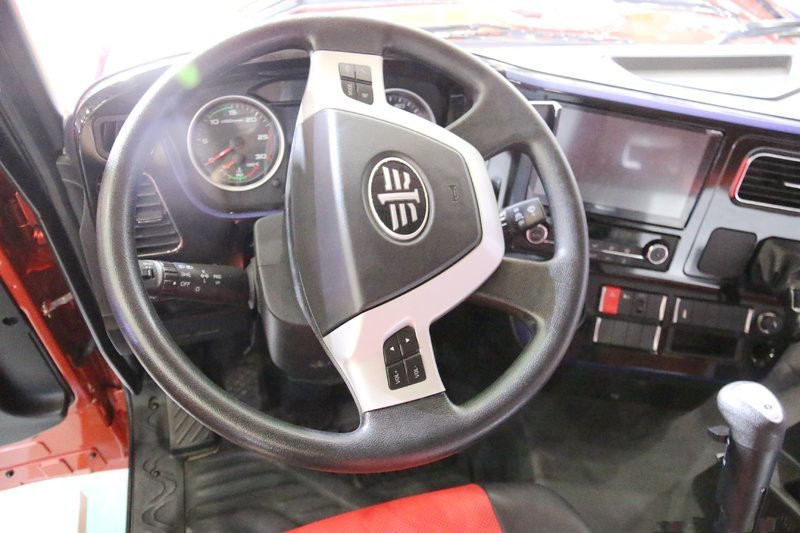

Truck Picture
Truck Configuration
Basic Information
- type
- van truck
- Drive form
- 4X2
- Wheelbase
- 7100mm
- Box length level
- 9.8 meters
- engine
- Dachai CA6DH1-26E6
- Gearbox
- Fast 8JS105TA
- Rear axle speed ratio
- 4.111
- Body length
- 11.995 meters
- Body width
- 2.55 meters
- Body height
- 3.995 meters
- Front track
- 1938mm
- Rear wheelbase
- 1860mm
- Vehicle weight
- 8.6 tons
- Rated load
- 9.27 tons
- Total mass
- 18 tons
- Maximum speed
- 97KM/h
- Origin
- Qingdao
- Tonnage level
- medium card
- Approach angle
- 20 degrees
- Departure angle
- 14 degrees
- Market segments
- City delivery
- Front suspension/rear suspension
- 1.41/3.485 meters
Engine parameters
- engine model
- Dachai CA6DH1-26E6
- Engine brand
- Dachai
- Common name of engine
- Dachai 4DK
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 5.7L
- Emission Standards
- National VI
- Maximum output power
- 192kw
- Maximum horsepower
- 260 HP
- Maximum torque
- 1000N·m
- Maximum torque speed
- 1300-1700RPM
- Rated speed
- 2500RPM
- Engine form
- High voltage common rail+EGR+DOC+DPF+SCR+ASC
Gearbox parameters
- Gearbox model
- Fast 8JS105TA
- Shifting method
- Manual
- Forward gear
- 8 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- F4N front axle
- Allowable load on front axle
- 6500KG
- Frame size
- 270×75×7mm
- Rear axle description
- 378 Casting Bridge
- Allowable load on rear axle
- 11500KG
- Speed ratio
- 4.111
- Number of spring leaves
- 3/3+3
- clutch
- Φ395
- Tire specifications
- 275/80R22.5-18PR
- Number of tires
- 6

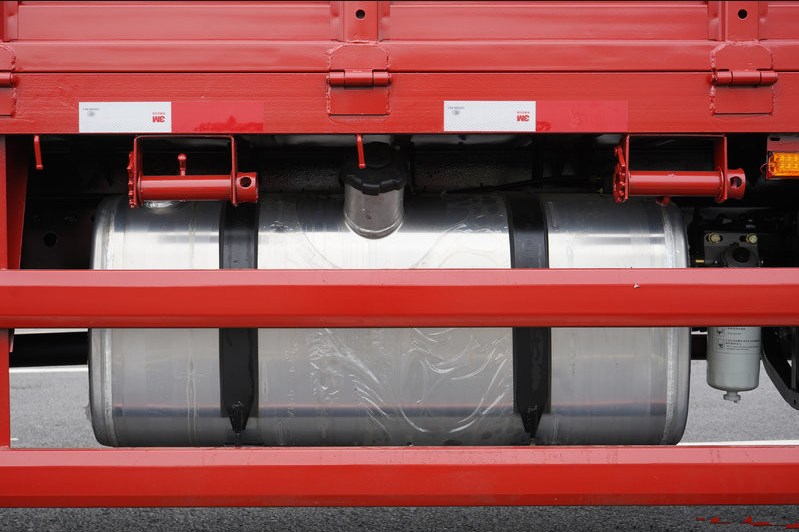

- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 400L
- Container form
- Van type
- Carton length
- 9.75 meters
- Cargo box width
- 2.45 meters
- Cargo box height
- 2.55 meters
